FILE DETAILS:

Bobcat 843 Operators Manual SN 15000 & Above - PDF DOWNLOAD

Language : English
Pages : 90
Downloadable : Yes
File Type : PDF

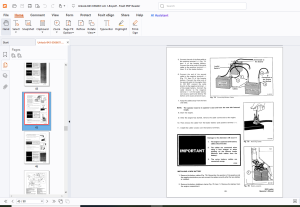

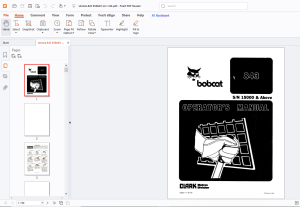

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat 843 Operators Manual SN 15000 & Above - PDF DOWNLOAD

WARNINGS 3
FOREWORD 5
CONTENTS 5
SAFETY INSTRUCTIONS 7
SAFETY IS YOUR RESPONSIBILITY 7
BEFORE YOU OPERATE THE BOBCAT LOADER 7
SAFE OPERATION NEEDS A QUALIFIED OPERATOR 8
FIRE PREVENTION 8
SERIAL NUMBER LOCATIONS 9
DELIVERY REPORT 9
843 BOBCAT LOADER IDENTIFICATION10
OPERATING INSTRUCTIONS11
OPERATING INSTRUCTIONS13
CONTROLS14
SAFETY SIGNS (DECALS)15
DASH PANEL17
THROTTLE CONTROL17
TO STOP THE ENGINE17
PARKING BRAKE17
STEERING LEVERS18
HYDRAULIC CONTROLS19
Foot Pedal (Hydraulic)19
Lift Arm Operation19
Tilt (Bucket) Operation19
Auxiliary Lever Operation19
BEFORE YOU START THE ENGINE20
STARTING THE ENGINE21
Normal Starting Condition22
Cold Temperature Starting Condition23
ATTACHMENTS AND BUCKETS23
Installation Of Attachments24
Installation Of Bucket24
Removal Of The Bucket25
OPERATING PROCEDURES25
Filling A Bucket26
To Empty The Bucket26
Digging Into The Ground27
Filling A Hole28
PARKING THE BOBCAT LOADER28
TRANSPORTING THE BOBCAT LOADER28
LIFTING THE BOBCAT LOADER29
PREVENTIVE MAINTENANCE31
WARNINGS32
SERVICE SCHEDULE33
LIFT ARM STOP34
LIFTING THE OPERATOR CAB34
LOWERING THE OPERATOR CAB35
ROLL OVER & FALLING OBJECT PROTECTION STRUCTURE (ROPS & FOPS)35
ENGINE SERVICE36
ADJUSTING THE REAR DOOR LATCH36
AIR CLEANER SERVICE36
FUEL SYSTEM37
FUEL SYSTEM SERVICE37
FUEL FILTER38
REMOVING AIR FROM THE FUEL SYSTEM38
ENGINE LUBRICATION SYSTEM39
REPLACEMENT OF ENGINE OIL AND FILTER39
ENGINE COOLING SYSTEM40
Coolant Level40
REMOVING COOLANT FROM THE COOLING SYSTEM40
BELT ADJUSTMENT41
ELECTRICAL SYSTEM41
USING AN EXTRA BATTERY (JUMP STARTING)44
INSTALLING A NEW BATTERY45
SPARK ARRESTOR MUFFLER46
HYDRAULIC/HYDROSTATIC SYSTEM48
REPLACEMENT OF THE HYDRAULIC FILTER48
REPLACMENT OF THE HYDROSTATIC FILTER49
HYDRAULIC/HYDROSTATIC FLUID RESERVOIR49
Checking And Adding Fluid49
Removing The Hydraulic/Hydrostatic Fluid49
FINAL DRIVE TRANSMISSION50
Chaincase50
Reduction Gearcase50
TIRE MAINTENANCE50
Tire Rotation50
Wheel Nuts51
LUBRICATION OF THE BOBCAT LOADER51
BOB-TACH52
PIVOT PINS52
BRAKE PEDAL ADJUSTMENT53
AUXILIARY LOCKBOLT53
TROUBLESHOOTING55
TROUBLESHOOTING THE HYDRAULIC SYSTEM57
TROUBLESHOOTING THE HYDROSTATIC SYSTEM58
TROUBLESHOOTING THE ENGINE59
MAJOR PARTS61
MAIN FRAME63
OPERATOR GUARD ELECTRICAL64
ENGINE ELECTRICAL65
HYDRAULIC SYSTEM66
DRIVE SYSTEM67
CONTROL PEDALS68
HYDROSTATIC SYSTEM69
HAND CONTROLS70
SEAT & FRAME SYSTEM71
ENGINE & ATTACHING PARTS72
WARNING SIGNS75
WARNING - 656598077
SERVICE SCHEDULE - 656787578
WARNING - 656338080
WARNING - 656138081
IMPORTANT - 656057382
GENERAL INFORMATION83
LOADER SPECIFICATIONS85
OPERATION & PERFORMANCE85
ENGINE85
LOADER HYDRAULICS86
ELECTRICAL86
DRIVE SYSTEM86
CAPACITIES86
TIRES86
ADDITIONAL PUBLICATIONS87
WARRANTY89

DESCRIPTION:

Bobcat 843 Operators Manual SN 15000 & Above - PDF DOWNLOAD

FOREWORD:

• This book is written to give the owner/operator necessary operating, servicing and preventive maintenance instruction for the Model 843 Bobcat loader. Read this manual completely and know the loader before operating and servicing it.
• To find a section, put thumb on the tab and turn pages until correct section is reached. For any extra information needed, see your Bobcat dealer.
• Do not do any service procedures that are not in the OPERATOR'S MANUAL! Only service personnel that have had training in service on the Bobcat loader can do the service procedures which are not in the Operator's Manual.
• If extra Parts Books, Service Manuals or Operator's Manuals are needed, they are available through the Bobcat dealer in your area for an added cost.

I. SAFETY INSTRUCTIONS:

A. SAFETY IS YOUR RESPONSIBILITY:

• The Skid Steer Loader is a highly maneuverable and compact machine. In operation, it is rugged and useful under a wide variety of conditions. This presents an operator with hazards which are common for off highway, rough terrain applications but are not unique for use of Bobcat loaders.
• The loader has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill so the loader must be used with adequate ventilation. The loader must not be used in an area with explosive dusts or gases or so that the engine exhaust can contact flammable material.
• The loader has a spark arrestor muffler which is required for operation in certain areas. For loader applications, the dealer recommends the capabilities and restrictions of the loader and attachments for each application. The dealer demonstrates the safe operation of the loader according to the manufacturer's instructional materials which are also available to all operators.
• The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for rated capacity and secure fastening to the loader. For each model loader, the user must check with the dealer or manufacturer's literature to identify each bucket or attachment for safe loads of materials of specified densities.

The following publications provide information on the safe use of the loader and attachments:

1. The Delivery Report is used to check whether complete instructions have been given to the new owner.2. The Operator's Manual delivered with every loader gives operating information as well as routine maintenance and service.3. Every loader has machine signs (or decals) which instruct on the safe care and operation of the loader. The complete signs and their location are shown in the Operator's Manual. All signs are available from your Bobcat dealer.4. The loader has a plastic Operator Handbook fastened to the operator cab. It has brief instructions always available to the operator. The handbook is available from your Bobcat dealer in an English edition or a combination English, French, German, Spanish edition.5. The Service Manual and Parts Book are optional manuals from your Bobcat dealer for use by mechanics to do shop-type service and repair work.

G.B 11/03/25
