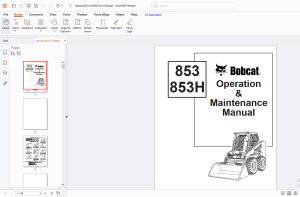

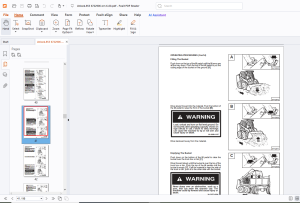

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat 853 853H Operation & Maintenance Manual - PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3
CONTENTS 5
REFERENCE INFORMATION 5
BOBCAT COMPANY IS ISO 9001 CERTIFIED 6
REGULAR MAINTENANCE ITEMS 6
FOREWORD 7
SERIAL NUMBER LOCATIONS 9
LOADER SERIAL NUMBER 9
ENGINE SERIAL NUMBER 9
DELIVERY REPORT 9
BOBCAT SKID STEER LOADER IDENTIFICATION10
SAFETY11
SAFETY INSTRUCTIONS13
SAFETY IS THE OPERATOR’S RESPONSIBILITY13
BEFORE OPERATING THE BOBCAT LOADER14
SAFE OPERATION NEEDS A QUALIFIED OPERATOR *14
FIRE PREVENTION15
MACHINE SIGNS (DECALS)16
OPERATING INSTRUCTIONS19
INSTRUMENT PANEL21
Standard21
Optional BOSS®22
ENGINE SPEED CONTROL23
PARKING BRAKE23
STEERING LEVERS24
HYDRAULIC CONTROLS25
Foot Pedals25
Lift Arm Operation25
Tilt Operation (Bucket)25
Bucket Position Valve Operation (Optional)25
Auxiliary Hydraulics Operation (Optional)26
Auxiliary Hydraulics Operation (With OptionalBOSS®)27
Auxiliary Hydraulics Operation – 853H (Optional)28
DAILY INSPECTION30
SEAT BAR RESTRAINT SYSTEM31
GETTING READY FOR OPERATION32
STARTING THE ENGINE33
Normal Starting Condition – (Standard)34
Cold Temperature Starting Condition – (Standard)35
Normal Starting Condition – (Optional)36
Warming The Hydraulic/Hydrostatic System35
Normal Starting Condition – (Optional)36
Cold Temperature Starting Condition (Optional)37
STOPPING THE ENGINE37
ATTACHMENTS AND BUCKETS38
Installation And Removal39
OPERATING PROCEDURES40
Filling The Bucket41
Emptying The Bucket41
Digging Into The Ground42
Leveling The Ground (Using Lift Arms In Float Position)42
Backfilling43
PARKING THE BOBCAT LOADER43
TRANSPORTING THE BOBCAT LOADER43
LIFTING THE LOADER44
Four Point Lift44
Single Point Lift44
PREVENTIVE MAINTENANCE45
MAINTENANCE SAFETY46
SERVICE SCHEDULE47
LIFT ARM SUPPORT DEVICE48
To Engage Lift Arm Support Device48
To Disengage Lift Arm Support Device48
OPERATOR CAB49
Raising The Operator Cab49
Lowering The Operator Cab49
Emergency Exit50
SEAT BAR RESTRAINT SYSTEM51
Seat Bar Inspection51
Seat Bar Maintenance51
REAR DOOR52
Adjustment52
REAR GRILL52
AIR CLEANER SERVICE53
Standard53
Optional53
Servicing The Air Cleaner 54
FUEL SYSTEM55
Fuel Specifications55
Filling The Fuel Tank55
Fuel Filter55
Removing Air From The Fuel System56
ENGINE LUBRICATION SYSTEM57
Checking Engine Oil57
Replacing Oil And Filter57
COOLING SYSTEM59
Cleaning The Cooling System59
Checking The Coolant Level59
Removing Coolant From The Cooling System60
Propylene Glycol60
ALTERNATOR BELT61
Adjusting The Alternator Belt61
ELECTRICAL SYSTEM62
Description62
Servicing The Electrical System62
Fuse Location – 853 (Optional) & 853H (Option)62
Fuse Location – 853 (Standard)62
Using A Booster Battery (Jump Starting)63
Battery Removal And Installation64
HYDRAULIC/HYDROSTATIC SYSTEM65
Checking And Adding Fluid65
Hydraulic/Hydrostatic Filter Replacement65
Hydraulic Fluid Replacement66
Hydraulic Reservoir Breather Cap66
SPARK ARRESTOR MUFFLER67
TIRE MAINTENANCE68
Wheel Nuts68
Tire Rotation68
Tire Mounting68
FINAL DRIVE TRANSMISSION (CHAINCASE)69
Checking And Adding Oil69
FAN GEARBOX69
DRIVE BELT 70
Adjustment70
Drive Belt Replacement70
LUBRICATION OF THE BOBCAT LOADER71
PIVOT PINS72
BOB–TACH73
PARKING BRAKE PEDAL73
Adjustment73
SYSTEMS ANALYSIS75
SERVICE CODES77
MACHINE SIGN TRANSLATIONS79
IMPORTANT - 656057381
WARNING - 657951182
SERVICE SCHEDULE - 670821283
WARNING - 657951085
WARNING - 657963986
WARNING - 657775486
DANGER - 670230286
DANGER - 670230186
SPECIFICATIONS87
LOADER DIMENSIONS89
OPERATION & PERFORMANCE89
ENGINE89
HYDRAULIC SYSTEM90
ELECTRICAL90
DRIVE SYSTEM90
CAPACITIES90
TIRES90
BOBCAT COMPANY APPROVED ATTACHMENTS & ACCESSORIES91
ATTACHMENTS & ACCESSORIES94
ADDITIONAL PUBLICATIONS95
WARRANTY97

DESCRIPTION:

Bobcat 853 853H Operation & Maintenance Manual - PDF DOWNLOAD

FOREWORD:

• This Operation & Maintenance Manual was written to give the owner/operator instructions on the safe operation and maintenance of the Bobcat loader.
• READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR LOADER. If you have any questions, see your Bobcat loader dealer.

SAFETY INSTRUCTIONS FOR BOBCAT SKID–STEER LOADERS AND ATTACHMENTS SAFETY IS THE OPERATOR’S RESPONSIBILITY:

• All Bobcat loaders and attachments are designed to give maximum safety, but no machine design can prevent operator error or carelessness. The Bobcat skid–steer loader is highly maneuverable and compact. It is rugged and useful under a wide variety of conditions.
• This presents an operator with hazards associated with off highway, rough terrain applications, common with Bobcat loader usage. The Bobcat loader has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill or cause illness so use the loader with adequate ventilation.
• The loader has a spark arrestor exhaust system or muffler which is required for operation in certain areas. The dealer explains the capabilities and restrictions of the Bobcat loader and attachments for each application. The dealer demonstrates the safe operation according to Bobcat instructional materials, which are also available to operators.
• The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for a Rated Operating Capacity (some have restricted lift heights) and secure fastening to the Bobcat loader. The user must check with the dealer, or Bobcat literature, to determine safe loads of materials of specified densities for the loader–attachment combination.

The following publications and training materials provide information on the safe use and maintenance of the Bobcat loader and attachments:

• The Delivery Report is used to assure that complete instructions have been given to the new owner and that the Bobcat loader and attachment is in safe operating condition.• The Operation & Maintenance Manual delivered with the Bobcat loader or attachment gives operating information as well as routine maintenance and service procedures. It is a part of the machine and can be stored in a container provided inside the cab of the loader. Replacement Operation & Maintenance Manuals can be ordered from your Bobcat dealer.• Machine signs (decals) instruct on the safe operation and care of your Bobcat loader or attachment. The signs and their locations are shown in the Operation & Maintenance Manual. Replacement signs are available from your Bobcat dealer. • An Operator’s Handbook is fastened to the operator cab of the loader. Its brief instructions are convenient to the operator. The Handbook is available from your dealer in an English edition or one of many other languages. See your Bobcat dealer for more information on translated versions. • The Safety Manual delivered with the Bobcat loader gives general safety information.• Operator Training Courses are available from your local Bobcat dealer. They provide information for safe and efficient operation of the Bobcat loader and some attachments. The courses are available in English and Spanish versions.• Service Safety Training Courses are available from your Bobcat dealer. They provide information for safe and correct service procedures
