FILE DETAILS:

Bobcat 853 853H Operation & Maintenance Manual - PDF DOWNLOAD

Language : English
Pages : 128
Downloadable : Yes
File Type : PDF

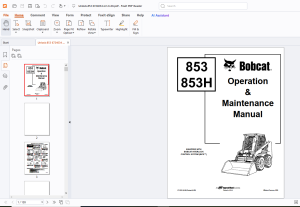

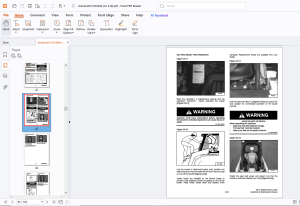

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat 853 853H Operation & Maintenance Manual - PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3
CONTENTS 5
FOREWORD 7
BOBCAT COMPANY IS ISO 9001 CERTIFIED 9
REGULAR MAINTENANCE ITEMS 9
MOTOR OIL 9
SERIAL NUMBER LOCATIONS 11
LOADER SERIAL NUMBER 11
ENGINE SERIAL NUMBER 11
DELIVERY REPORT 11
BOBCAT LOADER IDENTIFICATION 12
OPTIONS AND ACCESSORIES 13
Tires 13
Operator Cab 13
Hydraulics 13
Other 13
Instrumentation 13
SAFETY 15
SAFETY INSTRUCTIONS FOR BOBCAT SKID-STEER LOADERS AND ATTACHMENTS 17
SAFETY IS THE OPERATOR’S RESPONSIBILITY 17
BEFORE OPERATING THE BOBCAT LOADER 18
SAFE OPERATION NEEDS A QUALIFIED OPERATOR* 18
FIRE PREVENTION 19
MACHINE SIGNS (DECALS) 20
OPERATING INSTRUCTIONS 23
INSTRUMENT PANELS 25
Standard 25
Boss® Option 26
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 28
Description 28
Lift Arm By-Pass Control 29
Traction Lock Override 29
Seat Sensor Override (If Equipped) 29
ENGINE SPEED CONTROL 30
Operation 30
PARKING BRAKE 30
Operation 30
STEERING LEVERS 32
Operation 32
STOPPING THE BOBCAT LOADER 32
Procedure 32
SEAT BAR RESTRAINT SYSTEM 33
HYDRAULIC CONTROLS 35
Foot Pedals 35
Lift Arm Operation 35
Lift Arm Float Position 35
Tilt Operation 35
Bucket Position Valve Operation (Optional) 35
Auxiliary Hydraulics (Optional) 36
Auxiliary Hydraulic Button 37
Front Auxiliary Control (Optional) 38
Rear Auxiliary Control (Optional) 38
Front Auxiliary Hydraulics Continuous Operation (Detent) 38
Attachment Functions Control 39
AUXILIARY HIGH HORSEPOWER HYDRAULICS OPERATION 40
Secondary Front Auxiliary Hydraulics (853H Only) 41
DAILY INSPECTION 42
GETTING READY FOR OPERATION 43
STARTING THE ENGINE 45
Normal Starting Condition (Standard) 45
Cold Temperature Starting Condition (Standard) 47
Normal Starting Condition (BOSS® Option) 48
Cold Temperature Starting Condition (BOSS® Option) 49
Warming The Hydraulic/Hydrostatic System 49
STOPPING THE ENGINE 49
ATTACHMENTS AND BUCKETS 50
Choosing The Correct Bucket 50
Installing And Removal 51
OPERATING PROCEDURE 53
Filling The Bucket 54
Emptying the Bucket 54
Digging Into The Ground 55
Leveling The Ground (Using Lift Arms In Float Position) 55
Backfilling 56
PARKING THE BOBCAT LOADER 56
STOPPING THE BOBCAT LOADER 56
TRANSPORTING THE BOBCAT LOADER 57
Loading Onto Transport Vehicle 57
Fastening To Transport Vehicle 57
TOWING THE LOADER 58
STOPPING THE BOBCAT LOADER 58
LIFTING THE LOADER 59
Four Point Lift 59
Single Point Lift 59
PREVENTIVE MAINTENANCE 61
MAINTENANCE SAFETY 63
SERVICE SCHEDULE 65
Chart 65
LIFT ARM SUPPORT DEVICE 66
Engaging The Lift Arm Support Device 66
Disengaging The Lift Arm Support Device 67
OPERATOR CAB 68
Raising The Operator Cab 68
Lowering The Operator Cab 69
Emergency Exit 70
SEAT BAR RESTRAINT SYSTEM 71
Inspecting The Seat Bar 71
Maintaining The Seat Bar 71
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 72
Inspecting The BICS™ Controller (Engine Stopped - Key ON) 72
Inspecting The Seat and Seat Bar Sensors (Engine RUNNING) 72
Inspecting The Traction Lock (Engine RUNNING) 72
Inspecting The Lift Arm By-Pass Control 72
Maintenance 73
REAR DOOR 74
Opening The Rear Door 74
Adjusting The Rear Door 74
REAR GRILL 75
AIR CLEANER SERVICE 76
FUEL SYSTEM 78
Fuel Specifications 78
Filling The Fuel Tank 78
Fuel Filter 79
Removing Air From The Fuel System 80
ENGINE LUBRICATION SYSTEM 81
Checking Engine Oil 81
Oil Chart 81
Replacment Of Oil And Filter 81
COOLING SYSTEM 83
Cleaning The Cooling System 83
Checking The Coolant Level 83
Removing Coolant From The Cooling System 84
Propylene Glycol 84
ALTERNATOR BELT 84
Adjusting The Alternator Belt 84
ELECTRICAL SYSTEM 85
Description 85
Servicing The Electrical System 85
Fuse Location - (Standard & BOSS® Option) 85
Using A Booster Battery (Jump Starting) 86
Removing And Installing The Battery 87
HYDRAULIC / HYDROSTATIC SYSTEM 88
Checking And Adding Fluid 88
Hydraulic/Hydrostatic Filter Replacement 88
Hydraulic Fluid Replacement 89
Hydraulic Reservoir Breather Cap 91
SPARK ARRESTOR MUFFLER 92
Maintenance 92
TIRE MAINTENANCE 93
Wheel Nuts 93
Tire Rotation 93
Tire Mounting 93
FINAL DRIVE TRANSMISSION (CHAINCASE) 94
Checking And Adding Oil 94
Removing Oil From The Chaincase 94
FAN GEARBOX 95
Checking And Maintaining 95
DRIVE BELT 95
Adjusting The Drive Belt 95
Replacing The Drive Belt 96
LUBRICATING THE BOBCAT LOADER 97
PIVOT PINS 98
BOB-TACH 99
SYSTEM SETUP & ANALYSIS101
SERVICE CODES103
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™)105
Troubleshooting Chart105
ADVANCED HAND CONTROLS (AHC)106
Troubleshooting Chart106
MACHINE SIGN TRANSLATIONS107
IMPORTANT (6560573)109
WARNING (6579511)110
SERVICE SCHEDULE (6708212)111
WARNING (6579510)113
DANGER (6579528)114
WARNING (6577754)114
WARNING (6579639)115
WARNING (6579509)115
SPECIFICATIONS117
LOADER SPECIFICATIONS119
Machine Dimensions119
Performance120
Controls120
Engine120
Hydraulic System121
Electrical121
Drive System122
Capacities122
Tires122
Floor Pressure122
MELROE COMPANY APPROVED ATTACHMENTS & ACCESSORIES - For use on 853 Bobcat Loaders123
ADDITIONAL PUBLICATIONS AND TRAINING MATERIALS126
WARRANTY127

DESCRIPTION:

Bobcat 853 853H Operation & Maintenance Manual - PDF DOWNLOAD

SAFETY INSTRUCTIONS FOR BOBCAT SKID-STEER LOADERS AND ATTACHMENTS:

SAFETY IS THE OPERATOR’S RESPONSIBILITY:

• All Bobcat Loaders and attachments are designed to give maximum safety, but no machine design can prevent operator error or carelessness.
• The Bobcat skid-steer Loader is highly maneuverable and compact. It is rugged and useful under a wide variety of conditions. This presents an operator with hazards associated with off highway, rough terrain applications, common with Bobcat Loader usage.
• The Bobcat Loader has an internal combustion engine with resultant heat and exhaust. All exhaust gasses can kill or cause illness so use the Loader with adequate ventilation. The loader has a spark arrestor exhaust system or muffler which is required for operation in certain areas.
• The dealer explains the capabilities and restrictions of the Bobcat Loader and attachment for each application. The dealer demonstrates the safe operation according to Bobcat instructional materials, which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for a Rated Operating Capacity (some have restricted lift heights). They are designed for secure fastening to the Bobcat Loader. The user must check with the dealer, or Bobcat literature, to determine safe loads of materials of specified densities for the loader - attachment combination.

The following publications and training materials provide information on the safe use and maintenance of the Bobcat machine and attachments:

• The Delivery Report is used to assure that complete instructions have been given to the new owner and that the machine and attachment is in safe operating condition.• The Operation & Maintenance Manual delivered with the machine or attachment gives operating information as well as routine maintenance and service procedures. It is a part of the machine and can be stored in a container provided on the machine. Replacement Operation & Maintenance Manuals can be ordered from your Bobcat dealer.• Machine signs (decals) instruct on the safe operation and care of your Bobcat machine or attachment. The signs and their locations are shown in the Operation & Maintenance Manual. Replacement signs are available from your Bobcat dealer
