FILE DETAILS:

Bobcat 963 Operation & Maintenance Manual - PDF DOWNLOAD

Language : English
Pages : 182
Downloadable : Yes
File Type : PDF

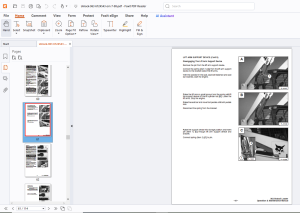

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat 963 Operation & Maintenance Manual - PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3
CONTENTS 5
REFERENCE INFORMATION 5
MELROE COMPANY IS ISO 9001 CERTIFIED 6
REGULAR MAINTENANCE ITEMS 6
FOREWORD 7
SERIAL NUMBER LOCATIONS 9
LOADER SERIAL NUMBER 9
ENGINE SERIAL NUMBER 9
DELIVERY REPORT 9
963 BOBCAT LOADER IDENTIFICATION 10
OPTIONS AND ACCESSORIES 11
SAFETY 13
SAFETY INSTRUCTIONS 15
SAFETY IS THE OPERATOR’S RESPONSIBILITY 15
BEFORE OPERATING THE BOBCAT LOADER 16
SAFE OPERATION NEEDS A QUALIFIED OPERATOR* 16
FIRE PREVENTION 17
MACHINE SIGNS (DECALS) 18
OPERATING INSTRUCTIONS 21
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 26
Lift Arm By–Pass Control 26
Traction Lock Override 27
Seat Sensor Override (If Equipped) 27
INSTRUMENT PANEL 23
Without BOSS® (Front Panel) 23
With BOSS® (Front Panel) 24
Side Console• 24
BOSS Option Display Panel 25
ENGINE SPEED CONTROL 27
PARKING BRAKE 28
STEERING LEVERS 29
HIGH SPEED RANGE 29
STOPPING THE BOBCAT LOADER 29
SEAT BAR RESTRAINT SYSTEM (FOOT PEDALS) 30
SEAT BAR RESTRAINT SYSTEM (ADVANCED HAND CONTROLS) 31
HYDRAULIC CONTROLS 32
Foot Pedals 32
Lift Arm Operation 32
Lift Arm Float Position 32
Tilt Operation (Bucket) 32
Bucket Position Valve 32
Advanced Hand Controls 33
Lift Arm Operation 33
Lift Arm Float Position 33
Tilt Operation (Bucket) 33
Bucket Position Valve 33
Indicator Lights (Advaced Hand Control) 33
Auxiliary Hydraulics 34
Quick Couplers (Flush Face) 34
Relieving Hydraulic Pressure 34
Auxiliary Hydraulics Switch 35
FRONT Auxiliary Hydraulics Operation 35
FRONT Auxiliary Hydraulics Continuous Operation 35
REAR Auxiliary Hydraulics Operation 35
Attachment Functions Control (If Equipped) 36
DAILY INSPECTION 37
Daily Inspection And Maintenance 37
GETTING READY FOR OPERATION 38
STARTING THE ENGINE 39
Normal Starting (Without BOSS™) 40
Cold Temperature Starting (Without BOSS™) 41
Cold Start System (If Equipped) 41
Warming The Hydraulic/Hydrostatic System 41
STOPPING THE ENGINE 41
STARTING THE ENGINE 42
Normal Starting (With BOSS™) 42
Cold Temperature Starting (With BOSS™) 43
Warming the Hydraulic/Hydrostatic System 43
STOPPING THE ENGINE 43
ATTACHMENTS AND BUCKETS 44
Installing The Bucket Or Attachment 45
Removing The Bucket Or Attachment 46
OPERATING PROCEDURE (FOOT PEDALS) 47
Filling The Bucket 48
Emptying The Bucket 48
Digging Into The Ground 49
Leveling The Ground (Using Lift Arms in Float Position) 49
Backfilling 50
PARKING THE BOBCAT LOADER 50
STOPPING THE BOBCAT LOADER 50
OPERATING PROCEDURE (ADVANCED HANDCONTROLS) 51
Filling The Bucket 51
Emptying The Bucket 51
Digging Into The Ground 52
Leveling The Ground (Using Lift Arms In Float Position) 52
Backfilling 53
PARKING THE BOBCAT LOADER 53
TRANSPORTING THE BOBCAT LOADER 54
TOWING THE LOADER 55
LIFTING THE LOADER 56
PREVENTIVE MAINTENANCE 57
MAINTENANCE SAFETY 58
SERVICE SCHEDULE 59
LIFT ARM SUPPORT DEVICE 60
Engaging The Lift Arm Support Device 60
Disengaging The Lift Arm Support Device 61
OPERATOR CAB 62
Raising The Operator Cab 62
Lowering The Operator Cab 63
Emergency Exit 64
SEAT BAR RESTRAINT SYSTEM (FOOT PEDALS) 65
Inspecting The Seat Bar 65
Maintaining The Seat Bar 65
SEAT BAR RESTRAINT SYSTEM (ADVANCED HAND CONTROLS) 66
Inspecting The Seat Bar 66
Maintaining The Seat Bar 66
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 67
Inspecting The BICS™ System Controller (Engine STOPPED – Key ON) 67
Inspecting The Seat And Seat Bar Sensors (Engine RUNNING) 67
Inspecting The Traction Lock (Engine RUNNING) 67
Inspecting The Lift Arm By–Pass Control 67
Maintenance 67
REAR DOOR 68
Adjusting The Rear Door Latch 68
REAR GRILL 69
AIR CLEANER SERVICE 69
FUEL SYSTEM 71
Fuel Specifications 71
Filling the Fuel Tank 71
Fuel Filters 72
Removing Air From The Fuel System 73
ENGINE LUBRICATION SYSTEM 74
Checking Engine Oil 74
Replacing Oil And Filter 74
COOLING SYSTEM 75
Checking The Coolant Level 75
Cleaning The Cooling System 75
Replacing The Coolant 76
ALTERNATOR BELT 77
Adjusting The Alternator Belt 77
FAN GEARBOX 77
Checking And Maintaining 77
ELECTRICAL SYSTEM 78
Description 78
Servicing The Electrical System 78
Fuse Location 78
Using A Booster Battery (Jump Starting) 79
Removing And Installing The Battery 80
HYDRAULIC/HYDROSTATIC SYSTEM 81
Checking And Adding Fluid 81
Replacing The Hydraulic/Hydrostatic Filter 81
Replacing The Hydraulic Fluid 82
TIRE MAINTENANCE 83
Wheel Nuts 83
Tire Rotation 83
Tire Mounting 83
FINAL DRIVE TRANSMISSION (CHAINCASE) 84
Checking And Adding Oil 84
DRIVE BELT 84
Adjustment 84
SPARK ARRESTOR MUFFLER 85
LUBRICATING THE BOBCAT LOADER 86
PIVOT PINS 87
BOB–TACH 88
Inspection And Maintenance 88
SYSTEMS ANALYSIS 89
MONITOR SERVICE CODES 91
SERVICE CODES 92
TROUBLESHOOTING THE ENGINE 94
TROUBLESHOOTING THE DRIVE SYSTEM 95
TROUBLESHOOTING THE HYDRAULIC SYSTEM 96
AUXILIARY HYDRAULICS OPERATION 96
Troubleshooting Chart 96
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 97
Troubleshooting Chart 97
ADVANCED HAND CONTROLS (AHC) 97
Troubleshooting Chart 97
MACHINE SIGN TRANSLATIONS 99
WARNING - 6579511101
SERVICE SCHEDULE - 6804345102
WARNING - 6579510103
WARNING - 6579528104
WARNING - 6577754104
WARNING - 6803932 104
DANGER - 6702302104
DANGER - 6702301104
SPECIFICATIONS105
PERFORMANCE107
CONTROLS107
ENGINE107
HYDRAULIC SYSTEM108
ELECTRICAL108
DRIVE SYSTEM108
CAPACITIES108
TIRES108
MELROE COMPANY APPROVED ATTACHMENTS & ACCESSORIES109
ADDITIONAL PUBLICATIONS111
WARRANTY113

DESCRIPTION:

Bobcat 963 Operation & Maintenance Manual - PDF DOWNLOAD

SAFETY INSTRUCTIONS:

SAFETY IS THE OPERATOR’S RESPONSIBILITY:

• The Skid Steer Loader is a highly maneuverable and compact machine. In operation, it is rugged and useful under a wide variety of conditions. This presents an operator with hazards associated with off highway, rough terrain applications. The loader has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill or cause illness so the loader must be used with adequate ventilation. The loader has a spark arrestor muffler which is required for operation in certain areas.
• The dealer explains the capabilities and restrictions of the loader and attachments for each application. The dealer demonstrates the safe operation of the loader according to Melroe’s instructional materials; which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for rated capacity and secure fastening to the loader. The user must check with the dealer, or Melroe Company literature, to determine safe loads of materials of specified densities for his loader–attachment combination.

The following publications provide information on the safe use and maintenance of the loader and attachments:

• The Delivery Report is used to assure that complete instructions have been given to the new owner and that the machine is in safe operating condition

.• The Operation and Maintenance Manual delivered with the loader gives operating information as well as routine maintenance and service procedures. It is a part of the loader and can be stored in a container provided inside the cab. Replacement Operation and Maintenance Manuals can be ordered from your Bobcat loader dealer

.• The loader has machine signs (decals) which instruct on the safe operation and care. The signs and their locations are shown in the Operation and Maintenance Manual. Replacement signs are available from your Bobcat loader dealer.

• The loader has a plastic Operator’s Handbook fastened to the operator cab. Its brief instructions are convenient to the operator. The Handbook is available from your dealer in an English edition or one of many other languages. See your Bobcat dealer for more information on translated versions

• The EMI Safety Manual (available in Spanish) delivered with the loader gives general safety information

• The Service Manual and Parts Manual are available from your dealer for use by mechanics to do shop–type service and repair work.

• The Skid–Steer Loader Operator Training Course is available through your local Bobcat dealer. This course provides information for safe and efficient operation of the Bobcat loader. The course is available in English and Spanish versions.

• The Bobcat Skid–Steer Loader Safety Video is available from your Bobcat Dealer.

G.B 11/03/25
