Bomag BW 161 AD-4 BW 202 AD-4 BW 161 ADH-4 BW 203 AD-4 Roller Operating Manual 00811181 PDF

Bomag BW 161 AD-4 BW 202 AD-4 BW 161 ADH-4 BW 203 AD-4 Tandem Vibratory Roller Operating Instruction Manual 00811181 – PDF DOWNLOAD

FILE DETAILS:

Bomag BW 161 AD-4 BW 202 AD-4 BW 161 ADH-4 BW 203 AD-4 Tandem Vibratory Roller Operating Instruction Manual 00811181 – PDF DOWNLOAD

Language : English
Pages : 116
Downloadable : Yes
File Type : PDF
Size: 3.05 MB

DESCRIPTION:

Bomag BW 161 AD-4 BW 202 AD-4 BW 161 ADH-4 BW 203 AD-4 Tandem Vibratory Roller Operating Instruction Manual 00811181 – PDF DOWNLOAD

S/N 101 920 02 ….> S/N 101 920 03 ….>
S/N 101 920 04 ….> S/N 101 920 05 ….>

Foreword:

BOMAG manufactures machines for earth, asphalt, and refuse compaction, as well as stabilizers/recyclers, milling machines, and finishers. BOMAG’s vast experience, combined with state-of-the-art production and testing methods such as lifetime tests of all vital components and highest quality demands, ensures maximum reliability of your machine.

This manual includes:

• Safety regulations
• Operating instructions
• Maintenance instructions
• Troubleshooting

Using these instructions will:

• Help you become familiar with the machine.
• Prevent malfunctions caused by unprofessional operation.

Compliance with the maintenance instructions will:

• Enhance the reliability of the machine on construction sites.
• Prolong the lifetime of the machine.
• Reduce repair costs and downtimes.

BOMAG will not assume liability for the function of the machine:

• If it is handled in a way not complying with the usual modes of use.
• If it is used for purposes other than those mentioned in these instructions.

No warranty claims can be lodged in case of damage resulting from:

• Operating errors
• Insufficient maintenance
• Wrong fuels and lubricants.

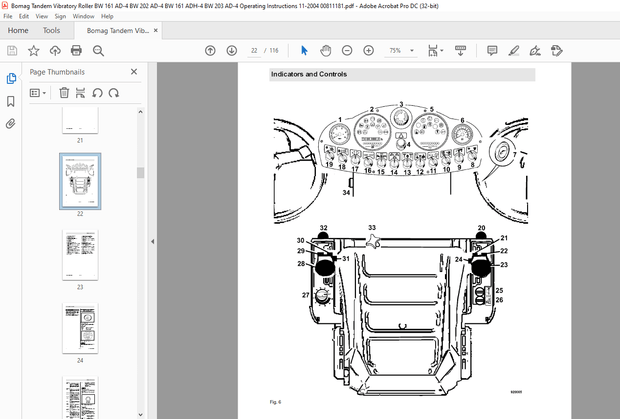

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bomag BW 161 AD-4 BW 202 AD-4 BW 161 ADH-4 BW 203 AD-4 Tandem Vibratory Roller Operating Instruction Manual 00811181 – PDF DOWNLOAD

Technical Data 7
Safety regulations 13
Indicators and Controls 21
3.1 General notes 24
3.2 Description of indicators and control elements 24
Operation 39
4.1 General notes 40
4.2 Tests before taking into operation 40
4.3 Starting the engine 41
4.4 Starting with jump wires 45
4.5 Driving the machine 46
4.6 Stopping the machine, operating the parking brake 48
4.7 Shutting the engine down 49
4.8 Switching the vibration on and off 50
4.9 Operating the crabwalk 53
4.10 Switching the pressure sprinkling system on and off 54
4.11 Sprinkling of edge cutter 55
4.12 Actuating the emergency stop switch 55
4.13 Adjusting the rotation stop for travel lever movement 56
4.14 Adjusting the driver’s seat 56
4.15 Opening or closing the cabin window 57
4.16 Towing 57
4.17 Transport 59
Maintenance 61
5.1 General notes on maintenance 62
5.2 Fuels and lubricants 63
5.3 Fuels, lubricants and filling capacities 66
5.4 Running-in instructions 67
5.5 Maintenance chart 68
5.6 Check the engine oil level 70
5.7 Check the fuel level 70
5.8 Check the hydraulic oil level 71
5.9 Check the coolant level 72
5.10 Check / empty the fuel pre-cleaner (water separator) / bleed 72
5.11 Check the water level 74
5.12 Check, clean radiator, fuel cooler, hydraulic oil cooler and intercooler 75
5.13 Checking the oil level in vibrator shaft tube 76
5.14 Change the engine oil 77
5.15 Change the engine oil filter cartridge 78
5.16 Checking the anti-freeze concentration 78
5.17 Servicing the air conditioning (summer operation) 79
Table of Contents
6 BOMAG BW 161/202/203 AD-4
5.18 Service the battery 81
5.19 Cleaning the fuel pre-cleaner, replacing, bleeding the filter if necessary 83
5.20 Change the fuel filter cartridge 85
5.21 Changing the oil in the drum drive gear 86
5.22 Checking, tensioning, lubricating the steering chain 87
5.23 Check the engine mounts 88
5.24 Checking the V-belt, tighten, if necessary replace the V-belt 88
5.25 Changing the oil in the vibrator shaft tube 92
5.26 Check, adjust the valve clearance 93
5.27 Changing hydraulic oil and breather filter 95
5.28 Changing the hydraulic oil filter 96
5.29 Grease the articulated joint 97
5.30 Change the coolant 98
5.31 Replace the injection valve 99
5.32 Check, clean, change the combustion air filter 101
5.33 Clean the water tank 103
5.34 Clean the water filter 104
5.35 Water sprinkler system, maintenance in the event of frost 105
5.36 Fill the provision tank for the windscreen washer system 106
5.37 Adjust the scrapers 107
5.38 Tightening torques 107
5.39 Engine conservation 108
Trouble shooting 109
6.1 General notes 110
6.2 Engine
