Bomag BW 213 DH-3 BW 213 PDH-3 BW 214 DH-3 BW 214 PDH-3 vibratory roller Instruction for Repair Manu

Bomag BW 213 DH-3 BW 213 PDH-3 BW 214 DH-3 BW 214 PDH-3 Single drum wheel drive vibratory roller Instruction for Repair Manual – PDF DOWNLOAD

FILE DETAILS:

Bomag BW 213 DH-3 BW 213 PDH-3 BW 214 DH-3 BW 214 PDH-3 Single drum wheel drive vibratory roller Instruction for Repair Manual – PDF DOWNLOAD

Language : English
Pages : 340
Downloadable : Yes
File Type : PDF
Size: 88.9 MB

DESCRIPTION:

Bomag BW 213 DH-3 BW 213 PDH-3 BW 214 DH-3 BW 214 PDH-3 Single drum wheel drive vibratory roller Instruction for Repair Manual – PDF DOWNLOAD

Introduction:

These repair instructions contain all necessary information for training and repair purposes. Notes on maintenance, care and trouble shooting can be found in the operating and maintenance instructions.

The repair manual is divided into assembly groups and marked accordingly:
1 General
2 Testing and adjustment procedures/
Flushing
3 Trouble shooting
4 Drum
5 Articulated joint
6 Components

This manual contains all assembly groups, which are needed for this machine type. The repair instructions describe the removal resp. disassembly and the assembly of parts and assembly groups. Repairs of dismounted assembly groups are described with respect to the availability of tools, spare parts and the skill of trained personnel.

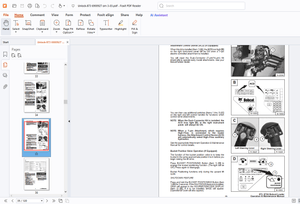

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bomag BW 213 DH-3 BW 213 PDH-3 BW 214 DH-3 BW 214 PDH-3 Single drum wheel drive vibratory roller Instruction for Repair Manual – PDF DOWNLOAD

1.01 Foreword
1.02 Safety regulations
1.03 General notes for repairs
1.04 Tightening torques
1.05 Connecting plan
2.01 Technical data
2.02 Special tools
2.03 Checking the rotary speeds
2.04 Checking / adjusting the mechanical neutral position of the travel pump
2.05 Pressure tests in the travel circuit
2.06 Adjusting the vibrator shaft speed
2.07 Pressure tests in the vibration circuit
2.08 Checking the leak oil rate of the vibration motor
2.09 Pressure tests in the steering circuit
2.10 Special tools for flushing
2.11 Flushing diagram travel circuit
2.12 Flushing the travel circuit
2.13 Flushing diagram vibration circuit
2.14 Flushing the vibration circuit
3.01 General
3.02 Trouble shooting charts
4.01 Special tools
4.02 Removing and installing the drum
4.03 Drum repair overview
4.04 Repairing the drum
4.05 Disassembling and assembling the change-over weight
4.06 Changing the rubber buffers
