Bomag BW 900 Tandem Roller Technical Manual – PDF DOWNLOAD

Bomag BW 900 Tandem Roller Technical Manual - PDF DOWNLOAD

FILE DETAILS:

Bomag BW 900 Tandem Roller Technical Manual - PDF DOWNLOAD

Language : English
Pages :62
Downloadable : Yes
File Type : PDF
Size:9.57 MB

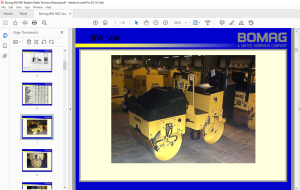

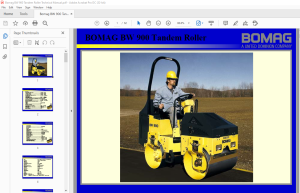

IMAGE PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bomag BW 900 Tandem Roller Technical Manual - PDF DOWNLOAD

Weights
Basic Weight with ROPS … 2497 lbs 1135 kg
Operating Weight … 2924 lbs 1326 kg
Average axle load 1462 lbs 663 kg
Average static linear load CECE 41 31 pli 7 33 kg/cm
Dimensions
Length with ROPS … … 81 8 in 2078 mm
Track Radius, inner … 65 in 1651 mm
Driving Characteristics (depending on site conditions)
Speed (with vibration) … 0-2 5mph 0 4 km/h
Speed (for transport) … 0-4 mph 0-7 6 km/h
Max gradeability with/without vibration 40 %
Engine
Engine …………… … Honda GX620
Cooling …………… air
Number of cylinders 2
Performance ISO 9249 (max) 20 hp 14 9 kW
Speed (max) 3200 rpm
Performance SAE J1349 (max) 18 hp 16 6 kW
Speed (max) 3200 rpm
Electric System …… 12 V
Travel Drive
Drive System hydrostatic
Drum Driven … f + r
Brakes
Service brake SAHR
Parking brake … Hydro-mechanical
Steering
Steering system …oscillating, articulating
Steering method hydrostatic
Steering angle ± …30 degrees
Oscillating angle ± … 6 degrees
Vibratory system
Vibrating drum … front
Drive system …… hydrostatic
Frequency …… 4020 vpm 67 hz
Amplitude …… 0 020 in 0 5 mm
Centrifugal force (front drum) … 3100 lbs 13 8 kn
Water Spray System
Type of water spray system …gravity
