Cagiva Alazzurra 350-650 Parts Manual - PDF DOWNLOAD

Cagiva Alazzurra 350-650 Parts Manual - PDF DOWNLOAD

FILE DETAILS:

Cagiva Alazzurra 350-650 Parts Manual - PDF DOWNLOAD

PN 48532

Language : English, German, French,  Italian
Pages : 58
Downloadable : Yes
File Type : PDF

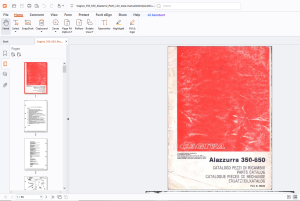

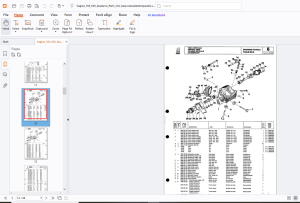

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Cagiva Alazzurra 350-650 Parts Manual - PDF DOWNLOAD

PN 48532

Attrezzi di assistenza - Service tools - Outils d'assistance - Hilfausrüstung 6
Comando cambio - Gear shifter - Commande boîte à vitesses - Schaltungshebel 7
Cambio, frizione - Gearchange, clutch - Boite à vitesses, embrayage - Schaltung, Kupplung 8
Cilindri, imbiellaggio - Cylinders, crankshaft - Cylindres, vilebrequin - Zylinder, Kurbelwelle 9
Distribuzione - Valve timing - Distribution - Ventilsteuerung 10
Testa verticale - Vertical head - Culasse verticale - Zylinderkopf 11
Testa orizzontale - Horizontal head - Culasse horizontale - Zylinderkopf 12
Carburatore - Carburetor - Carburateur - Vergaser 13
Filtri e pompa olio - Filters and oil pump - Filtres et pompe à huile - Olfilter und Pumpe 14
Semicarter lato frizione - Crankcase clutch side - Carter côté embrayage - Motorgehäuse Rechts 15
Semicarter lato catena e alternatore - Crankcase chain side and alternator - Carter côté chaîne et alternateur - Motorgehäuse Links und Lichtmaschine 16
Avviamento elettrico ed accensione - Electric starter and ignition - Démarrage électrique et allumage - Elektrischer Zündung 17
Impianto elettrico - Electric system - Installation électrique - Elektrische Anlage 18
Scarico - Exhaust system - Tuyau d'échappement - Auspuffanlage 19
Sospensione anteriore - Front fork - Suspension avant - Teleskopgabel 19A
Fanale anteriore, cupolino - Headlight, fairing - Phare avant, carénage - Scheinwerfer, Verkleidung 20
Strumenti - Instruments - Instruments - Instrumente 21
Fanale posteriore, indicatori posteriori gruppo cavi - Rear light, rear blinkings harness - Feu arrière, clignotant AR., groupe de câbles - Kabel, Hinterblinker, Kabel Kpl. 22
Attrezzi, dotazione - Tools, stock - Outils, nécessaire - Ausrüstungsteile 23
Manubrio e comandi - Handlebar and controls - Guidon et commandes - Lenker und Steuerorgane 24
Freno idraulico anteriore - Front hydraulic brake - Frein hydraulique avant - Vord. hydraulische Bremse 25
Freno idraulico posteriore, pedane - Rear hydraulic brake, footrests - Frein hydraulique AR., repose-pieds - Hinterbremse, Fußraste 26
Sospensione posteriore, catena, copricatena - Rear suspension, chain, chainguard - Suspension AR., chaîne, carter chaîne - Hinteraufhängung, Kette, Kettenschutz 27
Ruote anteriore e posteriore - Front and rear wheels - Roues avant et arrière - Vorderrad und Hinterrad 28
Filtro aria, parafanghi, telaio - Air filter, fenders, frame - Filtre, garde-boues, chassis - Filter, Kotflügel, Rahmen 29
Sella, serbatoio carburante, pannelli laterali - Seat, gas tank, side panels - Siège, réservoir carburant, panneau - Sattel, Kraftstoffbehälter, Paneel 30

DESCRIPTION:

Cagiva Alazzurra 350-650 Parts Manual - PDF DOWNLOAD

PN 48532

GENERAL INFORMATION:
This catalogue has been prepared for your convenience when ORDERING PARTS for Alazzur- ra 350 and Alazzurra 650 motorcycles.
The following instructions should be followed very carefully when ordering parts:
1) Indicate part number and description;
2) Indicate colour for painted parts:
3) indicate V.I.N. number.
Right side and left side indicated in this catalogue are referred to rider seating on motorcycle.

G.B 17/03/25
