Carraro Axle 26.25 & 26.28 Maintenance & Repair Manual 908483 – PDF DOWNLOAD

Carraro Axle 26.25 & 26.28 Maintenance & Repair Manual 908483 - PDF DOWNLOAD

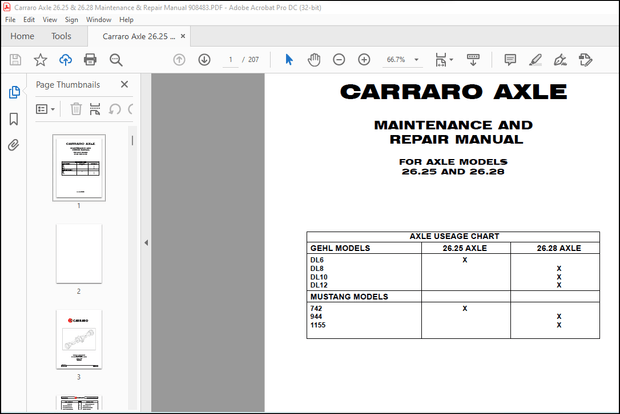

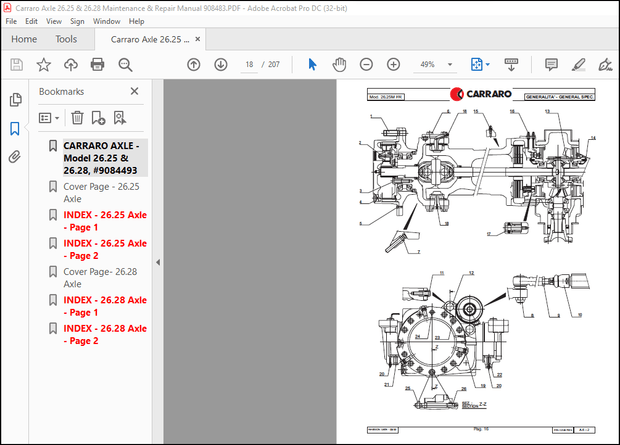

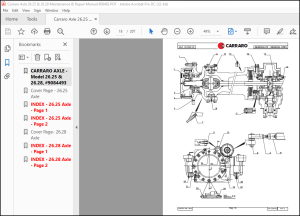

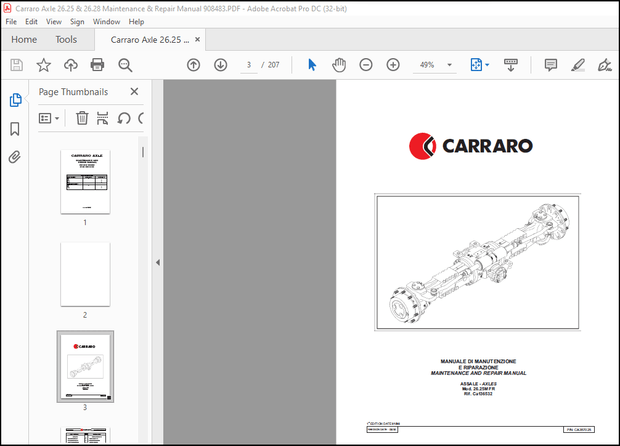

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Carraro Axle 26.25 & 26.28 Maintenance & Repair Manual 908483 - PDF DOWNLOAD

GENERAL DESCRIPTION

The axle dealt with in this manual is intended for industrial purposes and consists of a beam casing housing the differential in the middle and the stub axle wheel hub units at the ends. The differential is a “standard” type and is supported by two bearings mounted in an appropriate structure in which it is possible to adjust the bevel gear set. The ring bevel gear is adjusted by means of ring nuts located opposite each other, while the position of the bevel pinion, supported by two bearings, is adjusted by inserting adjusting shims. The wheel hubs containing the epicyclic reduction gears are supported by two tapered roller bearings. The brakes are oil-bath disc type operated by an annular piston with automatic wear compensation device. The double-rod steering cylinder (hydraulic) is mounted on the differential support. It transmits drive to the stub axles by means of articulated track rods which can be adjusted to correct the toe-in. Two special trunnions (front and rear) fix the axle to the chassis and allow it to pivot freely.
TABLE OF CONTENTS:

Carraro Axle 26.25 & 26.28 Maintenance & Repair Manual 908483 - PDF DOWNLOAD

GENERAL SPECIFICATION
- GENERAL DESCRIPTION
-INTRODUCTION-FOREWORD
- TECHNICAL FEATURES
- LUBRICATION AND CONTROLS
- CONVERSION TABLE
- TIGHTENINGTORQUES
- RECOMMENDATIONS AND REVISION
OPERATIONS
- SYMBOLOGY USED
