Manitowoc Crane MLC300 Parts Manual SN 3001065 – PDF DOWNLOAD

Manitowoc Crane MLC300 Parts Manual SN 3001065 – PDF DOWNLOAD

The Manitowoc Crane MLC300 Parts Manual (SN 3001065) is a vital PDF guide for assembly, disassembly, and maintenance. With part numbers, schematics, and troubleshooting tips, it supports efficient repairs, ensuring optimal crane performance. Download for essential assistance.

FILE DETAILS:

Manitowoc Crane MLC300 Parts Manual SN 3001065 – PDF DOWNLOAD

Language : English
Pages : 1301
Downloadable : Yes
File Type : PDF

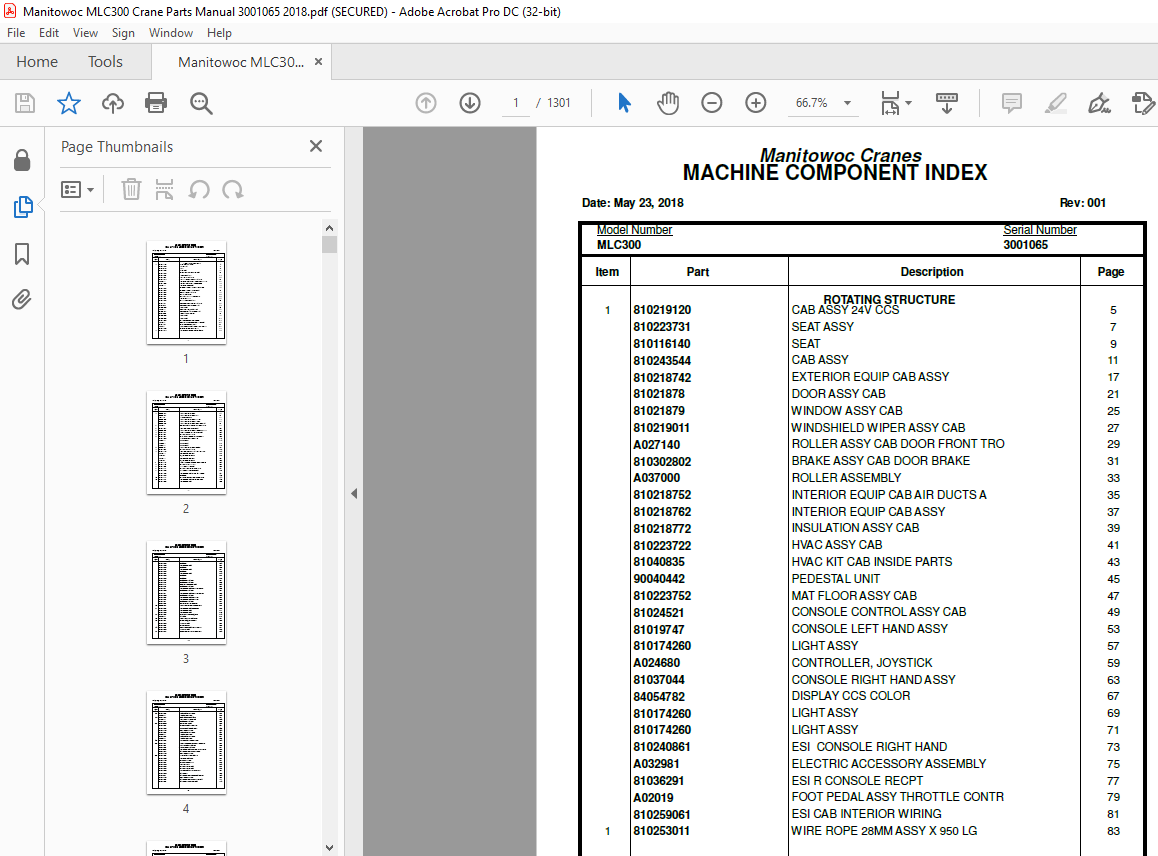

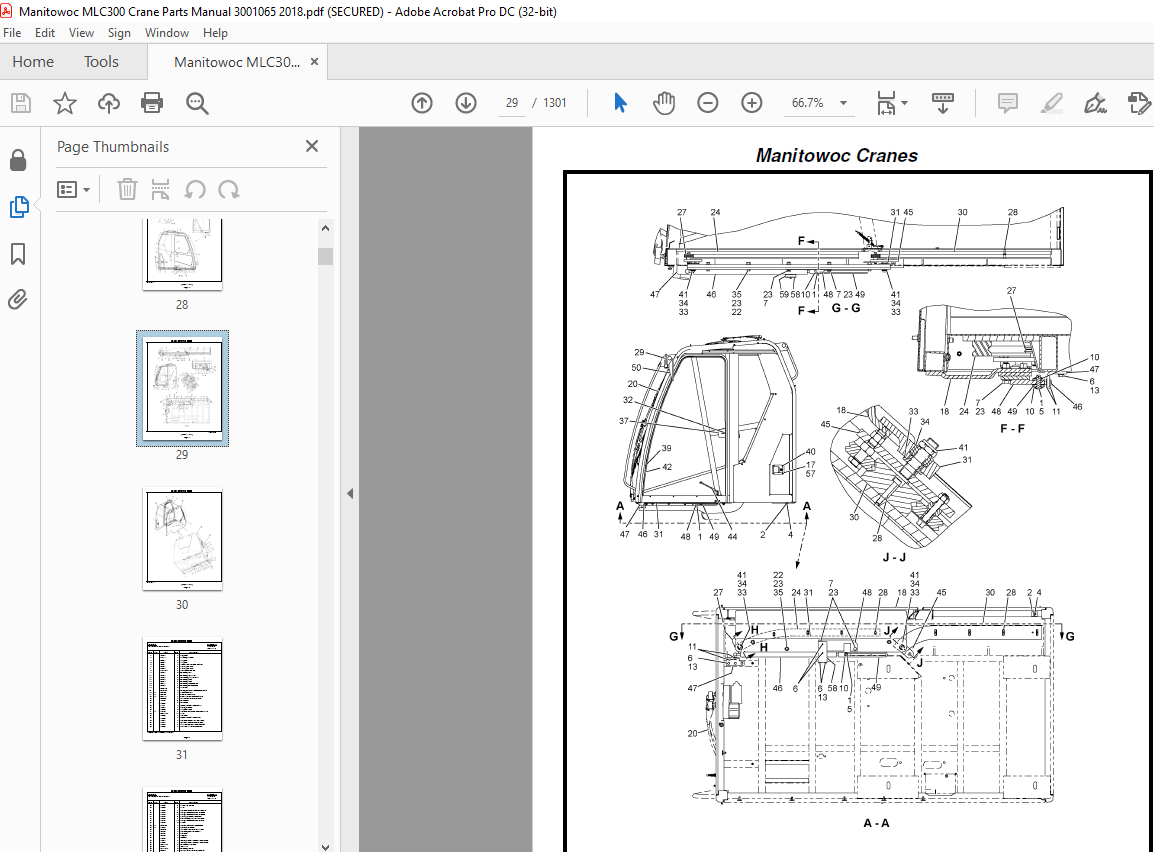

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Manitowoc Crane MLC300 Parts Manual SN 3001065 – PDF DOWNLOAD

ROTATING STRUCTURE
1 810219120 CAB ASSY 24V CCS 5
810223731 SEAT ASSY 7
810116140 SEAT 9
810243544 CAB ASSY 11
810218742 EXTERIOR EQUIP CAB ASSY 17
81021878 DOOR ASSY CAB 21
81021879 WINDOW ASSY CAB 25
810219011 WINDSHIELD WIPER ASSY CAB 27
A027140 ROLLER ASSY CAB DOOR FRONT TRO 29
810302802 BRAKE ASSY CAB DOOR BRAKE 31
A037000 ROLLER ASSEMBLY 33
810218752 INTERIOR EQUIP CAB AIR DUCTS A 35
810218762 INTERIOR EQUIP CAB ASSY 37
810218772 INSULATION ASSY CAB 39
810223722 HVAC ASSY CAB 41
81040835 HVAC KIT CAB INSIDE PARTS 43
90040442 PEDESTAL UNIT 45
810223752 MAT FLOOR ASSY CAB 47
81024521 CONSOLE CONTROL ASSY CAB 49
81019747 CONSOLE LEFT HAND ASSY 53
810174260 LIGHT ASSY 57
A024680 CONTROLLER, JOYSTICK 59
81037044 CONSOLE RIGHT HAND ASSY 63
84054782 DISPLAY CCS COLOR 67
810174260 LIGHT ASSY 69
810174260 LIGHT ASSY 71
810240861 ESI CONSOLE RIGHT HAND 73
A032981 ELECTRIC ACCESSORY ASSEMBLY 75
81036291 ESI R CONSOLE RECPT 77
A02019 FOOT PEDAL ASSY THROTTLE CONTR 79
810259061 ESI CAB INTERIOR WIRING 81
1 810253011 WIRE ROPE 28MM ASSY X 950 LG 83
I
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 001
Model Number
MLC300
Serial Number
3001065
Item Part Description Page
1 80097654 DECAL INSTL-MLC300 85
80097655 DECAL INSTL-MLC300-CAB 87
1815030 BUILDERS DECAL 89
80097656 DECAL INSTL-MLC300-UPPER 93
80097657 DECAL INSTL-MLC300-BOOM 95
80097658 DECAL INSTL-MLC300-CRAW/CBODY 97
2 A03316 COVER ASSY WINDOWS VISION CAB 99
2 81023984 SLEWING RING BRG ASSY 101
2 80097660 DECAL INSTL-MLC300-NOMENCLATUR 103
3 84028005 ROTATING BED STRUT SUBASSY 105
4 81025807 SWITCH DRUM 2 CAB 107
4 81023985 LUBE SYST TURNTABLE BEARING 109
810260460 PUMP GREASE 24VDC/2.0A 113
A067160 VALVE ASSY 115
A067170 VALVE ASSY 117
A067180 VALVE ASSY 119
4 80097661 DECAL INSTL-MLC300-JACKS 121
6 81025809 SWITCH DRUM 5 CAB 123
6 810240152 SLEWING DRIVE ASSY LEFT SWING 125
A056890 MOTOR HYD PISTON 127
5364675 KIT, OVERHAUL/SEAL 129
A056890 MOTOR HYD PISTON 131
5364675 KIT, OVERHAUL/SEAL 133
7 81028816 ROTATING BED HYDRAZORB INSTALL 135
8 81025812 SWITCH CAB TILT CAB 137
8 81026236 BUSHING ASSEMBLY 139
9 81025813 SWITCH TIER 4F ENGINE CAB 141
9 810239780 CAB MOUNTING ASSEMBLY 147
810296433 PLATFORM ASSY 2327 X 540 CAB S 151
810293652 LANYARD 153
10 81025814 SWITCH AIRCRAFT WARNING CAB 155
10 81029179 PLATFORM ASSY ROTATING BED 159
810298032 PLATFORM ASSY 163
II
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 001
Model Number
MLC300
Serial Number
3001065
Item Part Description Page
810293652 LANYARD 165
810300292 PLATFORM ASSY 167
810293652 LANYARD 169
81040149 PLATFORM ASSY 171
810293652 LANYARD 173
81041286 PLATFORM ASSY 175
810293652 LANYARD 177
810293652 LANYARD 179
81041142 LANYARD ASSY PIN 181
81041140 LANYARD ASSY PIN 183
84025515 LADDER FOLDING ASSY 185
81041140 LANYARD ASSY PIN 187
81040151 PLATFORM ASSY ROT BED REAR 189
810315282 LANYARD ASSY PIN 191
81042241 PLATFORM ASSY ROT BED INSIDE 193
810315282 LANYARD ASSY PIN 195
81042928 PLATFORM ASSY ROT BED 197
81042929 PLATFORM ASSY ROT BED 199
81042931 LANYARD ASSY PIN 201
84043542 PANEL EXHAUST SHIELD 203
10 80097855 DECAL INSTL-BASIC HANDRAIL 207
11 81029348 PLATFORM ASSY GENERAL 209
810269922 PLATFORM ASSY 211
810292552 PLATFORM ASSY 213
12 81023986 MAST RAISING ASSY, LIVE 215
A055540 CYL HYD 217
13 81023038 FLOOR PLATE ASSY CAB 221
13 81023987 MAST ASSY, LIVE MAST 223
810258220 SHEAVE ASSY 227
81033389 ESI LIVE MAST 229
15 81026648 EQUALIZER ASSY MAST HOIST 231
810258220 SHEAVE ASSY 233
17 81028324 COUNTERWEIGHT WELDMENT 235
III
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 001
Model Number
MLC300
Serial Number
3001065
Item Part Description Page
20 81042356 LINK ASSY DEAD END 237
A062780 SOCKET BUTTON 239
24 84022934 TANK HYDR ASSY 552 L 241
A164380 VENT BREATHER TANK 245
84019925 LANYARD ASSY PIN 247
30 810287691 PARTS BOX ASSY 249
81038439 KIT SELF ASSY RIGGING 251
810249430 VALVE ASSY QUICK DRAI 253
810039130 Q DISCON FITTING 255
81042356 LINK ASSY DEAD END 257
A062780 SOCKET BUTTON 259
81042356 LINK ASSY DEAD END 261
A062780 SOCKET BUTTON 263
59 81042358 GUARD CYL & HOSE STOW 265
68 84045983 ROTATING BED VPC COMPONENTS 267
81026037 GEAR RACK ASSY VPC 269
84028440 WEAR PAD ASSY VPC 271
81034766 BRACKET ASSY VPC-MAX WEAR PAD 273
84045984 HYD LINES INSTL VPC LINES 277
810039140 Q DISCON FITTING 281
69 81025626 TROLLEY ASSEMBLY VPC 285
810240551 ROLLER ASSY VPC 287
810282121 ESI VPC WIRING 291
81028670 ESI VPC MOUNTING 293
810293291 LIMIT SWITCH 295
810238652 SWITCH LIMIT ASSY 297
810238652 SWITCH LIMIT ASSY 299
810293281 GUARD ASSY VPC WEAR PAD 301
810295501 HYD EQUIP 303
81011301 HYD LINES INSTL ENERGY CHAIN 305
810039130 Q DISCON FITTING 307
81024056 HYD LINES INSTL VPC TROLLEY 311
81028880 HYD EQUIP VPC TROLLEY 315
IV
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 001
Model Number
MLC300
Serial Number
3001065
Item Part Description Page
810136490 VALVE MANIFOLD ASSY 2 BK D03 2 319
810136500 VALVE MANIFOLD 321
810239070 VALVE DIRECTIONAL CONTROL 323
810255720 VALVE MANIFOLD 325
810357471 ENERGY CHAIN TRAY SUPPORT 327
810300471 GUARD ASSY VPC 329
810366431 WEAR PAD ASSY VPC TROLLEY 331
81040002 ENCODER ASSY VPC POSITION 333
81042362 ENERGY CHAIN ASSY SHIPPING 335
81042177 GUARD ASSY VPC ROLLERS 337
81042257 GUARD ASSY ROLLER 339
84030409 HYD MOTOR TROLLEY LEFT SIDE 341
84030410 HYD MOTOR TROLLEY RIGHT SIDE 343
81037248 HYD LINES INSTL VPC-MAX PREP 345
810039140 Q DISCON FITTING 347
70 81024050 COUNTERWEIGHT TRAY ASSY 349
810289431 ESI COUNTERWEIGHT TRAY 351
810289450 LIGHT ASSY VPC WARNING INDICAT 353
810299161 CHAIN ASSY 355
71 84030423 MOD BED LEVEL SENSOR NO DWG
74 81042919 ROTATING BED MOD LIFT LUG PLUG NO DWG
UPPERWORKS MACHINERY
3 81025061 DRUM 1 ASSY MAIN LOAD HOIST 357
810240160 GEAR BOX HOIST 84.7:1 RATIO 359
810256240 HYD MOTOR 250CC PIS VAR B1 24V 365
90038633 OVERHAUL SEAL KIT, H1B160 369
81039856 ROLLER ASSY 371
84021470 HYD LINES INSTL BOOM BUTT DRUM 373
810239070 VALVE DIRECTIONAL CONTROL 377
4 81027708 HOIST ASSY LUFFING 379
81041533 CYL HYD 381
810259471 ESI DRUM 6 383
810245252 LIMIT SWITCH 385
V
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 001
Model Number
MLC300
Serial Number
3001065
Item Part Description Page
81041430 HYD MOTOR 387
90038633 OVERHAUL SEAL KIT, H1B160 391
810277041 HOIST ASSY LUFFING HOIST 393
810284644 PAWL ASSY 395
810345341 HYD EQUIP DRUM 6 399
810136400 VALVE MANIFOLD 403
810239070 VALVE DIRECTIONAL CONTROL 405
5 81027453 HYD LINES INSTL DRUM 0 DRUM 7 407
810039140 Q DISCON FITTING 409
6 81027454 HYD LINES INSTL DRUM 1 PREP 413
810039140 Q DISCON FITTING 417
7 81027455 HYD LINES INSTL DRUM 6 PREP 421
810039140 Q DISCON FITTING 425
14 81024009 HOIST LIVE MAST 427
81041430 HYD MOTOR 431
90038633 OVERHAUL SEAL KIT, H1B160 435
810267791 PAWL 437
810277261 ESI DRUM 4 439
810245252 LIMIT SWITCH 441
810426831 HYD EQUIP DRUM 4 445
810039140 Q DISCON FITTING 451
810121650 Q DISCON FITTING 453
810136400 VALVE MANIFOLD 455
810239070 VALVE DIRECTIONAL CONTROL 457
25 81037691 HYD LINES INSTL 459
26 81026734 HYD LINES INSTL FAN COOLING 463
27 81026882 HYD EQUIP ROT BED VALVES 467
7041130 VALVE, DOUBLE COUNTERBALANCE 471
810136400 VALVE MANIFOLD 473
810239070 VALVE DIRECTIONAL CONTROL 475
810136500 VALVE MANIFOLD 477
810239070 VALVE DIRECTIONAL CONTROL 479
810247280 VALVE BANK 5 BANK D07 3POS 4WA 481
VI
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 001
Model Number
MLC300
Serial Number
3001065
Item Part Description Page
810255720 VALVE MANIFOLD 483
810337762 VALVE MANIFOLD 485
81042925 VALVE RELIEF ASSY 487
84019665 VALVE RELIEF ASSY 489
28 81035571 PIPING HYDR ASSY 491
29 81027438 HYD EQUIP LIVE MAST RAISE CYL 493
30 81027441 HYD EQUIP TRANSDUCER INSTL 495
31 81038266 HYD LINES INSTL TANK RETURN 499
810039140 Q DISCON FITTING 505
810391712 MANIFOLD BLOCK 2 BAR CHECK 12 507
81042207 PIN HOSE STOWAGE 509
32 81038067 HYD LINES INSTL CIRC COOLER FI 511
33 81042684 HYD LINES INSTL DRUM 4 515
810039130 Q DISCON FITTING 519
810114700 Q DISCON FITTING 521
810121640 Q DISCON FITTING 523
81042207 PIN HOSE STOWAGE 525
34 81027447 HYD LINES INSTL ROT BED ACCESS 529
810121650 Q DISCON FITTING 533
810210270 Q DISCON FITTING 535
35 81027459 HYD EQUIP HYD SYS FILTERS 537
36 81027460 HYD LINES INSTL ACCES LOW PRES 541
37 81027461 HYD LINES INSTL ACC HIGH PRES 545
38 81027956 HYD LINES INSTL SWIVEL ROT BED 547
39 810279571 HYD LINES INSTL SWING MOTOR CI 549
84022262 HYD LINES INSTL SWING MOTOR CI 551
40 81029633 HYD LINES INSTL LIVE MAST CYL 553
810210270 Q DISCON FITTING 555
41 84045991 HYD LINES INSTL DRUM 0 PREP 559
810039130 Q DISCON FITTING 563
81040102 VALVE 565
81042207 PIN HOSE STOWAGE 567
42 81027445 HYD LINES INSTL DRUM 2 571
VII
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 001
Model Number
MLC300
Serial Number
3001065
Item Part Description Page
810039130 Q DISCON FITTING 575
81041424 FRAME HOSE STOWAGE 577
81042207 PIN HOSE STOWAGE 579
43 84045990 HYD LINES INSTL DRUM 1 PREP 583
81042207 PIN HOSE STOWAGE 585
44 81033602 HYD LINES INSTL ROTATING BED D 587
810039140 Q DISCON FITTING 591
810114710 Q DISCON FITTING 593
810121650 Q DISCON FITTING 595
45 81034016 HYD LINES INSTL DRUM 6 597
810039130 Q DISCON FITTING 599
81042207 PIN HOSE STOWAGE 601
46 81029382 HYD LINES INSTL LIVE MAST CYL 603
CONTROLS, ELECTRICAL
17 81028247 ESI RCL LIGHT 607
84037426 LIGHT ASSY RCL 609
18 81034282 ESI ROTATING BED 613
81029114 ESI CAB EXTERIOR WIRING 617
810328761 ESI MOUNTING ASSEMBLY 621
810238652 SWITCH LIMIT ASSY 625
84036350 JUNCTION BOX DC LOAD CENTER 627
81034121 ESI CAN RECEPTACLE MOUNT 631
81029825 KIT BASE/REMOTE 2.4 GHZ 633
81038809 ESI SERVICE LIGHTS 635
81038813 LIGHT SERVICE LIGHT ASSY 637
19 81037054 SWITCH 639
22 81041072 ESI VPC-MAX PREP 641
810245252 LIMIT SWITCH 643
810245252 LIMIT SWITCH 645
54 81025886 ESI CUMMINS QSG12 T4F 647
81042368 BRACKET FUSE PANEL 649
63 81041448 COLD WEATHER KIT ROT BED INSTL 653
81040030 BOX JUNCTION ASSY 655
VIII
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 001
Model Number
MLC300
Serial Number
3001065
Item Part Description Page
81040031 BOX JUNCTION ASSY 657
64 81041449 ESI AC COMMON 659
POWER PLANT
5 81028434 TANK FUEL INSTALLATION 661
23 81041522 GENERATOR INSTL COMPONENTS 663
27 90038764 250 HR SERVICE KIT 665
28 90038765 500 HR SERVICE KIT 667
47 81023960 POWERTRAIN QSG12 TIER 4F 671
810248891 GEAR BOX ASSY 450 HP 673
810247210 PUMP 675
810247220 PUMP HYD PIS 165CC EH24V 679
810247230 PUMP HYD CL PIS VAR 100CC 685
810249430 VALVE ASSY QUICK DRAI 687
A097353 CLUTCH ASSY CUMMINS QSG-12 691
810155850 CLUTCH 693
48 81023962 EXHAUST SYST QSG12 T4 FINAL 695
49 81023968 AIR CLEANER INST 450HP CUMMINS 699
810333972 ENCLOSURE ASSY 703
50 81023970 COOLER ASSY 450 HP CUMMINS 709
810295572 PANEL ENCL ASSY 713
810295582 PANEL ENCL ASSY 715
810295592 PANEL ENCL ASSY 717
51 81023972 FUEL CIRCUIT 450 HP CUMMINS 719
81041516 FUEL CIRCUIT 721
52 81023973 BATTERY INSTL CUMMINS QSG12 723
53 81023974 HVAC INSTL 450 HP CUMMINS 727
810287752 AIR COND ASSY KIT OUTSIDE CAB 731
55 81027419 DEF SYSTEM INSTL CUMMINS QSG12 733
56 81028410 CLUTCH RELEASE ASSY 737
57 81026650 ENCLOSURE ASSEMBLY POWER PLANT 739
810324152 COVER ASSY ENCLOSURE 741
810293652 LANYARD 743
810318962 PANEL POWER PLANT ENCL 745
IX
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 001
Model Number
MLC300
Serial Number
3001065
Item Part Description Page
810318992 PANEL ENCL ASSY POWER PLANT 747
810319022 PANEL POWER PLANT ENCL 749
81042535 COVER ASSY ENCLOSURE 751
81042536 COVER ASSY ENCLOSURE 753
60 81037290 GENERATOR ASSY PREP 755
81037291 HEATER APU 757
81037292 AIR COND ASSY APU 759
81037293 FUEL CIRCUIT APU 761
81041768 ESI APU PREP 765
81040179 JUNCTION BOX ASSY APU DC 769
62 81037289 GENERATOR ASSY EQUIP 771
81031997 GENERATOR ASSY 775
LOWERWORKS
1 810239541 CARBODY ASSY 779
81024034 SWIVEL MOUNTING PLATE ASSY 781
810090270 ROTATING JOINT 783
81024036 PIN PULLER CARBODY-CRAWLER 785
810259310 CYLINDER HYDR 787
84030412 ESI CARBODY 789
81028815 HYD EQUIP CARBODY ASSY 791
81026883 HYD EQUIP CARBODY VALVES 793
81028704 VALVE ASSY 1 BANK D03 ALUMINUM 797
810239070 VALVE DIRECTIONAL CONTROL 799
810279320 VALVE MANIFOLD 801
81027449 HYD LINES INSTL CARBODY 803
810114710 Q DISCON FITTING 807
81029218 HYD LINES INSTL CBODY PIN PULL 809
810039140 Q DISCON FITTING 813
81028817 CARBODY HYDRAZORB INSTALL 815
81026991 PLATFORM CARBODY 817
84032560 JACK CYL ASSY CARBODY 819
81027448 HYD LINES INS CARBODY JACK CYL 821
81027972 JACK CYL ASSY LOWERWORKS 825
X
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 001
Model Number
MLC300
Serial Number
3001065
Item Part Description Page
81040882 OUTRIGGER PAD ASSY 827
84032559 HYD EQUIP JACKING CYL VALVES 829
810136490 VALVE MANIFOLD ASSY 2 BK D03 2 831
1 80098606 MLC300 TRACK ASSY W/AUTOLUBE 833
810311600 CRAWLER ASSEMBLY 837
81024041 CRAWLER DRIVE ASSY 841
810240480 ROLLER ASSY CRAWLER INTER 843
810261189 ESI CRAWLER 845
81027451 HYD LINES INSTL CRAWLER 849
810039130 Q DISCON FITTING 853
810114700 Q DISCON FITTING 855
81042207 PIN HOSE STOWAGE 857
81040547 ROLLER ASSY TOP 859
810309632 COVER ASSY ROLLER 861
81033912 GREASE PIPING ASSY AUTOLUBE 863
81032924 CRAWLER GREASE GUARD ASSY 865
81033911 CRAWLER GREASE PIPING ASSY 869
A067180 VALVE ASSY 873
A067180 VALVE ASSY 875
810268840 PUMP GREASE 24VDC/2 .0 A 877
810268890 VALVE ASSY 879
810349820 VALVE ASSY 881
81028767 CRAWLER 48 INCH SHOE ASSY 883
ATTACHMENTS
1 810280360 BOOM BUTT ASSY #500 8.00 M 885
1687791 INDICATOR 887
81025601 PIN PULLER BOOM HINGE 889
3856240 CYLINDER, HYDRAULIC 893
3856245 KIT, SEAL 895
810121640 Q DISCON FITTING 897
81025653 BOOM STOP ASSEMBLY #500 BOOM 899
810259451 ESI BOOM BUTT 901
810295781 CATWALK ASSY #500 8.00M BUTT 903
XI
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 001
Model Number
MLC300
Serial Number
3001065
Item Part Description Page
84020120 MANIFOLD BLOCK RETURN ASSY 905
2 81024072 WINCH RIGGING ASSY 907
810099570 WINCH 913
810280071 GUIDE ASSY 917
A131815 BLOCK .3125 IN WIRE ROPE, 4MT 919
A131810 BLOCK 921
84030729 ADAPTER RIGGING WINCH ASSY 923
84044934 WIRE ROPE RIGGING W/ FITTING 925
3 810253001 WIRE ROPE 28MM ASSY X 440 LG 927
7 2365030 BLOCK, HOOK 929
13 810278030 INSERT ASSY 12M HEAVY #500 931
810296271 GUIDE ASSY 935
810300071 CATWALK ASSY #500 12M HEAVY 937
810338541 ESI 12M INSERT 939
14 81030008 INSERT LUFF JIB PREP 12M HEAVY 941
A120120 SHEAVE ASSY RIG WINCH ZINC RIC 943
16 81027946 GUIDE ASSY DRUM 6 UPPER 945
810258190 SHEAVE ASSY 947
16 81040830 WEDGE & SOCKET ASSY 26 MM 949
A152810 SOCKET/WEDGE, 1-1/4″ (32 MM) 951
17 81027949 GUIDE ASSY DRUM 6 LOWER 953
810258190 SHEAVE ASSY 955
18 81029022 GUIDE ASSY DRUM 2,3 LOWER 957
810258190 SHEAVE ASSY 959
19 81029628 GUIDE ASSY DRUM 2,3 UPPER 961
810258190 SHEAVE ASSY 963
22 810277190 TOP ASSY #500 10M 965
81025353 ESI BOOM TOP WIRING 969
81025948 ESI BOOM TOP 971
84019148 A2B DEVICE MOD TWO SPRINGS 973
810245702 A2B DEVICE 975
1770784 LEVER 977
810238652 SWITCH LIMIT ASSY 979
XII
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 001
Model Number
MLC300
Serial Number
3001065
Item Part Description Page
810316421 ESI POSITION LIGHT & ANEMOMETE 981
810250570 SUBASSY POSITION LIGHT 983
810277671 GUIDE WIRE ROPE ASSY 985
810258190 SHEAVE ASSY 987
810315121 SHEAVE 989
81042564 ESI WIRE ROPE GUIDE 991
810290361 CATWALK 993
23 81027736 POINT #500 LOWER ASSY 995
24 81034794 SHEAVE ASSY #500 LWR PT DE 997
84028414 SHEAVE ASSY #500 DEAD END 999
81028932 LINK DEAD END ASSY 1001
24 84018961 SLING 50000 LBS 6.15 FT NO DWG
25 81034795 SHEAVE ASSY #500 LOWER POINT 1003
81027766 SHEAVE BANK ASSY #500 LOWER PT 1005
27 81042719 TOP 10.0 M LUFF JIB PREP 1007
28 810278200 INSERT ASSY 6M #500 1009
810312801 CATWALK ASSY #500 6M INSERT 1011
29 81031626 INSERT LJ PREP 6M MEDIUM 1013
31 6462460 SOCKET/WEDGE, 1″ (26 MM) 1015
32 84028327 PENDANT ASSY DEAD END 1017
33 810278110 INSERT ASSY 12M WITH EQ M #500 1019
81036544 CATWALK #500 12M MED W/EQ 1023
33 84018961 SLING 50000 LBS 6.15 FT NO DWG
34 81036541 INSERT LJ PREP 12M MED W/EQ 1025
37 810333440 WEIGHT BALL SWIVEL 22.2 MTON 2 NO DWG
38 810278080 INSERT ASSY 12M M #500 1027
810279002 CATWALK ASSY #500 12.0 M LIGHT 1029
39 81029537 INSERT LUFF JIB PREP 12M MED 1031
39 80103460 LINK ASSY A2B 1033
43 810278080 INSERT ASSY 12M M #500 1035
810279002 CATWALK ASSY #500 12.0 M LIGHT 1037
44 81029537 INSERT LUFF JIB PREP 12M MED 1039
48 810278170 INSERT LUFF #500 L 12M W/SUSP 1041
XIII
Manitowoc Cranes
MACHINE COMPONENT INDEX
Date: May 23, 2018 Rev: 001
Model Number
MLC300
Serial Number
3001065
Item Part Description Page
810319501 CATWALK ASSY #500 12M W/SUSP 1045
49 81032279 INSERT LJ PREP-12M W/SUSPN 1047
53 810278140 INSERT ASSY 12M #500 L 1051
810279002 CATWALK ASSY #500 12.0 M LIGHT 1053
54 81029537 INSERT LUFF JIB PREP 12M MED 1055
58 810278140 INSERT ASSY 12M #500 L 1059
810279002 CATWALK ASSY #500 12.0 M LIGHT 1061
58 81028313 PIN PULLER MAST & EQUALIZER 1063
81032872 CYLINDER HYD LIVE MAST PIN PUL 1065
64 810297695 BOOM PT UPR FRAME ASSY 28MMSHE 1067
81034286 ESI UPPER BOOM POINT 1069
810245682 A2B DEVICE 1071
1770804 LEVER 1073
810238652 SWITCH LIMIT ASSY 1075
81033846 SHEAVE 1077
65 81036285 ROLLER ASSY BOOM POINT UPPER F 1079
67 81039609 MAST SUPPORT ASSY 1081
81040796 HINGE SUPPORT ASSY
