Crown Forklift PR 4500 Series Parts Manual – PDF DOWNLOAD

Crown Forklift PR 4500 Series Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Crown Forklift PR 4500 Series Parts Manual – PDF DOWNLOAD

Language : English
Pages :274
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Crown Forklift PR 4500 Series Parts Manual – PDF DOWNLOAD

PR 4500
POWER UNIT PARTS
Power Unit (01.0-6745-001) [10000556 – 99999999] 1
Power Unit (01.0-6745-001) [6A255568 – 9Z999999] 1
Power Unit (01.0-6745-001) 3
Power Unit (01.0-6745-001) 5
Floorboard (01.0-6745-100) [10000556 – 99999999] 7
Floorboard (01.0-6745-100) [6A255568 – 9Z999999] 7
Floorboard (01.0-6745-100) 9
Battery, Rollers & Retainers (01.2-6745-001) [10000556 – 99999999] 11
Battery, Rollers & Retainers (01.2-6745-001) [6A255568 – 9Z999999] 11
Battery, Rollers & Retainers (01.2-6745-001) 13
Battery Restraint (01.2-6745-100) [10000556 – 99999999] 15
Battery Restraint (01.2-6745-100) [6A277750 – 9Z999999] 15
Battery Restraint (01.2-6745-100) 17
Standard Caster (01.5-6540-003) [10000556 – 99999999] 19
Standard Caster (01.5-6540-003) [6A255568 – 9Z999999] 19
Quick Adjustment Caster (01.5-6745-050) [10000556 – 99999999] 21
Quick Adjustment Caster (01.5-6745-050) [6A255568 – 9Z999999] 21
Quick Adjustment Caster (01.5-6745-050) 23
HYDRAULIC PARTS
Hydraulic System (02.0-6745-001) [10000556 – 99999999] 25
Hydraulic System (02.0-6745-001) [6A255568 – 9Z999999] 25
Pump and Motor (02.1-6540-001) [6A255568 – 6A320893] – 01/13/14 27
Pump and Motor (02.1-6545-001) [10000556 – 99999999] 29
Pump and Motor (02.1-6545-001) [6A320894 – 9Z999999] 29
DRIVE UNIT PARTS
Drive Unit (03.0-6745-001) [6A255568 – 6A314383] – 07/24/13 31
Drive Unit (03.0-6745-001) [6A255568 – 6A314383] – 07/24/13 33
Drive Unit (03.0-6745-001) [6A255568 – 6A314383] – 07/24/13 35
Drive Unit (03.0-6745-007) [10000556 – 99999999] 37
Drive Unit (03.0-6745-007) [6A314384 – 9Z999999] 37
Drive Unit (03.0-6745-007) 39
Drive Unit (03.0-6745-007) 41
Traction Motor (03.1-6545-001) [10000556 – 99999999] 43
Traction Motor (03.1-6545-001) [6A255568 – 9Z999999] 43
Traction Tire (03.2-6545-001) [10000556 – 99999999] 45
Traction Tire (03.2-6545-001) [6A255568 – 9Z999999] 45
Traction Tire (03.2-6545-001) 47
Traction Tire (03.2-6545-001) 49
ELECTRICAL PARTS
Access 1 – Display (04.8-6745-100) [10000556 – 99999999] 51
Access 1 – Display (04.8-6745-100) [6A255568 – 9Z999999] 51
TABLE OF CONTENTS
ii
Access 1 – Display (04.9-6745-001) [6A255568 – 6A267481] – 12/22/08 53
Battery Connector (04.7-6745-001) 55
Battery Connector (04.7-6745-001) 57
Connectors (04.8-6545-001) [10000556 – 99999999] 59
Connectors (04.8-6545-001) [6A255568 – 9Z999999] 59
Connectors (04.8-6545-001) 61
Connectors (04.8-6545-001) 63
Connectors (04.8-6545-001) 65
Contactor (04.4-04.2-020) [10000556 – 99999999] 67
Contactor (04.4-04.2-020) [6A255568 – 9Z999999] 67
Contactor Line and Pump (04.4-2720-001) [10000556 – 99999999] 69
Contactor Line and Pump (04.4-2720-001) [6A255568 – 9Z999999] 69
Control Pod (04.6-6745-001) [10000556 – 99999999] 71
Control Pod (04.6-6745-001) [6A255568 – 9Z999999] 71
Control System (04.1-6745-001) [6A000000 – 6A289154] – 07/01/11 73
Control System (04.1-6745-003) [10000556 – 99999999] 75
Control System (04.1-6745-003) [6A289155 – 9Z999999] 75
Power Unit – Electrical Components (04.0-6745-001) [6A255568 – 6A322333] – 02/17/14 77
Power Unit – Electrical Components (04.0-6745-001) [6A255568 – 6A322333] – 02/17/14 79
Power Unit – Electrical Components (04.0-6745-005) [10000556 – 99999999] 81
Power Unit – Electrical Components (04.0-6745-005) [6A322334 – 9Z999999] 81
Power Unit – Electrical Components (04.0-6745-005) 83
BRAKE PARTS
Brake (replaced by 05.3-6745-001) (05.0-6745-001) [6A255568 – 6A267465] – 01/01/09 85
Brake (05.3-6645-003) [6A284096 – 6A289157] – 07/24/11 87
Brake (05.3-6745-001) [10000556 – 99999999] 89
Brake (05.3-6745-001) [6A255568 – 9Z999999] 89
Brake (05.3-6745-003) [10000556 – 99999999] 91
Brake (05.3-6745-003) [6A289158 – 9Z999999] 91
STEERING PARTS
Power Steering System (06.0-6745-001) [10000556 – 99999999] 93
Power Steering System (06.0-6745-001) [6A255568 – 9Z999999] 93
Power Steering System (06.0-6745-001) 95
Power Steering System (06.0-6745-001) 97
Power Steering System (06.0-6745-001) 99
Pump ASM 90623 (06.1-06.7-003) [10000556 – 99999999] 101
Pump ASM 90623 (06.1-06.7-003) [6A255568 – 9Z999999] 101
Motor Pump 83269 85477 (06.2-06.7-001) [10000556 – 99999999] 103
Motor Pump 83269 85477 (06.2-06.7-001) [6A255568 – 9Z999999] 103
Torque Generator (30, 35 SC) (06.3-10.0-004) [10000556 – 99999999] 105
Torque Generator (30, 35 SC) (06.3-10.0-004) [6A255568 – 9Z999999] 105
Power Steering Hydraulic System (06.5-6745-001) [10000556 – 99999999] 107
TABLE OF CONTENTS
iii
Power Steering Hydraulic System (06.5-6745-001) [6A255568 – 9Z999999] 107
LIFTING MECHANISM PARTS
Entry Rollers (07.4-6435-001) [10000556 – 99999999] 109
Entry Rollers (07.4-6435-001) [6A255568 – 9Z999999] 109
Entry Rollers (07.4-6435-100) [10000556 – 99999999] 111
Entry Rollers (07.4-6435-100) [6A255568 – 9Z999999] 111
Load Wheel – Single Axle – 180mm (7 in) Fork (07.4-6435-200) [10000556 – 99999999] 113
Load Wheel – Single Axle – 180mm (7 in) Fork (07.4-6435-200) [6A133012 – 9Z999999] 113
Load Wheel – Single Axle – 180mm (7 in) Fork (07.4-6435-200) 115
Load Wheel – Tandem Axle (07.4-6435-300) [10000556 – 99999999] 117
Load Wheel – Tandem Axle (07.4-6435-300) [6A133012 – 9Z999999] 117
Load Wheel – Tandem Axle (07.4-6435-300) 119
Load Wheel – Field Application Guide (07.4-0000-001) [10000556 – 99999999] 121
Load Wheel – Field Application Guide (07.4-0000-001) [6A255568 – 9Z999999] 121
Linkage Lift Single Axle (07.6-6435-005) [6A255568 – 6A269015] – 03/16/09 123
Linkage Lift Single Axle (07.6-6435-005) [6A255568 – 6A269015] – 03/16/09 125
Linkage Lift Single Axle (07.6-6435-005) [6A255568 – 6A269015] – 03/16/09 127
Linkage Lift Single Axle (07.6-6435-005) [6A255568 – 6A269015] – 03/16/09 129
Linkage Lift Single Axle (07.6-6435-005) [6A255568 – 6A269015] – 03/16/09 131
Linkage Lift Single Axle (07.6-6435-005) [6A255568 – 6A269015] – 03/16/09 133
Linkage Lift Single Axle (07.6-6435-005) [6A255568 – 6A269015] – 03/16/09 135
Linkage Lift Single Axle (07.6-6435-005) [6A255568 – 6A269015] – 03/16/09 137
Linkage Lift Single Axle (07.6-6435-005) [6A255568 – 6A269015] – 03/16/09 139
Linkage Lift Single Axle (07.6-6435-005) [6A255568 – 6A269015] – 03/16/09 141
Linkage Lift Single Axle (07.6-6435-005) [6A255568 – 6A269015] – 03/16/09 143
Lift Linkage – Single Axle (07.6-6435-017) [ – ] 145
Lift Linkage – Single Axle (07.6-6435-017) 147
Lift Linkage – Single Axle (07.6-6435-017) 149
Lift Linkage – Single Axle (07.6-6435-017) 151
Lift Linkage – Single Axle (07.6-6435-017) 153
Lift Linkage – Single Axle (07.6-6435-017) 155
Lift Linkage – Single Axle (07.6-6435-017) 157
Lift Linkage – Single Axle (07.6-6435-017) 159
Lift Linkage – Single Axle (07.6-6435-017) [10000556 – 99999999] 161
Lift Linkage – Single Axle (07.6-6435-017) [6A269016 – 9Z999999] 161
Lift Linkage – Single Axle (07.6-6435-017) 163
Linkage Lift Tandem Axle (07.6-6435-104) [10000556 – 99999999] 165
Linkage Lift Tandem Axle (07.6-6435-104) [6A255568 – 9Z999999] 165
Linkage Lift Tandem Axle (07.6-6435-104) 167
Linkage Lift Tandem Axle (07.6-6435-104) 169
Linkage Lift Tandem Axle (07.6-6435-104) 170
Linkage Lift Tandem Axle (07.6-6435-104) 172
TABLE OF CONTENTS
iv
Linkage Lift Tandem Axle (07.6-6435-104) 174
Linkage Lift Tandem Axle (07.6-6435-104) 176
Linkage Lift Tandem Axle (07.6-6435-104) 178
Linkage Lift Tandem Axle (07.6-6435-104) 180
Lift Linkage – Tandem Axle (07.6-6435-115) [10000556 – 99999999] 182
Lift Linkage – Tandem Axle (07.6-6435-115) [6A133012 – 9Z999999] 182
Lift Linkage – Tandem Axle (07.6-6435-115) 184
Lift Linkage – Tandem Axle (07.6-6435-115) 186
Lift Linkage – Tandem Axle (07.6-6435-115) 188
Lift Linkage – Tandem Axle (07.6-6435-115) 190
Lift Linkage – Tandem Axle (07.6-6435-115) 192
Lift Linkage – Tandem Axle (07.6-6435-115) 194
Lift Linkage – Tandem Axle (07.6-6435-115) 196
Lift Linkage – Tandem Axle (07.6-6435-115) 198
Lift Linkage – 7 inch Fork (07.6-6435-200) [6A255568 – 6A269015] – 03/16/09 200
Lift Linkage – 7 inch Fork (07.6-6435-200) [6A255568 – 6A269015] – 03/16/09 202
Lift Linkage – 7 inch Fork (07.6-6435-200) [6A255568 – 6A269015] – 03/16/09 204
Lift Linkage – 7 inch Fork (07.6-6435-200) [6A255568 – 6A269015] – 03/16/09 206
Lift Linkage – Tandem Axle 180 mm (7 in) Forks (07.6-6435-206) [10000556 – 99999999] 208
Lift Linkage – Tandem Axle 180 mm (7 in) Forks (07.6-6435-206) [6A269016 – 9Z999999] 208
Lift Linkage – Tandem Axle 180 mm (7 in) Forks (07.6-6435-206) 210
Lift Linkage – Tandem Axle 180 mm (7 in) Forks (07.6-6435-206) 212
Lift Linkage – Tandem Axle 180 mm (7 in) Forks (07.6-6435-206) 214
Load Backrest – Hinged (07.8-6435-003) [10000556 – 99999999] 216
Load Backrest – Hinged (07.8-6435-003) [6A255568 – 9Z999999] 216
Load Backrest – Lift-Off (07.8-6435-100) [10000556 – 99999999] 219
Load Backrest – Lift-Off (07.8-6435-100) [6A255568 – 9Z999999] 219
Load Backrest – Bolt On (07.8-6540-150) [10000556 – 99999999] 221
Load Backrest – Bolt On (07.8-6540-150) [6A255568 – 9Z999999] 221
Fork (07.9-6435-101) [10000556 – 99999999] 223
Fork (07.9-6435-101) [6A255568 – 9Z999999] 223
Fork (07.9-6435-101) 225
Fork (07.9-6435-003) [10000556 – 99999999] 227
Fork (07.9-6435-003) [6A255568 – 9Z999999] 227
Fork (07.9-6435-003) 229
Fork (07.9-6435-003) 231
CYLINDER PARTS
Lift (08.0-6435-003) [10000556 – 99999999] 233
Lift (08.0-6435-003) [6A255568 – 9Z999999] 233
LABELS & DECALS AND ACCESSORIES
Skid Adapter (10.0-6435-001) [10000556 – 99999999] 235
Skid Adapter (10.0-6435-001) [6A255568 – 9Z999999] 235
TABLE OF CONTENTS
v
Skid Adapter (10.0-6435-001) 237
Shrink Wrap Tray Accessory (10.0-6540-050) [10000556 – 99999999] 239
Shrink Wrap Tray Accessory (10.0-6540-050) [6A255568 – 9Z999999] 239
Storage Module (10.0-6540-100) [10000556 – 99999999] 241
Storage Module (10.0-6540-100) [6A255568 – 9Z999999] 241
Work Assist Tube (10.0-6745-001) [10000556 – 99999999] 243
Work Assist Tube (10.0-6745-001) [6A255568 – 9Z999999] 243
Work Assist Tube Accessories (10.0-6745-025) [10000556 – 99999999] 245
Work Assist Tube Accessories (10.0-6745-025) [6A255568 – 9Z999999] 245
Work Assist Tube Accessories (10.0-6745-025) 247
Work Assist Accessories (10.0-6745-075) [10000556 – 99999999] 249
Work Assist Accessories (10.0-6745-075) [6A255568 – 9Z999999] 249
InfoLink Accessories (10.0-6745-150) [~ – 6A288834] – 06/23/11 251
InfoLink Accessories (10.0-6745-152) [10000556 – 99999999] 253
InfoLink Accessories (10.0-6745-152) [6A288835 – 9Z999999] 253
Labels and Decals (10.9-6745-001) [10000556 – 99999999] 255
Labels and Decals (10.9-6745-001) [6A255568 – 9Z999999] 255
Labels and Decals (10.9-6745-001) 257
Wheels, Tires and Casters
Load and Caster Wheels (PF25775) 259
Poly Tires (PF25777) 263
Rubber Tires (PF25781) 267

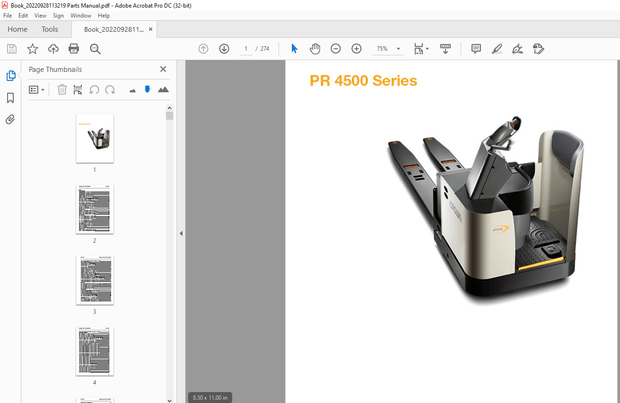

IMAGES PREVIEW OF THE MANUAL:
