Crown Forklift SP 3570-3580 Wheel Parts Manual – PDF DOWNLOAD

Crown Forklift SP 3570-3580 Wheel Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Crown Forklift SP 3570-3580 Wheel Parts Manual – PDF DOWNLOAD

Language : English
Pages :288
Downloadable : Yes
File Type : PDF

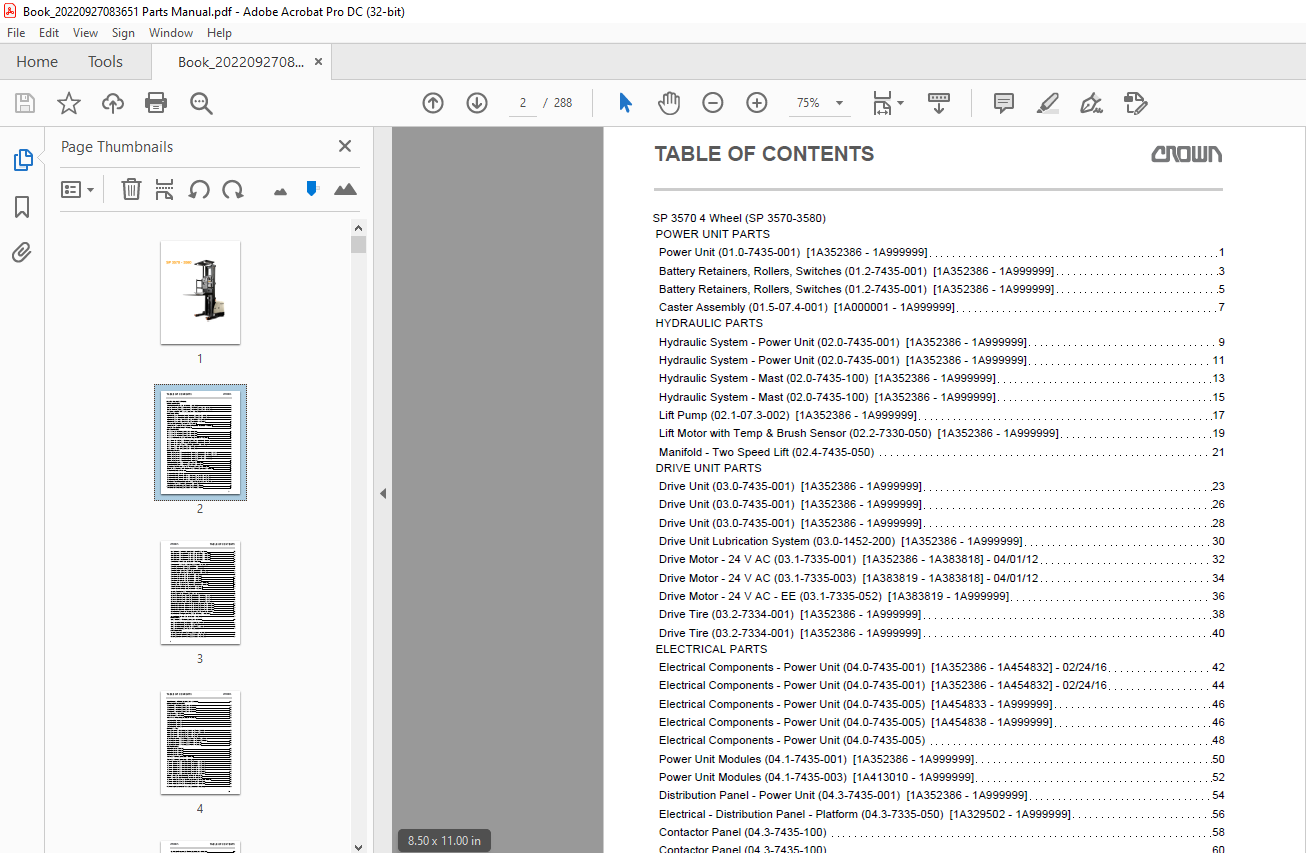

TABLE OF CONTENTS:

Crown Forklift SP 3570-3580 Wheel Parts Manual – PDF DOWNLOAD

SP 3570 4 Wheel (SP 3570-3580)
POWER UNIT PARTS
Power Unit (01.0-7435-001) [1A352386 – 1A999999] 1
Battery Retainers, Rollers, Switches (01.2-7435-001) [1A352386 – 1A999999] 3
Battery Retainers, Rollers, Switches (01.2-7435-001) [1A352386 – 1A999999] 5
Caster Assembly (01.5-07.4-001) [1A000001 – 1A999999] 7
HYDRAULIC PARTS
Hydraulic System – Power Unit (02.0-7435-001) [1A352386 – 1A999999] 9
Hydraulic System – Power Unit (02.0-7435-001) [1A352386 – 1A999999] 11
Hydraulic System – Mast (02.0-7435-100) [1A352386 – 1A999999] 13
Hydraulic System – Mast (02.0-7435-100) [1A352386 – 1A999999] 15
Lift Pump (02.1-07.3-002) [1A352386 – 1A999999] 17
Lift Motor with Temp & Brush Sensor (02.2-7330-050) [1A352386 – 1A999999] 19
Manifold – Two Speed Lift (02.4-7435-050) 21
DRIVE UNIT PARTS
Drive Unit (03.0-7435-001) [1A352386 – 1A999999] 23
Drive Unit (03.0-7435-001) [1A352386 – 1A999999] 26
Drive Unit (03.0-7435-001) [1A352386 – 1A999999] 28
Drive Unit Lubrication System (03.0-1452-200) [1A352386 – 1A999999] 30
Drive Motor – 24 V AC (03.1-7335-001) [1A352386 – 1A383818] – 04/01/12 32
Drive Motor – 24 V AC (03.1-7335-003) [1A383819 – 1A383818] – 04/01/12 34
Drive Motor – 24 V AC – EE (03.1-7335-052) [1A383819 – 1A999999] 36
Drive Tire (03.2-7334-001) [1A352386 – 1A999999] 38
Drive Tire (03.2-7334-001) [1A352386 – 1A999999] 40
ELECTRICAL PARTS
Electrical Components – Power Unit (04.0-7435-001) [1A352386 – 1A454832] – 02/24/16 42
Electrical Components – Power Unit (04.0-7435-001) [1A352386 – 1A454832] – 02/24/16 44
Electrical Components – Power Unit (04.0-7435-005) [1A454833 – 1A999999] 46
Electrical Components – Power Unit (04.0-7435-005) [1A454838 – 1A999999] 46
Electrical Components – Power Unit (04.0-7435-005) 48
Power Unit Modules (04.1-7435-001) [1A352386 – 1A999999] 50
Power Unit Modules (04.1-7435-003) [1A413010 – 1A999999] 52
Distribution Panel – Power Unit (04.3-7435-001) [1A352386 – 1A999999] 54
Electrical – Distribution Panel – Platform (04.3-7335-050) [1A329502 – 1A999999] 56
Contactor Panel (04.3-7435-100) 58
Contactor Panel (04.3-7435-100) 60
Contactor Panel Dual Pump – EE (04.3-7335-156) [1A321763 – 1A999999] 62
Contactor Panel Dual Pump – EE (04.3-7335-156) [1A321763 – 1A999999] 64
Contactor Panel Dual Pump – EE (04.3-7335-156) [1A321763 – 1A999999] 66
Distribution Panel – Freezer/Corrosion (04.3-7334-250) [1A352386 – 1A999999] 68
Wire Guidance (04.3-7335-500) [1A395687 – 1A999999] 70
Line Driver (04.3-19.0-550) [1A352386 – 1A427392] – 10/24/14 72
Line Driver (04.3-19.0-550) [1A352386 – 1A427392] – 10/24/14 73
TABLE OF CONTENTS
ii
Line Driver (04.3-19.0-550) [1A352386 – 1A427392] – 10/24/14 75
Wire Guidance – Line Driver (04.3-19.0-554) [1A427393 – 1A999999] 77
Wire Guidance – Line Driver (04.3-19.0-554) [1A427393 – 1A999999] 79
Wire Guidance – Line Driver (04.3-19.0-554) [1A427393 – 1A999999] 81
Wire Guidance – Line Driver (04.3-19.0-554) [1A427393 – 1A999999] 83
Contactor (04.4-6540-001) [1A352386 – 1A999999] 85
Contactor 1A P1 24V (04.4-6535-050) [1A352386 – 1A999999] 87
Control Module (04.6-7335-005) [1A357444 – 1A999999] 89
Control Module (04.6-7335-005) [1A357444 – 1A999999] 91
Control Module – Back (04.6-7335-050) [1A352386 – 1A999999] 93
Control Module – Back (04.6-7335-050) [1A352386 – 1A999999] 95
Connectors (04.8-7435-001) [1A352386 – 1A999999] 97
Connectors (04.8-7435-001) [1A352386 – 1A999999] 99
Connectors (04.8-7435-001) [1A352386 – 1A999999] 101
Connectors (04.8-7435-001) [1A352386 – 1A999999] 103
Control Cable – TT Mast (04.8-7435-025) [1A352386 – 1A999999] 105
Control Cable – TT Mast (04.8-7435-025) [1A352386 – 1A999999] 107
Switch Panel (04.8-7335-102) [1A352386 – 1A999999] 109
Switch Panel (04.8-7335-102) [1A352386 – 1A999999] 111
Steering Feedback (04.8-7435-200) 113
Flashing Light (04.9-7330-001) [1A352386 – 1A999999] 115
Overhead Console (04.9-7335-050) [1A352386 – 1A540020] – 09/28/18 117
Overhead Console (04.9-7335-050) [1A352386 – 1A540020] – 09/28/18 119
Overhead Console (04.9-7335-050) [1A352386 – 1A540020] – 09/28/18 121
Overhead Console (04.9-7335-050) [1A352386 – 1A540020] – 09/28/18 123
Electrical Components – Platform (04.9-7335-058) [1A540318 – 1A999999] 125
Electrical Components – Platform (04.9-7335-058) [1A540318 – 1A999999] 127
Electrical Components – Platform (04.9-7335-058) [1A540318 – 1A999999] 129
Electrical Components – Platform (04.9-7335-058) [1A540318 – 1A999999] 131
Mast Mounted Lights (04.9-7332-250) [1A352386 – 1A540123] – 09/28/18 133
Mast Mounted Worklights (04.9-7332-252) [1A540203 – 1A9999999] 135
Strobe Light (04.9-10.0-550) [1A352386 – 1A999999] 137
BRAKE PARTS
Brake Pedal (05.1-7335-001) [1A352386 – 1A999999] 139
Brake (05.3-7335-001) [1A352386 – 1A383818] – 04/01/12 141
Brake (05.3-7340-001) [1A395766 – 1A999999] 143
Brake (05.3-7335-003) [1A383819 – 1A395765] – 12/30/12 145
Brake (05.3-7340-020) [1A543931 – 9A9999999] 147
STEERING PARTS
Steering Command (06.0-7335-001) [1A352386 – 1A999999] 149
Steering Gearbox (06.0-7435-100) [1A352386 – 1A999999] 151
Steering Gearbox (06.0-7435-100) [1A352386 – 1A999999] 153
TABLE OF CONTENTS
iii
Steer Motor (06.2-7330-003) [1A352386 – 1A999999] 155
LIFTING MECHANISM PARTS
TT Mast (07.2-7435-001) [1A352386 – 1A999999] 157
TT Mast (07.2-7435-001) [1A352386 – 1A999999] 159
TT Mast (07.2-7435-001) [1A352386 – 1A999999] 161
TT Mast (07.2-7435-001) [1A352386 – 1A999999] 163
Load Wheel (07.4-7435-001) 165
Load Wheel (07.4-7435-001) 167
Yoke TT (07.5-7335-001) [1A329502 – 1A999999] 169
Lift Chain (07.6-7435-001) 171
Lift Chain (07.6-7435-001) 173
Lift Chain (07.6-7435-001) 175
Lift Chain (07.6-7435-001) 177
CYLINDER PARTS
Mast Cylinder (08.1-7435-001) [1A352386 – 1A371861] – 06/20/11 179
Mast Cylinder (08.1-7435-001) [1A352386 – 1A371861] – 06/20/11 181
Mast Cylinder (08.1-7435-003) [1A371861 – 1A999999] 183
Mast Cylinder (08.1-7435-003) [1A371861 – 1A999999] 185
Free Lift Cylinder (08.3-7435-001) [1A352386 – 1A372575] – 07/08/11 187
Free Lift Cylinder (08.3-7435-001) [1A352386 – 1A372575] – 07/08/11 189
Free Lift Cylinder (08.3-7435-005) [1A372576 – 1A999999] 191
Free Lift Cylinder (08.3-7435-005) [1A372576 – 1A999999] 193
PLATFORM PARTS
Pallet Grab (09.0-7330-202) 195
Pallet Grab (09.0-7330-202) 197
Pallet Grab (09.0-7330-206) 199
Pallet Grab (09.0-7330-206) 201
Fork (09.0-7330-250) [1A352386 – 1A999999] 203
Fork (09.0-7330-250) [1A352386 – 1A999999] 205
Platform – Operator Side (09.0-7335-001) [1A352386 – 1A999999] 207
Platform – Operator Side (09.0-7335-001) [1A352386 – 1A999999] 209
Platform – Operator Side (09.0-7335-001) [1A352386 – 1A999999] 211
Platform – Operator Side (09.0-7335-007) [1A357549 – 1A999999] 213
Platform – Operator Side (09.0-7335-007) [1A357549 – 1A999999] 215
Platform – Operator Side (09.0-7335-007) [1A357549 – 1A999999] 217
Platform – Operator Side (09.0-7335-007) [1A357549 – 1A999999] 219
Electric Pallet Grab (09.0-7340-050) [1A458145 – 99999999] 221
Electric Pallet Grab (09.0-7340-050) [1A458145 – 99999999] 223
Platform – Mast Side TT (09.0-7335-100) [1A330126 – 1A432866] – 02/02/15 225
Platform – Mast Side TT (09.0-7335-102) [1A432867 – 1A999999] 227
Platform – Mast Side TT (09.0-7335-102) [1A432867 – 1A999999] 229
Platform Height Sensor (09.0-7335-200) [1A352386 – 1A999999] 231
TABLE OF CONTENTS
iv
Dual Height Encoder (09.0-7340-400) [1A395963 – 1A999999] 233
Rear Gate (09.1-7435-001) [1A352386 – 1A999999] 235
Rear Gate (09.1-7435-001) [1A352386 – 1A999999] 237
LABELS & DECALS AND ACCESSORIES
Aisle Guide Wheel (10.0-7435-001) [1A352386 – 1A999999] 239
Aisle Guide Wheel (10.0-7435-001) [1A352386 – 1A999999] 241
Aisle Guide Wheel (10.0-7435-001) [1A352386 – 1A999999] 243
Aisle Guide Wheel (10.0-7435-001) [1A352386 – 1A999999] 245
Aisle Guide Wheel (10.0-7435-001) [1A352386 – 1A999999] 247
Aisle Guide Wheel (10.0-7435-001) [1A352386 – 1A999999] 248
Aisle Guide Wheel (10.0-7435-001) [1A352386 – 1A999999] 249
Aisle Guide Wheel (10.0-7435-001) [1A352386 – 1A999999] 250
Aisle Guide Wheel (10.0-7435-001) [1A352386 – 1A999999] 251
Aisle Guide Wheel (10.0-7435-001) [1A352386 – 1A999999] 252
Aisle Guide Wheel (10.0-7435-001) [1A352386 – 1A999999] 253
Aisle Guide Wheel (10.0-7435-001) [1A352386 – 1A999999] 255
InfoLink Accessories (10.0-7435-050) [1A352386 – 1A372194] – 06/13/11 257
InfoLink Accessories (10.0-7435-052) [1A372195 – 1A999999] 259
Platform Load Deck (10.0-7335-100) [1A352386 – 1A999999] 261
Platform Load Deck (10.0-7335-100) [1A352386 – 1A999999] 263
Platform Load Deck (10.0-7335-100) [1A352386 – 1A999999] 265
Platform Load Deck (10.0-7435-100) [1A352386 – 1A999999] 267
Platform Load Deck (10.0-7435-100) [1A352386 – 1A999999] 269
End Aisle Control (EAC) (10.4-7435-001) [1A357448 – 1A999999] 271
Labels and Decals (10.9-7435-001) [1A352386 – 99999999] 273
Labels and Decals (10.9-7435-001) [1A352386 – 99999999] 275
Labels and Decals (10.9-7435-001) [1A352386 – 99999999] 277
Wheels, Tires and Casters
Load Wheels (PF25785) 279
Poly Tires (PF25786)

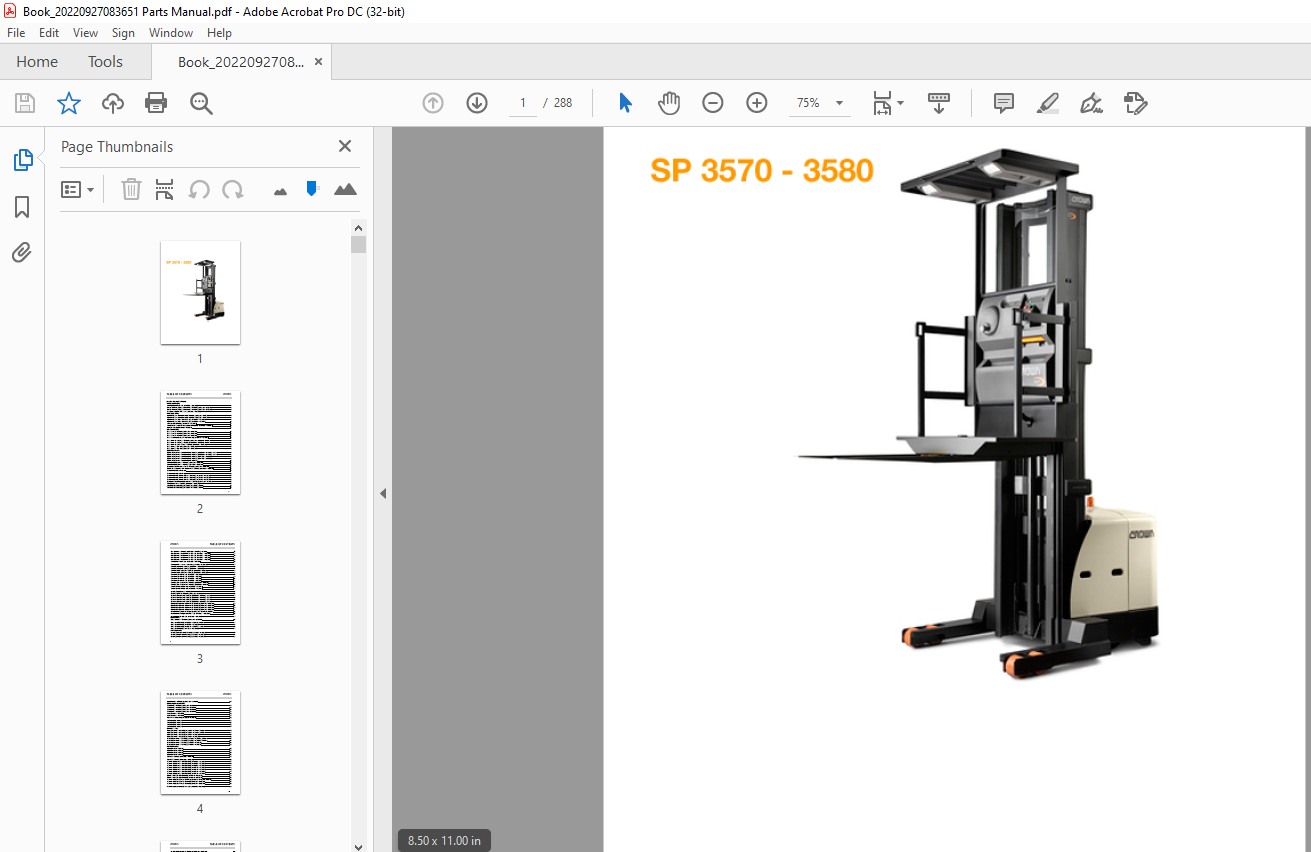

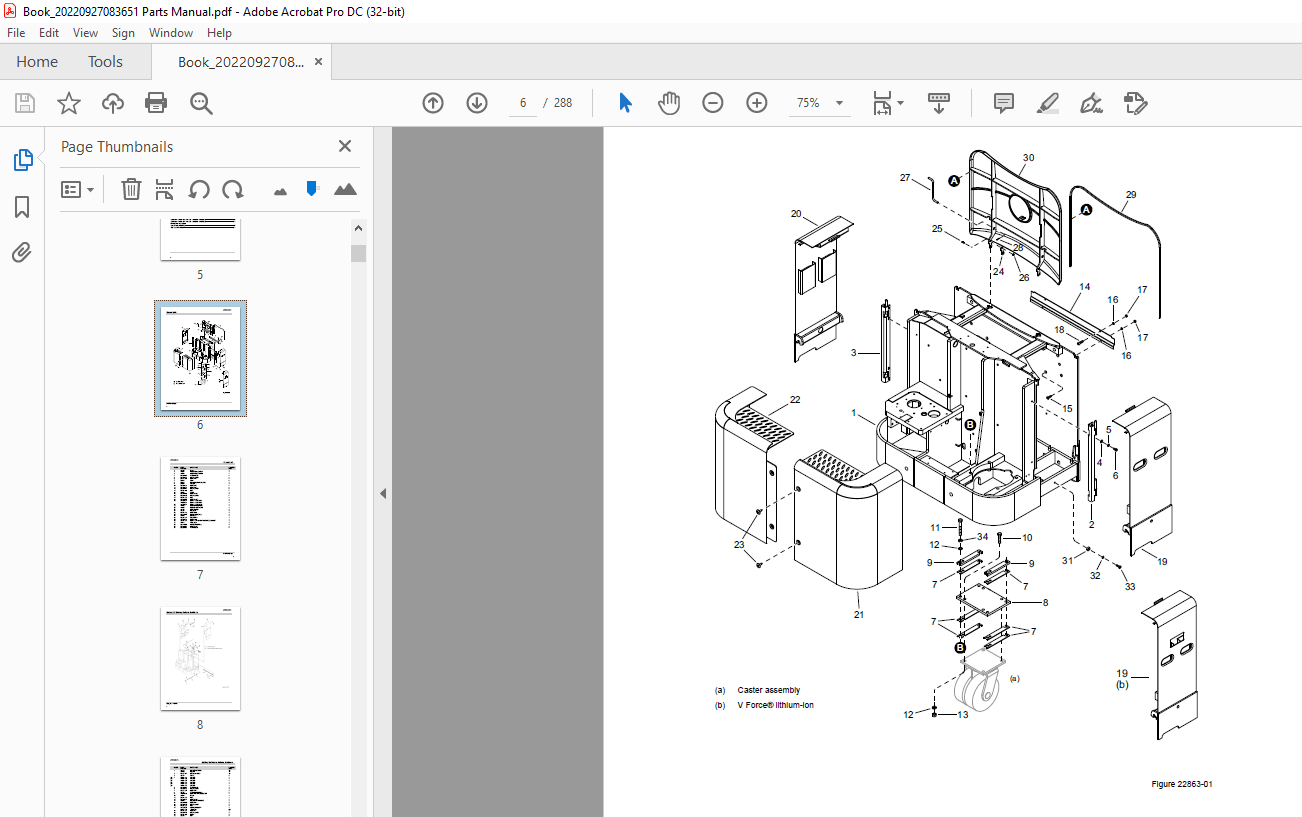

IMAGES PREVIEW OF THE MANUAL:
