Crown Forklift WP 3200 Pallet Service Manual – PDF DOWNLOAD

Crown Forklift WP 3200 Pallet Service Manual – PDF DOWNLOAD

FILE DETAILS:

Crown Forklift WP 3200 Pallet Service Manual – PDF DOWNLOAD

Language : English
Pages :243
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Crown Forklift WP 3200 Pallet Service Manual – PDF DOWNLOAD

Introduction
Use this manual to perform troubleshooting and maintenance
procedures on the lift truck and for replacement
parts.
Operator instructions
This manual does not contain operator instructions.
There are operator instructions provided with each lift
truck. For operator instructions, see the WP 3200 Operator
Manual.
Operator training
Crown provides operator training through a Crown
dealer. For more information on operator training, go
to Training on

TABLE OF CONTENTS:

Crown Forklift WP 3200 Pallet Service Manual – PDF DOWNLOAD

Control of Hazardous Energy 0
Operator’s Daily Checklist 14
Lubricants, Aerosols, and Service Supplies 0
Planned Maintenance 0
SAE Torque Values 40
Grade 40
Hydraulic System 94
Circuit Operation 94
Hydraulic Schematic Symbols 98
X10 Handle® (Access 8)144
X10 Handle® Component Removal and Installation144
Lower and Upper Shell Removal and Installation145
Switch Cap Removal and Installation148
HSS Removal and Installation148
Hydraulic Printed Circuit Board Removal and Installation148
Primary Printed Circuit Board Removal and Installation149
POT, FS, and RS Removal and Installation149
SAS Removal and Installation151
HNS1 and HNS2 Removal and Installation152
Hand Grip Removal and Installation152
Display Gauge 0
Operator indicators 0
Troubleshooting 0
Lift Pump Motor159
Brush Replacement159
X10 Handle and Knuckle Disassembly 0
X10 Handle and Knuckle Assembly 0
Spring Adjustment 0
Upper and Lower Roller Bearings 0
Upper and Lower Roller Bearings Disassembly 0
Upper and Lower Roller Bearings Assembly 0
Lift Cylinder Operation 0
Lift Cylinder Removal 0
Lift Cylinder Disassembly 0
Seals 0
Lift Cylinder Inspection 0
Seal Installation 0
Lift Cylinder Assembly 0

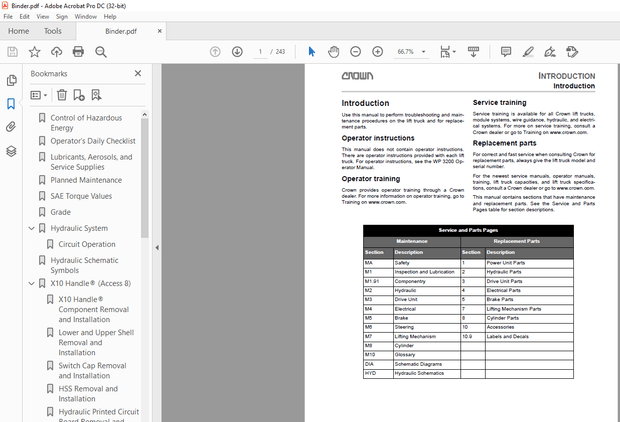

IMAGES PREVIEW OF THE MANUAL:
