Ditch Witch American Augers 24/30-150 Boring Machine Parts Manual 7053-0034 – PDF DOWNLOAD

Ditch Witch American Augers 24/30-150 Boring Machine Parts Manual 7053-0034 – PDF DOWNLOAD

FILE DETAILS:

Ditch Witch American Augers 24/30-150 Boring Machine Parts Manual 7053-0034 – PDF DOWNLOAD

Language : English
Pages : 112
Downloadable : Yes
File Type : PDF

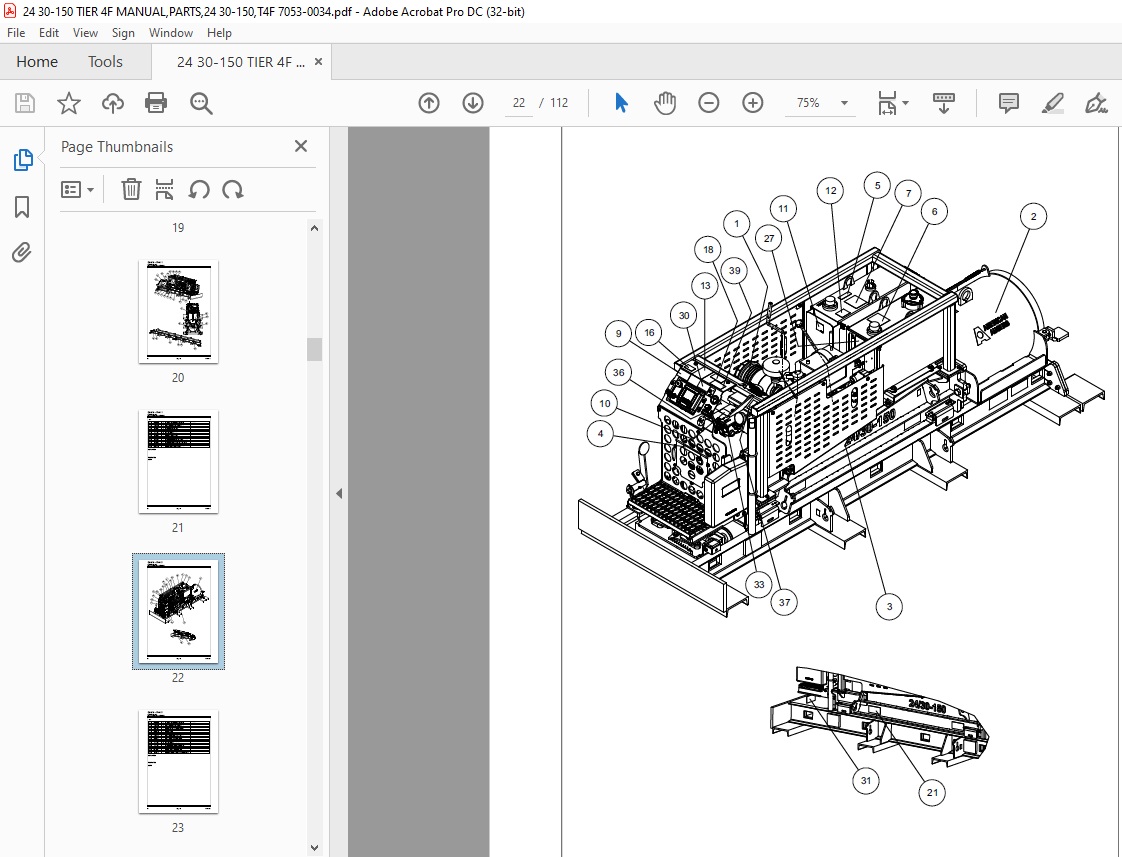

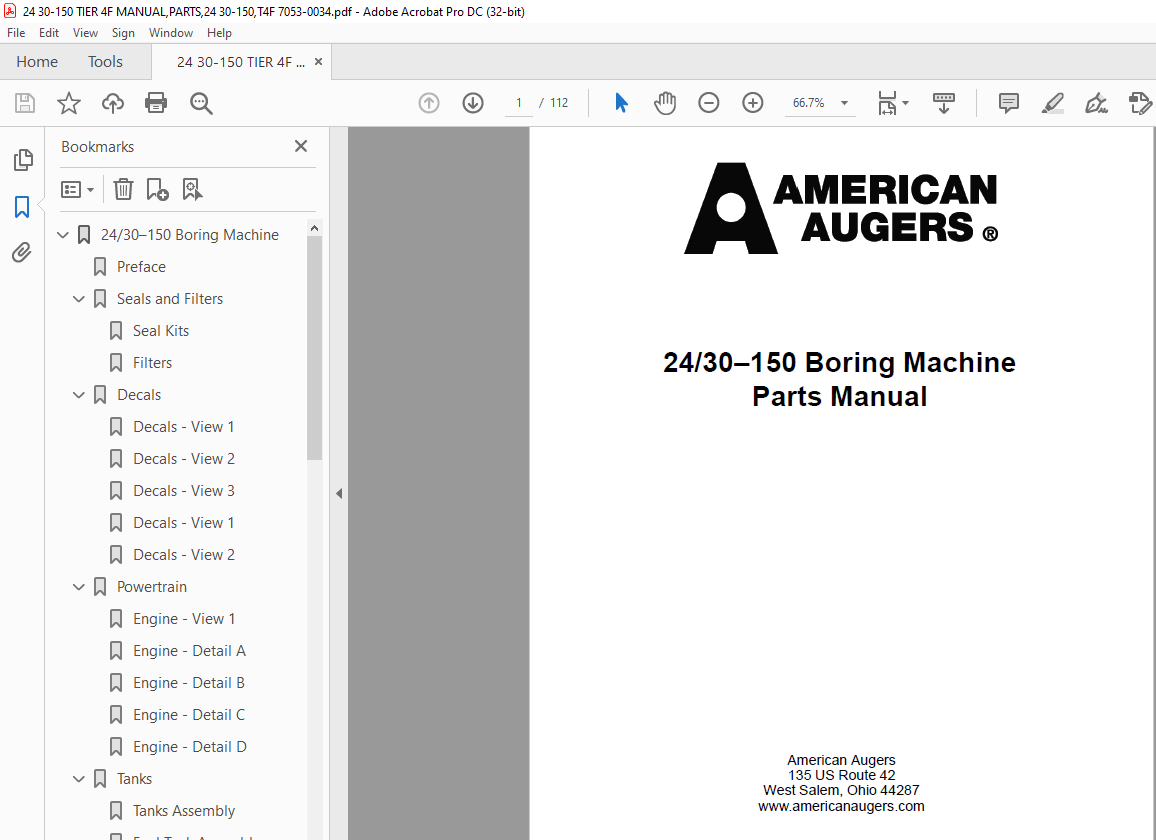

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Ditch Witch American Augers 24/30-150 Boring Machine Parts Manual 7053-0034 – PDF DOWNLOAD

24/30–150 Boring Machine 1
Preface 4
Seals and Filters 9
Seal Kits 10
Filters 12
Decals 13
Decals – View 1 14
Decals – View 2 16
Decals – View 3 18
Decals – View 1 20
Decals – View 2 22
Powertrain 25
Engine – View 1 26
Engine – Detail A 28
Engine – Detail B 30
Engine – Detail C 32
Engine – Detail D 34
Tanks 37
Tanks Assembly 38
Fuel Tank Assembly 40
Hydraulic Tank Assembly 42
Mainframe 45
Base Assembly 46
Base Weldment 48
Isolated Platform 50
Sling 52
Pushbar Assembly 54
Rack Assembly – View 1 56
Rack Assembly – View 2 58
Rack Assembly – View 3 60
Rack Assembly – View 1 62
Rack Assembly – View 2 64
Rack Assembly – View 3 66
Spoil Paddle Assembly 68
Track Assembly 70
Master Pusher & Saddle 72
Master Pusher Assembly 74
Hydraulic Section 77
Hydraulic Schematic 78
Electrical Section 81
Electrical Installation 82
Electrical Controls 84
Electrical Schematic 88
Electrical Schematic 92
Appendix 95
Tightening Guidelines 96
SAE Bolt Torque 97
Metric Bolt Torque 98
Prevailing Torque Locknut Torque 99
Lug Nut Torque 101
Assembly Methods 102
DW Registration Card 109
