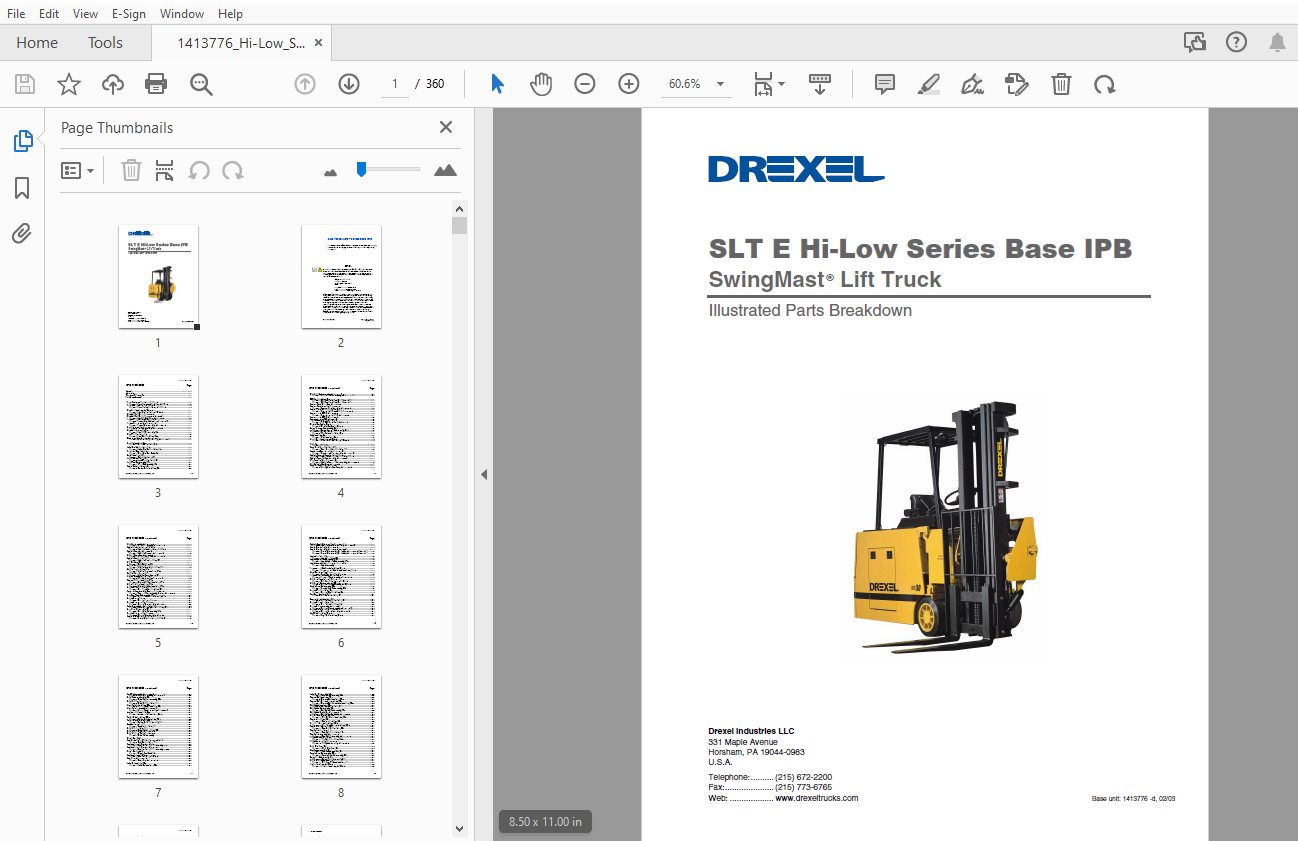

Drexel SLT E Hi-Low Series Base IPB SwingMast Lift Truck Parts Manual 1413776 – PDF DOWNLOAD

Drexel SLT E Hi-Low Series Base IPB SwingMast Lift Truck Parts Manual 1413776 – PDF DOWNLOAD

FILE DETAILS:

Drexel SLT E Hi-Low Series Base IPB SwingMast Lift Truck Parts Manual 1413776 – PDF DOWNLOAD

Language : English
Pages : 360
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Drexel SLT E Hi-Low Series Base IPB SwingMast Lift Truck Parts Manual 1413776 – PDF DOWNLOAD

Frame Bearing Installation, p/n: FR13-A 8-17............................................  3
Drive Unit, Dual Chain, p/n: 1400695-A 8-22.............................................  3
Drive Unit, Dual Chain, p/n: 1400695-A (continued) 8-23.................................  3
Traction Motor Modification, p/n: 1404415-D 8-26........................................  3
Traction Motor Assembly, p/n: 1415910A 8-28............................................  3
Steer Idler Assembly, p/n: 1412460-A 8-30...............................................  3
Drive Unit Sub-Assembly, DA8 8-32.......................................................  3
Drive Wheel Installation, DA2 8-35......................................................  3
Chain Assembly for Steering, p/n: 1400109B 8-36........................................  3
Press Drive Plate Studs, DA14 8-43......................................................  3
Spindle Installation, LW3 8-46..........................................................  3
Load Wheel Installation, LW6 8-49.......................................................  3
Load Wheel Sub-Assembly, LW7 8-51.......................................................  3
Service Brake Installation, SB5 8-54....................................................  3
Right & Left Brake Assembly, p/n: 51082-01 & -02 8-56...................................  4
Contactor Panel without Box, p/n: 1405740A 8-63........................................  4
Contactor Panel Assembly, p/n: 1405740A 8-64...........................................  4
Contactor, 150A, DPDT, p/n: 1401978-A 8-66..............................................  4
Contactor, 300A, SPNO, p/n: 1401979-A 8-68..............................................  4
Contactor, 100A, SPNO, p/n: 1411980-A 8-70..............................................  4
Contactor, 300A, 36VDC, p/n: 28889-D 8-71...............................................  4
“LX” SCR Control Panel, p/n: 52511A 8-72...............................................  4
Electrical Box Sealing, EL40-A 8-75.....................................................  4
Battery Connector Sub-Assembly, EL17 8-78...............................................  4
Wire Harness Installation, EL18 8-82....................................................  4
Cable Installation, EL19 8-85...........................................................  4
Ground Straps Installation, p/n: EL38-A 8-87............................................  4
Pump Speed Control Installation, HY1 8-94...............................................  4
Capacitor and Pump Assembly, p/n: 1411418B 8-96........................................  4
Hydraulic Pump and Motor Installation, HY49-A 8-100.....................................  4
Hydraulic Pump and Motor Assembly, p/n: 1414462A 8-102.................................  4
Main Pump Seal Kits, p/n: 1402551B 8-103...............................................  4
Main Hydraulic Gear Pump, p/n: 1420425-A 8-106..........................................  4
Pump Casappa Field Kit, p/n: 1420681-B 8-106............................................  4
Main Motor Assembly, p/n: 1404414A 8-108...............................................  5
Hydraulic Tank Installation, p/n: HY74-A 8-112..........................................  5
Hydraulic Reservoir, p/n: 1419896-C 8-114...............................................  5
Oil Filter, Return Line, p/n: 1419880-A 8-116...........................................  5
Hydraulic Hose Installation, HY23 8-118.................................................  5
Side Shift Hose, HY7 8-121..............................................................  5
Umbilical Assembly Installation, HY8 8-124..............................................  5
Umbilical Tray Installation, HY22 8-128.................................................  5
Umbilical Hoses Connect, HY46 8-132.....................................................  5
Manifold Assembly, p/n: 1413172C 8-134.................................................  5
Pivot and Tilt Hose Installation, HY19 8-138............................................  5
Orbitrol Tank Hose Installation, HY48 8-142.............................................  5
Steer Pump/Motor Installation, HY11 8-146...............................................  5
Pump and Motor Assembly, Steering, p/n: 1413444A 8-148.................................  5
Steer Pump/Motor Sub-Assembly, HY12 8-151...............................................  5
Steering Pump, p/n: 51734 8-153.........................................................  5
Steering Motor Assembly, p/n: 51735 8-154...............................................  5
Power Steering Hydraulic Installation, HY14 8-157.......................................  5
Steer Motor Sub-Assembly, HY21 8-160....................................................  5
Steering Motor Assembly, p/n: 25950 8-162...............................................  5
Control Valve Installation, p/n: HY15-D 8-165...........................................  5
Hydraulic Spool Valve Assembly, p/n: 1415064 -D 8-166...................................  6
Control Valve Assembly, p/n: 1419760A 8-168............................................  6
Control Valve Assembly, p/n: 1419760-A (continued) 8-169................................  6
Joystick Hydraulic Sub-Assembly, HY24 8-177.............................................  6
Joystick Assembly, p/n: 1406119-A and 1406120A 8-178...................................  6
Cover Plate Assembly, p/n: 1401930 8-184................................................  6
Instrument Panel Assembly, p/n: 1414456A 8-186.........................................  6
Side Console Installation, p/n: OH18-A 8-190............................................  6
Side Console Sub-Assembly, p/n: OH17-A 8-193............................................  6
Console Cover Sub-Assembly, OH9 8-195...................................................  6
Steering Wheel Installation, ID4 8-197..................................................  6
Horn Button Installation, OH2 8-200.....................................................  6
Steering Column Installation, HY5 8-205.................................................  6
Steering Column Assembly, p/n: 1400968D 8-207..........................................  6
Steering Control Assembly, p/n: 25975C 8-208...........................................  6
Key Switch Installation, EL35-A 8-212...................................................  6
Key Switch Assembly, p/n: 1404722C 8-214...............................................  7
Brake Weldment Assembly, SB2 8-218......................................................  7
Brake Pedal Installation, SB3 8-222.....................................................  7
Master Cylinder Installation, SB4 8-226.................................................  7
Master Cylinder Assembly, p/n: 1402557C 8-228..........................................  7
Accelerator Unit Installation, EL15 8-231...............................................  7
Parking Brake Sub-Assembly, PB1 8-238...................................................  7
Equalizer Installation, PB2 8-242.......................................................  7
Brake Cable Installation, PB3 8-246.....................................................  7
Brake Cable, 113” OAL, p/n: 1400532A 8-248.............................................  7
Brake Cable, 135” OAL, p/n: 1400533A 8-248.............................................  7
Seat Belt Installation, ST1 (serial # 1797 and before) 8-252............................  7
Seat Installation, for Seat Assembly 1412660 8-254......................................  7
Seat Installation, for Seat Assembly 1413715 8-256......................................  7
Driver’s Seat Breakdown 8-258...........................................................  7
Seat Installation, p/n: ST3-A 8-262.....................................................  7
Seat, Gs12, p/n: 1414461-A 8-264........................................................  7
Lower Bar Sub-Assembly, PS7 8-271.......................................................  8
Pivot and Shift Installation, PS10 8-274................................................  8
Pivot and Shift Chain Anchor Installation, PS20 8-277...................................  8
Shift Cylinder Installation, PS6 8-280..................................................  8
Shift Cylinder Sub-Assembly, PS9 8-284..................................................  8
Shift Cylinder Breakdown, p/n: 1412889A 8-286..........................................  8
Side Shift Chains Installation, PS5 8-290...............................................  8
Pivot Arm Installation, PS2 8-294.......................................................  8
Cross Head Bearings Installation, PS1-A 8-298...........................................  8
Pivot Stop Pad Installation, PS3 8-302..................................................  8
Pivot Cylinder Installation, PS4 8-306..................................................  8
Pivot Cylinder Assembly, p/n; 1400601A 8-308...........................................  8
Tilt Cylinder Installation, MA52 8-312..................................................  8
Tilt Cylinder Assembly, p/n: 1401224A 8-314............................................  8
Rear Compartment Seal, ID8 8-320........................................................  8
Console Cover Sub-Assembly, OH14 8-324..................................................  8
Battery Door Sub-Assembly, OH8 8-328....................................................  8
Side Cover Weldment Installation, ID9 8-332.............................................  8
Insulator Installation, p/n: CO4-A 8-335................................................  8
Rear Compartment Cover, CO6 8-338.......................................................  9
Sealant Installation, CO7-A 8-342.......................................................  9
Floor Plate Installation, OH3 8-345.....................................................  9
Floor Plate Sub-Assembly, C02 8-347.....................................................  9
Mast Level Indicator Installation, MA2 8-349............................................  9
Identification Labeling, ID2 Hi-Lo (Serial # 1531 and future) 8-358.....................  9
Abbreviations........................................................................... 11
Phantoms / Reference Parts.............................................................. 11
Task Groups/Assemblies.................................................................. 11
General................................................................................. 11
Frame Position and Installation, p/n: FR12-A............................................ 14
	Figure 8-1: Frame Position and Installation, p/n: FR12-A............................ 15
	Frame Bearing Installation, p/n: FR13-A............................................. 17
		Figure 8-2: Frame Bearing Installation, p/nn: FR13-A............................ 17
Drive Motor Installation, p/n: DA15-A................................................... 20
	Figure 8-3: Drive Motor Installation, p/n: DA15-A................................... 21
	Drive Unit, Dual Chain, p/n: 1400695-A.............................................. 22
	Drive Unit, Dual Chain, p/n: 1400695-A (continued).................................. 23
		Figure 8-4: Drive Unit, Dual Chain, p/n: 1400695-A.............................. 25
	Traction Motor Modification, p/n: 1404415-D......................................... 26
		Figure 8-5: Traction Motor Modification, p/n: 1404415D......................... 27
	Traction Motor Assembly, p/n: 1415910A............................................. 28
		Figure 8-6: Traction Motor Assembly, p/n: 1415910A............................. 29
	Steer Idler Assembly, p/n: 1412460-A................................................ 30
		Figure 8-7: Steer Idler Assembly, p/n: 1412460-A................................ 30
	Drive Unit Sub-Assembly, DA8........................................................ 32
		Figure 8-8: Drive Unit Sub-Assembly, DA8........................................ 33
	Drive Wheel Installation, DA2....................................................... 35
		Figure 8-9: Drive Wheel Installation, DA2....................................... 35
	Chain Assembly for Steering, p/n: 1400109B......................................... 36
		Figure 8-10: Chain Assembly for Steering, p/n: 1400109B........................ 36
Steer Idler Installation, DA9........................................................... 38
	Figure 8-11: Steer Idler Installation, DA9.......................................... 39
Lower Drive Unit Installation, DA11..................................................... 41
	Figure 8-12: Lower Drive Unit Installation, DA11.................................... 41
	Press Drive Plate Studs, DA14....................................................... 43
		Figure 8-13: Press Drive Plate Studs, DA14...................................... 43
	Spindle Installation, LW3........................................................... 46

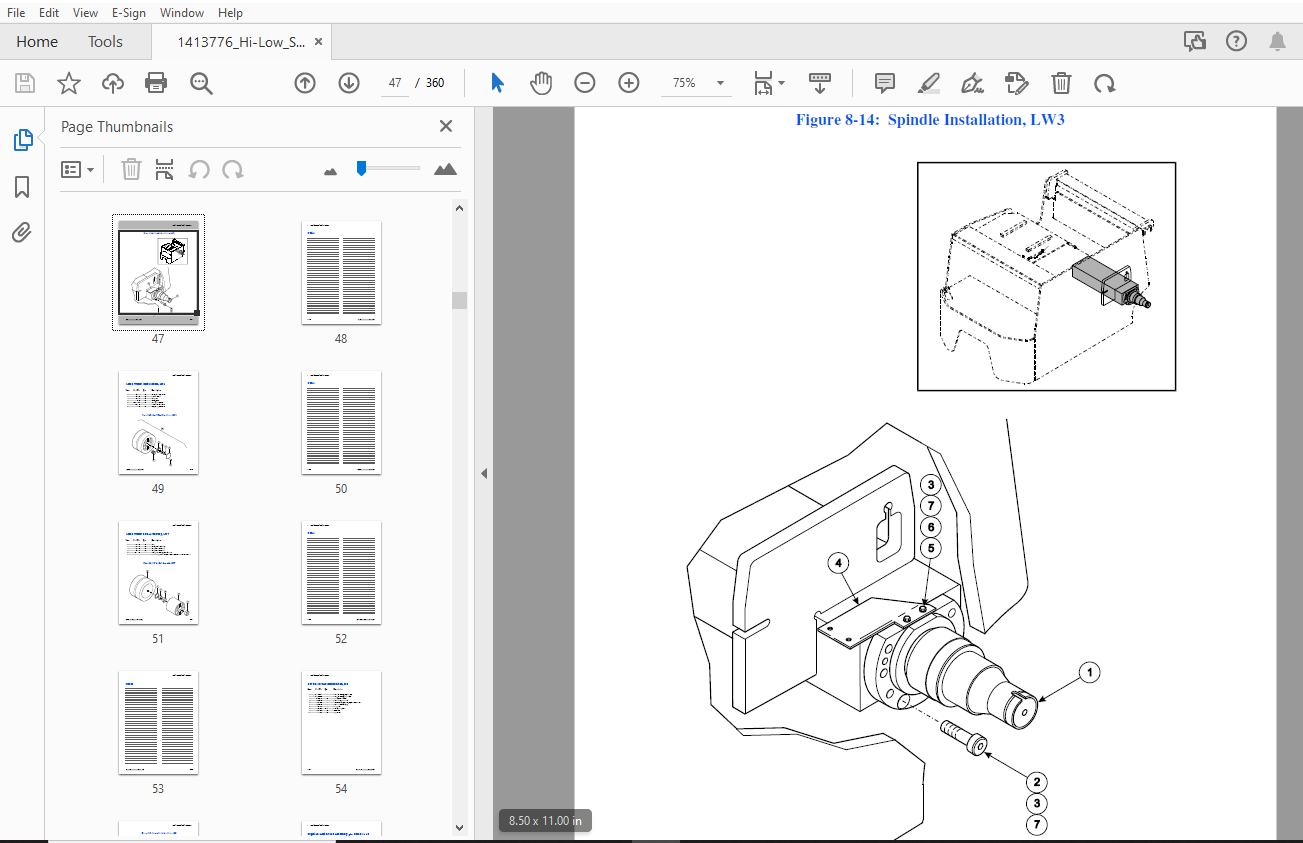

		Figure 8-14: Spindle Installation, LW3.......................................... 47
	Load Wheel Installation, LW6........................................................ 49
		Figure 8-15: Load Wheel Installation, LW6....................................... 49
	Load Wheel Sub-Assembly, LW7........................................................ 51
		Figure 8-16: Wheel Sub-Assembly, LW7............................................ 51
	Service Brake Installation, SB5..................................................... 54
		Figure 8-17: Service Brake Installation, SB5.................................... 55
	Right & Left Brake Assembly, p/n: 51082-01 & -02.................................... 56
		Figure 8-18: Right & Left Brake Assembly, p/n: 51802 -01 & -02.................. 57
SCR Panel Installation, EL16............................................................ 60
	Figure 8-19: SCR Panel Installation, EL16 (sheet 1 of 2)............................ 61
	Figure 8-20: SCR Panel Installation, EL16 (sheet 2 of 2)............................ 62
	Contactor Panel without Box, p/n: 1405740A......................................... 63
	Contactor Panel Assembly, p/n: 1405740A............................................ 64
		Figure 8-21: Contactor Panel Assembly, p/n: 1405740A........................... 65
	Contactor, 150A, DPDT, p/n: 1401978-A............................................... 66
		Figure 8-22: Contactor for FR 150A DPDT, p/n: 1401978-A......................... 67
	Contactor, 300A, SPNO, p/n: 1401979-A............................................... 68
		Figure 8-23: Contactor, 300A, SPNO, p/n: 1401979-A.............................. 69
	Contactor, 100A, SPNO, p/n: 1411980-A............................................... 70
	Contactor, 300A, 36VDC, p/n: 28889-D................................................ 71
	“LX” SCR Control Panel, p/n: 52511A................................................ 72
		Figure 8-24: “LX” SCR Control Panel, p/n: 52511A............................... 73
	Electrical Box Sealing, EL40-A...................................................... 75
		Figure 8-25: Electrical Box Sealing, EL40-A..................................... 75
	Battery Connector Sub-Assembly, EL17................................................ 78
		Figure 8-26: Battery Connector Sub-Assembly, EL17............................... 79
	Wire Harness Installation, EL18..................................................... 82
		Figure 8-27: Wire Harness Installation, EL18.................................... 83
	Cable Installation, EL19............................................................ 85
		Figure 8-28: Cable Installation, EL19........................................... 85
	Ground Straps Installation, p/n: EL38-A............................................. 87
		Figure 8-29: Ground Straps Installation, p/n: EL38-A............................ 87
Fluids, FL1............................................................................. 90
	Figure 8-30: Fluids, FL1............................................................ 91
	Pump Speed Control Installation, HY1................................................ 94
		Figure 8-31: Pump Speed Control Installation, HY1............................... 95
	Capacitor and Pump Assembly, p/n: 1411418B......................................... 96
		Figure 8-32: Capacitor and Pump Assembly, p/n: 1411418B........................ 97
	Hydraulic Pump and Motor Installation, HY49-A.......................................100
		Figure 8-33: Hydraulic Pump and Motor Installation, HY49-A......................101
	Hydraulic Pump and Motor Assembly, p/n: 1414462A...................................102
	Main Pump Seal Kits, p/n: 1402551B.................................................103
		Figure 8-34: Hydraulic Pump and Motor Assembly, p/n: 1414462A..................105
	Main Hydraulic Gear Pump, p/n: 1420425-A............................................106
	Pump Casappa Field Kit, p/n: 1420681-B..............................................106
		Figure 8-35: Main Hydraulic Gear Pump, p/n: 1420425-A...........................107
	Main Motor Assembly, p/n: 1404414A.................................................108
		Figure 8-36: Main Motor Assembly, p/n: 1404414A................................109
	Hydraulic Tank Installation, p/n: HY74-A............................................112
		Figure 8-37: Hydraulic Tank Installation, p/n: HY74-A...........................113
	Hydraulic Reservoir, p/n: 1419896-C.................................................114
		Figure 8-38: Hydraulic Reservoir, p/n: 1419896-C................................115
	Oil Filter, Return Line, p/n: 1419880-A.............................................116
		Figure 8-39: Oil Filter, Return Line, p/n: 1419880-A............................116
	Hydraulic Hose Installation, HY23...................................................118
		Figure 8-40: Hydraulic Hose Installation, HY23..................................119
	Side Shift Hose, HY7................................................................121
		Figure 8-41: Side Shift Hose, HY7...............................................121
	Umbilical Assembly Installation, HY8................................................124
		Figure 8-42: Umbilical Assembly Installation, HY8...............................125
	Umbilical Tray Installation, HY22...................................................128
		Figure 8-43: Umbilical Tray Installation, HY22..................................129
	Umbilical Hoses Connect, HY46.......................................................132
		Figure 8-44: Umbilical Hoses Connect, HY46......................................133
	Manifold Assembly, p/n: 1413172C...................................................134
		Figure 8-45: Manifold Assembly, p/n: 1413172C..................................135
	Pivot and Tilt Hose Installation, HY19..............................................138
		Figure 8-46: Pivot and Tilt Hose Installation, HY19.............................139
	Orbitrol Tank Hose Installation, HY48...............................................142
		Figure 8-47: Orbitrol Tank Hose Installation, HY48..............................143
	Steer Pump/Motor Installation, HY11.................................................146
		Figure 8-48: Steer Pump/Motor Installation, HY11................................147
	Pump and Motor Assembly, Steering, p/n: 1413444A...................................148
		Figure 8-49: Pump and Motor Assembly, Steering, p/n: 1413444A..................149
	Steer Pump/Motor Sub-Assembly, HY12.................................................151
		Figure 8-50: Steer Pump/Motor Sub-Assembly, HY12................................151
	Steering Pump, p/n: 51734...........................................................153
		Figure 8-51: Steering Pump, p/n: 51734..........................................153
	Steering Motor Assembly, p/n: 51735.................................................154
		Figure 8-52: Steering Motor Assembly, p/n: 51735................................155
	Power Steering Hydraulic Installation, HY14.........................................157
		Figure 8-53: Power Steering Hydraulic Installation, HY14........................157
	Steer Motor Sub-Assembly, HY21......................................................160
		Figure 8-54: Steer Motor Sub-Assembly, HY21.....................................161
	Steering Motor Assembly, p/n: 25950.................................................162
		Figure 8-55: Steering Motor Assembly, p/n: 25950................................163
	Control Valve Installation, p/n: HY15-D.............................................165
		Figure 8-56: Control Valve Installation, p/n: HY15-D............................165
	Hydraulic Spool Valve Assembly, p/n: 1415064 -D.....................................166
		Figure 8-57: Hydraulic Spool Valve Assembly, p/n: 1415064-D.....................167
	Control Valve Assembly, p/n: 1419760A..............................................168
	Control Valve Assembly, p/n: 1419760-A (continued)..................................169
		Figure 8-58: Control Valve Assembly Breakdown, p/n: 1419760A (sheet 1 of 2)....170
		Figure 8-59: Control Valve Assembly Breakdown, p/n: 1419760A (sheet 2 of 2)....171
Joystick Installation, HY51.............................................................174
	Figure 8-60: Joystick Installation, HY51............................................175
	Joystick Hydraulic Sub-Assembly, HY24...............................................177
		Figure 8-61: Joystick Hydraulic Sub-Assembly, HY24..............................177
	Joystick Assembly, p/n: 1406119-A and 1406120A.....................................178
		Figure 8-62: Joystick Assembly..................................................179
	Instruments and Side Console Installation, ID11-A...................................182
		Figure 8-63: Instruments and Side Console Installation, ID11-A..................183
	Cover Plate Assembly, p/n: 1401930..................................................184
		Figure 8-64: Cover Plate Assembly, p/n: 1401930.................................185
	Instrument Panel Assembly, p/n: 1414456A...........................................186
		Figure 8-65: Instrument Panel Assembly, p/n: 1414456A..........................187
	Side Console Installation, p/n: OH18-A..............................................190
		Figure 8-66: Side Console Installation, p/n: OH18-A.............................191
	Side Console Sub-Assembly, p/n: OH17-A..............................................193
		Figure 8-67: Side Console Sub-Assembly, p/n: OH17-A.............................193
	Console Cover Sub-Assembly, OH9.....................................................195
		Figure 8-68: Console Cover Sub-Assembly, OH9....................................195
	Steering Wheel Installation, ID4....................................................197
		Figure 8-69: Steering Wheel Installation, ID4...................................197
	Horn Button Installation, OH2.......................................................200
		Figure 8-70: Horn Button Installation, OH2......................................201
Operator Console Installation, OH6......................................................203
	Figure 8-71: Operator Console Installation, OH6.....................................203
	Steering Column Installation, HY5...................................................205
		Figure 8-72: Steer Column Installation, HY5.....................................205
	Steering Column Assembly, p/n: 1400968D............................................207
		Figure 8-73: Steering Column Assembly, p/n: 1400968D...........................207
	Steering Control Assembly, p/n: 25975C.............................................208
		Figure 8-74: Steering Control Assembly, p/n: 25975C............................209
	Key Switch Installation, EL35-A.....................................................212
		Figure 8-75: Key Switch Installation, EL35-A....................................213
	Key Switch Assembly, p/n: 1404722C.................................................214
		Figure 8-76: Key Switch Assembly, p/n: 1404722-C................................215
	Brake Weldment Assembly, SB2........................................................218
		Figure 8-77: Brake Weldment Assembly, SB2.......................................219
	Brake Pedal Installation, SB3.......................................................222
		Figure 8-78: Brake Pedal Installation, SB3......................................223
	Master Cylinder Installation, SB4...................................................226
		Figure 8-79: Master Cylinder Installation, SB4..................................227
	Master Cylinder Assembly, p/n: 1402557C............................................228
		Figure 8-80: Master Cylinder Assembly, p/n: 1402557C...........................229
	Accelerator Unit Installation, EL15.................................................231
		Figure 8-81: Accelerator Unit Installation, EL15................................231
Parking Brake Installation, PB17........................................................234
	Figure 8-82: Parking Brake Installation, PB17.......................................235
	Parking Brake Sub-Assembly, PB1.....................................................238
		Figure 8-83: Parking Brake Sub-Assembly, PB1....................................239
	Equalizer Installation, PB2.........................................................242
		Figure 8-84: Equalizer Installation, PB2........................................243
	Brake Cable Installation, PB3.......................................................246
		Figure 8-85: Brake Cable Installation, PB3......................................247
	Brake Cable, 113” OAL, p/n: 1400532A...............................................248
	Brake Cable, 135” OAL, p/n: 1400533A...............................................248
		Figure 8-86: Brake Cable Assembly...............................................249
Driver’s Seat, Vinyl....................................................................252
	Seat Belt Installation, ST1 (serial # 1797 and before)..............................252
		Figure 9-87: Seat Belt Installation, ST1........................................253
	Seat Installation, for Seat Assembly 1412660........................................254
		Figure 9-88: Seat Installation, for Seat Assembly 1412660.......................255
	Seat Installation, for Seat Assembly 1413715........................................256
		Figure 9-89: Seat Installation, for Seat Assembly 1413715.......................257
	Driver’s Seat Breakdown.............................................................258
		Figure 9-90: Driver’s Seat Breakdown............................................259
	Seat Installation, p/n: ST3-A.......................................................262
		Figure 8-91: Seat Installation, p/n: ST3-A......................................263
	Seat, Gs12, p/n: 1414461-A..........................................................264
		Figure 8-92: Seat, Gs12, p/n: 1414461-A.........................................265
Lower Bar Installation, PS8.............................................................268
	Figure 8-93: Lower Bar Installation, PS8............................................269
	Lower Bar Sub-Assembly, PS7.........................................................271
		Figure 8-94: Lower Bar Sub-Assembly, PS7........................................271
	Pivot and Shift Installation, PS10..................................................274
		Figure 8-95: Pivot and Shift Installation, PS10.................................275
	Pivot and Shift Chain Anchor Installation, PS20.....................................277
		Figure 8-96: Pivot and Shift Chain Anchor Installation, PS20....................277
	Shift Cylinder Installation, PS6....................................................280
		Figure 8-97: Shift Cylinder Installation, PS6...................................281
	Shift Cylinder Sub-Assembly, PS9....................................................284
		Figure 8-98: Shift Cylinder Sub-Assembly, PS9...................................285
	Shift Cylinder Breakdown, p/n: 1412889A............................................286
		Figure 8-99: Shift Cylinder Breakdown, p/n: 1412889A...........................287
	Side Shift Chains Installation, PS5.................................................290
		Figure 8-100: Side Shift Chains Installation, PS5...............................291
	Pivot Arm Installation, PS2.........................................................294
		Figure 8-101: Pivot Arm Installation, PS2.......................................295
	Cross Head Bearings Installation, PS1-A.............................................298
		Figure 8-102: Cross Head Bearings Installation, PS1-A...........................299
	Pivot Stop Pad Installation, PS3....................................................302
		Figure 8-103: Pivot Stop Pad Installation, PS3..................................303
	Pivot Cylinder Installation, PS4....................................................306
		Figure 8-104: Pivot Cylinder Installation, PS4..................................307
	Pivot Cylinder Assembly, p/n; 1400601A.............................................308
		Figure 8-105: Pivot Cylinder Assembly, p/n; 1400601A...........................309
	Tilt Cylinder Installation, MA52....................................................312
		Figure 8-106: Tile Cylinder Installation, MA52..................................313
	Tilt Cylinder Assembly, p/n: 1401224A..............................................314
		Figure 8-107: Tilt Cylinder Assembly, p/n: 1401224A............................315
Stack Valve Cover, ID5..................................................................317
	Figure 8-108: Stack Valve Cover, ID5................................................317
	Rear Compartment Seal, ID8..........................................................320
		Figure 8-109: Rear Compartment Seal, ID8........................................321
	Console Cover Sub-Assembly, OH14....................................................324
		Figure 8-110: Console Cover Sub-Assembly, OH14..................................325
	Battery Door Sub-Assembly, OH8......................................................328
		Figure 8-111: Battery Door Sub-Assembly, OH8....................................329
	Side Cover Weldment Installation, ID9...............................................332
		Figure 8-112: Side Cover Weldment Installation, ID9.............................333
	Insulator Installation, p/n: CO4-A..................................................335
		Figure 8-113: Insulator Installation, p/n: CO4-A................................335
	Rear Compartment Cover, CO6.........................................................338
		Figure 8-114: Rear Compartment Covers, CO6......................................339
	Sealant Installation, CO7-A.........................................................342
		Figure 8-115: Sealant Installation, CO7-A.......................................343
	Floor Plate Installation, OH3.......................................................345
		Figure 8-116: Floor Plate Installation, OH3.....................................345
	Floor Plate Sub-Assembly, C02.......................................................347
		Figure 8-117: Floor Plate Sub-Assembly, CO2.....................................347
	Mast Level Indicator Installation, MA2..............................................349
		Figure 8-118: Mast Level Indicator Installation, MA2............................349
Overhead Guard Installation, OH1........................................................352
	Figure 8-119: Overhead Guard Installation, OH1......................................353
Identification Labeling, ID2 Hi-Lo (Serial # 1530 and before)...........................355
	Figure 8-120: Identification Labeling, ID2 Hi-Lo (Serial # 1530 and before).........356
	Figure 8-121: Identification Labeling, ID2 Hi-Lo (Serial # 1530 and before).........357
	Identification Labeling, ID2 Hi-Lo (Serial # 1531 and future).......................358
		Figure 8-122: Identification Labeling, ID2 Hi-Lo (Serial # 1531 and future).....359
