EP EPT16-ET EPT20-ET Electric Pallet Truck Forklift Parts Manual – PDF DOWNLOAD

EP EPT16-ET EPT20-ET Electric Pallet Truck Forklift Parts Manual – PDF DOWNLOAD

FILE DETAILS:

EP EPT16-ET EPT20-ET Electric Pallet Truck Forklift Parts Manual – PDF DOWNLOAD

Language : English & Chinese
Pages : 77
Downloadable : Yes
File Type : PDF

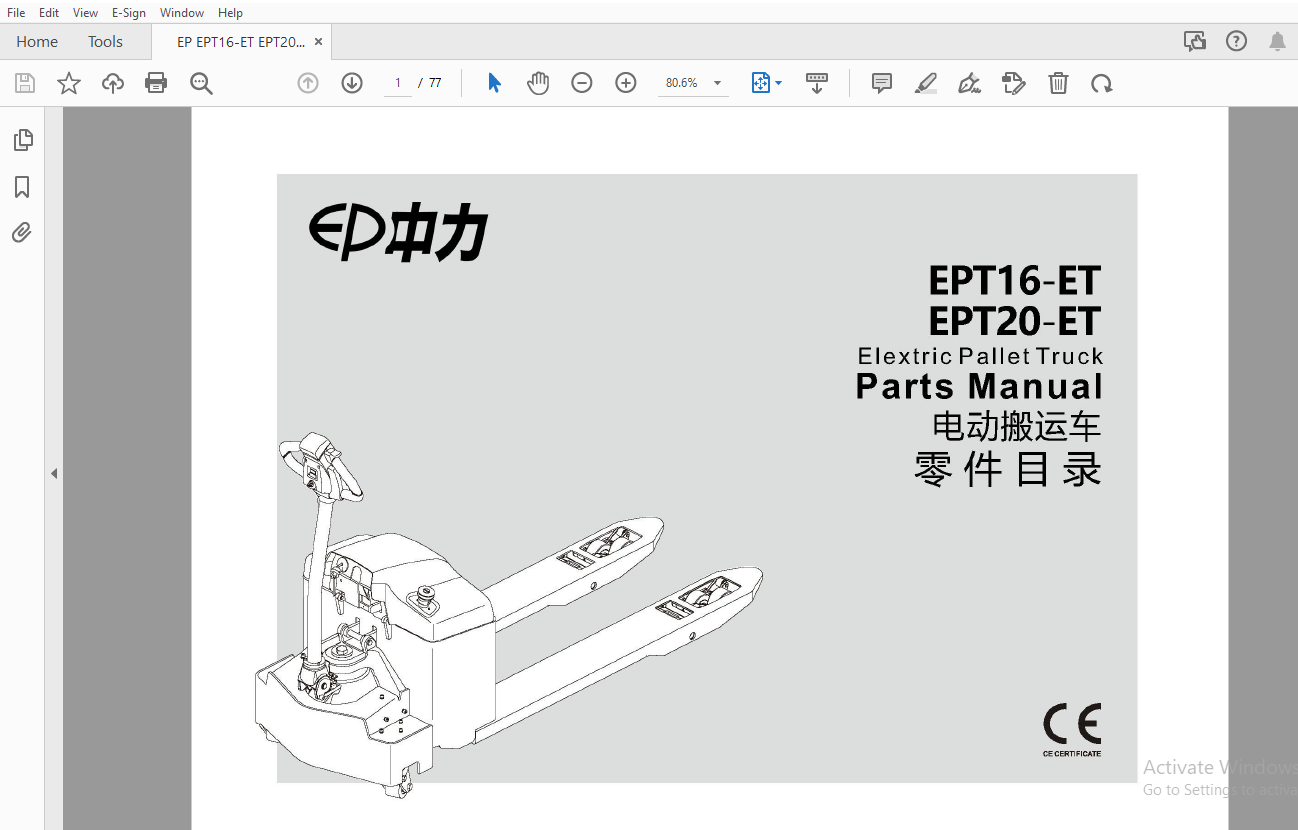

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

EP EPT16-ET EPT20-ET Electric Pallet Truck Forklift Parts Manual – PDF DOWNLOAD

1000 Frame System 车身系统 1
0101 Frame System 车身系统 2
0102 Connecting Link, For EPT16-ET 连杆总成 4
0103 Connecting Link, For EPT20-ET 连杆总成 7
0104 Load Wheel,For EPT16-ET 承载轮 10
0105 Load Wheel, For EPT20-ET 承载轮 12
0106 Driving Cover Assembly 驱动外罩总成 14
0107 Caster Assembly 浮动万向轮总成 16
0108 Cover Assembly 外罩总成 18
2000 Driving System 驱动系统 20
0201 Driving System 驱动系统 21
0202 Driving Assembly 驱动单元总成 23
3000 Operating Control System 操作系统 29
0301 Operating Control System 操作系统 30
0302 Control Pod Assembly 手柄头总成 32
0303 Upper Cover Assembly 上盖总成 36
030301 Upper Cover Assembly 上盖总成 38
4000 Hydraulic System 液压系统 42
0401 Hydraulic Assembly 液压总成 43
0402 Lifting Cylinder，For EPT-20ET 起升油缸 45
0403 Lifting Cylinder, For EPT-16ET 起升油缸 47
0404 Pump & Motor Assembly 液压站总成 49
5000 Electrical System 电气系统 52
0501 Setting Board Assembly 电器板总成 53
050101 Setting Board Assembly 电器板总成 56
0502 Wire Harness Assembly 线束总成 59
0503 Cable Assembly 电缆总成 61
