EP EPT20-20RAS/EPT25-RAS EPT20-RASH/EPT25-RASH EPT20-30RAS/EPT30-RAS Electric Parts Manual

EP EPT20-20RAS/EPT25-RAS EPT20-RASH/EPT25-RASH EPT20-30RAS/EPT30-RAS Electric Pallet Truck Parts Manual – PDF DOWNLOAD

FILE DETAILS:

EP EPT20-20RAS/EPT25-RAS EPT20-RASH/EPT25-RASH EPT20-30RAS/EPT30-RAS Electric Pallet Truck Parts Manual – PDF DOWNLOAD

Language : English & Chinese
Pages : 111
Downloadable : Yes
File Type : PDF

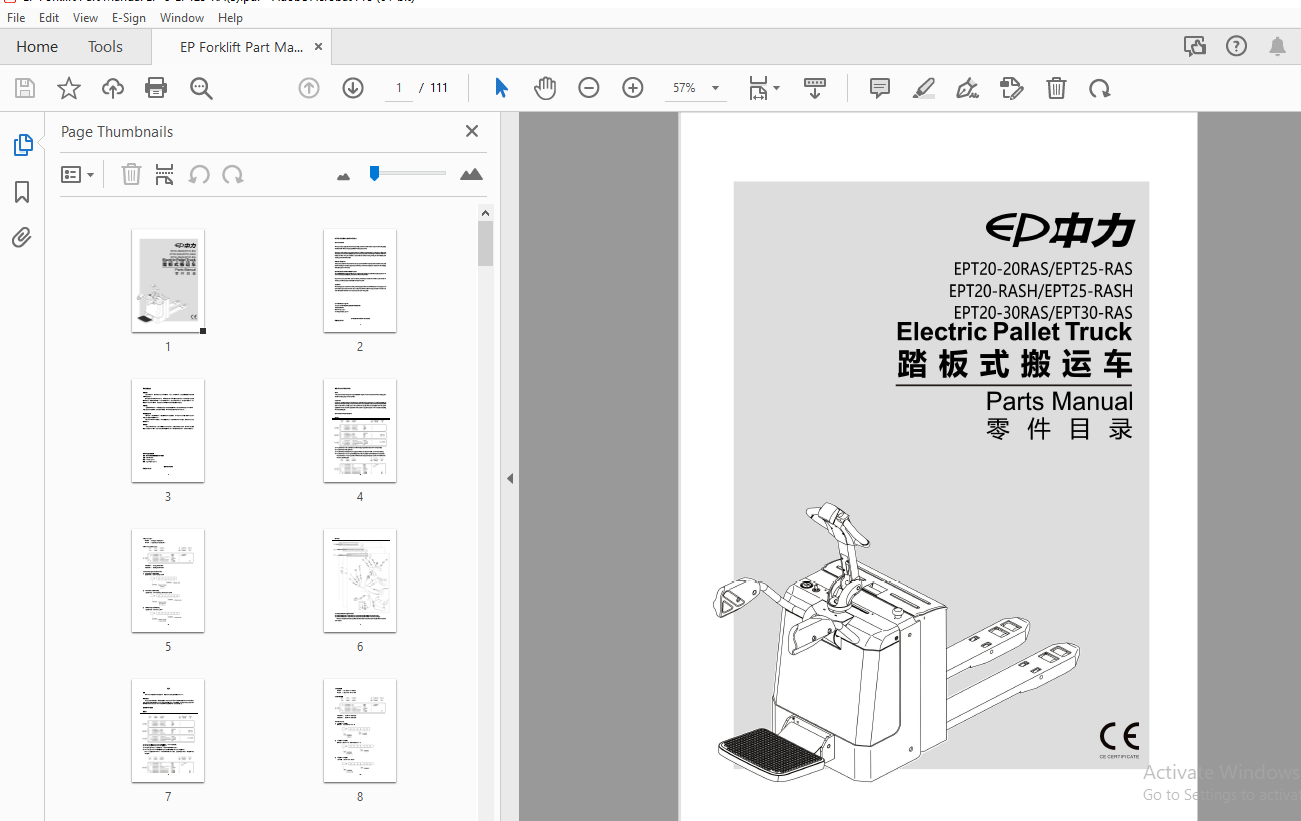

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

EP EPT20-20RAS/EPT25-RAS EPT20-RASH/EPT25-RASH EPT20-30RAS/EPT30-RAS Electric Pallet Truck Parts Manual – PDF DOWNLOAD

1000Frame System 车身系统
0101 Double-Wheels Lifting Structure 双轮起升结构 3
0102 Single Wheel Lifting Structure 单轮起升结构 11
0103 Double Load Wheel 双轮承载轮 19
0104 Single-Load Wheel 单轮承载轮 21
0105 Frame System 车身系统 23
0106 Battery Box (For Side) 电瓶箱（侧拉） 25
0107 Caster Assembly 万向轮 27
0108 Battery Cover 电瓶盒盖 29
0109 Cover Assembly 外罩总成 31
0110 Handrails Assembly 护臂组件 33
0111 Platform Assembly 踏板总成 35
2000Driving System 驱动系统
0201 Driving Assembly, -RAS 驱动总成，-RAS 38
0202 Driving Assembly, -RASH 驱动总成，-RASH 40
0203 Gear Case Assembly IV 减速箱总成IV 43
0204 Gear Case Assembly 减速箱总成 49
0205 Motor Assembly 电机总成 55
3000Operating Control System 操作系统
0301 Operating Control System 操作系统 58
0302 Control Pod Assembly 操作手柄头总成 61
0303 Upper Cover Assembly 上盖总成 65
0304 Button Reverser Assembly 紧急反向开关总成 69
4000Hydraulic System 液压系统
0401 Hydraulic System 液压系统 72
0402 Pump & Motor Assembly 液压站总成 74
0403 Cylinder Assembly 油缸总成 83
5000Electrical System 电气系统
0501 Electrical System, -RAS 电气系统，-RAS 86
0502 Controller Board Assembly, -RAS 电气安装板总成, -RAS 88
0503 Wire Harness Assembly, -RAS 线束总成，-RAS 90
0504 Cable Assembly, -RAS 电缆总成，-RAS 92
0505 Electrical System，-RASH 电气系统，-RASH 94
0506 Controller Board Assembly, -RASH 电气安装板总成，-RASH 96
0507 Wire Harness Assembly, -RASH 线束总成，-RASH 98
0508 Cable Assembly,-RASH 电缆总成，-RASH 100
