EP ES06-CA Counterbalanced Forklift Truck Parts Manual – PDF DOWNLOAD

EP ES06-CA Counterbalanced Forklift Truck Parts Manual – PDF DOWNLOAD

FILE DETAILS:

EP ES06-CA Counterbalanced Forklift Truck Parts Manual – PDF DOWNLOAD

Language : English & Chinese
Pages : 70
Downloadable : Yes
File Type : PDF

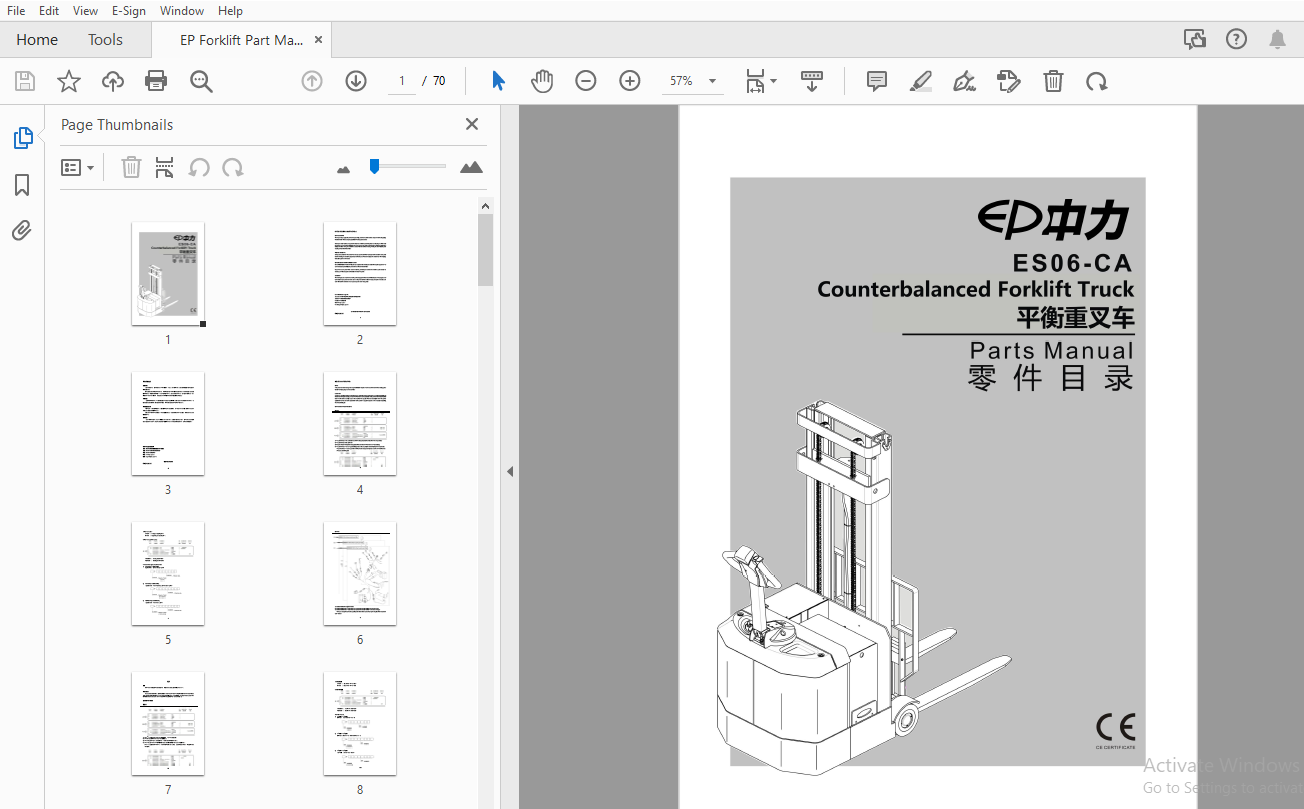

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

EP ES06-CA Counterbalanced Forklift Truck Parts Manual – PDF DOWNLOAD

1000Frame System 车身系统
0101 Frame System 车身系统 3
0102 Cover Assembly 外罩总成 5
2000Driving System 驱动系统
0201 Driving System 驱动系统 8
0202 Motor Assembly 电机总成 10
0203 Gear Case Assembly 减速箱总成 12
3000Operating Control System 操作系统
0301 Operating Control System 操作系统 19
0301 Operating Control Assembly 操作总成 21
0302 Control Handle Assembly 操作手柄总成 23
0303 Upper Cover Assembly 上盖总成 27
0304 Button Reverser Assembly 反向开关总成 31
4000Hydraulic System 液压系统
0401 Duplex Mast Hydraulic System 两级门架液压系统 35
0402 Hydraulic Pump Assembly 液压站总成 37
5000Electrical System 电气系统
0501 Electrical System 电气系统 41
0502 Contactor Panel Assembly 电器安装板总成 43
0503 Battery Assembly I 电瓶总成I 45
0504 Wire Harness Assembly 线束总成 47
0505 Cable Assembly 电缆总成 49
6000Lifting System 起升系统
0601 Duplex Mast Lifting System 两级门架起升系统 52
0602 Lifting Cylinder 起升油缸 54
0603 Duplex Mast Fork Frame 两级门架货叉架 56
0604 Chain Assembly 链条总成 58
