EP ES15-15ES ES15-33DM Electric Stacker Parts Manual – PDF DOWNLOAD

EP ES15-15ES ES15-33DM Electric Stacker Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Language : English & Chinese
Pages : 63
Downloadable : Yes
File Type : PDF

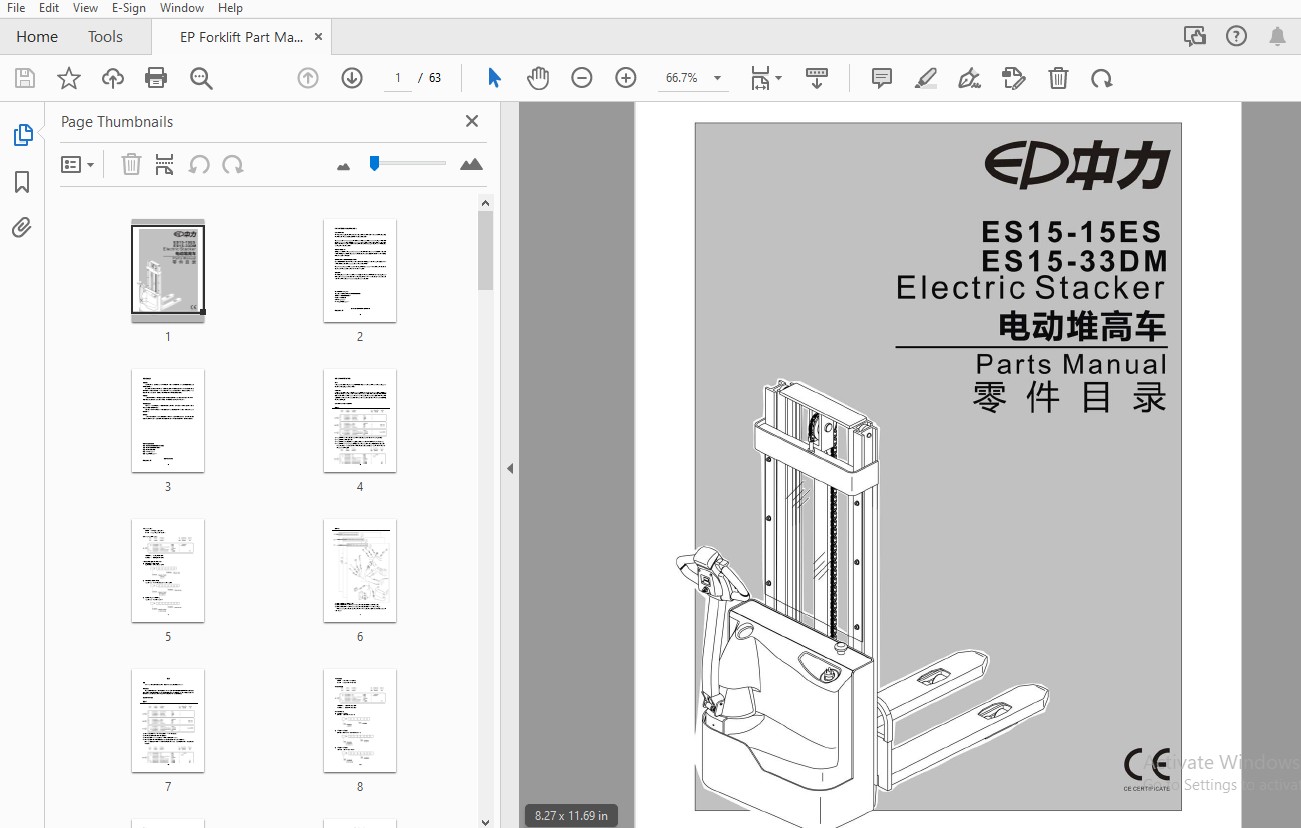

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

EP ES15-15ES ES15-33DM Electric Stacker Parts Manual – PDF DOWNLOAD

1000Frame System 车身系统 1
0101Frame System 车架系统 3
0102Frame System (wide)车架系统（宽腿） 5
0103 Cover Assembly 外罩总成 7
0104 Caster Assembly 万向轮总成I 9
0105 Caster Assembly II 万向轮总成II 11
2000Driving System 驱动系统 12
0201 Driving Assembly 驱动总成 14
0202 Gear Case Assembly 减速箱总成 16
3000Operating Control System 操作系统 17
0301 Operating Control Assembly 操作总成 19
0302 Control Pod Assembly 操作手柄头总成 21
0303 Upper Cover Assembly 上盖总成 23
0304 Button Reverser Assembly 紧急反向开关总成 25
4000Hydraulic System 液压系统 26
0401 Hydraulic System 液压系统 28
0402 Hydraulic Pump Assembly 液压站总成 30
5000Electric System 电气系统 31
0501 Electric Assembly 电气总成 33
0502 Controller Board Assembly 电器板总成 35
0503 Wiring Harness Assembly 线束总成 37
0504 Cable Assembly 电缆总成 39
6000Lifting System 起升系统 40
0601 Duplex Mast Lifting System 两级门架起升系统 42
0602 Lifting Cylinder0602 Lifting Cylinder 起升油缸 44
0603 Fork Frame 货叉架 46
0604 Fork Frame Assembly(wide)货叉架总成(宽腿) 48
0605 Chain Assembly 链条总成 50
0606 Windshield Assembly 安全挡板总成 52
