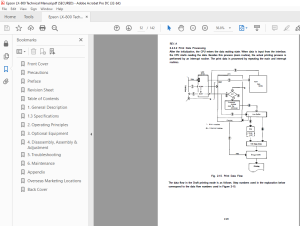

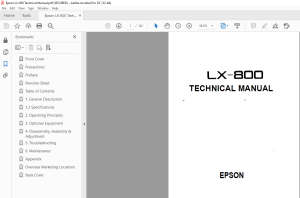

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Epson LX-800 Technical Manual - PDF DOWNLOAD

PREFACE
This manual describes functions, theory of electrical and mechanical operations,
maintenance, and repair of the LX-800.
The instructions and procedures included in this document are intended for
the experienced repair technician, who should pay attention to the precautions
on the preceding page. The chapters are organized as follows:

Chapter 1 — Provides a general product overview, lists specifications, and illustrates the main components of the printer
Chapter 2 — Describes the theory of printer operation
Chapter 3 — Discusses the options
Chapter 4 —Includes a step-by-step guide for product disassembly, assembly, and adjustment
Chapter 5 —Provides Epson-approved techniques for troubleshooting
Chapter 6 —Describes preventive maintenance techniques and lists lubricants and adhesives required to service the equipment

TABLE OF CONTENTS:

Epson LX-800 Technical Manual - PDF DOWNLOAD

Front Cover 1
Precautions 3
Preface 4
Revision Sheet 5
Table of Contents 6
1 General Description 7
13 Specifications 14
2 Operating Principles 30
3 Optional Equipment 75
4 Disassembly, Assembly & Adjustment 77
5 Troubleshooting101
6 Maintenance120
Appendix124
Overseas Marketing Locations141
Back Cover142
