Ferrari Mondial T Mondial T Cabriolet Spare Parts Catalogue Manual – PDF DOWNLOAD

Ferrari Mondial T Mondial T Cabriolet Spare Parts Catalogue Manual – PDF DOWNLOAD

FILE DETAILS:

Ferrari Mondial T Mondial T Cabriolet Spare Parts Catalogue Manual – PDF DOWNLOAD
Language : English
Pages : 348
Downloadable : Yes
File Type : PDF

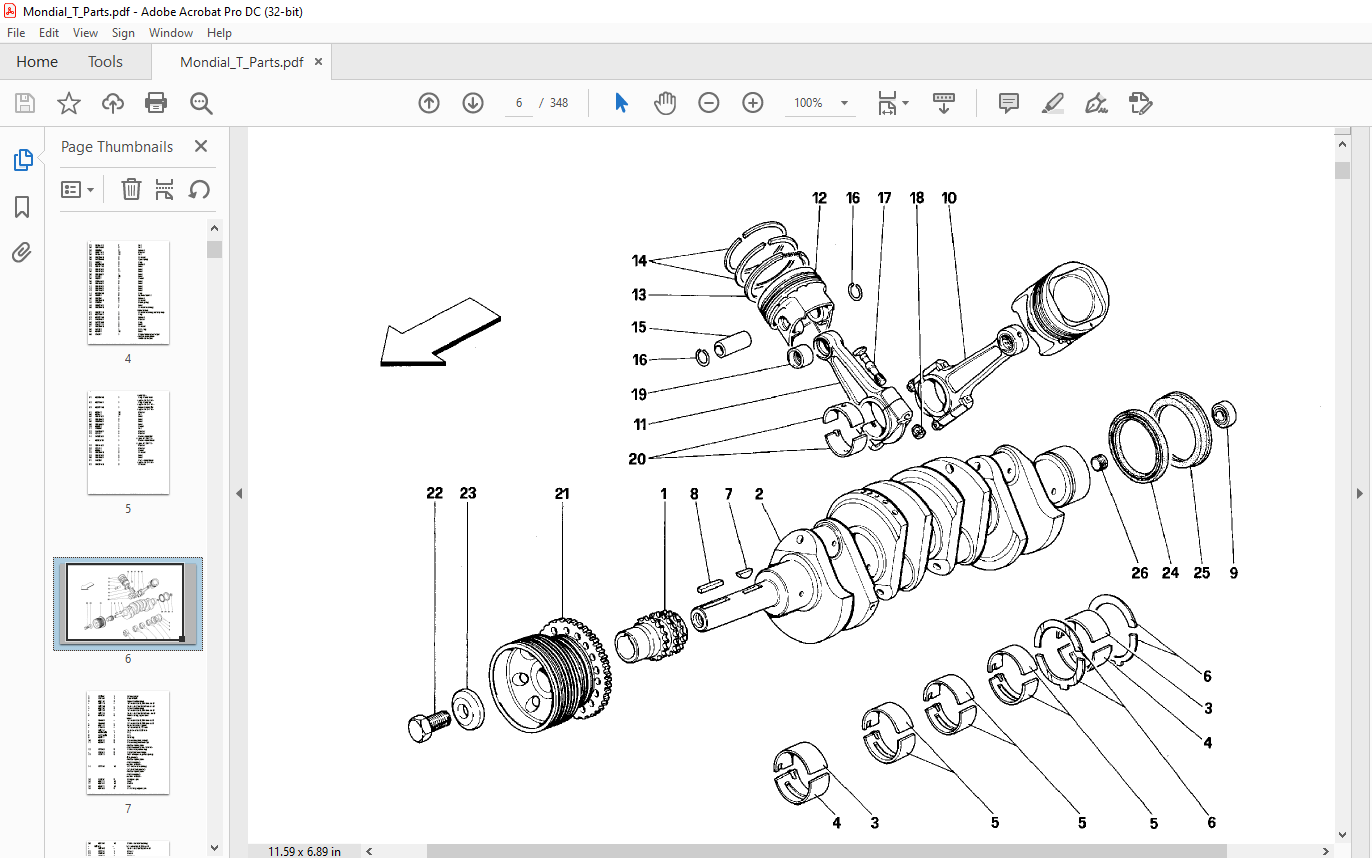

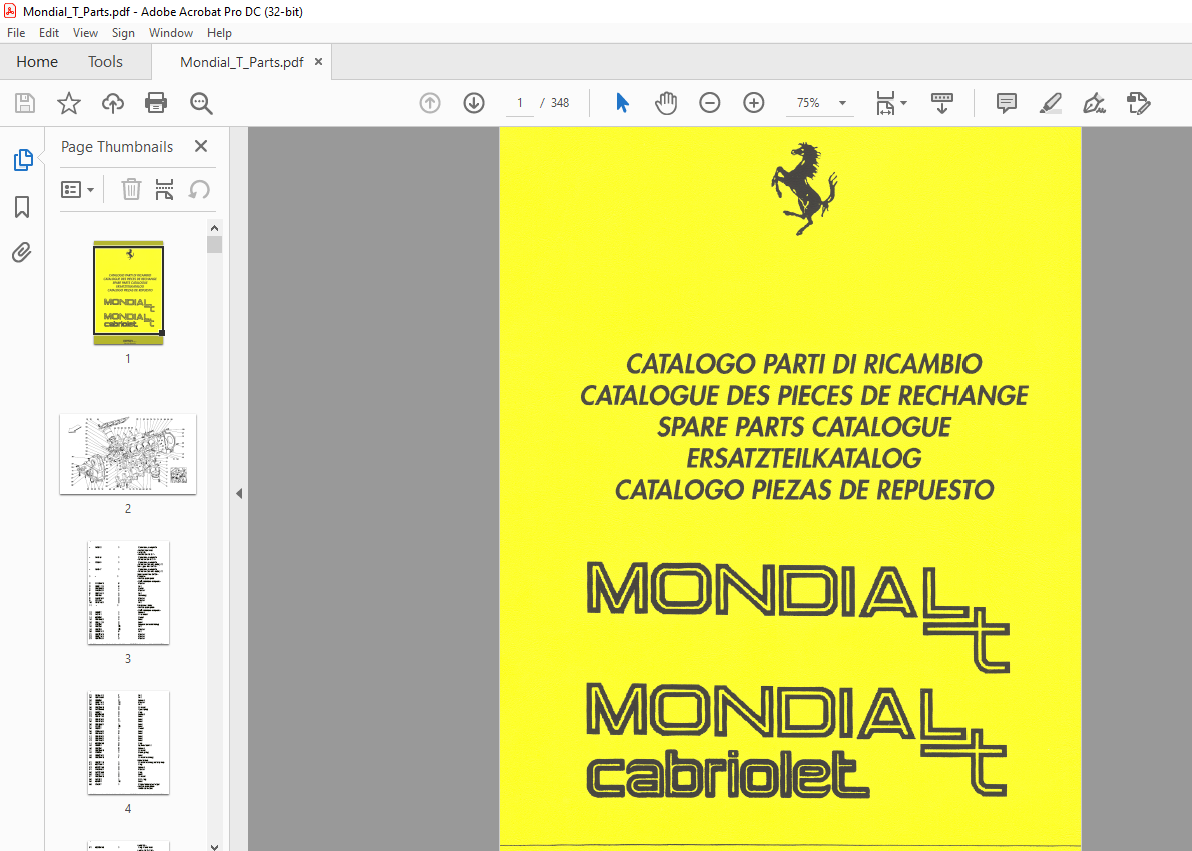

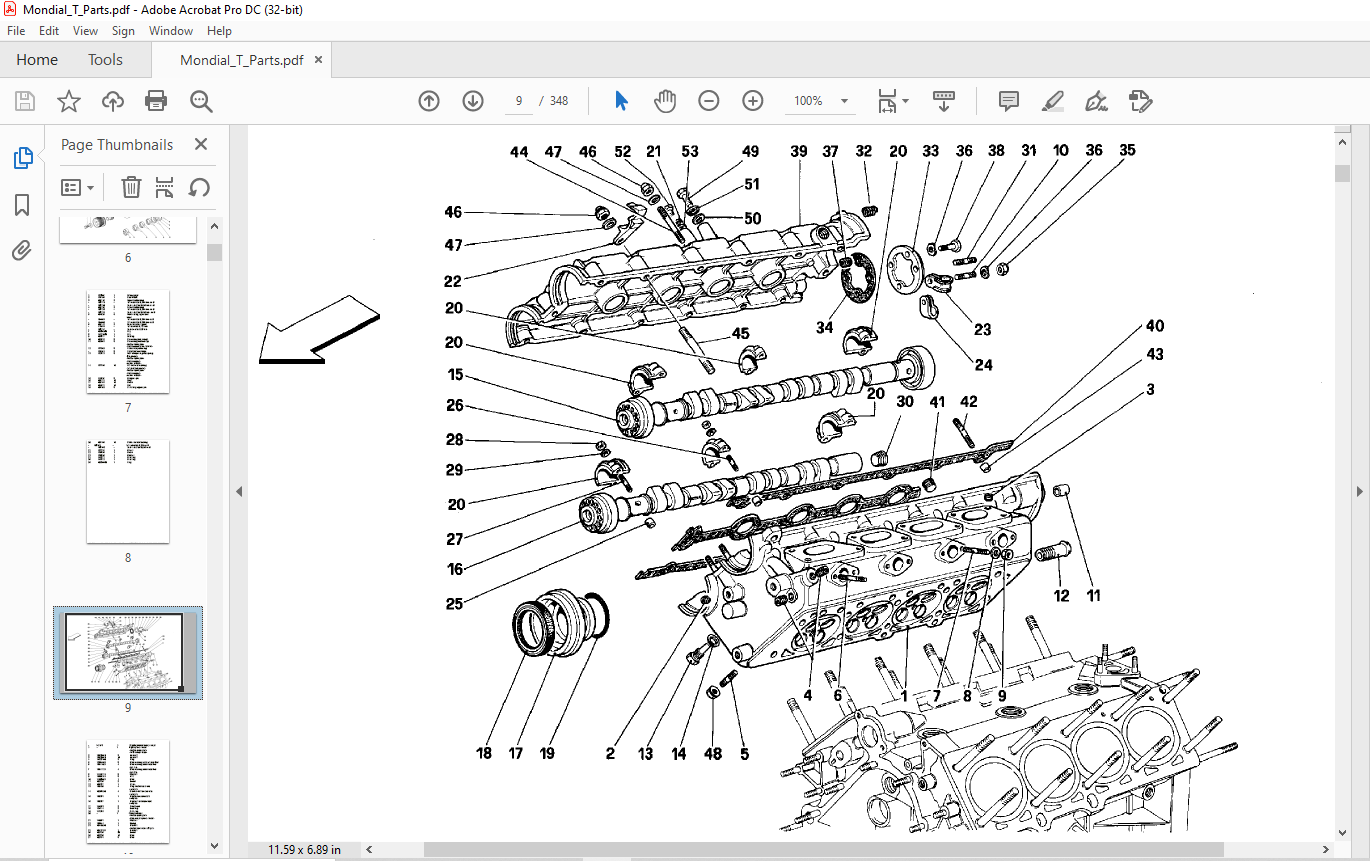

MAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Ferrari Mondial T Mondial T Cabriolet Spare Parts Catalogue Manual – PDF DOWNLOAD

1 132807 1 Driving gear
2 138193 1 Crankshaft
3 100118 2 Upper half bearing
– 100119 – 1st undersize 0,254 mm. on Ø
– 100120 – 2nd undersize 0,508 mm on Ø
4 100122 2 Lower half bearing
– 100123 – 1st undersize 0,254 mm. on Ø
– 100124 – 2nd undersize 0,508 mm. on Ø
5 104023 6 Half bearing, upper and
lower
– 104024 – 1st undersize 0,254 mm on Ø
– 104025 – 2st undersize 0,508 mm on Ø
6 100146 2 Shim for rear support
– 113984 – 1st oversize 0,127 mm
– 100147 – 2nd oversize 0,25 mm
7 10206020 1 Key
8 14723320 1 Key
9 103877 1 Bearing
10 109738 8 Connecting rod, compl.
11 109688 8 Connecting rod and cap
-Not as spare part-
-With assembly No. 109738-
12 137980 8 Piston with piston ring
– 132959 8 Set of pistons rings
13 132773 8 ROF scraper ring with spring
(3th groove)
-Not as spare part-
-With complete
set No. 132959-
14 137763 16 AC torsional seal ring
(1st and 2nd groove)
-Not as spare part-
-With complete
set No. 132959-
15 119537 8 Gudgeon pin
16 100174 16 Ring
17 100156 16 Screw
18 104011 16 Nut
19 107100 8 Bush for gudgeon pin
20 106183 16 CoNo. rod half bearing
– 100151 – 1st undersize 0,254 on Ø
– 100152 – 2nd undersize 0,508 on Ø
21 137321 1 Wheel
22 138793 1 Screw
23 138792 1 Washer
24 148671 1 Seal ring
25 148672 1 Seal ring
26 10268450 1 Plug
