TO THE DEALER:

Assembly and proper installation of this product is the responsibility of the Frontier dealer. Read manual instructions and safety rules. Make sure all items on the Dealer’s Pre-Delivery and Delivery Check Lists in the Operator’s Manual are completed before releasing equipment to the owner.

GENERAL INFORMATION

• The purpose of this manual is to assist you in operating and maintaining your Box Blade. Read it carefully. It furnishes information and instructions that will help you achieve years of dependable performance.
• These instructions have been compiled from extensive field experience and engineering data. Some information may be general in nature, due to unknown and varying operating conditions. However, through experience and these instructions, you should be able to develop procedures suitable to your particular situation.
• The illustrations and data used in this manual were current at the time of printing. However, due to possible inline production changes, your machine may vary slightly in detail. We reserve the right to redesign and change the machines as may be necessary without notification.
• Throughout this manual, references are made to right and left directions. These are determined by standing behind the tractor facing the direction of forward travel.

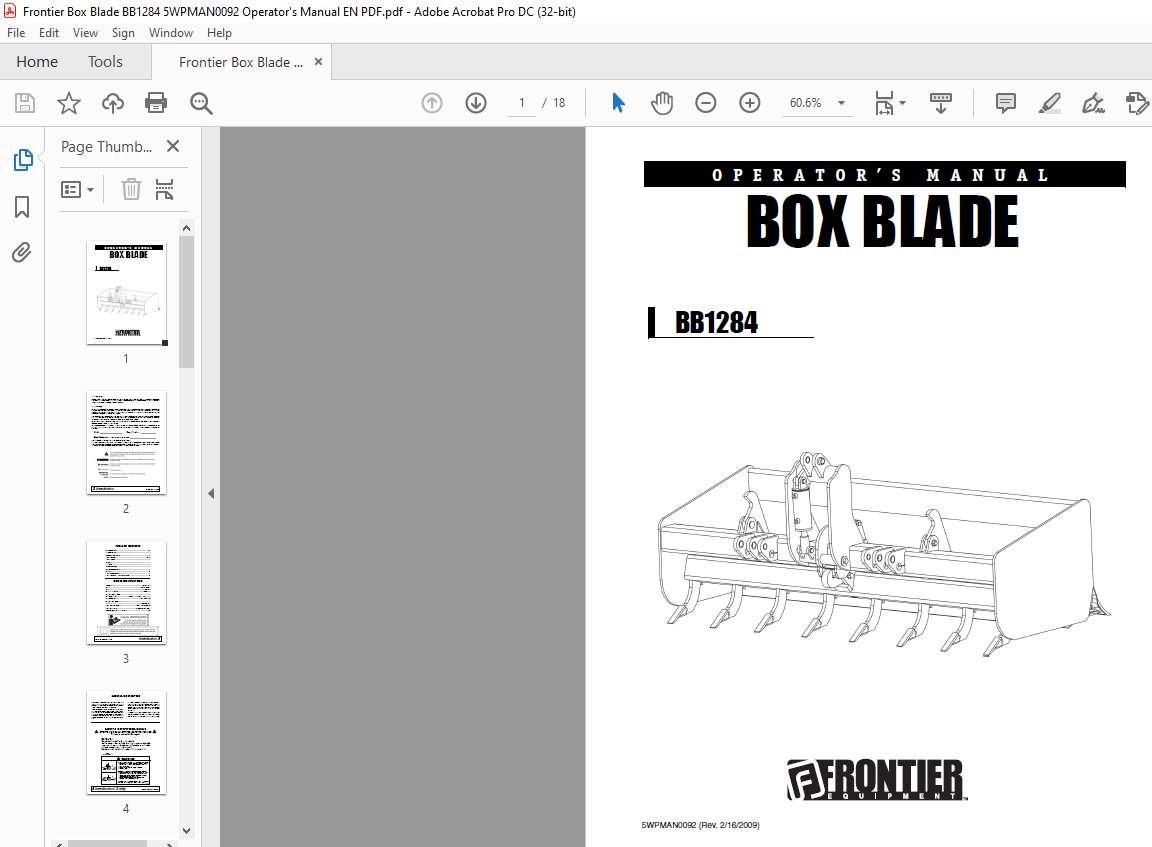

IMAGES PREVIEW OF THE MANUAL:

 TABLE OF CONTENTS:

Frontier Box Blade BB1284 Operator’s Manual(5WPMAN0092) – PDF DOWNLOAD

INTRODUCTION 2
SPECIFICATIONS 3
GENERAL INFORMATION 4
SAFETY DECALS 4 – 5
SAFETY RULES 6 – 8
OPERATION 9
STORAGE 10
OWNER SERVICE 11
DEALER CHECK LISTS 13
PARTS LIST 14
BOLT TORQUE CHART 16
BOLT SIZE CHART & ABBREVIATIONS 17
BB1284 SPECIFICATIONS
Working Width 84″ (213 cm)
Height 35-1/8″ (89 cm)
Depth 43″ (109 cm)
End Plate Thickness 1/2″ (127 mm)
Number of Cutting Edges 2
Cutting Edge Size Reversible 1/2″ x 6″ (127 x 152 mm)
Approximate Weight 1259 lb (571 kg)
Number of Shanks/Points 8
Tailgate Hinged Adjustable
Tractor HP Requirement 40 to 80 hp (54 to 107 kW)
Tractor Hitch Class Category I or Category II
Implement Code for Tractor Ballast 55
