DESCRIPTION

Frontier Disc Plough DP3203 DP4205 DP4206 Operator’s Manual(5KHDP32031) – PDF DOWNLOAD

Introduction:

• READ THIS MANUAL carefully to learn how to operate and service your machine correctly. Failure to do so could result in personal injury or equipment damage. THIS MANUAL SHOULD BE CONSIDERED a permanent part of your machine and should remain with the machine when you sell it.
• MEASUREMENTS in this manual are given in both metric and customary U.S. unit equivalents. Use only correct replacement parts and fasteners. Metric and inch fasteners may require a specific metric or inch wrench. RIGHT-HAND AND LEFT-HAND sides are determined by facing in the direction of forward travel.
• WRITE PRODUCT IDENTIFICATION NUMBERS (P.I.N.) in the Specification or Identification Numbers Section. Accurately record all the numbers to help in tracing the machine should it be stolen. File the identification numbers in a secure place; do not keep them on the machine.
• WARRANTY is provided as part of John Deere’s support program for customers who operate and maintain their equipment as described in this manual. The warranty is explained on the warranty certificate which you should have received from your dealer.
• This warranty provides you the assurance that John Deere will back its products where defects appear within the warranty period. In some circumstances, John Deere also provides field improvements, often without charge to the customer, even if the product is out of warranty. Should the equipment be abused, or modified to change its performance beyond the original factory specifications, the warranty will become void and field improvements may be denied

TABLE OF CONTENTS:

Frontier Disc Plough DP3203 DP4205 DP4206 Operator’s Manual(5KHDP32031) – PDF DOWNLOAD

Page
Inspection Checklists
Pre-Delivery Inspection 7
Owner’s Record7
Delivery Inspection 7
After-Sales Inspection 8
Inspection Before Each Day of Operation 8
Inspection Before Each Season 8
Installation Instruction8
Equipment matching 8
Safety
Recognize safety information10
Understand Signal Words10
Follow Safety Instructions10
Operate Machine Safely 11
Keep Riders Off Machine 11
Avoid rollover accident11
Wear Protective Clothing12
Prepare for Emergencies12
Use Safety Lights and Devices13
Transport Safety 13
Tow Loads Safely 14
Comply with the Transport Speed Limit14
Service Machine Safely 14
Practice Safe Maintenance15
Remove Paint Before Welding or Heating15
Store Attachments Safely 16
Dispose of Waste Properly 16
Safety Signs
Safety Sign Locations17
Caution – Read Operator Manual
And safety operation 18
Preparing the Tractor
Use Your Tractor Operator’s Manual 20
Front Counterweight 20
Rear Wheel Counterweight 20
Determine Front End Ballast W/O Implement
Codes20
Tightening 20
Page
Attaching and Detaching the Disc Plough
Use Your Tractor Operator’s Manual 21
Tractor Requirement21
Attaching Disc Plough to Tractor22
Detaching Disc Plough from Tractor 23
Transporting
Transport Safely 25
Operating the Disc Plough
Parking 26
Field Operation 26
Adjustments
Adjustment 28
Lubrication and Maintenance
Safe Lubrication and Maintenance 30
Lubrication and Maintenance Procedures 30
Grease31
Lubrication Symbols 31
Alternative Lubricants 31
Lubrication of Disc Plough32
Greasing Points 34
Daily Maintenance before and after Work 32
Every 100 Hours Work 33
Every 1000 Hours Work 33
Practice Safe Maintenance35
Bolt and Screw Torque Required36
Supporting Raised Machine 37
Maintenance of Disc Plough37
Storage 38
Troubleshooting
Disc Plough Trouble shooting39
Serial Number41
Keep Machined Secure41
Specifications 41
Parts Catalogue42
Warranty Statement57

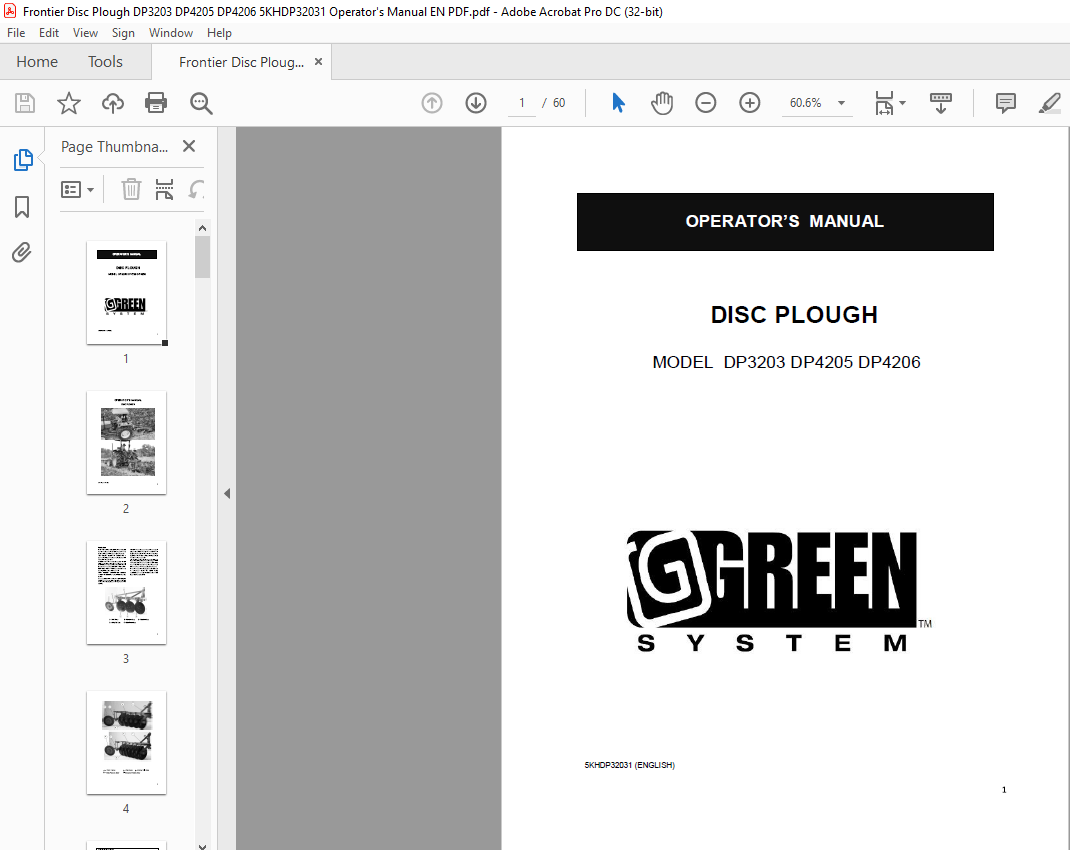

IMAGES PREVIEW OF THE MANUAL:
