Frontier High Capacity Wheel Rake WR4313 Operator’s Manual (5TNOMUS00W43) – PDF DOWNLOAD

INTRODUCTION

• READ THIS MANUAL carefully to learn how to operate and service your machine correctly. Failure to do so could result in personal injury or equipment damage.This manual and safety signs on your machine may also be available in other languages. (See your Frontier dealer to order.)
• THIS MANUAL SHOULD BE CONSIDERED a permanent part of your machine and should remain with the machine when you sell it. MEASUREMENTS in this manual are given in both metric and customary U.S. unit equivalents. Use only correct replacement parts and fasteners.
• Metric and inch fasteners may require a specific metric or inch wrench. RIGHT-HAND AND LEFT-HAND sides are determined by facing in the direction the implement will travel when going forward. WRITE PRODUCT IDENTIFICATION NUMBERS (P.I.N.) in the Specification section.
• Accurately record all the numbers to help in tracing the machine should it be stolen. Your dealer also needs these numbers when you order parts. File the identification numbers in a secure place off the machine. WARRANTY is provided as part of Frontier’s support program for customers who operate and maintain their equipment as described in this manual.
• This warranty provides you the assurance that Frontier will back its products where defects appear within the warranty period. In some circumstances, Frontier also provides field improvements, often without charge to the customer, even if the product is out of warranty.
• Should the equipment be abused, or modified to change its performance beyond the original factory specifications, the warranty will become void and field improvements may be denied. Setting fuel delivery above specifications or otherwise overpowering machines will result in such action. THE TIRE MANUFACTURER’S warranty applicable to your machine may not apply outside the U.S. 1

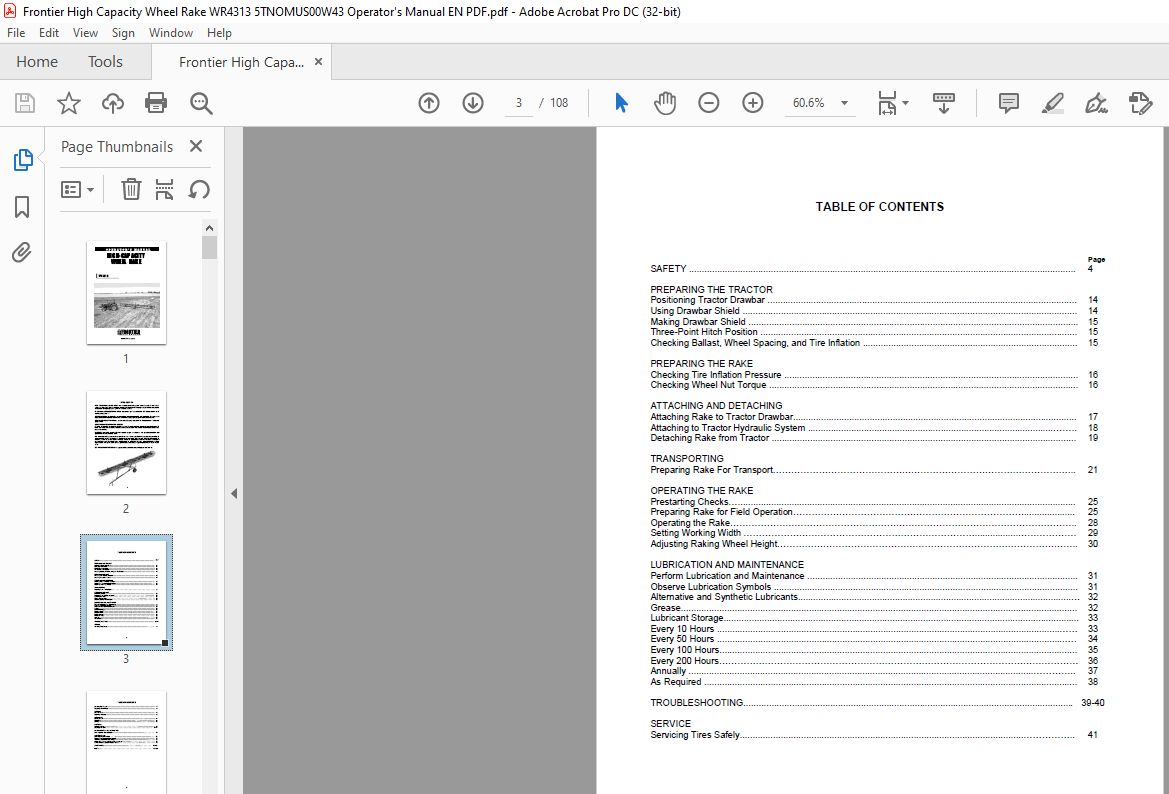

TABLE OF CONTENTS:

Frontier High Capacity Wheel Rake WR4313 Operator’s Manual (5TNOMUS00W43) – PDF DOWNLOAD

SAFETY 4
PREPARING THE TRACTOR
Positioning Tractor Drawbar 14
Using Drawbar Shield 14
Making Drawbar Shield 15
Three-Point Hitch Position 15
Checking Ballast, Wheel Spacing, and Tire Inflation 15
PREPARING THE RAKE
Checking Tire Inflation Pressure 16
Checking Wheel Nut Torque 16
ATTACHING AND DETACHING
Attaching Rake to Tractor Drawbar 17
Attaching to Tractor Hydraulic System 18
Detaching Rake from Tractor 19
TRANSPORTING
Preparing Rake For Transport 21
OPERATING THE RAKE
Prestarting Checks… 25
Preparing Rake for Field Operation… 25
Operating the Rake… 28
Setting Working Width … 29
Adjusting Raking Wheel Height 30
LUBRICATION AND MAINTENANCE
Perform Lubrication and Maintenance 31
Observe Lubrication Symbols 31
Alternative and Synthetic Lubricants… 32
Grease 32
Lubricant Storage 33
Every 10 Hours 33
Every 50 Hours … 34
Every 100 Hours 35
Every 200 Hours… 36
Annually 37
As Required 38
TROUBLESHOOTING 39-40
SERVICE
Servicing Tires Safely… 41
TABLE OF CONTENTS
3
Servicing Rake Safely 41
Replacing Wheel Tines 42
STORAGE
End of Season 43
Beginning of Season 43
CHECKLISTS
Dealers Record 44
Predelivery 44
Delivery … 45
ASSEMBLY
Uncrating Rakes 46
Assembly Drawbar 46-74
FINAL INSPECTION AND LUBRICATION
Final Inspection and Lubrication 75
SPECIFICATIONS
High-Capacity Wheel Rake 76
Record Product Identification Number 77
Tightening Flare Type Tube Fittings… 77
Unified Inch Bolt and Cap Screw Torque Values 78
Metric Bolt and Cap Screw Torque Values 79
SPARE PARTS… 80-102
INDEX… 103-104
