Frontier Inline Bale Wrapper LW1266 Operator’s Manual(5TB109100338) – PDF DOWNLOAD

Frontier Inline Bale Wrapper LW1266 Operator’s Manual(5TB109100338) – PDF DOWNLOAD

FILE DETAILS:

Frontier Inline Bale Wrapper LW1266 Operator’s Manual(5TB109100338) – PDF DOWNLOAD

Language : English
Pages :139
Downloadable : Yes
File Type : PDF
Size:14.0 MB

DESCRIPTION

Frontier Inline Bale Wrapper LW1266 Operator’s Manual(5TB109100338) – PDF DOWNLOAD

Safety Guidelines

• Safety of the operator is one of our main concerns, however we do hear of some accidents that could
  have been avoided if some precautions had been taken. To avoid personal injury study the following
• precautions and insist those working with you or for you, follow them.
• In most cases the pictures will have the shielding in place, in some they may be removed, only to
  show a view behind the shield. Keep all the shields, safety doors in place. If they become faulty and
  fail to work replace them. They are for your safety, do not operate the equipment with them removed.
• Replace any decals that may be missing or that are not readable. Location of the decals is indicated
  in this manual.
• Do not operate this machine while under the influence of drugs or alcohol.
  Review the safety instructions with all users annually.
• This equipment should not be operated by children, or with those unfamiliar with the operation of the
  machine. Do not allow persons to operate this machine until they have read this manual and/or were
  instructed by a qualified person.
• Do not paint over, remove or deface any safety signs or warning decals on your equipment. Observe
  all safety signs and practice the instructions on them.

Before Operation

• Carefully study and understand the manual or be trained by an experienced operator.
  Do not wear loose clothing that may get caught in moving parts.
• Visually inspect the machine to make sure no parts are loose or missing.
• Be sure that no tools are left on the machine.
•  Make sure no hay is lying on the engine and that the cooling fins are not clogged with dust and
  hay (this could cause a fire).
• Do not hurry the learning process. Be familiar with one part before trying the next part.
•  Practice by running the machine through its paces, first in manual mode with no bales in the
  machine until you are comfortable and familiar with the operation.
• After you become familiar with the operation, switch the machine to Auto mode. Use a stick and
  push the table switch down to start the cycle.
• Do not reach in and push the switch paddle down by hand.

TABLE OF CONTENTS:

Frontier Inline Bale Wrapper LW1266 Operator’s Manual(5TB109100338) – PDF DOWNLOAD

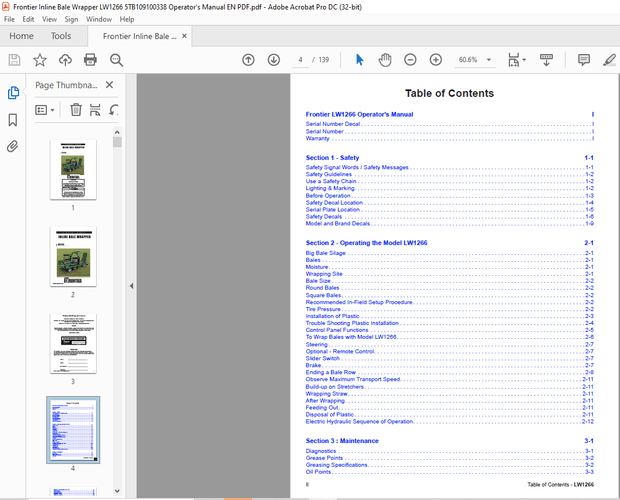

Table of Contents
Frontier LW1266 Operator’s Manual
Serial Number Decal.
Serial Number
Warranty
Section 1 – Safety
Safety Signal Words / Safety Messages
Safety Guidelines
Use a Safety Chain
Lighting & Marking. Before Operation.. Safety Decal Location Serial Plate Location Safety Decals
Model and Brand Decals.
Section 2 – Operating the Model LW1266
Big Bale Silage
Bales.
Moisture..
Wrapping Site
Bale Size
Round Bales
Square Bales.
Recommended In-Field Setup Procedure
Tire Pressure..
Installation of Plastic
Trouble Shooting Plastic Installation
Control Panel Functions
To Wrap Bales with Model LW1266.
Steering…
Optional – Remote Control.
Slider Switch..
Brake..
Ending a Bale Row
Observe Maximum Transport Speed.
Build-up on Stretchers..
Wrapping Straw..
After Wrapping..
Feeding Out…
Disposal of Plastic.
Electric Hydraulic Sequence of Operation.
Section 3: Maintenance
Diagnostics
Grease Points
Greasing Specifications.
Oil Points…
Section 4 – Parts Breakdowns & Lists
Hoop Assembly.
Plastic Wrap Carrier
Hoop Brace – Original
Hoop Brace – Current
Safety Guard – Original Safety Guard – Current Cylinder Support Hoop Drive. Axle-Spindle-Hub.
Front Steering
Brake..
Rear Roller
Tail.
Bale Saddle.
Ram – Original.
Ram – Current. Side Rail
Front Pushoff – Original
Front Pushoff with Ram Latch – Current
Tongue..
Fenders – Gas Tank.
Battery..
Hydraulic Oil Tank
13 HP Engine (TL13HP) 20 HP Engine (TL20HP) Throttle Linkage – Original. Throttle Linkages.
Hystar Hydraulic Valve – Original. Hystar Hydraulic Valve – Current.
Control Panel.
Limit Switch.
Bale Trigger..
Film Sensor.
Film Sensor Installation.
Hydraulic Layout.
Hydraulic Schematic
Running Lights.
Electrical Schematic
Section 5 – Options
Option – Single Power Drive – Original. Option – Single Power Drive – Original.. Option – Single Power Drive – Current. Option – Single Power Drive – Current.. Option – Dual Power Drive – Original. Option – Dual Power Drive – Current Option – Power Drive Brackets Option – Light Kit
Installation…
Option – Remote Control
Remote Control Installation.
Option – Remote Start Add-on”
LW1266 – Table of Contents
Remote Start-Add Installation… Option – Guide Roller…… Option – Twin Wrap Kit.
Option – Quick Start Power Jack – w/ Powerdrive. Option – Quick Start Power Jack – w/o Powerdrive. Option – Quick Start Power Jack – Current….
Section 6 – Dealer Installation
Torque Values – Imperial
Torque Values – Metric

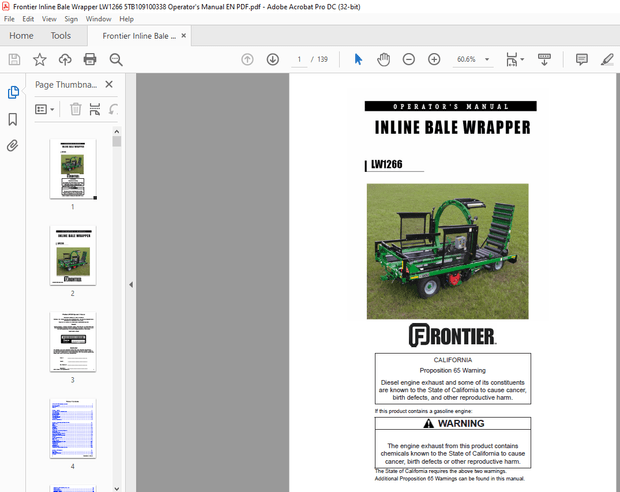

IMAGES PREVIEW OF THE MANUAL:
