FILE DETAILS:

Frontier Tedder TD1010E Operator’s Manual(TNOMUS00TDF) – PDF DOWNLOAD

Language : English
Pages :67
Downloadable : Yes
File Type : PDF
Size:4.08 MB

DESCRIPTION

Frontier Tedder TD1010E Operator’s Manual(TNOMUS00TDF) – PDF DOWNLOAD

INTRODUCTION

• READ THIS MANUAL carefully to learn how to operate and service your machine correctly. Failure to do so could result in personal injury or equipment damage.This manual and safety signs on your machine may also be available in other languages. (See your Frontier dealer to order.)
• THIS MANUAL SHOULD BE CONSIDERED a permanent part of your machine and should remain with the machine when you sell it. MEASUREMENTS in this manual are given in both metric and customary U.S. unit equivalents. Use only correct replacement parts and fasteners.
• Metric and inch fasteners may require a specific metric or inch wrench. RIGHT-HAND AND LEFT-HAND sides are determined by facing in the direction the implement will travel when going forward. WRITE PRODUCT IDENTIFICATION NUMBERS (P.I.N.) in the Specification section. Accurately record all the numbers to help in tracing the machine should it be stolen. Your dealer also needs these numbers when you order parts. File the identification numbers in a secure place off the machine.
• WARRANTY is provided as part of Frontier’s support program for customers who operate and maintain their equipment as described in this manual.The warranty is explained in the back of this manual. This warranty provides you the assurance that Frontier will back its products where defects appear within the warranty period. In some circumstances, Frontier also provides field improvements, often without charge to the customer, even if the product is out of warranty.
• Should the equipment be abused, or modified to change its performance beyond the original factory specifications, the warranty will become void and field improvements may be denied. Setting fuel delivery above specifications or otherwise overpowering machines will result in such action. THE TIRE MANUFACTURER’S warranty applicable to your machine may not apply outside the U.S.

TABLE OF CONTENTS:

Frontier Tedder TD1010E Operator’s Manual(TNOMUS00TDF) – PDF DOWNLOAD

SAFETY 4
PREPARING THE TRACTOR
Positioning Tractor Drawbar 16
Adjusting the Drawbar 16
Using Drawbar Shield 16
Making Drawbar Shield 17
Three-Point Hitch Position 17
Checking Ballast, Wheel Spacing, and Tire Inflation 17
PREPARING THE TEDDER
Checking Tire Inflation Pressure 18
Checking Wheel Nut Torque 18
ATTACHING AND DETACHING
Attaching Tedder to Tractor Drawbar 19
Detaching Tedder from Tractor 20
TRANSPORTING
Preparing Tedder for Transport 21
OPERATING THE TEDDER
Wheels… 22
Work Position… 22
Use of the Tedder 23
Adjustments … 23 – 24
Spring Tilt … 24
Spring Link Tilt 24
Operating the Tedder 25
LUBRICATION AND MAINTENANCE
Perform Lubrication and Maintenance 26
Observe Lubrication Symbols 26
Alternative and Synthetic Lubricants 27
Grease 27
Lubricant Storage 28
Every 10 Hours – Lubricate Height Adjustment Handle 28
Every 10 Hours – Grease Basket Gearhead… 29
Every 25 Hours – Check Gearbox Grease 29
Every 50 Hours 30
Annually 30
As Required 31
SERVICE
Servicing Tires Safely32
TABLE OF CONTENTS
Sping Tine Replacement 33
STORAGE
End of Season 34
Beginning of Season 34
TEDDER CHECKLISTS
Dealers Record 36
Predelivery 36
Delivery … 37
ASSEMBLY
Uncrating Machine 38
Preparing the Forks 38
Wheel Assembly 39
Install Tine Arms… 40
Drawbar Assembly 40
Assembly of the Regulating Screw … 41
Install Spring Tine … 42
Install Guards … 42
Install PTO Shaft… 43
SPECIFICATIONS
Tedder 44
Record Product Identification Number 45
Legend 46
Unified Inch Bolt and Cap Screw Torque Values 48
Metric Bolt and Cap Screw Torque Values 49
Tightening Flare Type Tube Fittings 50
SPARE PARTS 51-62
DECALS 63
NUMERICAL INDEX 64
INDEX… 65
WARRANTY POLICY… Inside Back Cover

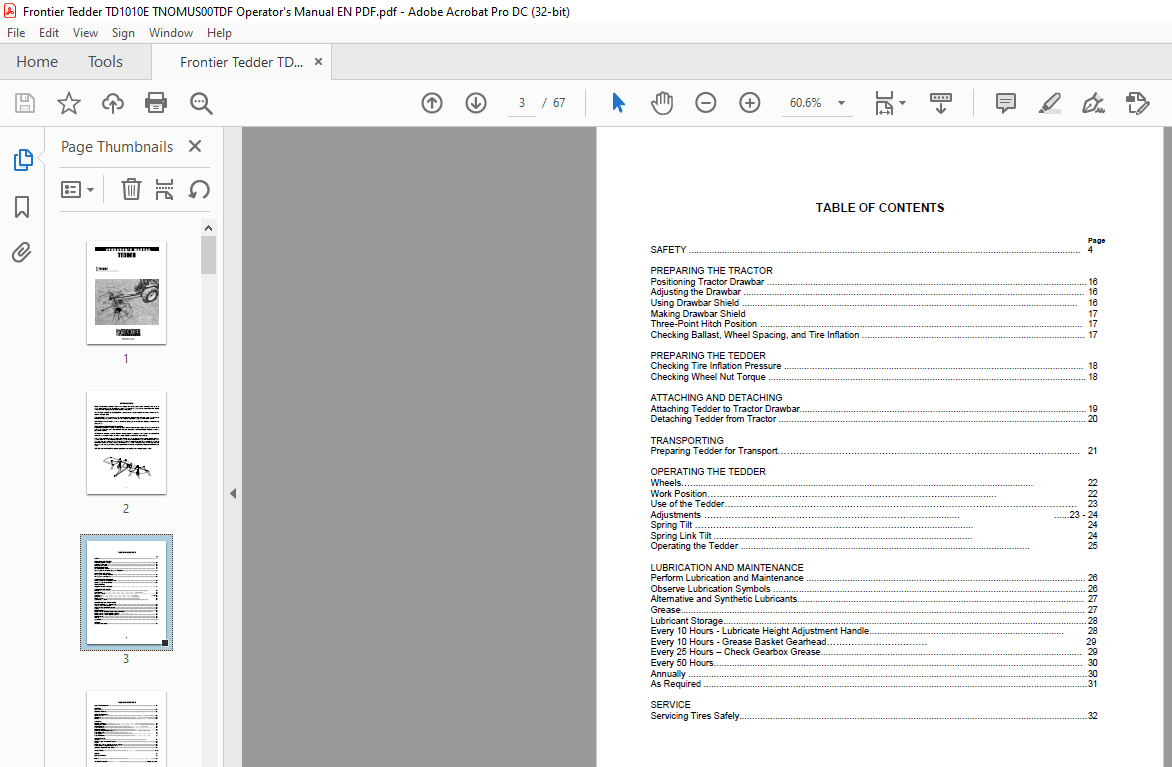

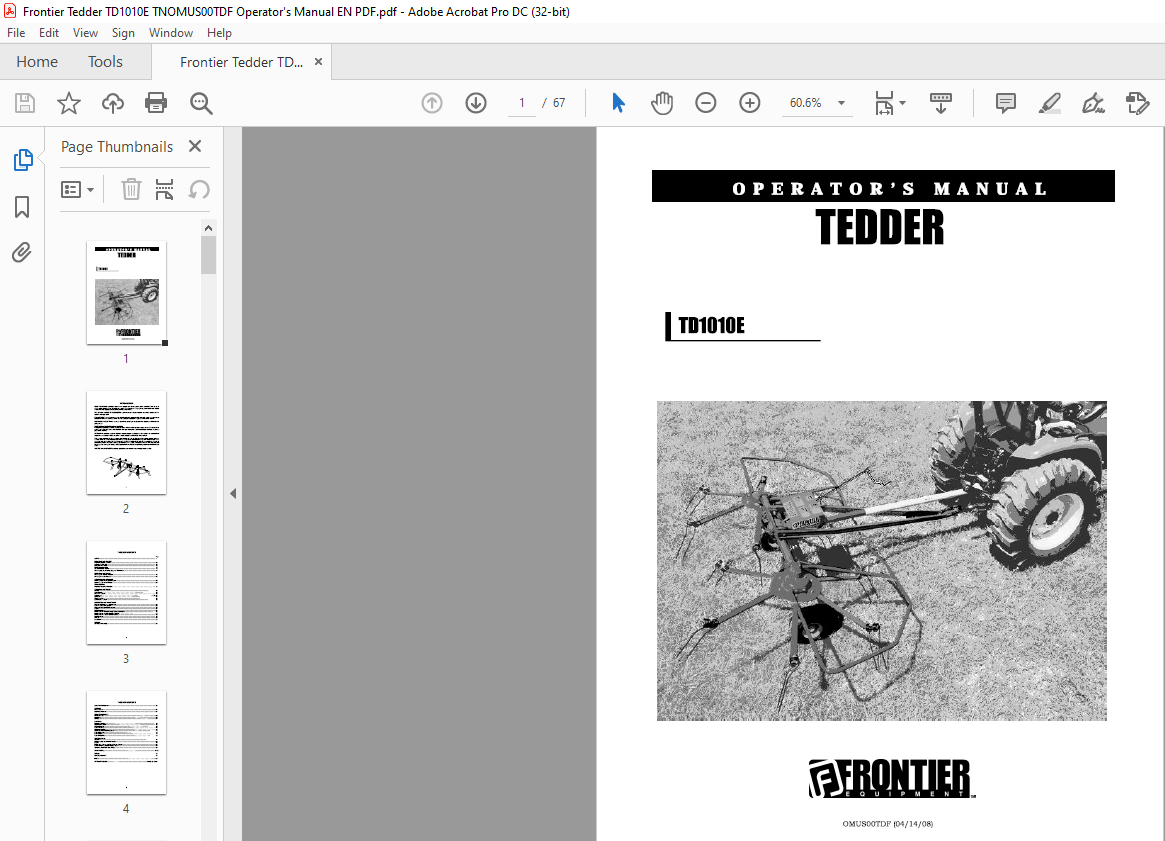

IMAGES PREVIEW OF THE MANUAL:
