Gehl 1060 1065 (1060 After SN8500 and All 1065’s) Forage Harvesters Parts Manual 907521 – PDF

Gehl 1060 1065 (1060 After SN8500 and All 1065’s) Forage Harvesters Parts Manual 907521 – PDF DOWNLOAD

FILE DETAILS:

Gehl 1060 1065 (1060 After SN8500 and All 1065’s) Forage Harvesters Parts Manual 907521 – PDF DOWNLOAD

Language : English
Pages : 96
Downloadable : Yes
File Type : PDF
Size: 3.58 MB

TABLE OF CONTENTS:

Gehl 1060 1065 (1060 After SN8500 and All 1065’s) Forage Harvesters Parts Manual 907521 – PDF DOWNLOAD

Introduction Inside Front Cover
Table of Contents 1
Decal Locations 2-9
Frame & Attachment Lift 10-11
Tongue & Driveline 12-13
Cylinder & Cutting Mechanism 14-17
Knife Sharpener 18-21
Implement Drive 22-23
Feed Roll Drive Frame 24-25
Feed Roll (Common Parts) 26-31
Rolls, Drive & Components (Metal Detector) 32-33
Roll Arm Assemblies 34
Overrunning Clutch 35
Spinner & Drive 36-37
Blower & Drive 38-41
Toolbox 42-43
Shields & Covers – Rear 44-45
Deflector & Cap 46-49
Hydraulics 50-51
Control Box Mounting & Wiring 52-55
Metal Stop Amplifier Box 56
Control Box Components 57-59
Tunnel & Overload Switch 60
Lower Front Detector Roll 61
Shifter Transmission 62-63
Bevel Transmission 64-65
Spinner Transmission 66
Hitchjack 67
Hydraulic Components 68
Universal Drives 69-71
Optional Single Axles & Wheels 72
Optional Tandem Axles & Wheels 73
Optional Flotation Axles & Wheels 74
Accessories 75-81
Vertical Extensions ( 6″, 1-Ft & 2-Ft) 75
Horizontal Deflector Extensions (3-1/2 & 5-1/2) 76
Deflector Tripod Kit 77
Offset Trailer Hitch 78
Safety Chain 78
Transport Lighting Package 78
Wet Crop Deflector 79
Screen Mounting Kit 79
Square-holed Screens 79
Harness Extension Wiring Kits (Torque Sensor & Shear Bolt) 80
2nd Tractor Wiring Kits (Torque Sensor & Shear Bolt) 80
Hydraulic Tongue Control 81
Long Cut Kit 81
Service Kits – Electrical Connectors 82
Alphabetical Index 83
Numerical Index 84-92
Standard Hardware Torque Specifications Inside Back Cover

DESCRIPTION:

Gehl 1060 1065 (1060 After SN8500 and All 1065’s) Forage Harvesters Parts Manual 907521 – PDF DOWNLOAD

Introduction :

When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The model and serial number for this unit is on a plate located on the right side of the Main Frame adjacent to the Cylinder Shaft Bearing.

• “Right’’ and “Left’’ are determined from a position standing behind the unit and facing the direction of travel. From this position the Bevel Gearbox and Main Drive Shaft are on the “Left” side.
• GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
•  Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover. In the exploded view parts list, Reference Numbers may have additional information following the Reference Number.
• A Tear Drop symbol will indicate an application of a “wet” product such as oil, and the number inside the Tear Drop will correspond to the description in the Parts List. Also, a number inside a hexagon will be the torque value required, in foot pounds, on the associated Reference Number.
• Items shown in the parts list that do not have Reference Numbers are shown for reference purposes only and are NOT available for purchase. Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A.

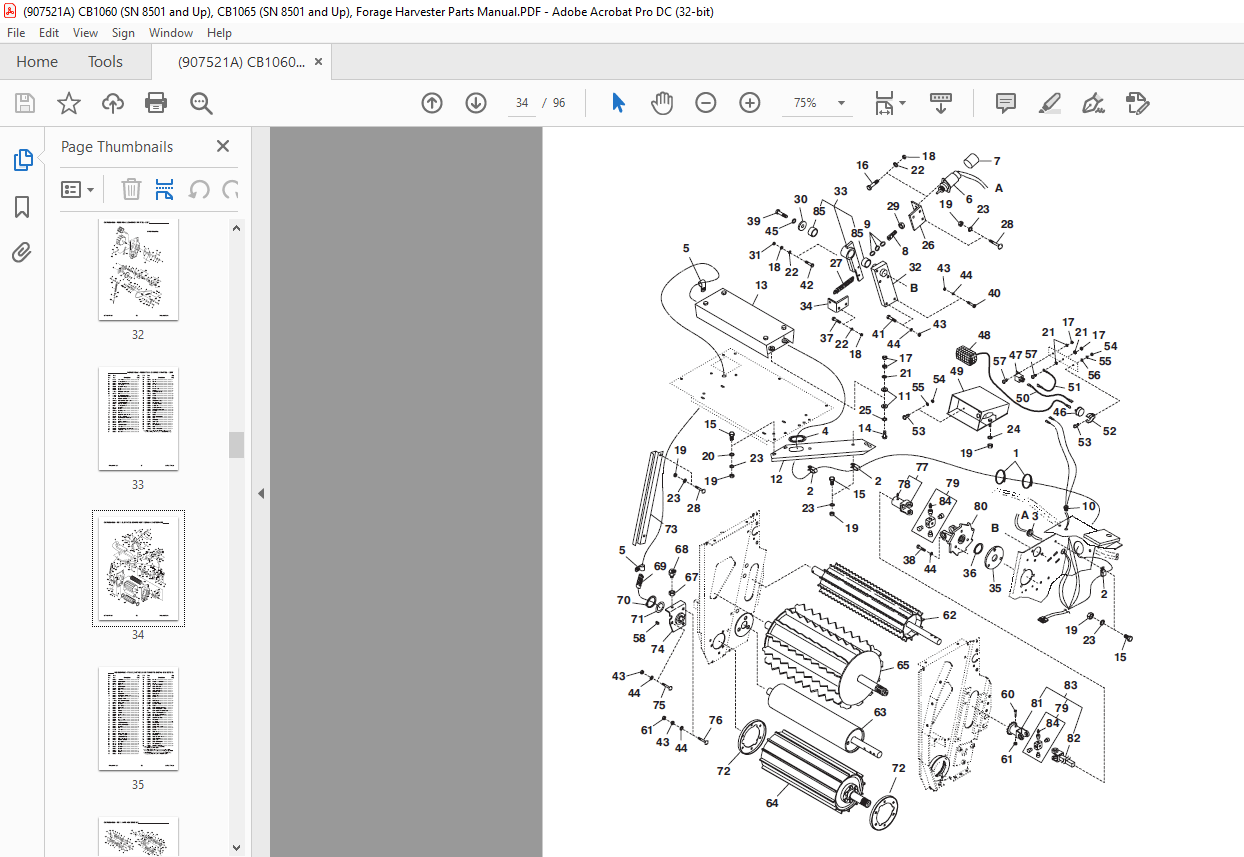

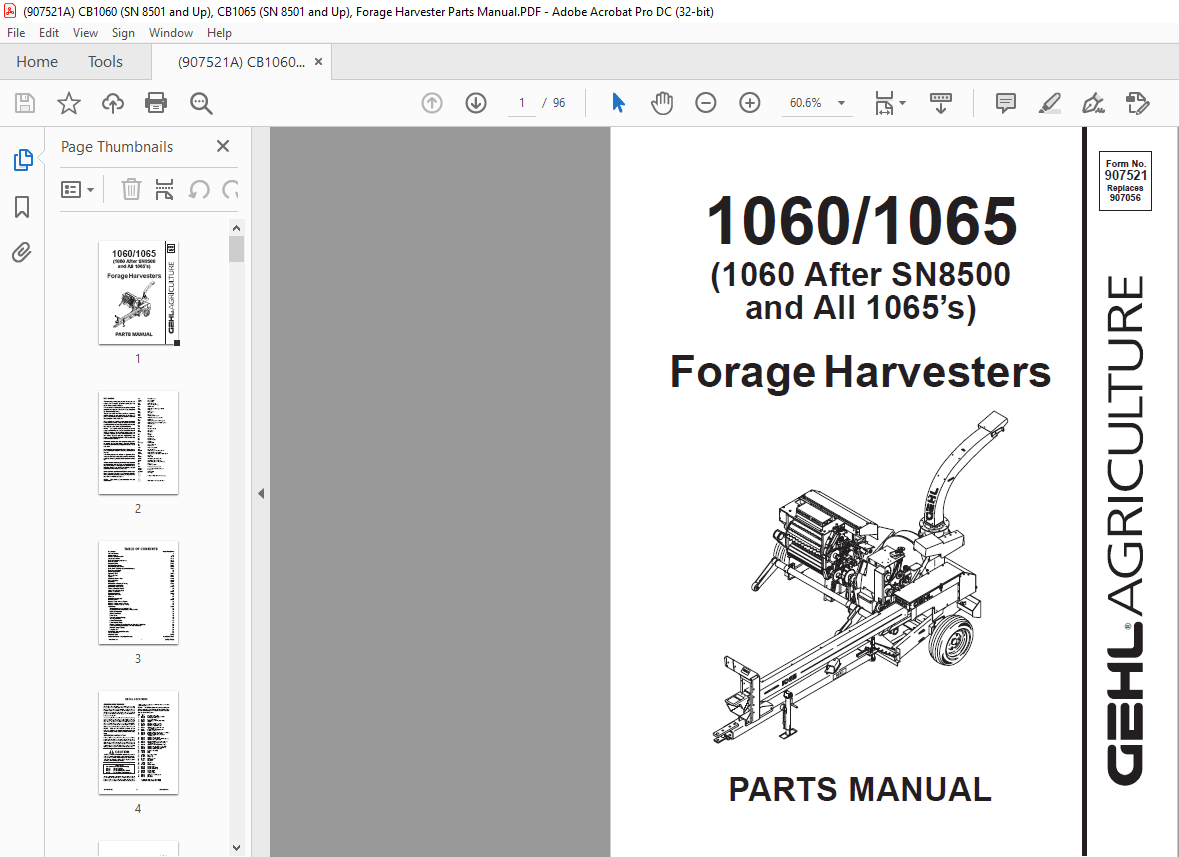

IMAGES PREVIEW OF THE MANUAL:
