Gehl 2175 Mower Conditioner Service Parts Manual(906693) – PDF DOWNLOAD

Gehl 2175 Mower Conditioner Service Parts Manual(906693) – PDF DOWNLOAD

FILE DETAILS:

Gehl 2175 Mower Conditioner Service Parts Manual(906693) – PDF DOWNLOAD

Language : English
Pages : 40
Downloadable : Yes
File Type : PDF
Size: 1.09 MB

TABLE OF CONTENTS:

Gehl 2175 Mower Conditioner Service Parts Manual(906693) – PDF DOWNLOAD

Introduction Inside Front Cover
Table of Contents 1
Decal Locations 2-3
Tongue 4–5
Trailer Frame, Leg & Pusharm 6–7
Pusharm & Hydraulics 8
Wheel Assembly 9
Forming Chamber 10–11
Header Frame & Conditioner Rollers 12–13
Conditioner (Left Side) 14–15
Conditioner (Right Side) 16–17
Pitman & Wobble Arm Drive 18–19
Reel Variable Drive 20–21
Reel 22–23
Sickle & Guards 24–25
Components 26–29
Tower–to–Gearbox PTO 26
Tower–to–Tractor PTO 27
Hitchjack 28
Gear Box 29
Options & Accessories 30–32
Hydraulic Tongue Positioner 30
Mechanical Tongue Positioner 30
Transport Light Kit 31
Cutterbar Wearplate Kit 31
Tall Crop Divider Kit 31
Center Skid Shoe Kit 32
Safety Tow Chain (10 Ton) 32
Numerical Index 34–36
Standard Hardware Torque specifications Inside Back Cover
Attaching Hardware Table Inside Back Cover

DESCRIPTION:

Gehl 2175 Mower Conditioner Service Parts Manual(906693) – PDF DOWNLOAD
Introduction

• When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number.
• The model number and serial number for this unit are on a decal located on the Main Frame below the right Quick-switch Yoke and next to the Attachment Stand.
• “Right” and “Left” are determined from a position standing behind the unit and facing toward the direction of travel. From this position the Drive Chains are on the “Left” side. GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover. In the exploded view parts list, Reference Numbers may have additional information following the Reference Number.
• A Tear Drop symbol will indicate an application of a “wet” product such as oil, and the number inside the Tear Drop will correspond to the description in the Parts List. Also, a number inside a hexagon will be the torque value required, in foot pounds, on the associated Reference Number.
• Items shown in the parts list that do not have Reference Numbers are shown for reference purposes only and are NOT available for purchase. Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A.

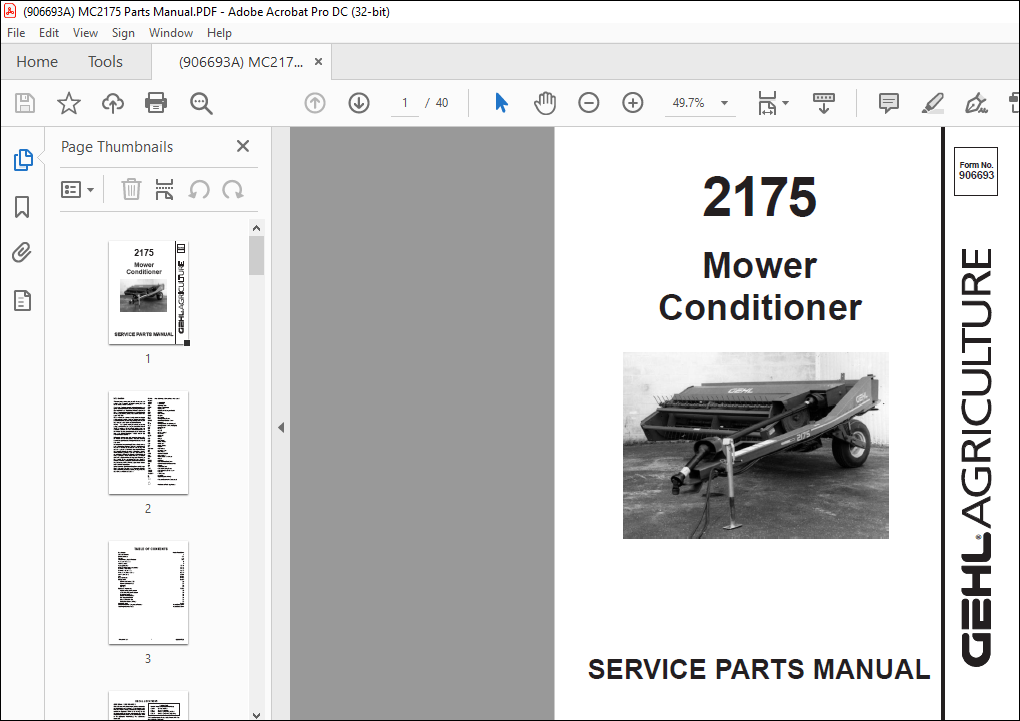

IMAGES PREVIEW OF THE MANUAL:
