Gehl 2415 2418 Disc Mower Conditioners Parts Manual 908177 – PDF DOWNLOAD

Gehl 2415 2418 Disc Mower Conditioners Parts Manual 908177 – PDF DOWNLOAD

FILE DETAILS:

Gehl 2415 2418 Disc Mower Conditioners Parts Manual 908177 – PDF DOWNLOAD

Language : English
Pages : 78
Downloadable : Yes
File Type : PDF
Size: 3.48 MB

TABLE OF CONTENTS:

Gehl 2415 2418 Disc Mower Conditioners Parts Manual 908177 – PDF DOWNLOAD

Introduction Inside Front Cover
Table of Contents 1
Decal Locations 2-7
Tongue 8-10
Tongue Cylinder 11
Cutterbar & Skid Shoes 12-13
Cutterbar & Discs (DC2415) 14-15
Cutterbar (DC2415) 16-17
Cutterbar & Discs (DC2418) 18-19
Cutterbar (DC2418) 20-21
Rollers 22-23
Roller Drive 24-25
Roll Arms 26-27
Gearbox & Driveline Mounting 28
Roll Tension System 29
Trailer Assembly 30-31
Header To Trailer Assembly 32
Axles & Wheels 33
Shields & Covers 34-35
Deflector 36
Curtains 37
Electrical 38-41
Hydraulics 42-43
Gearbox (Swivel Hitch) 44-45
Gearbox (Header) 46-47
Universal Drives 48-52
Hydraulic Components 53-55
Hitchjack 56
Accessories 57-64
Safety Chain 57
Crop Lifter Kit 58
V-Type Blades 58
Sway Chain Kit 58
Tall Skid Shoes 59
Transport Cart 60-63
Truck Hitch 64
Service Kits – Electrical Connectors 65-66
Alphabetical Index 67
Numerical Index 68-72
Standard Hardware Torque Specifications Inside Back Cover

DESCRIPTION:

Gehl 2415 2418 Disc Mower Conditioners Parts Manual 908177 – PDF DOWNLOAD

Introduction:

When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The Disc Conditioner model and serial number is on a plate located on the left side of the Main Frame. “Right’’ and “Left’’ are determined from a position standing behind the Disc Conditioner.

• GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover. In the exploded view parts list, Reference Numbers may have additional information following the Reference Number. A Tear Drop symbol will indicate an application of a “wet” product such as oil, and the number inside the Tear Drop will correspond to the description in the Parts List.
• Also, a number inside a hexagon will be the torque value required, in foot pounds, on the associated Reference Number. Items shown in the parts list that do not have Reference Numbers are shown for reference purposes only and are NOT available for purchase. Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A.

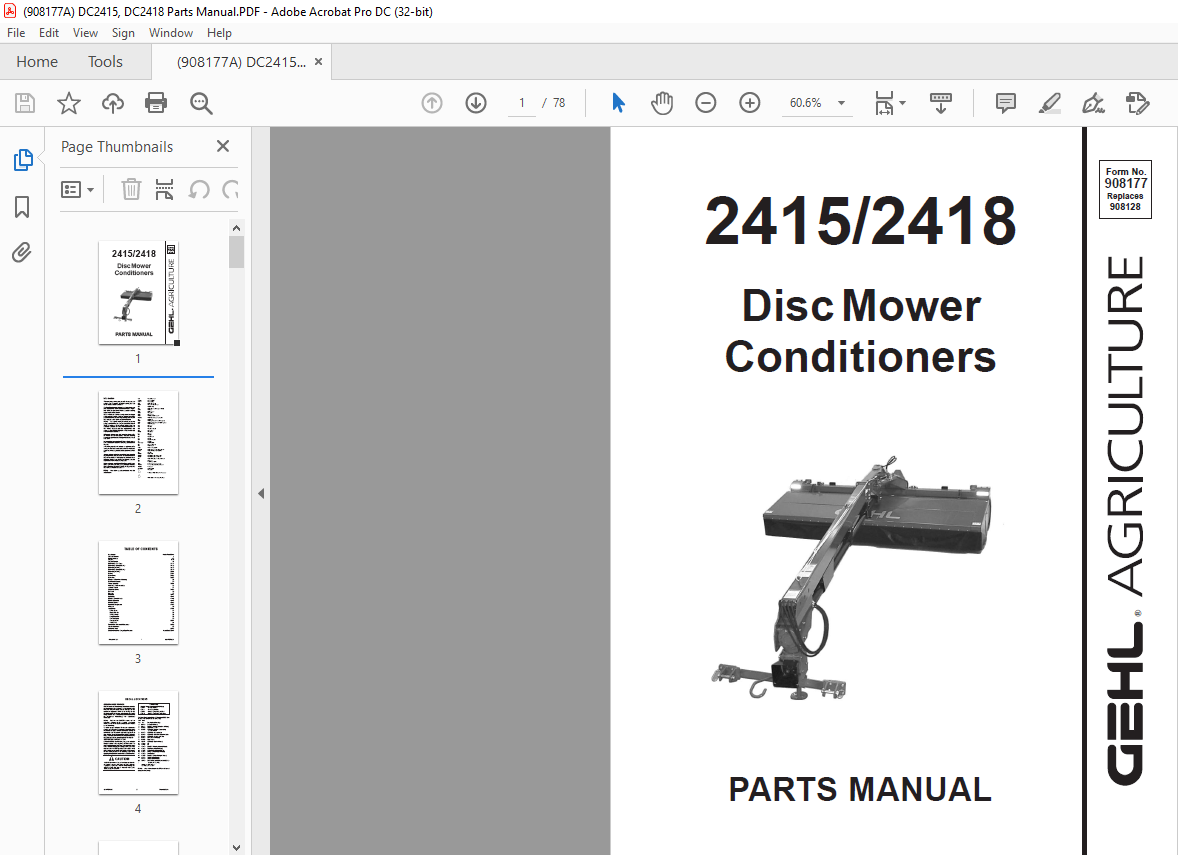

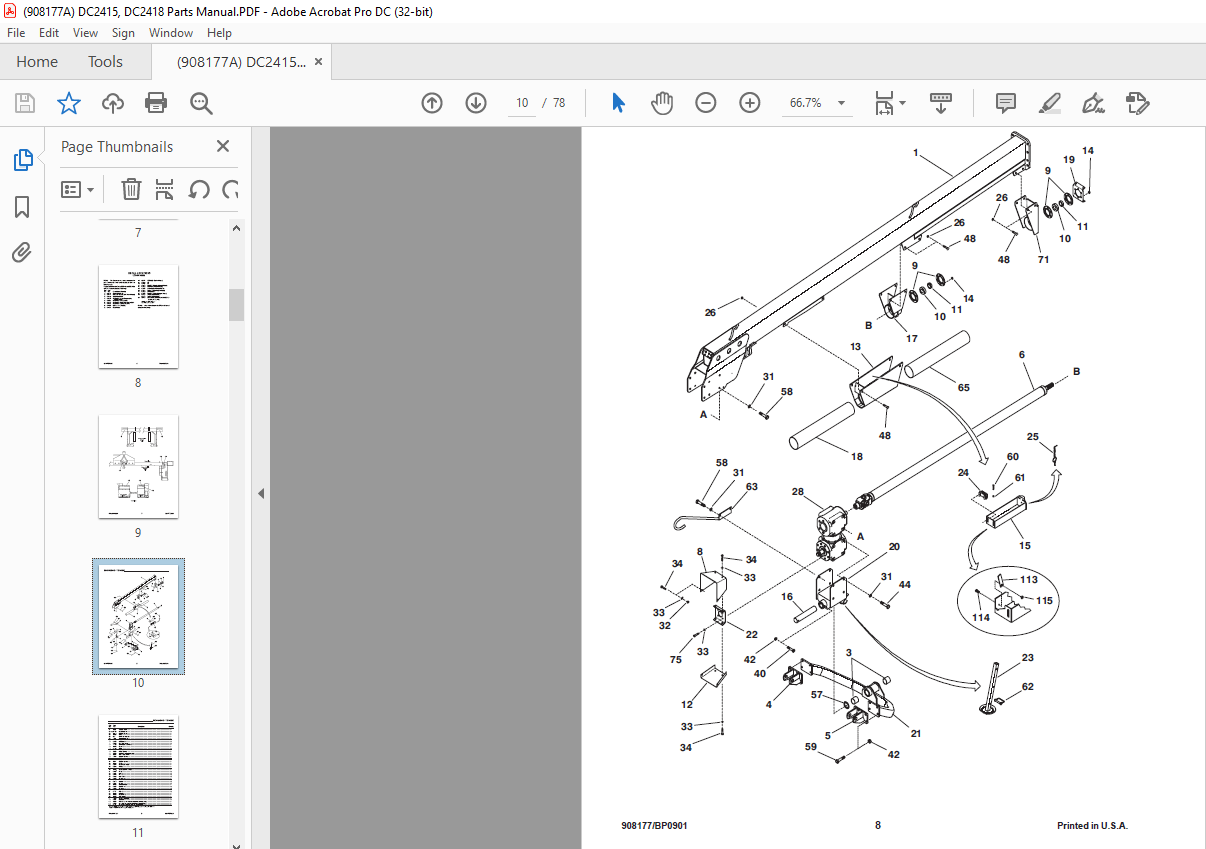

IMAGES PREVIEW OF THE MANUAL:
