FILE DETAILS:

Gehl  3210 3250 Rectangular Baler Service Parts Manual(904781) – PDF DOWNLOAD

Language : English
Pages : 50
Downloadable : Yes
File Type : PDF
Size: 1.04 MB

TABLE OF CONTENTS:

Gehl  3210 3250 Rectangular Baler Service Parts Manual(904781) – PDF DOWNLOAD

Decal Locations 2 & 3
Main Frame & Wheels 4 & 5
Drawbar, PTO Supports & Shield 6 & 7
Flywheel And Clutch Assembly 8 & 9
Main Drive Assembly 10 & 11
Main Drive And Idlers 12 & 13
Chains 14 & 15
3210 – Packer & Packer Drive 16 & 17
3250 – Packer & Packer Drive 18 & 19
Baler Sheet Metal 20 & 21
Feed Housing & Twine Box 22 & 23
Bale Chamber 24 & 25
Plunger 26 & 27
Metering Wheel 28 & 29
Needles 30
Plunger Safety Stop 31
Twine Knotter & Controls 32 & 33
Twine Knotter Assembly 34 & 35
Pickup 36 & 37
Pickup Sheet Metal, Windguard & Gauge Wheel 38 & 39
Pickup – Overrunning Clutch Assembly & Hitchjack 40
Front PTO (Fixed–length) Section 41
Rear PTO (Telescoping) Section 42
Accessories 43 – 46
805099 Quarter Turn Bale Chute 43
805098 Tailgate Chute 44
805100 Wagon Loading Chute 44
805101 Swinging Wagon Hitch 45
805102 51” (1295 Mm) Long Wagon Pole 45
805103 26” (660 Mm) Long Wagon Pole 45
805104 Hay Wedge Kit 45
805105 Plunger Face Extension 45
Numerical Index 46 – 51

DESCRIPTION:

Gehl  3210 3250 Rectangular Baler Service Parts Manual(904781) – PDF DOWNLOAD

Introduction

• When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number.
• The model number and serial number for this unit are on a decal located on the Main Frame below the right Quick-switch Yoke and next to the Attachment Stand.
• “Right” and “Left” are determined from a position standing behind the unit and facing toward the direction of travel. From this position the Drive Chains are on the “Left” side. GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover. In the exploded view parts list, Reference Numbers may have additional information following the Reference Number.
• A Tear Drop symbol will indicate an application of a “wet” product such as oil, and the number inside the Tear Drop will correspond to the description in the Parts List. Also, a number inside a hexagon will be the torque value required, in foot pounds, on the associated Reference Number.
• Items shown in the parts list that do not have Reference Numbers are shown for reference purposes only and are NOT available for purchase. Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A.

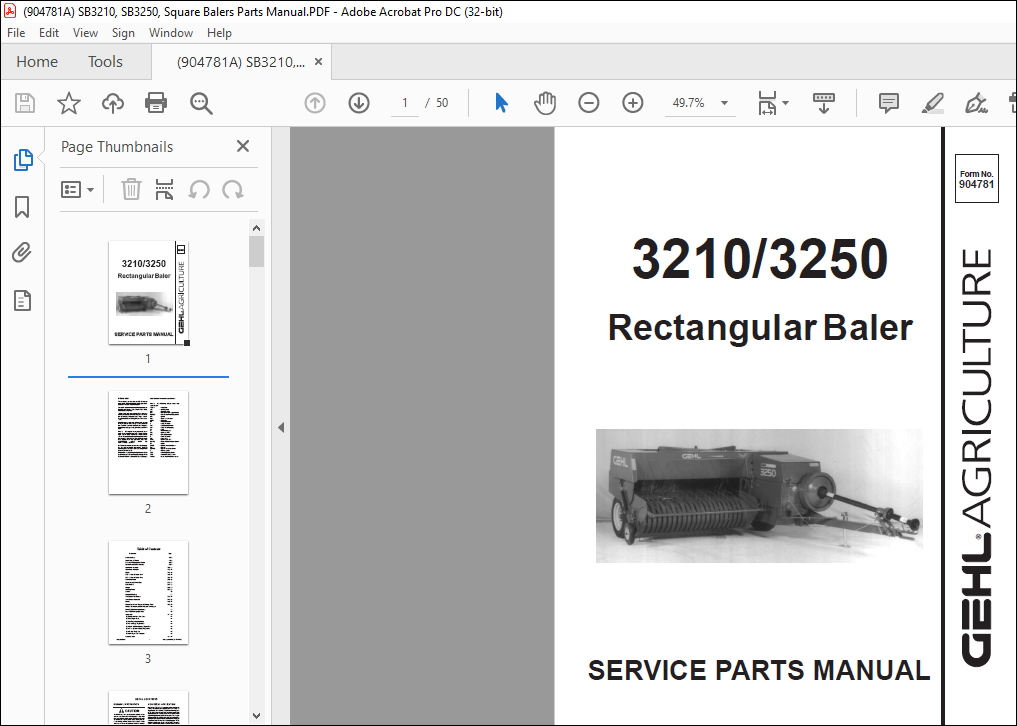

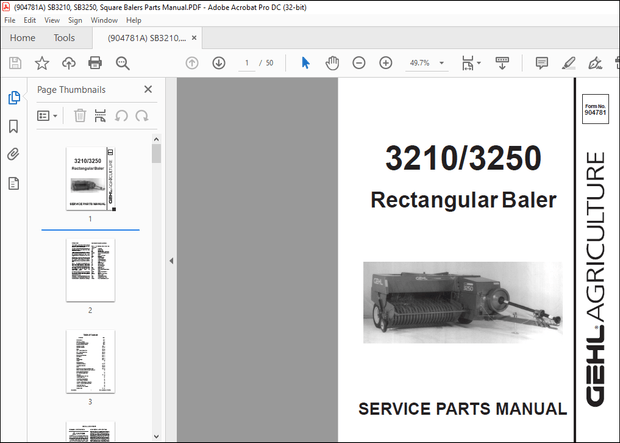

IMAGES PREVIEW OF THE MANUAL:
