Gehl 5625 Skid Loader Service Parts Manual 907221 – PDF DOWNLOAD

Gehl 5625 Skid Loader Service Parts Manual 907221 – PDF DOWNLOAD

FILE DETAILS:

Gehl 5625 Skid Loader Service Parts Manual 907221 – PDF DOWNLOAD

Language : English
Pages : 150
Downloadable : Yes
File Type : PDF
Size: 4.88 MB

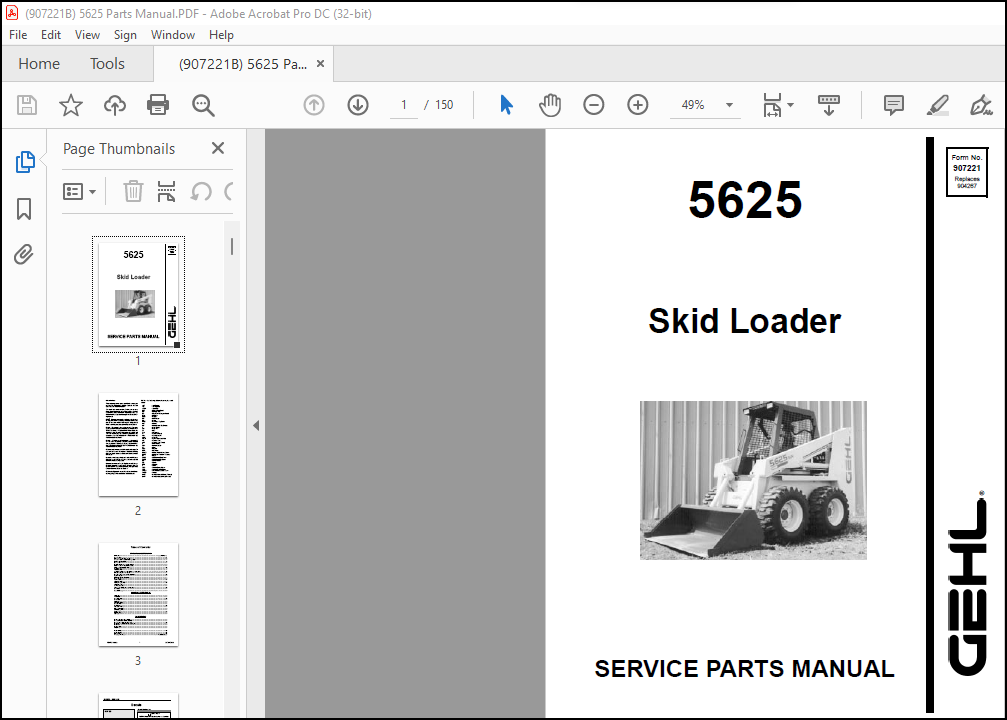

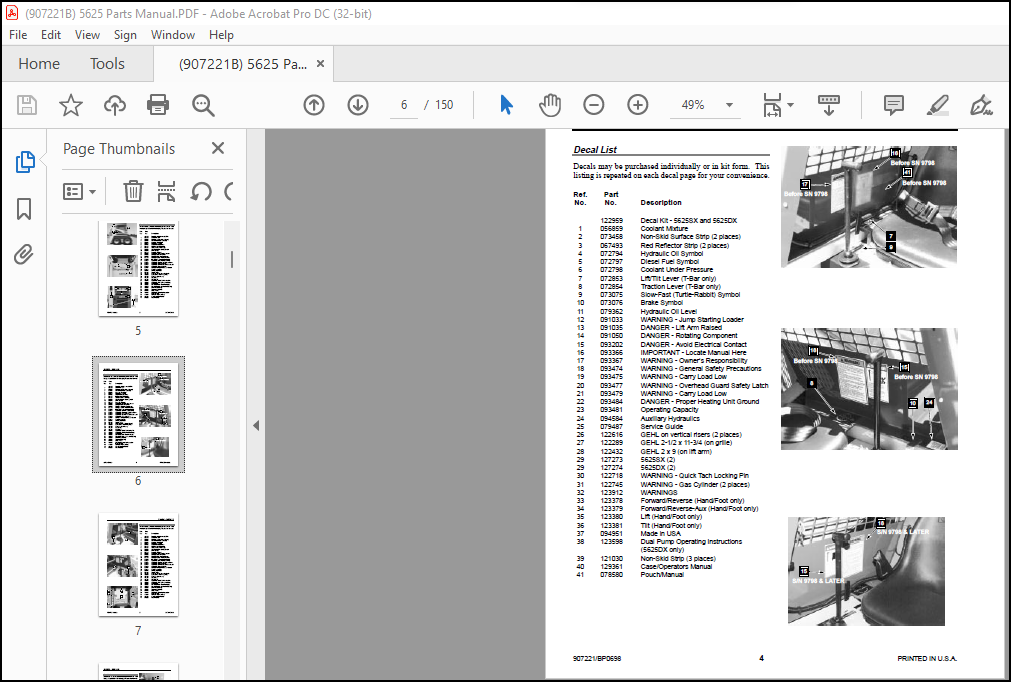

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Gehl 5625 Skid Loader Service Parts Manual 907221 – PDF DOWNLOAD

Introduction:

When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The model and serial numbers for this unit are on a Decal located inside the right Chassis Riser, between the Lift Arm and Lift Cylinder. “Right” and “Left” are determined from a position sitting on the Seat and facing forward.

• GEHLÒ Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units. Refer to the abbreviations table located on this page for the various fastener descriptions.
• Standard attaching hardware torque values are also provided on the inside back cover. Items shown in the parts list that do not have Reference Numbers are shown for reference purposes only and are NOT available for purchase.
• Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A. Refer to the Operator’s manual for additional information regarding GEHL attachments and accessories.

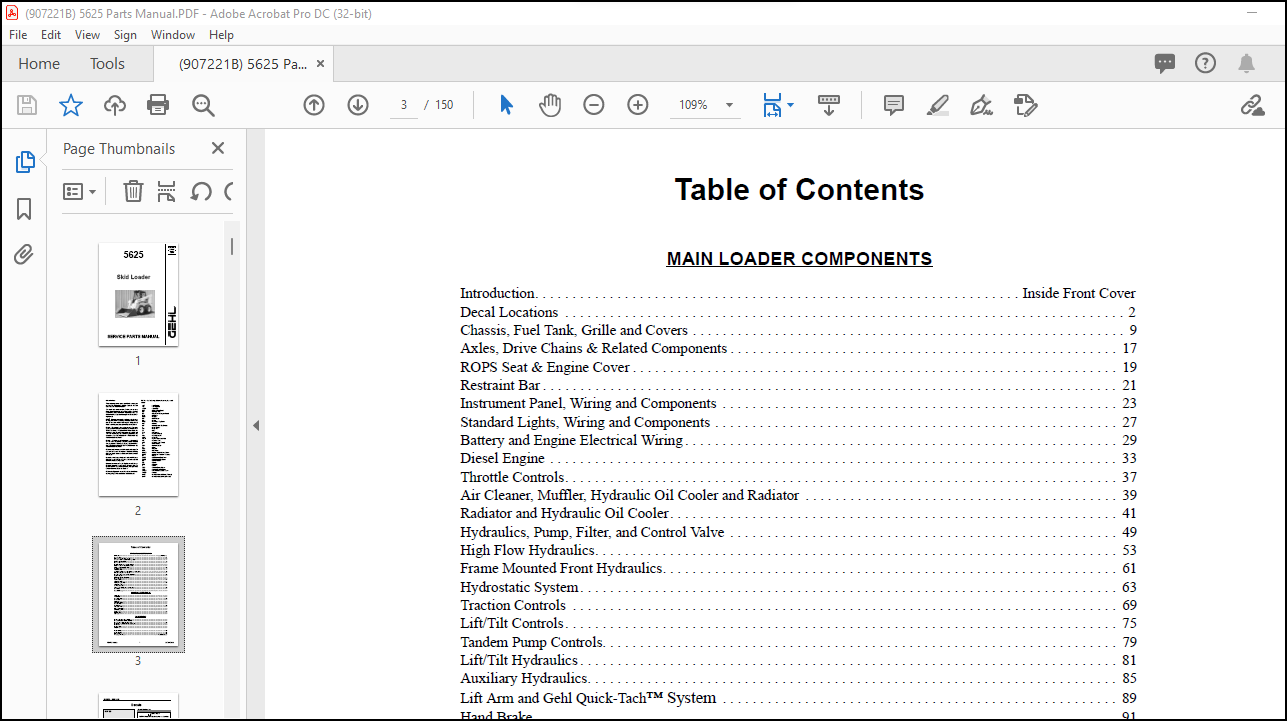

TABLE OF CONTENTS:

Gehl 5625 Skid Loader Service Parts Manual 907221 – PDF DOWNLOAD

Introduction Inside Front Cover
Decal Locations 2
Chassis, Fuel Tank, Grille and Covers 9
Axles, Drive Chains & Related Components 17
ROPS Seat & Engine Cover 19
Restraint Bar 21
Instrument Panel, Wiring and Components 23
Standard Lights, Wiring and Components 27
Battery and Engine Electrical Wiring 29
Diesel Engine 33
Throttle Controls 37
Air Cleaner, Muffler, Hydraulic Oil Cooler and Radiator 39
Radiator and Hydraulic Oil Cooler 41
Hydraulics, Pump, Filter, and Control Valve 49
High Flow Hydraulics 53
Frame Mounted Front Hydraulics 61
Hydrostatic System 63
Traction Controls 69
Lift/Tilt Controls 75
Tandem Pump Controls 79
Lift/Tilt Hydraulics 81
Auxiliary Hydraulics 85
Lift Arm and Gehl Quick-Tach™ System 89
Hand Brake 91
Sound Deadening 93
HYDRAULIC COMPONENTS
Lift Cylinder 95
Tilt Cylinder 97
Grapple Cylinder 99
Drive Motor 101
Tandem Pump 103
Single Gear Pump 105
Boost Control 107
Dual Gear Pump 109
Main Control Valve .111
Charge Relief Valve 113
Self-Leveling Valve 115
Solenoid Valve 119
Planetary Gearcase 121
Manifold 123
ATTACHMENTS
Utility and Light Material Buckets 125
68 Inch Dirt and Construction Bucket 127
68 Inch Industrial Bucket and Grapple 129
65 & 68 Inch Industrial Bucket and Grapple 131
Utility Fork 133
Utility Grapple 135
Pallet Forks 137
Numerical Index 138
Hardware Table 146
O-Ring Table 146
Torque Specifications Inside Back Cover
