Gehl 80 Series 2480 2580 2680 2780 2880 Variable Chamber Round Balers Operator’s Manual 909804 – PDF

Gehl 80 Series 2480 2580 2680 2780 2880 Variable Chamber Round Balers Operator’s Manual 909804 – PDF DOWNLOAD

FILE DETAILS:

Gehl 80 Series 2480 2580 2680 2780 2880 Variable Chamber Round Balers Operator’s Manual 909804 – PDF DOWNLOAD

Language : English
Pages : 112
Downloadable : Yes
File Type : PDF
Size: 3.92 MB

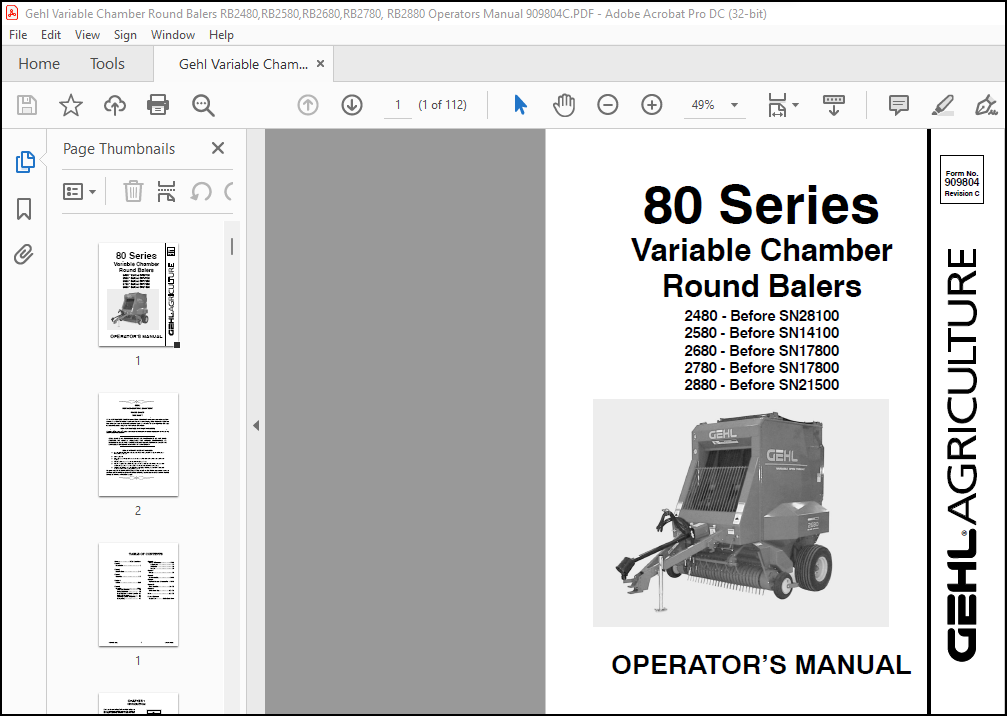

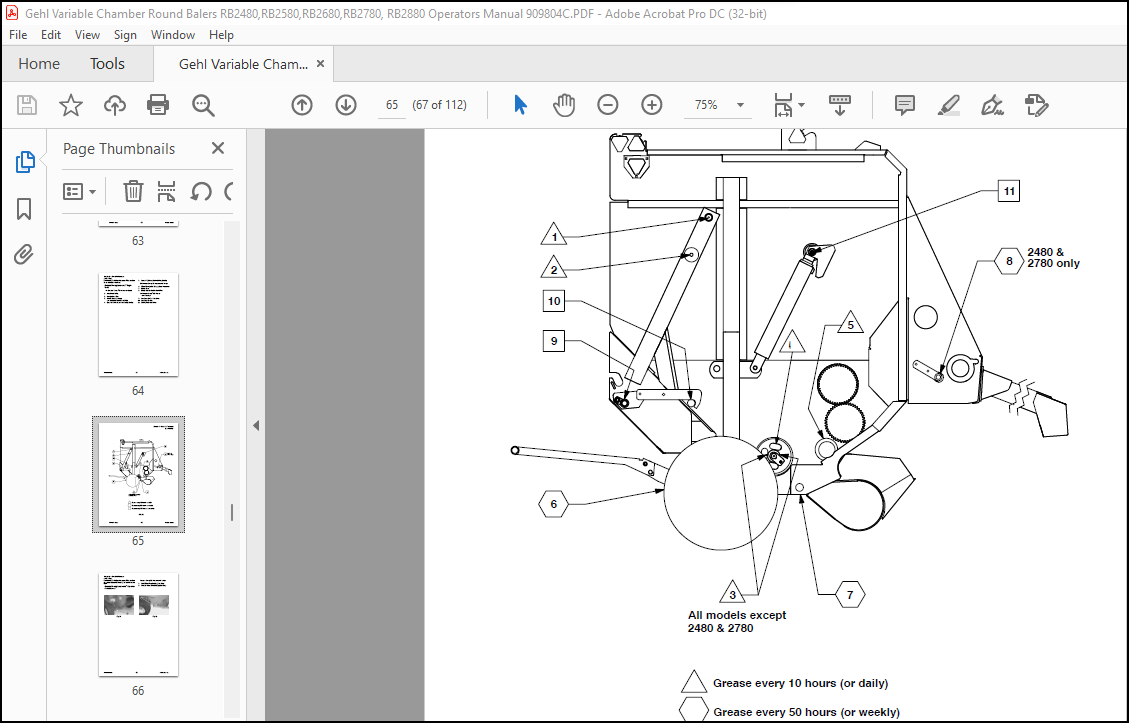

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Gehl 80 Series 2480 2580 2680 2780 2880 Variable Chamber Round Balers Operator’s Manual 909804 – PDF DOWNLOAD

2480 – Before SN28100
2580 – Before SN14100
2680 – Before SN17800
2780 – Before SN17800
2880 – Before SN21500

INTRODUCTION :

We are sure that your decision was carefully considered and that you are looking forward to many years of work from this machine. We, as a company, have invested much time and effort in developing our lines of equipment.

• The equipment you have purchased is built with a great deal of pride and designed to give you long life, efficient operation, durability and dependability. This manual was developed specifically for the machine you have purchased. The information within is for your assistance in preparing, adjusting, maintaining and servicing your machine.
• More importantly, this manual provides an operating plan for safe and proper use of your machine. Major points of safe operation are detailed in the SAFETY chapter of this manual.
• Refer to the Table of Contents for an outline (by chapters) of this manual. Use the Index, located at the back of this manual, for specific chapter and topic/page number references. This Gehl equipment is provided with a pocket on the inside of the left twinebox for storing the Operator’s Manual and Parts Manual.
• After using the manuals, please return them to the pocket and keep them with the unit at all times! If this machine is resold, Gehl Company recommends that this manual be given to the new owner. If this machine was purchased “used,” or if the owner’s address has changed, please provide your Gehl dealer or Gehl Company Service Dept. with the owner’s name and current address, along with the machine model and serial number.
• This will allow the registered owner information to be updated, so that the owner can be notified directly in case of an important product issue, such as a safety update program.

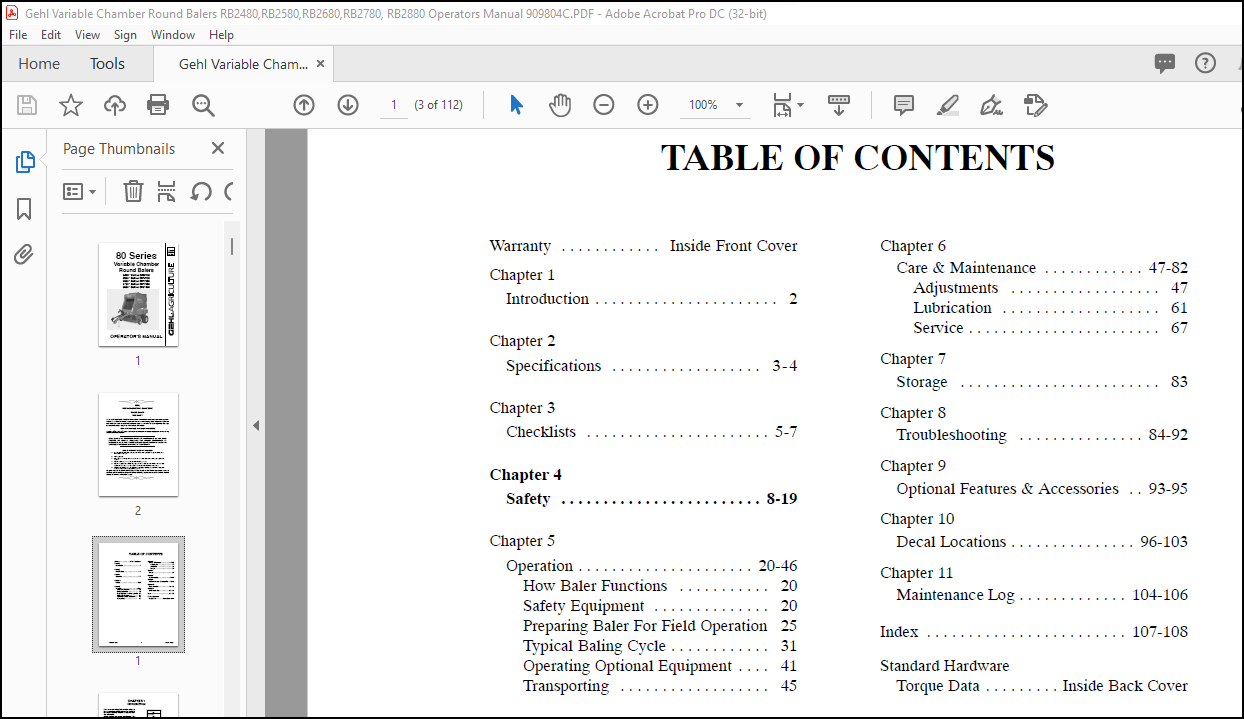

TABLE OF CONTENTS:

Gehl 80 Series 2480 2580 2680 2780 2880 Variable Chamber Round Balers Operator’s Manual 909804 – PDF DOWNLOAD

Warranty . . . . . . . . . . . . Inside Front Cover
Chapter 1
Introduction . . . . . . . . . . . . . . . . . . . . . . 2
Chapter 2
Specifications . . . . . . . . . . . . . . . . . . 3-4
Chapter 3
Checklists . . . . . . . . . . . . . . . . . . . . . . 5-7
Chapter 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . 8-19
Chapter 5
Operation . . . . . . . . . . . . . . . . . . . . . 20-46
How Baler Functions . . . . . . . . . . . 20
Safety Equipment . . . . . . . . . . . . . . 20
Preparing Baler For Field Operation 25
Typical Baling Cycle . . . . . . . . . . . . 31
Operating Optional Equipment . . . . 41
Transporting . . . . . . . . . . . . . . . . . . 45
Chapter 6
Care & Maintenance . . . . . . . . . . . . 47-82
Adjustments . . . . . . . . . . . . . . . . . . 47
Lubrication . . . . . . . . . . . . . . . . . . . 61
Service . . . . . . . . . . . . . . . . . . . . . . . 67
Chapter 7
Storage . . . . . . . . . . . . . . . . . . . . . . . . 83
Chapter 8
Troubleshooting . . . . . . . . . . . . . . . 84-92
Chapter 9
Optional Features & Accessories . . 93-95
Chapter 10
Decal Locations . . . . . . . . . . . . . . . 96-103
Chapter 11
Maintenance Log . . . . . . . . . . . . . 104-106
Index . . . . . . . . . . . . . . . . . . . . . . . . 107-108
Standard Hardware
Torque Data . . . . . . . . . Inside Back Cover
