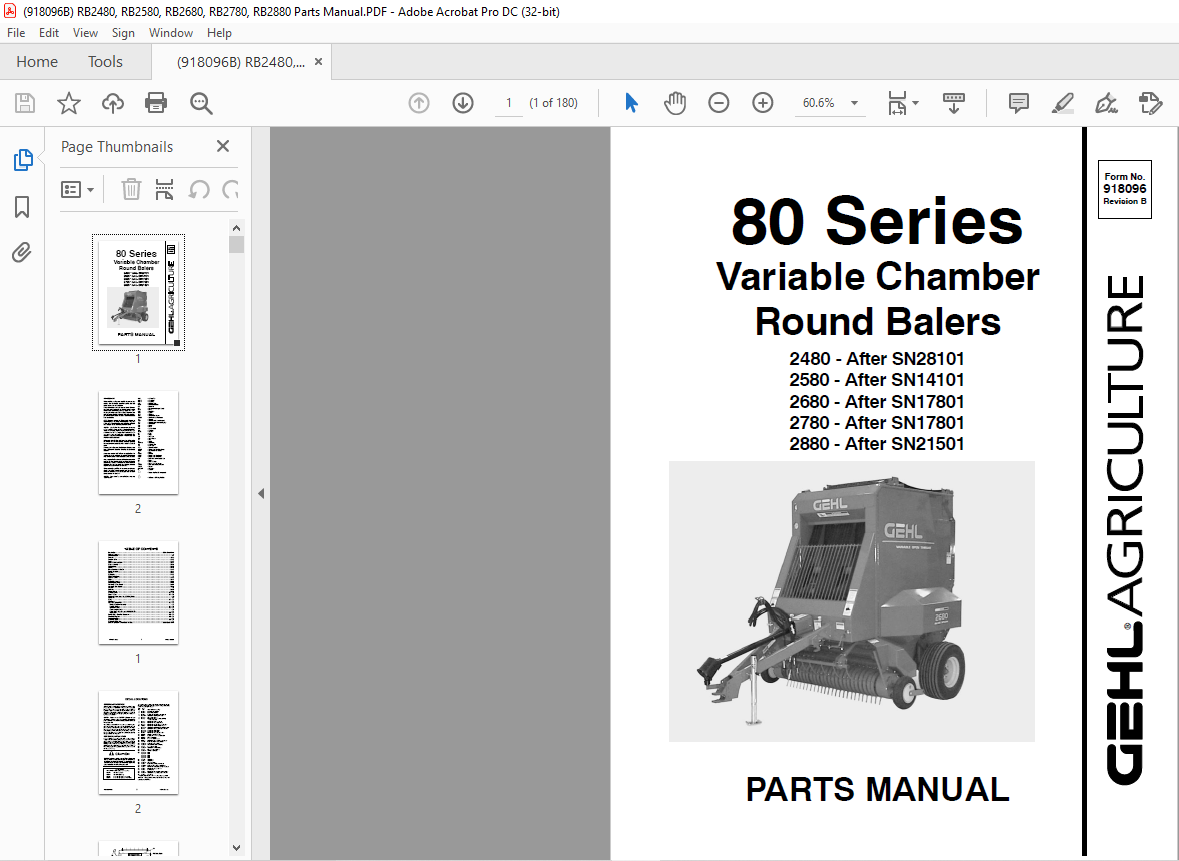

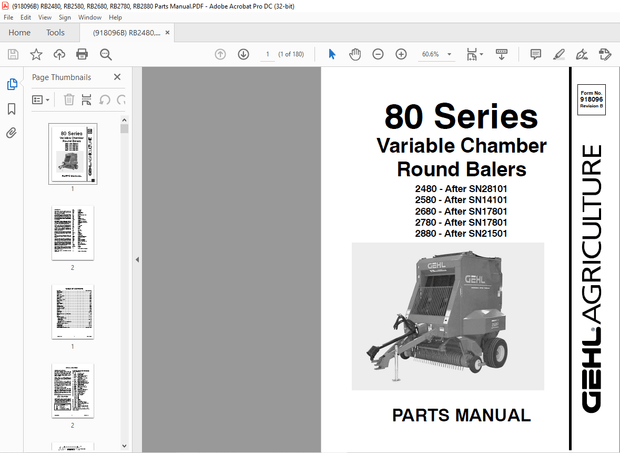

Gehl 80 Series 2480 2580 2680 2780 2880 Variable Chamber Round Balers Parts Manual 918096 – PDF

Gehl 80 Series 2480 2580 2680 2780 2880 Variable Chamber Round Balers Parts Manual 918096 – PDF DOWNLOAD

FILE DETAILS:

Gehl 80 Series 2480 2580 2680 2780 2880 Variable Chamber Round Balers Parts Manual 918096 – PDF DOWNLOAD

Language : English
Pages : 180
Downloadable : Yes
File Type : PDF
Size: 6.44 MB

DESCRIPTION:

Gehl 80 Series 2480 2580 2680 2780 2880 Variable Chamber Round Balers Parts Manual 918096 – PDF DOWNLOAD

2480 – After SN28101
2580 – After SN14101
2680 – After SN17801
2780 – After SN17801
2880 – After SN21501

Introduction:

When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The model number and serial number for the Baler are on a decal located under the top channel, near the center column of the right frame assembly.

• “Right’’ and “left’’ are determined from a position standing at the rear of the unit facing the direction of travel. From this position, the Baler drive sprocket on the transmission output shaft is on the left side. GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are provided on the inside back cover. In the exploded view parts list, Reference Numbers may have additional information following the Reference Number. A tear drop symbol will indicate an application of a “wet” product such as oil, and the number inside the tear drop will correspond to the description in the parts list.
• Also, a number inside a hexagon will be the torque value required, in foot pounds, on the associated Reference Number. Items shown in the parts list that do not have Reference Numbers are shown for reference purposes only and are NOT available for purchase. Unless otherwise specified, all cap screws or bolts are Grade 5, cadmium plated; hexagon nuts for Grade 5 screws or bolts are Grade B; hexagon nuts for other screws or bolts are Grade A.

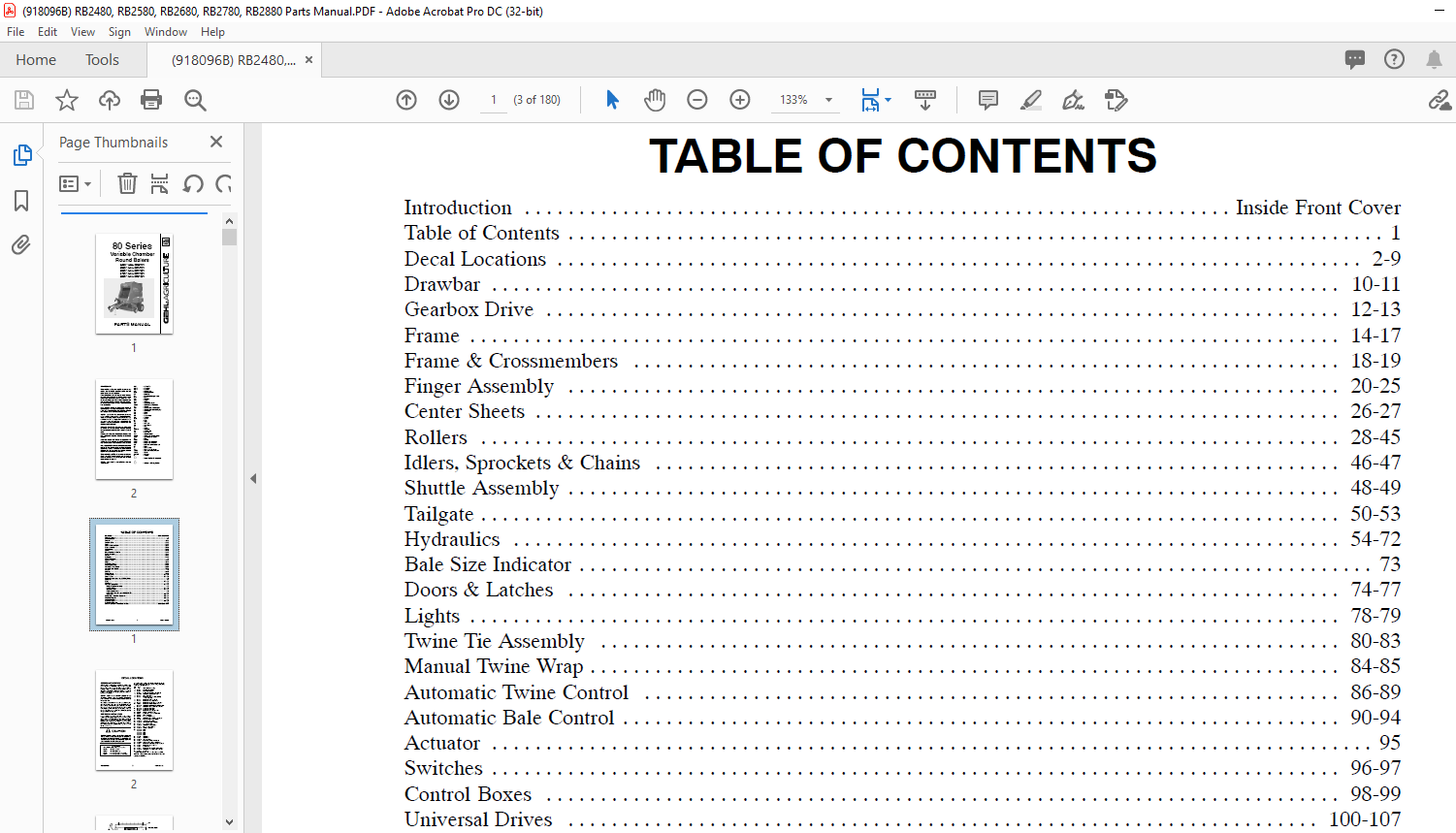

TABLE OF CONTENTS:

Gehl 80 Series 2480 2580 2680 2780 2880 Variable Chamber Round Balers Parts Manual 918096 – PDF DOWNLOAD

Introduction Inside Front Cover
Table of Contents 1
Decal Locations 2-9
Drawbar 10-11
Gearbox Drive 12-13
Frame 14-17
Frame & Crossmembers 18-19
Finger Assembly 20-25
Center Sheets 26-27
Rollers 28-45
Idlers, Sprockets & Chains 46-47
Shuttle Assembly 48-49
Tailgate 50-53
Hydraulics 54-72
Bale Size Indicator 73
Doors & Latches 74-77
Lights 78-79
Twine Tie Assembly 80-83
Manual Twine Wrap 84-85
Automatic Twine Control 86-89
Automatic Bale Control 90-94
Actuator 95
Switches 96-97
Control Boxes 98-99
Universal Drives 100-107
Transmissions 108-109
Spindle & Wheel Assembly & TDC Cylinder 110
Hitchjacks 111
Pickup 112-141
Windguard 142
Options & Accessories 143-151
Lacing Kits, Idler Assembly 143
Steering Monitor 144-145
Crowder Wheels 146-147
Pickup Gauge Wheels 148
Safety Chain, Bale Ramps & 1000 RPM Kit 149
Chain Oiler 150-151
Service Kits – Electrical Connectors 152-154
Electrical Diagrams 155-158
Alphabetical Index 159
Numerical Index 160-175
Hydraulic Fitting Data 176
Standard Hardware Torque Specifications Inside Back Cover
