Gehl BU960 Forage Box Service Parts Manual(903069) – PDF DOWNLOAD

Gehl BU960 Forage Box Service Parts Manual(903069) – PDF DOWNLOAD

FILE DETAILS:

Gehl BU960 Forage Box Service Parts Manual(903069) – PDF DOWNLOAD

Language : English
Pages : 48
Downloadable : Yes
File Type : PDF
Size: 14.3 MB

TABLE OF CONTENTS:

Gehl BU960 Forage Box Service Parts Manual(903069) – PDF DOWNLOAD

Table of Contents I
Decal Locations 2-3
Unloading Unit & Ist Beater 4-5
Implement Drive Line 6-7
Safety Bar, Cable & Linkage 8
Safety Clutch 9
2nd Beater , 10-11
Cross Conveyor & Extension 12-13
Feed Shafts, Aprons & Components 14-15
Apron Drive 16-17
Beater Drive & Shifter Linkage ” . ” , , ” 18-19
Beater Transmission 20
Worm Transmission 21
Universal Drive 22
Feeder Apron Components 23
Box Sides w/ Steel Stakes & “Z” Reinforcements 24-25
Steel Box End 26-27
Box Sides w/ Wood Stakes & “Z” Reinforcements 28
Wood Box End 29
Platform & Attaching Parts 30-31
Options 32-35
3rd Beater 32-33
Metal Roof Kits 34
Box Side Tie Kits 35
Accessories 36-38
Cross Conveyor Extension 36-37
Truck Mounting Kit 38
Numerical Index 40-42
Standard Hardware Torque Specification Inside Back Cover
Attaching Hardware Table Inside Back Cover

DESCRIPTION:

Gehl BU960 Forage Box Service Parts Manual(903069) – PDF DOWNLOAD

Introduction

• When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number.
• The model number and serial number for this unit are on a decal located on the Main Frame below the right Quick-switch Yoke and next to the Attachment Stand.
• “Right” and “Left” are determined from a position standing behind the unit and facing toward the direction of travel. From this position the Drive Chains are on the “Left” side. GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover. In the exploded view parts list, Reference Numbers may have additional information following the Reference Number.
• A Tear Drop symbol will indicate an application of a “wet” product such as oil, and the number inside the Tear Drop will correspond to the description in the Parts List. Also, a number inside a hexagon will be the torque value required, in foot pounds, on the associated Reference Number.
• Items shown in the parts list that do not have Reference Numbers are shown for reference purposes only and are NOT available for purchase. Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A.

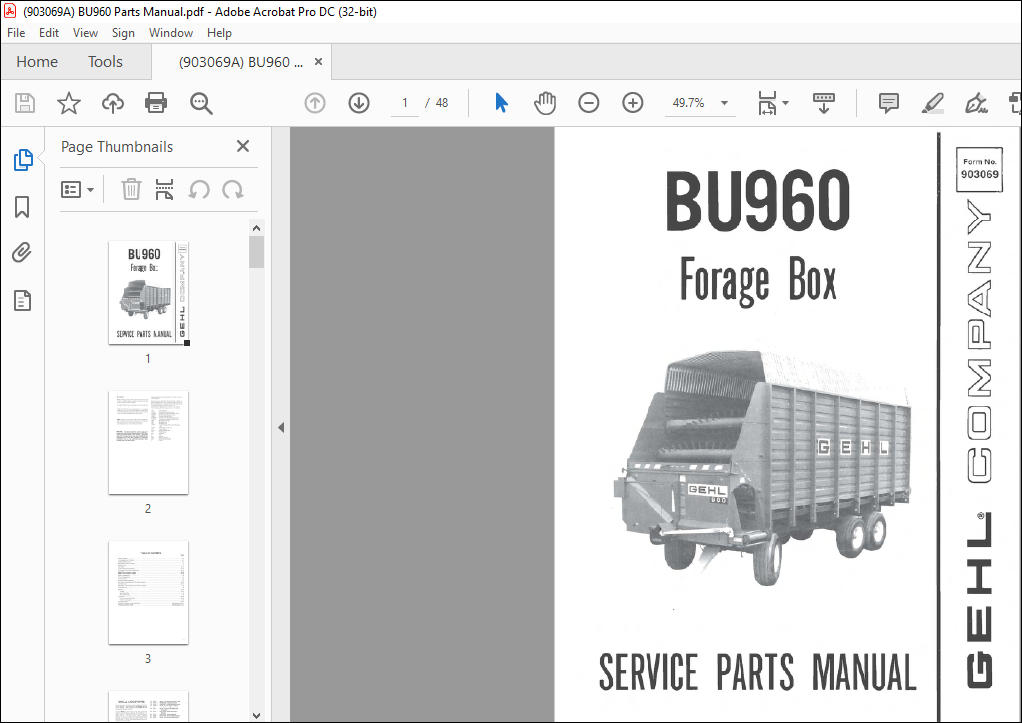

IMAGES PREVIEW OF THE MANUAL:
