GEHL DL SERIES DL7 DL9 DL11 DL12 Telescopic Handlers Operator’s Manual(50960019D) – PDF DOWNLOAD

GEHL DL SERIES DL7 DL9 DL11 DL12 Telescopic Handlers Operator’s Manual(50960019D) – PDF DOWNLOAD

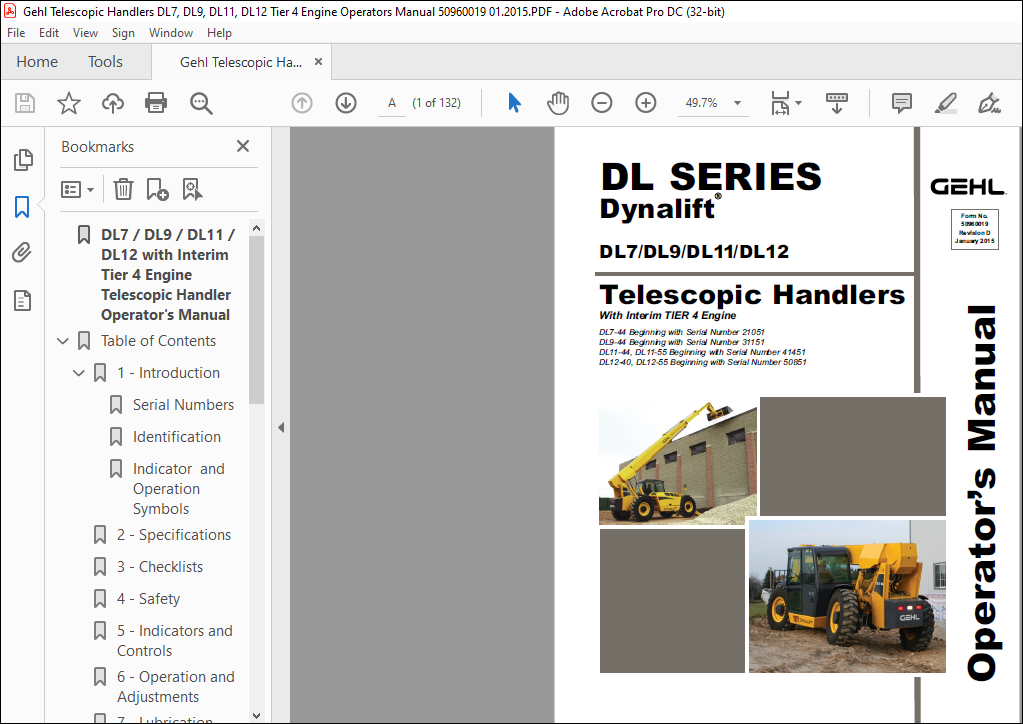

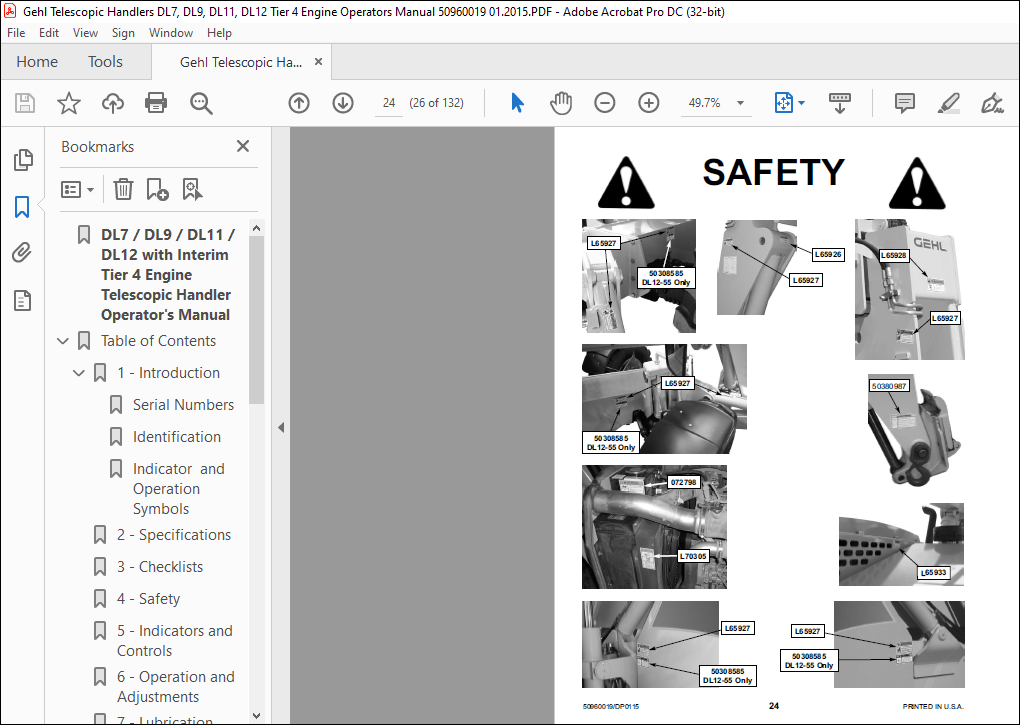

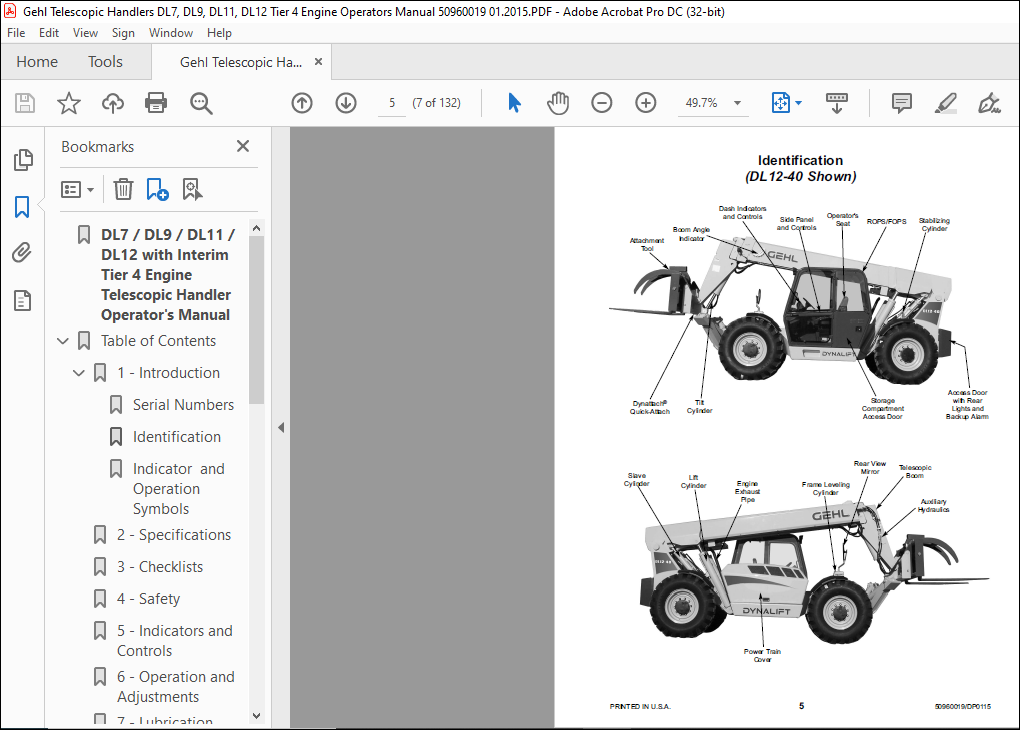

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

GEHL DL SERIES DL7 DL9 DL11 DL12 Telescopic Handlers Operator’s Manual(50960019D) – PDF DOWNLOAD

DL7-44 Beginning with Serial Number 21051
DL9-44 Beginning with Serial Number 31151
DL11-44, DL11-55 Beginning with Serial Number 41451
DL12-40, DL12-55 Beginning with Serial Number 50851

INTRODUCTION

• The information in this Operator’s Manual was written to give the owner/operator assistance in preparing, adjusting, maintaining, and servicing the Telescopic Handler. More importantly, this manual provides an operating plan for safe and proper use of the machine. Major points of safe operation are detailed in the SAFETY chapter of this manual.
• Gehl Company asks that you read and understand the contents of this manual COMPLETELY and become familiar with the machine before operating it.
• This Telescopic Handler is primarily intended for use as a material handler. However, it may be equipped with an optional system: the Personnel Work Platform (PWP) System, which is intended for use when lifting personnel.
• When there is no other practical option available, this machine, when equipped with the PWP System, is approved for use to lift personnel, but only with an approved work platform, with the PWP System activated, and in full compliance with the “Mandatory Work Platform Safety Rules” (see SAFETY chapter).
• Refer to the separate operator’s/parts manual for information related to the optional Radio Remote Boom Control System.
• The use of this Telescopic Handler is subject to certain hazards that cannot be eliminated by mechanical means but only by the exercise of intelligence, care, and common sense. It is, therefore, important to be cautious while operating this machine.

TABLE OF CONTENTS: GEHL DL SERIES DL7 DL9 DL11 DL12 Telescopic Handlers Operator’s Manual(50960019D) – PDF DOWNLOAD

• Warranty: 2
• Introduction: 3
• Specifications: 7
• Checklists: 9, 11
• SAFETY: 13
• Indicators and Controls: 27
• Operation and Adjustments: 39
• Lubrication: 61
• Service and Storage: 65
• Decal Locations: 85
• Maintenance: 91
• Engine Diagnostic Trouble Codes: 95
• Electrical Schematics: 99
• Hydraulic Schematics: 103
• Load Zone Charts: 105
• Standard Hardware Torque Data: 125
• Index: 126
