Gehl DL SERIES Dynalift DL7 DL9 DL11 DL12 Telescopic Handler Operator’s Manual 913287 – PDF DOWNLOAD

Gehl DL SERIES Dynalift DL7 DL9 DL11 DL12 Telescopic Handler Operator’s Manual 913287 – PDF DOWNLOAD

FILE DETAILS:

Gehl DL SERIES Dynalift DL7 DL9 DL11 DL12 Telescopic Handler Operator’s Manual 913287 – PDF DOWNLOAD

Language : English
Pages : 114
Downloadable : Yes
File Type : PDF
Size: 3.35 MB

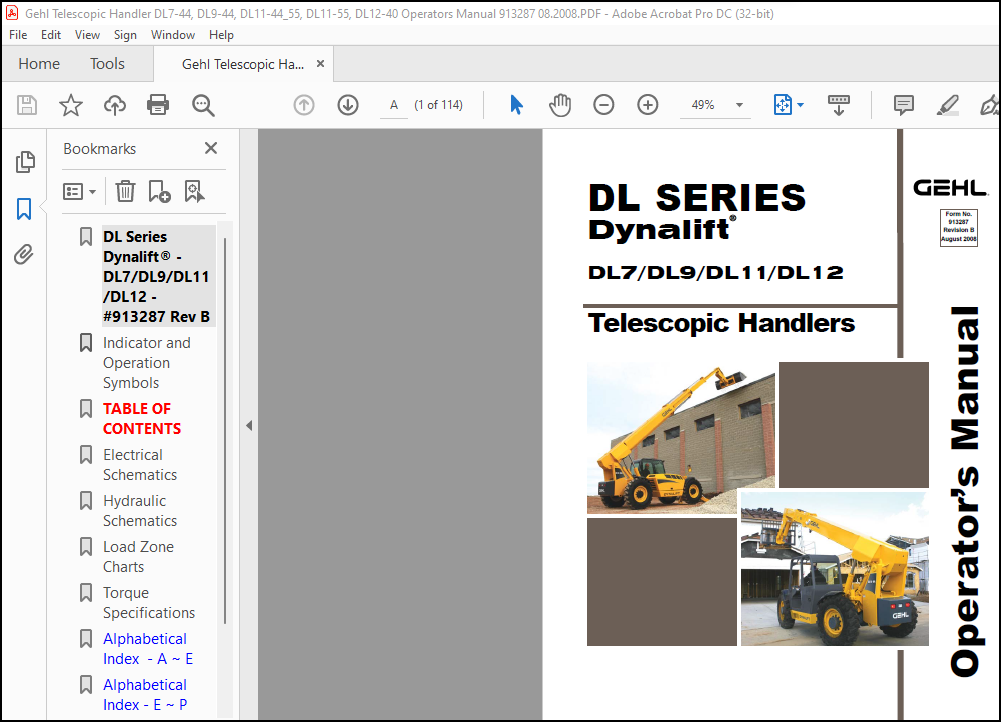

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Gehl DL SERIES Dynalift DL7 DL9 DL11 DL12 Telescopic Handler Operator’s Manual 913287 – PDF DOWNLOAD

Serial Number 21541 thru 21700 (with Tier 3 engine)
Beginning with Serial Number 21701 (with Interim Tier 4 engine)

• The information in this Operator’s Manual was written to give the owner/operator assistance in preparing, adjusting,
  maintaining and servicing of the Telescopic Handler. More important, this manual provides an operating plan
  for safe and proper use of the machine. Major points of safe operation are detailed in the SAFETY chapter of this
  manual.
• This Telescopic Handler is primarily intended for use as a material handler. However, it may be equipped with an
  optional system: the Personnel Work Platform (PWP) System, which is intended for use when lifting personnel.
  When there is no other practical option available, this machine, when equipped with the PWP System, is approved
  for use to lift personnel, but only with an approved work platform, with the PWP System activated, and in full compliance
  with the “Mandatory Work Platform Safety Rules” (see SAFETY chapter).
• The use of this Telescopic Handler is subject to certain hazards that cannot be eliminated by mechanical means,
  but only by the exercise of intelligence, care and common sense. It is therefore essential to have competent and
  careful operators, who are not physically or mentally impaired, and who are thoroughly trained in the safe operation
  of the equipment and the handling of the loads.
• Throughout this manual information is provided that is set in italic type and introduced by the word IMPORTANT
  or NOTE. Be sure to read carefully and comply with the message or directive given. Following this information
  will improve operating or maintenance efficiency, help to avoid breakdowns and damage, and extend the
  machine’s life. A chart of standard hardware torques is located in the back of this manual.
• A storage pocket in the back of the seat is provided for storing the Operator’s Manual. After using the manual,
  please return it to the pocket and keep it with the unit at all times! If this machine is resold, Gehl Company recommends
  that this manual be given to the new owner.
• If this machine was purchased “used,” or if the owner’s address has changed, please provide your Gehl dealer or
  Gehl Company Service Department with the owner’s name and current address, along with the machine model and
  serial number. This will allow the registered owner information to be updated, so that the owner can be notified
  directly in case of an important product issue, such as a safety update program.
  “Right” and “left” are determined from a position sitting on the seat and facing forward.
• The wide Gehl dealership network stands ready to provide any assistance required, including providing genuine
  Gehl service parts. All parts should be obtained from or ordered through your Gehl dealer. Give complete information
  about the part, and include the model and serial number of the machine. Record the serial number in the
  space provided on the previous page, as a handy record for quick reference.
  Gehl Company reserves the right to make changes or improvements in the design or construction of any part without
  incurring the obligation to install such changes on any unit previously delivered.

TABLE OF CONTENTS:

Gehl DL SERIES Dynalift DL7 DL9 DL11 DL12 Telescopic Handler Operator’s Manual 913287 – PDF DOWNLOAD

Indicator and Operation Symbols . . . . . . . . . . . . . . . . . . .Inside Front Cover
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Check Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 7
4 SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
5 Indicators and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
6 Operation and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
7 Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
8 Service and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
9 Decal Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
10 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Hydraulic Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Electrical Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Load Zone Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Standard Hardware Torque Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Inside Back Cover
