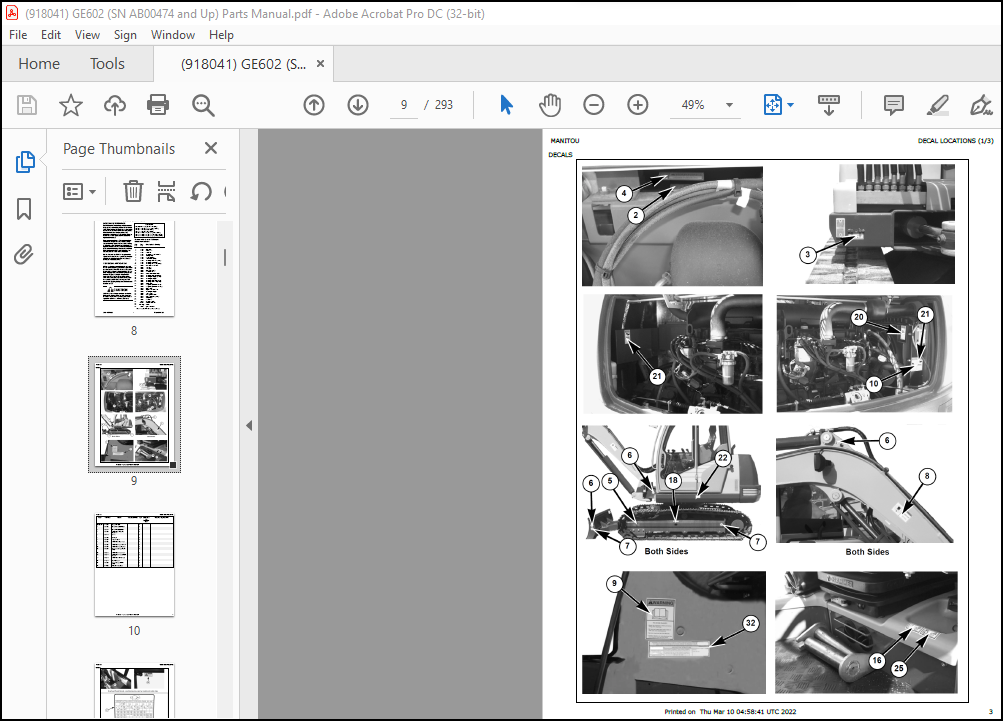

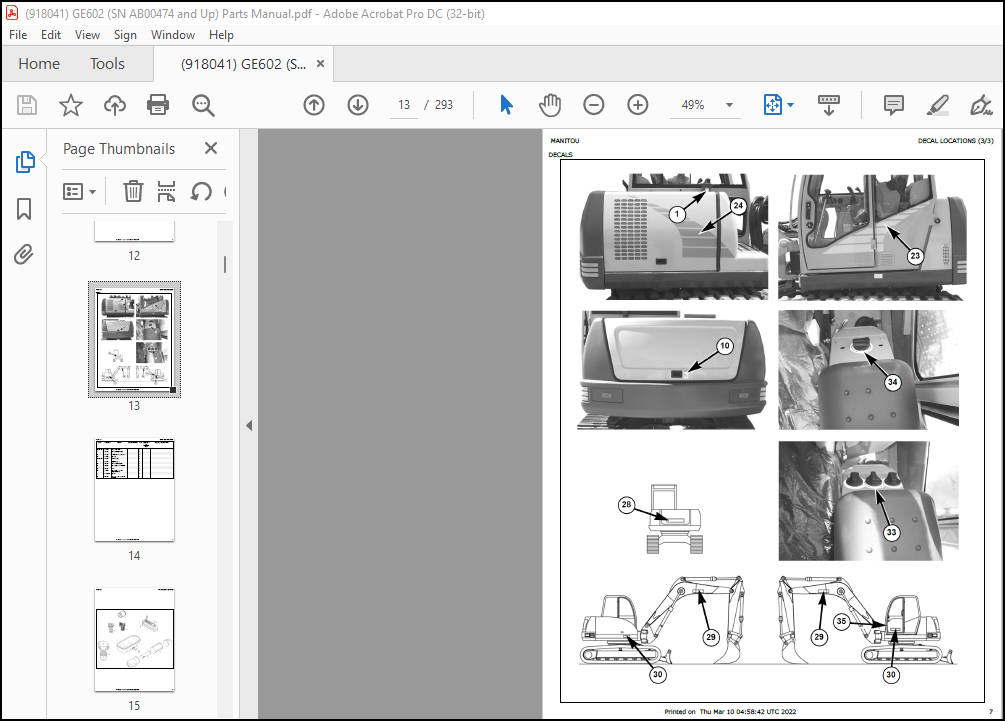

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

GEHL GE602 Compact Excavator Parts Manual (918041) – PDF DOWNLOAD

Introduction:

• When ordering service parts, please specify the correct part number, full description, quantity required, unit model number, and serial number. To ensure your safety and the continued proper operation of your unit, please use only genuine Gehl service parts.
• The model and serial number for your unit can be found on a tag located on a panel at the front of the cabin. Note that “right” and “left” directions are determined from a seated position facing forward.
• Gehl Company reserves the right to make changes or improvements to any part of the unit’s design or construction without incurring the obligation to install such changes on previously delivered units.
• Please refer to the abbreviations table on this page for various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover. Metric torque values shown in the illustrations are in Newton-meters and can be converted to foot-pounds by multiplying by 0.738.
• Some illustrations may include Specific Reference Numbers, which indicate a complete assembly and are circled. A small bag pictured in some illustrations indicates a seal kit (including seals, o-rings, etc.). In the exploded view parts list, additional information may follow the Reference Number.

Serial number breaks are indicated as follows:
• (SN 999 and before) – indicates serial numbers
up to and including 999.
• (SN 1000 – 2000) – indicates serial numbers
from 1000 to 2000.
• (SN 999 and up) – indicates serial numbers
including 999 and after.
Serial number exceptions and inclusions are
indicated as follows:
• (SN 999 and before except 997) – indicates
serial numbers up to and including 999,
EXCEPT 997.
• (SN 1000 – 2000 except 1996 including 997) –
indicates serial numbers between 1000 and
2000, INCLUDING 997 EXCEPT 1996.
• (SN 2001 and up including 1996) – indicates
serial numbers including 2001 and after,

General Information:

• Decal location information is provided to assist in the proper selection and application of new decals, in the event the original decals become damaged or the machine is repainted. Refer to the listing for the illustration reference number, part number, description, and quantity of each decal provided in the kit. Refer to the appropriate illustrations for replacement locations.
• To ensure proper selection of the correct replacement decals, compare all of the various close-up location drawings to your machine before starting to refinish the unit. Then circle each shown decal (applicable to your machine) while checking off its part number in the listing. After you have verified all the decals needed for replacement, place any extra unnecessary decals aside for disposal.

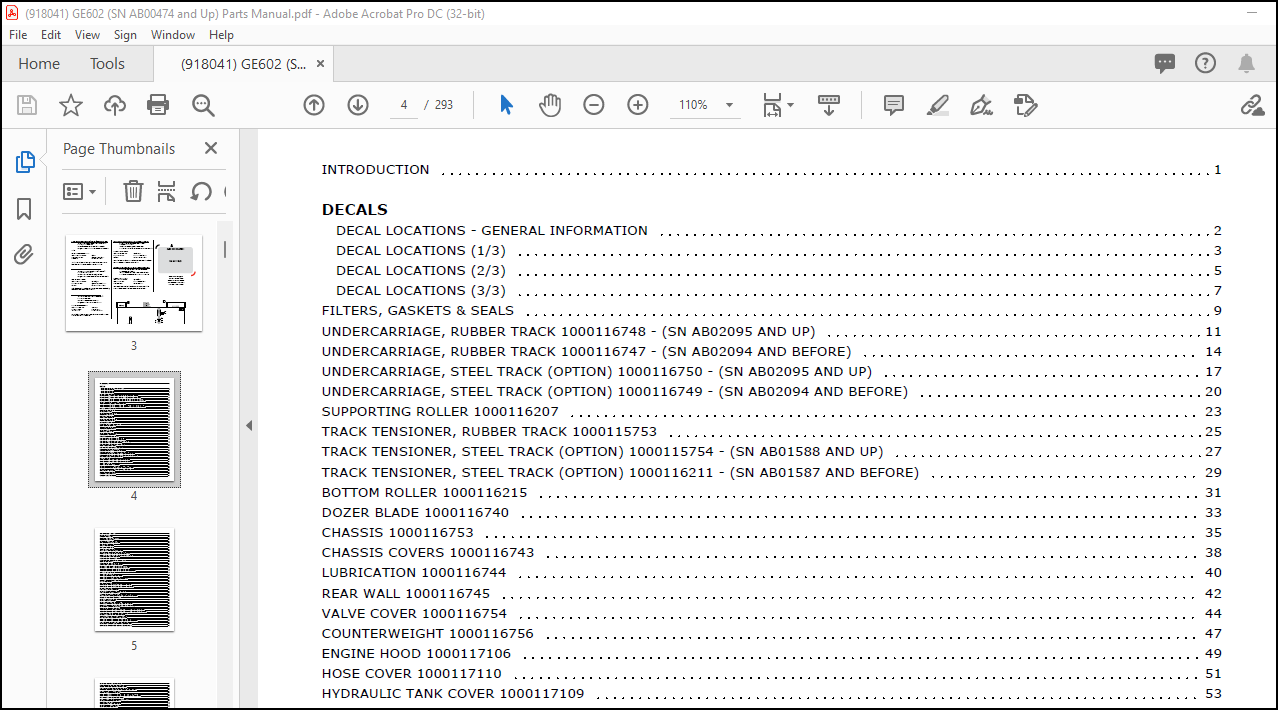

TABLE OF CONTENTS:

GEHL GE602 Compact Excavator Parts Manual (918041) – PDF DOWNLOAD

INTRODUCTION 1
DECALS
DECAL LOCATIONS – GENERAL INFORMATION 2
DECAL LOCATIONS (1/3) 3
DECAL LOCATIONS (2/3) 5
DECAL LOCATIONS (3/3) 7
FILTERS, GASKETS & SEALS 9
UNDERCARRIAGE, RUBBER TRACK 1000116748 – (SN AB02095 AND UP) 11
UNDERCARRIAGE, RUBBER TRACK 1000116747 – (SN AB02094 AND BEFORE) 14
UNDERCARRIAGE, STEEL TRACK (OPTION) 1000116750 – (SN AB02095 AND UP) 17
UNDERCARRIAGE, STEEL TRACK (OPTION) 1000116749 – (SN AB02094 AND BEFORE) 20
SUPPORTING ROLLER 1000116207 23
TRACK TENSIONER, RUBBER TRACK 1000115753 25
TRACK TENSIONER, STEEL TRACK (OPTION) 1000115754 – (SN AB01588 AND UP) 27
TRACK TENSIONER, STEEL TRACK (OPTION) 1000116211 – (SN AB01587 AND BEFORE) 29
BOTTOM ROLLER 1000116215 31
DOZER BLADE 1000116740 33
CHASSIS 1000116753 35
CHASSIS COVERS 1000116743 38
LUBRICATION 1000116744 40
REAR WALL 1000116745 42
VALVE COVER 1000116754 44
COUNTERWEIGHT 1000116756 47
ENGINE HOOD 1000117106 49
HOSE COVER 1000117110 51
HYDRAULIC TANK COVER 1000117109 53
ISOLATION MATS 1000151766 55
TOOL BOX 1000116760 57
TOOL BOX (A/C) 1000116761 59
BOOM 1000117114 61
DIPPER ARM 1000117128 63
CONNECTING LINK 1000116766 65
CAB MOUNTING 1000116249 67
MAIN WIRE HARNESS 1000116781 69
CAB 1000116253 – (CAB SN 45764 AND UP) 71
CAB 1000116769 – (CAB SN 45763 AND BEFORE) 74
CAB 1000116774 (COMPONENTS – ALL SERIAL NUMBERS) 77
CAB 1000116261 – (SN AB01940 AND UP) 79
CAB 1000116259 – (SN AB01939 AND BEFORE) 81
FRONT WINDOW 1000116265 83
CAB WINDOWS 1000116268 & 1000116269 85
CAB SLIDING WINDOW 1000116271 87
CAB DOOR 1000116274 – (SN AB01940 AND UP) 89
CAB DOOR 1000116273 – (SN AB01939 AND BEFORE) 91
CAB INTERIOR COVER TRIM 1000116277 – (SN AB01940 AND UP) 93
CAB INTERIOR COVER TRIM 1000116276 – (SN AB01939 AND BEFORE) 95
ROTATING BEACON (OPTION) 1000144744 97
HEATER 1000116798 99
OPERATOR’S SEAT 1000116801 – (SN AB01940 AND UP) 101
OPERATOR’S SEAT 1000116800 – (SN AB01939 AND BEFORE) 104
BLOWER 1000151765 107
BLOWER MOUNTING KIT 1000116802 109
AIR CONDITIONING INSTALLATION (OPTION) 1000111541 111
AIR CONDITIONING ADDITIONAL PARTS (OPTION) 1000116806 113
AIR CONDITIONING INSTALLATION (OPTION) 1000116807 115
DIESEL ENGINE 1000116804 118
ENGINE MOUNTS 1000116816 120
CYLINDER HEAD 1000150316 122
CYLINDER BLOCK 1000150315 124
SEAL CRANKSHAFT 1000177641 126
OIL PAN 1000125778 128
CAMSHAFT 1000177639 130
CRANKSHAFT & PISTONS 1000146575 132
LUBRICATION 1000150320 134
COOLING SYSTEM 1000154961 136
FUEL INJECTION SYSTEM 1000150372 138
FUEL SYSTEM 1000150374 140
DIESEL TANK 1000116809 142
FUEL SUPPLY 1000116813 144
THROTTLE LEVER 1000116815 146
AIR INTAKE SYSTEM (NO A/C) 1000116818 148
A/C AIR INTAKE SYSTEM (OPTION) 1000116819 150
EXHAUST SYSTEM 1000143180 – (SN AB01903 AND UP) 152
EXHAUST SYSTEM 1000117193 – (SN AB01902 AND BEFORE) 154
HYDRAULIC PUMP DRIVE 1000116824 156
HYDRAULIC PUMP 1000116847 158
HYDRAULIC PUMP INTERNAL PARTS 1000173703 160
RADIATOR 1000116817 162
HYDRAULIC OIL TANK 1000116826 164
SWIVEL JOINT 1000116309 & 1000116310 167
OIL COOLER 1000116828 – (SN AB00739 AND UP) 169
OIL COOLER 1000116827 – (SN AB00738 AND BEFORE) 171
TURNTABLE DRIVE UNIT 1000116849 – (SN AB01533 AND UP) 173
TURNTABLE DRIVE UNIT 1000116848 – (SN AB01532 AND BEFORE) 175
DRIVE MOTOR 1000116840 177
VALVE BLOCK 1000116858 179
VALVE BLOCK INSTALLATION 1000116852 181
VALVE BLOCK SECTIONS 1000116854 183
VALVE BLOCK SECTION CONNECTIONS 1000181951 185
DISTRIBUTION BLOCK 1000116861 187
BATTERY 1000116980 189
REVERSING VALVE 1000116863 191
DOZER BLADE VALVE 1000116337 – (SN AB01940 AND UP) 193
DOZER BLADE VALVE 1000116335 – (SN AB01939 AND BEFORE) 195
JOYSTICK 1000116334 197
PILOT VALVE, TRAVEL 1000116339 199
AUXILIARY HYDRAULICS PILOT VALVE 1000116872 201
PILOT OIL SUPPLY UNIT 1000116857 203
4/3 VALVE (OPTION) 1000116341 – (SN AB00960 AND UP) 205
SOLENOID VALVE (OPTION) 1000117651 – (SN AB00959 AND BEFORE) 207
ISO/SAE PATTERN VALVE 1000116875 209
BUCKET CYLINDER 1000116887 211
BOOM CYLINDER 1000116882 213
BOOM CYLINDER (OPTION) 1000116883 215
DIPPER ARM CYLINDER 1000116886 – (SN AD01490 AND UP) 217
DIPPER ARM CYLINDER 1000117269 – (SN AB01489 AND BEFORE) 219
BOOM OFFSET CYLINDER 1000116889 221
DOZER BLADE CYLINDER 1000116894 223
TURNTABLE DRIVE UNIT HOSE INSTALLATION 1000116838 – (SN AB01533 AND UP) 225
TURNTABLE DRIVE UNIT HOSE INSTALLATION 1000116837 – (SN AB01532 AND BEFORE) 227
HYDRAULIC PUMP HOSE INSTALLATION 1000116835 229
OIL COOLER HOSE INSTALLATION 1000116836 231
TRAVEL MOTOR HOSE INSTALLATION 1000116839 233
CONTROL VALVE HOSE INSTALLATION 1000116921 235
VALVE HOSE INSTALLATION 1000116924 – (SN AB01533 AND UP) 237
VALVE HOSE INSTALLATION 1000116923 – (SN AB01532 AND BEFORE) 239
PILOT OIL SUPPLY HOSE INSTALLATION 1000116924 241
BOOM OFFSET CYLINDER HOSE INSTALLATION 1000116928 243
DOZER BLADE CYLINDER HOSE INSTALLATION 1000116373 245
BOOM HOSE INSTALLATION 1000116933 247
HAND LEVERS HOSE INSTALLATION 1000116940 249
ISO/SAE VALVE HOSE INSTALLATION 1000116941 251
PILOT PRESSURE HOSE INSTALLATION 1000116943 253
ELECTRICAL AUXILIARY HOSE INSTALLATION (OPTION) 1000117947 255
PILOT CONTROL (OPTION) 1000116956 257
ENGINE WIRE HARNESS 1000117800 259
RIGHT ARMREST WIRE HARNESS 1000116966 – (SN AB01940 AND UP) 261
RIGHT ARMREST WIRE HARNESS 1000116964 – (SN AB011939 AND BEFORE) 263
LEFT ARMREST WIRE HARNESS 1000116968 265
LEFT ARMREST WIRE HARNESS (OPTION) 1000116969 267
CHASSIS WIRE HARNESS 1000116972 269
RELAY BOX 1000116974 271
RELAY BOX INSTALLATION 1000116976 273
CHASSIS WORK LIGHT 1000116977 275
BOOM WORK LIGHT 1000116978 277
CAB WORK LIGHT (OPTION) 1000116979 279
HORN 1000116982 281
TOOLS 1000116984 283
TORQUE SPECIFICATIONS 285
