Gehl R134 Parts Manual 50111946E – PDF DOWNLOAD

Gehl R134 Parts Manual 50111946E – PDF DOWNLOAD

FILE DETAILS:

Gehl R134 Parts Manual 50111946E – PDF DOWNLOAD

Language : English
Pages : 140
Downloadable : Yes
File Type : PDF
Size: 31.3 MB

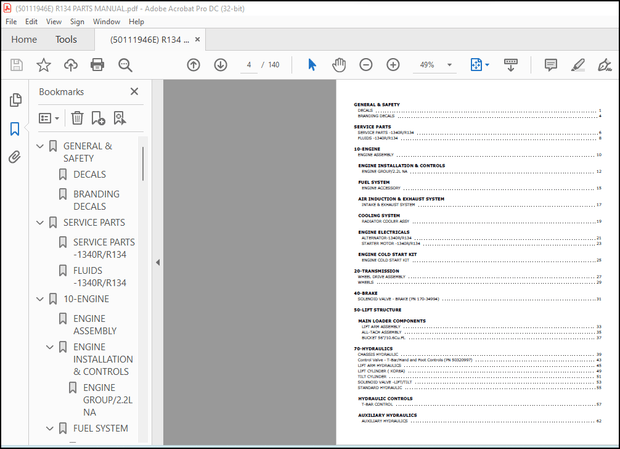

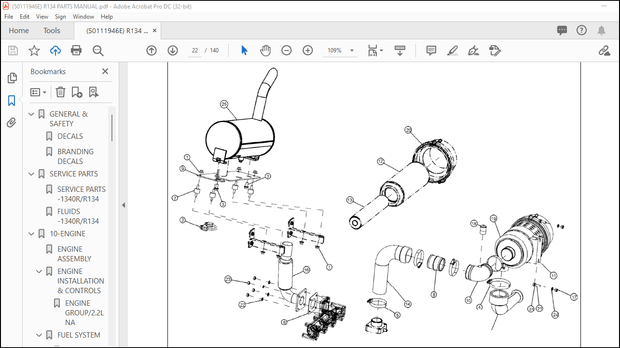

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Gehl R134 Parts Manual 50111946E – PDF DOWNLOAD

GENERAL & SAFETY
DECALS 1
BRANDING DECALS 4
SERVICE PARTS
SERVICE PARTS -1340R/R134 6
FLUIDS -1340R/R134 8
10-ENGINE
ENGINE ASSEMBLY 10
ENGINE INSTALLATION & CONTROLS
ENGINE GROUP/2.2L NA 12
FUEL SYSTEM
ENGINE ACCESSORY 15
AIR INDUCTION & EXHAUST SYSTEM
INTAKE & EXHAUST SYSTEM 17
COOLING SYSTEM
RADIATOR COOLER ASSY 19
ENGINE ELECTRICALS
ALTERNATOR-1340R/R134 21
STARTER MOTOR -1340R/R134 23
ENGINE COLD START KIT
ENGINE COLD START KIT 25
20-TRANSMISSION
WHEEL DRIVE ASSEMBLY 27
WHEELS 29
40-BRAKE
SOLENOID VALVE – BRAKE (PN 170-34994) 31
50-LIFT STRUCTURE
MAIN LOADER COMPONENTS
LIFT ARM ASSEMBLY 33
ALL-TACH ASSEMBLY 35
BUCKET 56″/10.6Cu.Ft. 37
70-HYDRAULICS
CHASSIS HYDRAULIC 39
Control Valve – T-Bar/Hand and Foot Controls (PN 50320997) 43
LIFT ARM HYDRAULICS 45
LIFT CYLINDER ( KOREA) 49
TILT CYLINDER 51
SOLENOID VALVE -LIFT/TILT 53
STANDARD HYDRAULIC 55
HYDRAULIC CONTROLS
T-BAR CONTROL 57
AUXILIARY HYDRAULICS
AUXILIARY HYDRAULICS 62
HYDROSTATIC SYSTEM
TANDEM PUMP -GEAR PUMP END 64
TANDEM PUMP-ENGINE END 66
HYDROSTATIC DRIVE MOTORS 69
DRIVE MOTOR & PARKING BRAKE 71
HYDROSTATIC CONTROLS
HYDROSTATIC T-BAR CONTROL 73
80-ELECTRICAL
CHASSIS ELECTRICAL ASSY 75
ELECTRICAL DISCONNECT 79
ELECTRICAL LIGHTS ASSY 81
ROPS ELECTRICAL ASSY 84
85-OPERATOR STATION
ROPS ASSY 87
OPERATOR SEAT 91
RESTRAINT BAR 93
90-CHASSIS
CHASSIS ASSEMBLY 95
CHASSIS FENDER ASSEMBLY 99
SHIPPING GROUP 101
110-ADDITIONAL EQUIPMENT
SELF-LEVEL VALVE HYDRAULICS 103
COUNTERWEIGHT ASSY 105
SELF-LEVELING VALVE (PN 135367) 107
SLIDING SIDE WINDOWS 109
TYRES & RIMS ASSEMBLY 111
WHEEL ASSEMBLY 113
TYRE ASSY 10X16.5(10 PR) 115
HORN KIT 117
ALARM BACKUP ASSY – T-BAR 119
CHASSIS FENDER ASSY 121
CAB DOOR WITH WIPER & WASHER KIT 123
EASY MANAGER ASSY 127
CAB DOOR ASSEMBLY 129
HAND FOOT CONTROLS 131
