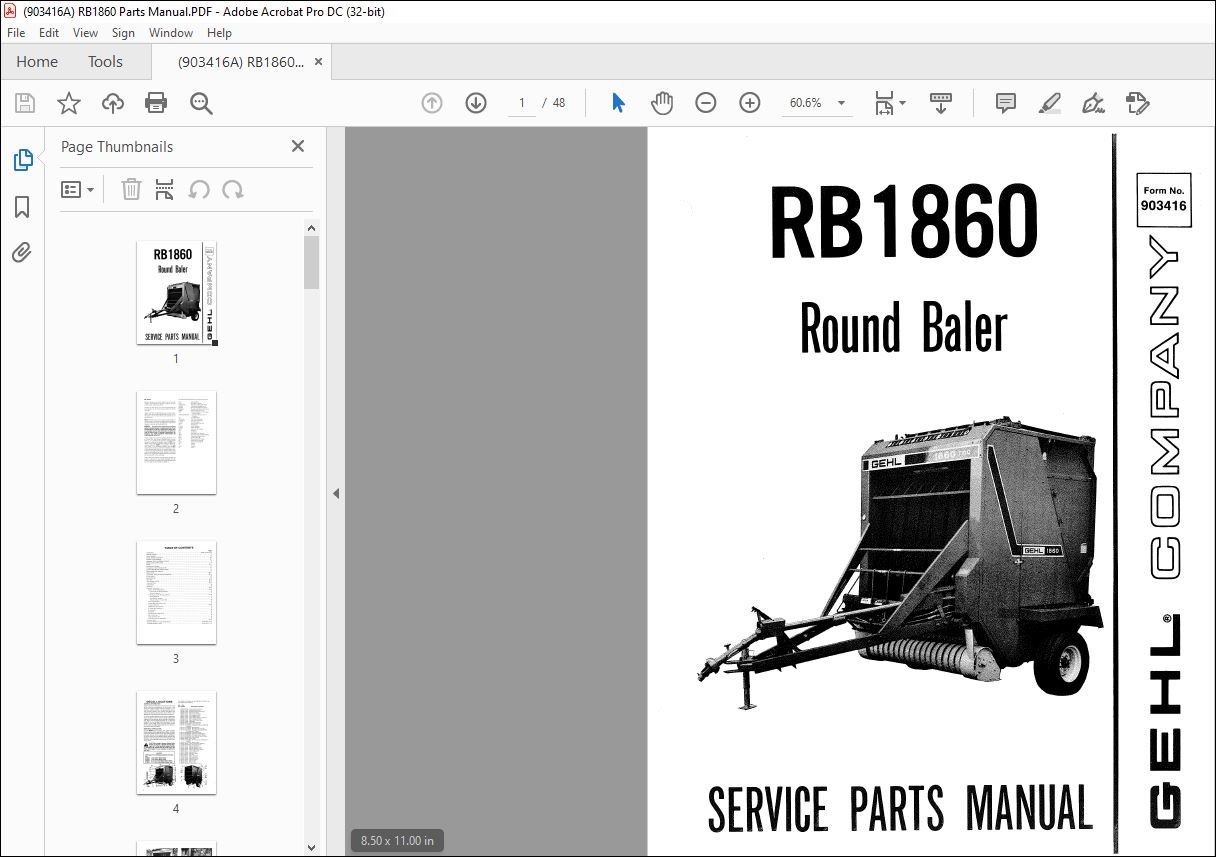

 IMAGES PREVIEW OF THE MANUAL:

 DESCRIPTION:

Gehl Round Baler RB1860 Service Parts Manual(903416) – PDF DOWNLOAD

Mr. Dealer:

• When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. Numbers for this unit are on a decal located under the Top Channel, near the Center Column of the Left Frame Assembly.
• “Right” and “Left” are determined from a position standing at rear of the unit facing the direction of travel. From this position, the Universal Drive and Transmission are on the left side.
• GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any unit previously delivered.

TABLE OF CONTENTS:

Gehl Round Baler RB1860 Service Parts Manual(903416) – PDF DOWNLOAD

Introduction Inside Front Cover
Table of Contents I
Decal Locations 2-3
Frame, Fenders & Twinebox 4-5
Drawbar, Axles & Ramps 6-_7
Implement Drive Line Shields & Covers 8
Pickup Lift & Overfill Clutch 9
Pickup 10-11
Bale Starter & Scraper 12
Crossframe, Twine Tubes & Cutoff 13
Sprocket & Roller Part Number Guide 14
Shuttle & Bale Size Indicator 15
Roller Drives 16-17
Upper Belts, Rollers & Related Components 18-19
Lower Rollers 20
Gate Hydraulics 21
Rear Gate 22-23
Total Density Control 24-25
Universal Drives 26-27
Transmission 28
Hitch jacks 29
Options & Accessories 30-39
Electric Twine Wrapping Kit 30-31
Control Box & Wiring Diagram 30
Electric Actuators 31
Auto-Electric Twine Wrapping System 32-34
Wiring Diagram 33
Auto-Electric Actuator 33
Horn & Indicator Control Box 34
Flow Control Valve 34
Audible Bale Size Indicator Kit 35
Crowder Wheel Kit 36-37
1000 RPM Conversion Kit 37
6″ Upper Belt Dutchman 37
Re-lacing Kit 38
Lacing Kit 38
Packing Roller Lagging Kit 38
Bale Counter Kit 39
Dual Hydraulics Kit 39
Hydraulic Twine Wrapping Kit 39
Numerical Index 40-43
Standard Hardware Torque Specifications Inside Back Cover
Attaching Hardware Table Inside Back Cover
