FILE DETAILS:

Gehl RS5-19 Telescopic Handler Operator's Manual 913258 - PDF DOWNLOAD

Language : English
Pages : 74
Downloadable : Yes
File Type : PDF
Size: 6.57 MB

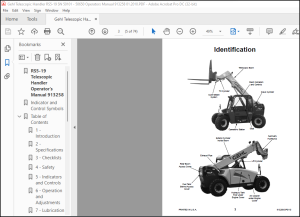

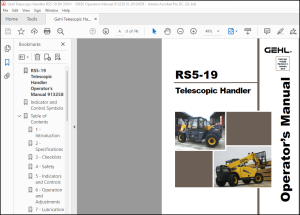

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Gehl RS5-19 Telescopic Handler Operator's Manual 913258 - PDF DOWNLOAD

INTRODUCTION:

• The information in this Operator’s Manual was written to give the owner/operator assistance in preparing, adjusting,
  maintaining and servicing the Telescopic Handler. More important, this manual provides an operating plan for
  safe and proper use of the machine. Major points of safe operation are detailed in the SAFETY chapter of this
  manual.
• The use of this Telescopic Handler is subject to certain hazards that cannot be eliminated by mechanical means,
  but only by the exercise of intelligence, care and common sense. It is therefore essential to have competent and
  careful operators, who are not physically or mentally impaired, and who are thoroughly trained in the safe operation
  of the equipment and the handling of the loads.
• Throughout this manual information is provided that is set in italic type and introduced by the word IMPORTANT
  or NOTE. Be sure to read carefully and comply with the message or directive given. Following this information
  will improve operating and maintenance efficiency, help to avoid breakdowns and damage, and extend the
  machine’s life. A chart of standard hardware torques is located in the back of this manual.
• A storage area is provided on the unit for storing the Operator’s Manual. After using the manual, please return it
  to the storage area and keep it with the unit at all times! If this machine is resold, GEHL Company recommends
  that this manual be given to the new owner.
• If this machine was purchased “used,” or if the owner’s address has changed, please provide your GEHL dealer or
  GEHL Company Service Department with the owner’s name and current address, along with the machine model
  and serial number. This will allow the registered owner information to be updated, so that the owner can be notified
  directly in case of an important product issue, such as a safety update program.
• “Right” and “left” are determined from a position sitting on the seat and facing forward.
  Our wide dealership network stands ready to provide any assistance needed, including genuine GEHL service
  parts. All parts should be obtained from or ordered through your GEHL dealer. Give complete information about
  the part and include the model and serial number of the machine. Record the serial number in the space provided
  on page 4 as a handy record for quick reference.
• GEHL Company reserves the right to make changes or improvements in the design or construction of any part
  without incurring the obligation to install such changes on any unit previously delivered.

TABLE OF CONTENTS:

Gehl RS5-19 Telescopic Handler Operator's Manual 913258 - PDF DOWNLOAD

RS5-19 Telescopic Handler Operator's Manual 913258 Revision C .... 1
Indicator and Control Symbols .................................... 2
Table of Contents ................................................ 3
1 - Introduction ............................................. 4
2 - Specifications ........................................... 6
3 - Checklists ............................................... 7
4 - Safety ...................................................10
5 - Indicators and Controls ..................................19
6 - Operation and Adjustments ................................28
7 - Lubrication ..............................................39
8 - Service and Storage ......................................42
10 Hours or Daily ........................................44
50 Hours or Weekly .......................................47
100 Hours ................................................47
250 Hours ................................................47
500 Hours or Half Year ...................................50
1000 Hours or Yearly .....................................51
2000 Hours or Two Years ..................................53
9 - Decals ...................................................56
10 - Maintenance .............................................60
Electrical Schematics ....................................65
Hydraulic Schematics .....................................66
Load Zone Charts .........................................67
Torque Specifications ....................................69
Index - A through F ..........................................70
Index - G through S ..........................................71
Index - S through W ..........................................72
Warranty .....................................................73
