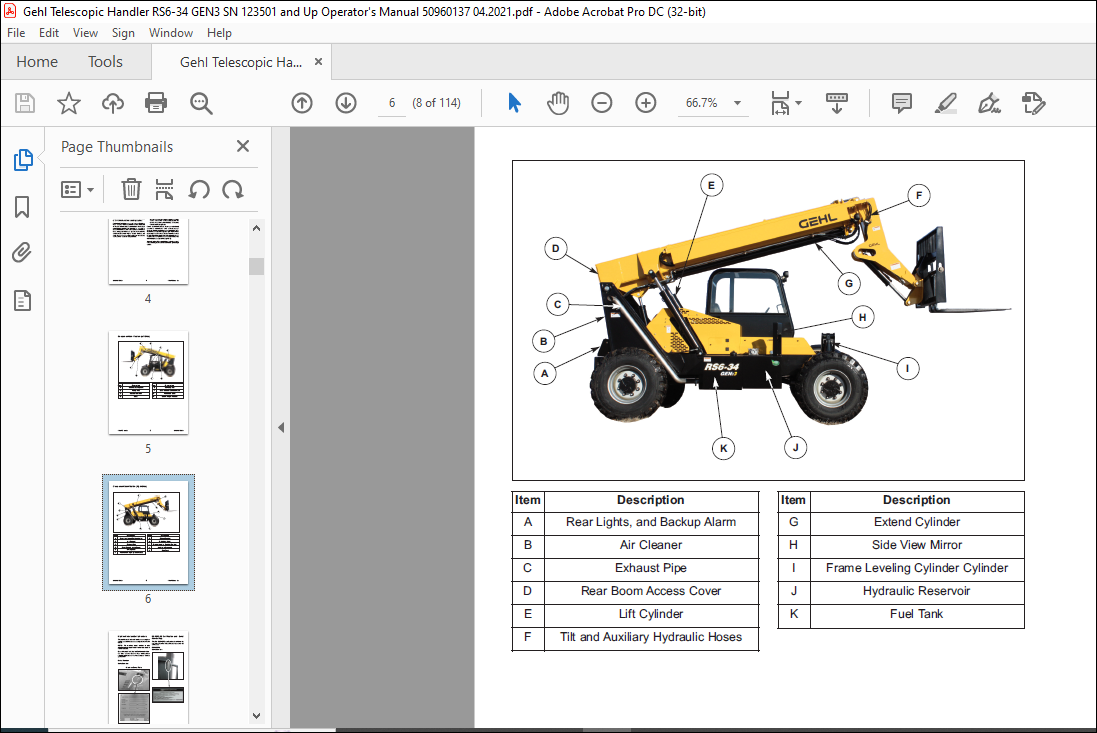

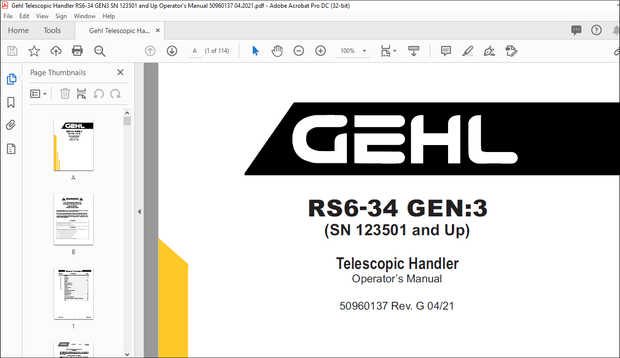

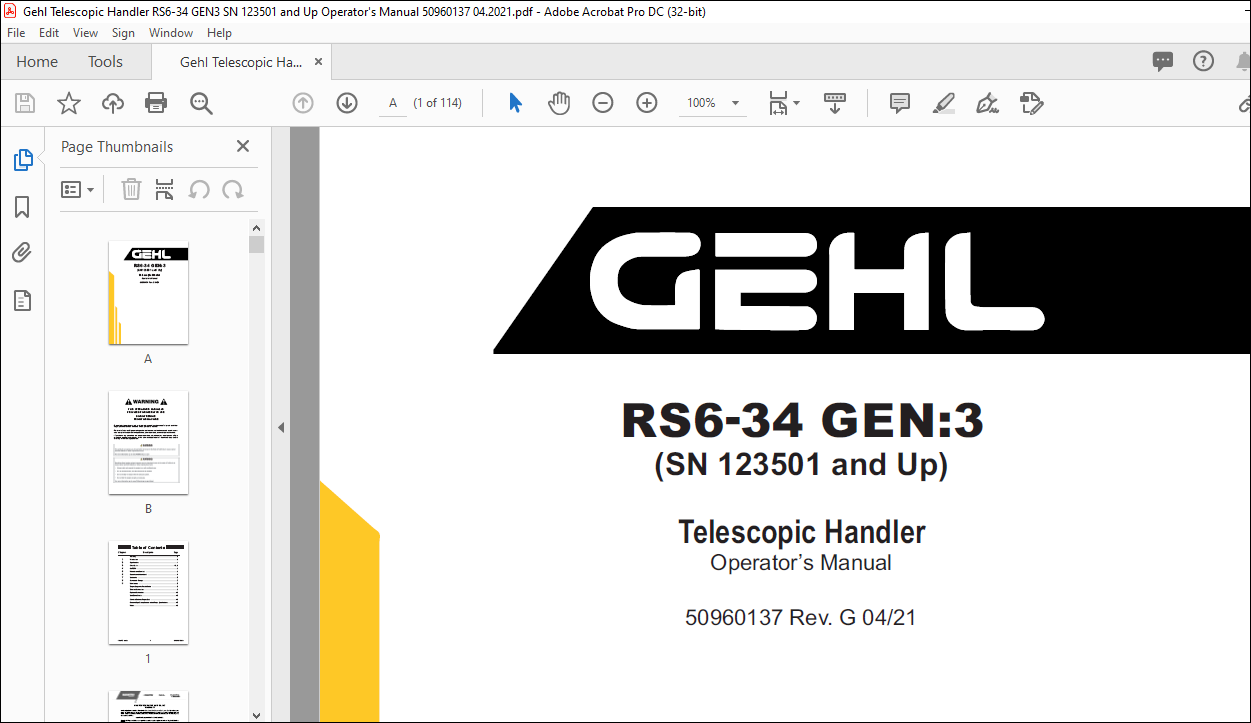

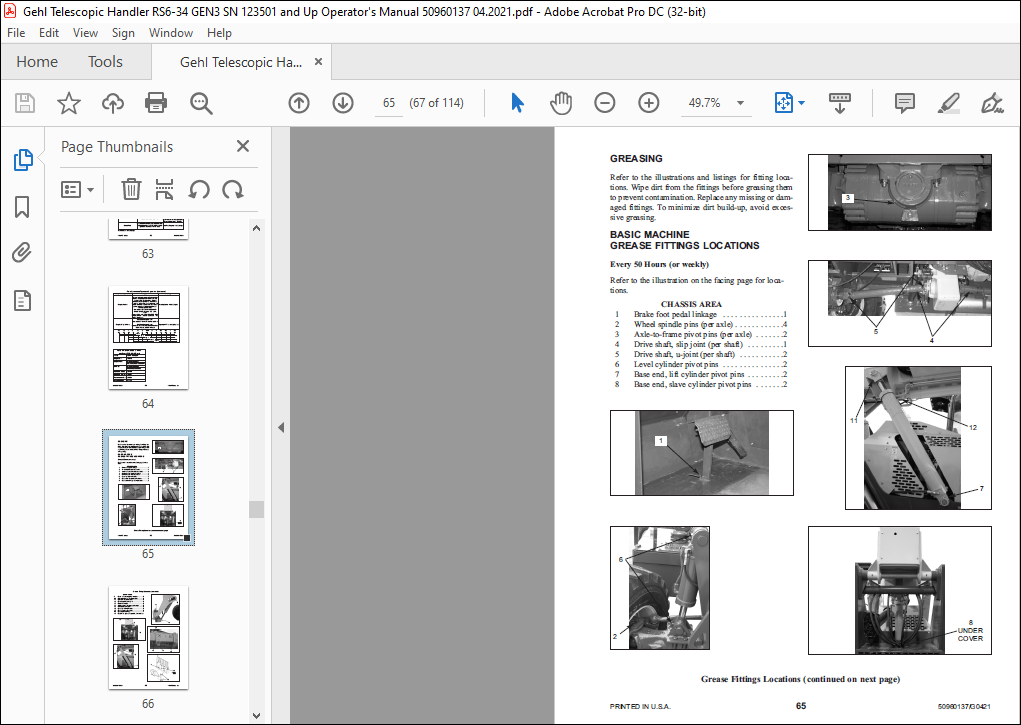

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

GEHL RS6-34 GEN3 Telescopic Handler Operator’s Manual(50960137) – PDF DOWNLOAD

(SN 123501 and Up)

INTRODUCTION

• The information in this Operator’s Manual was written to give the owner/operator assistance in preparing, adjusting, maintaining and servicing of the Telescopic Handler. More important, this manual provides an operating plan for safe and proper use of the machine. Major points of safe operation are detailed in the SAFETY chapter of this manual. Manitou Group asks that you read and understand the contents of this manual COMPLETELY and become familiar with the machine before operating it. This Telescopic Handler is primarily intended for use as a material handler.
• However, it may be equipped with an optional system: the Personnel Work Platform (PWP) System, which is intended for use when lifting personnel. When there is no other practical option available, this machine, when equipped with the PWP System, is approved for use to lift personnel, but only with an approved work platform, with the PWP System activated, and in full compliance with the “Mandatory Work Platform Safety Rules” (see SAFETY chapter).
• The use of this Telescopic Handler is subject to certain hazards that cannot be eliminated by mechanical means, but only by the exercise of intelligence, care and common sense. It is therefore essential to have competent and careful operators, who are not physically or mentally impaired, and who are thoroughly trained in the safe operation of the equipment and the handling of the loads.
• Throughout this manual information is provided that is set in italic type and introduced by the word IMPORTANT or NOTE. Be sure to read carefully and comply with the message or directive given. Following this information will improve operating or maintenance efficiency, help to avoid breakdowns and damage, and extend the machine’s life. A chart of standard hardware torques is located in the back of this manual. A storage pocket in the back of the seat is provided for storing the Operator’s Manual. After using the manual, please return it to the pocket and keep it with the unit at all times! If this machine is resold, Manitou Group recommends that this manual be given to the new owner.
• If this machine was purchased “used,” or if the owner’s address has changed, please provide your Manitou group dealer or Manitou Group Service Department with the owner’s name and current address, along with the machine model and serial number. This will allow the registered owner information to be updated, so that the owner can be notified directly in case of an important product issue, such as a safety update program.
• “Right” and “left” are determined from a position sitting on the seat and facing forward. The wide Manitou group dealership network stands ready to provide any assistance required, including providing genuine Manitou group service parts. All parts should be obtained from or ordered through your Manitou group dealer. Give complete information about the part, and include the model and serial number of the machine.
• Record the serial number in the space provided on the next page, as a handy record for quick reference. Manitou Group reserves the right to make changes or improvements in the design or construction of any part without incurring the obligation to install such changes on any unit previously delivered.

TABLE OF CONTENTS:

GEHL RS6-34 GEN3 Telescopic Handler Operator’s Manual(50960137) – PDF DOWNLOAD

Description Page
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3 Check Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13, 15
4 SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
5 Indicators and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
6 Operation and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
7 Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
8 Service and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
9 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Engine Diagnostic Trouble Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Electrical Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99
Hydraulic Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Load Zone Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Standard Hardware Torque Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
Hose and Pipe Clamp Recommended Torque Specifications . . . . . . . . . .107
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108
