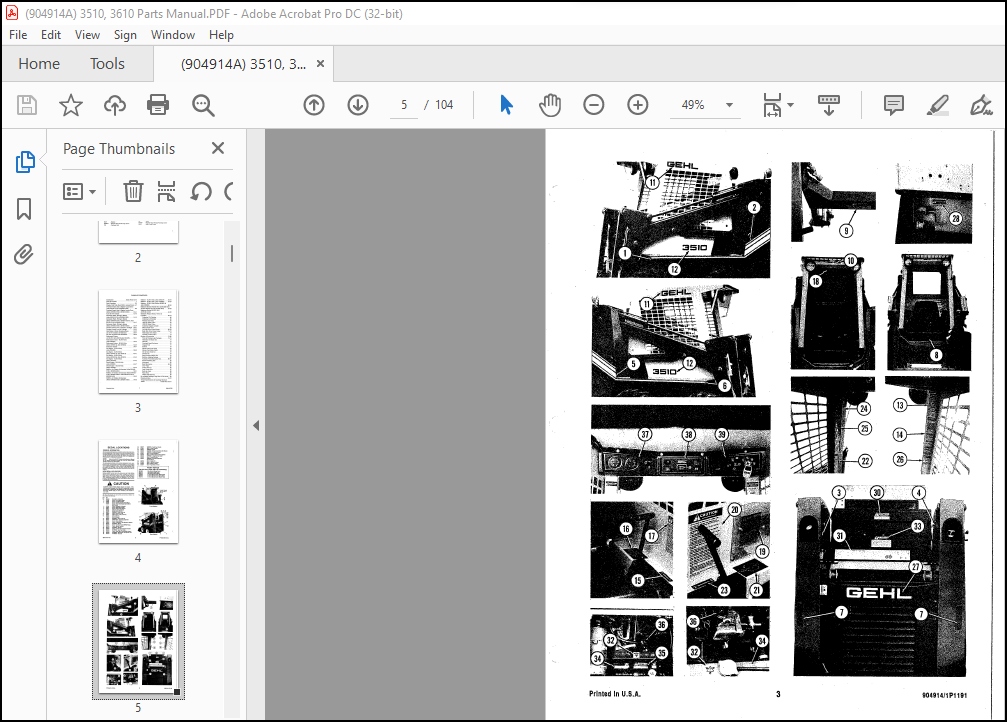

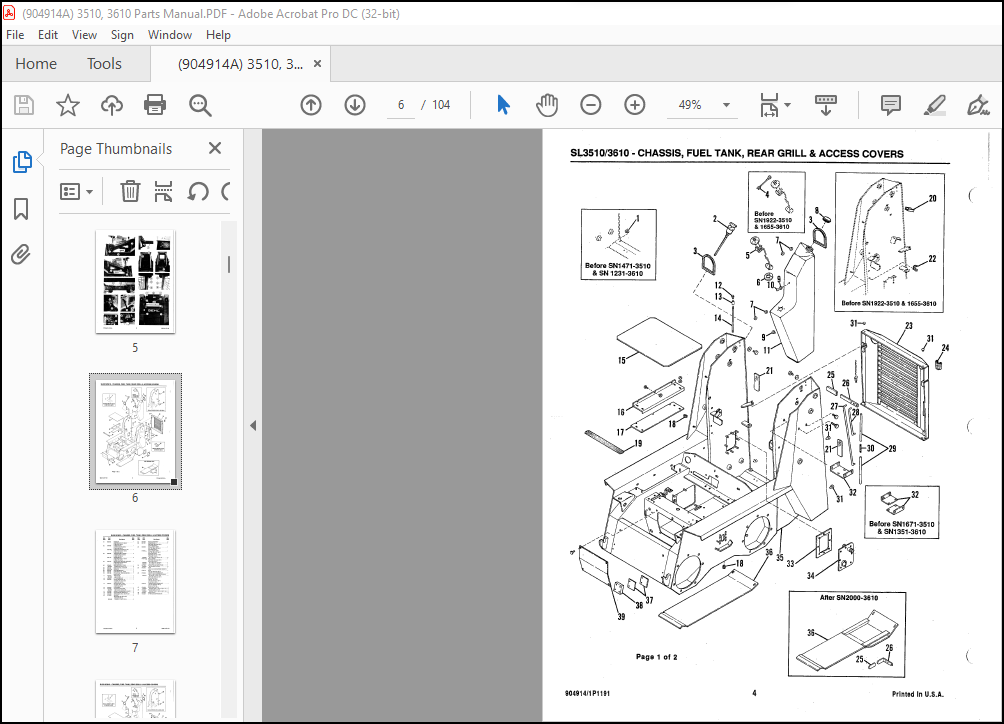

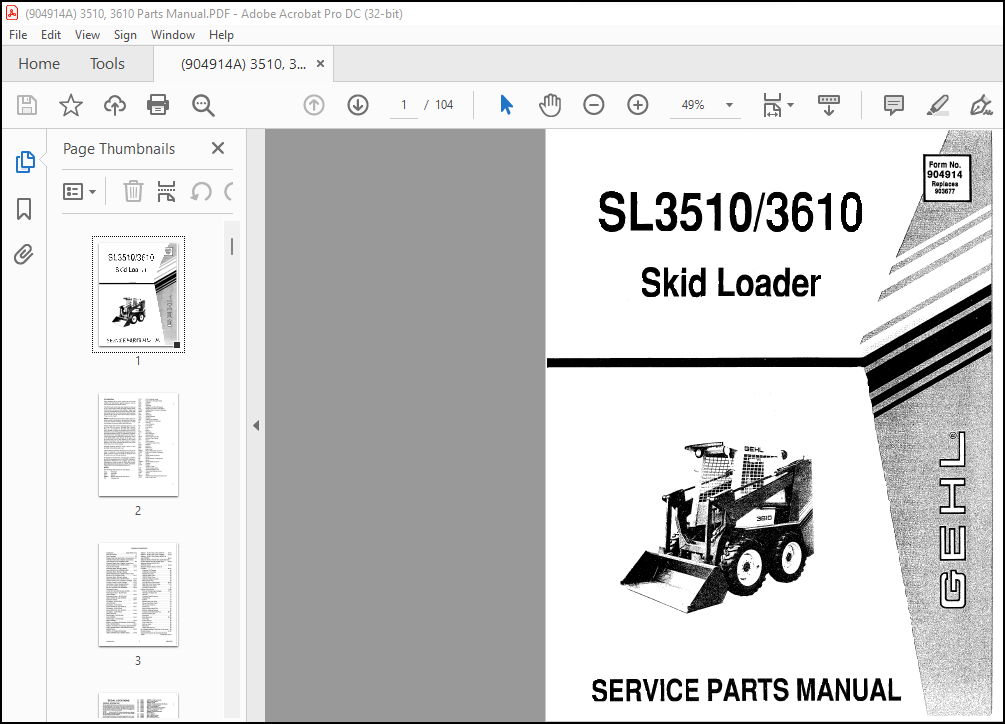

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Gehl SL3510 SL3610 Skid Loader Service Parts Manual 904914 – PDF DOWNLOAD

Introduction:

When ordering service parts, specify the correct part number, full description, quantity required, and the unit model number and serial number. The Skid Loader model and serial number for this unit is on a decal located inside the Right Chassis Riser, between the Lift Arm and Lift Cylinder.

• “Right” and “left” are determined from a position sitting on the Seat and facing forward. From this position, the Propulsion Control T-bar is on the “left” and the Lift/Tilt Control ~ T-bar is on the “right”. ‘ GEHL” Company reserves the right to make changes or . improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered Units.
• Grease fittings and common attaching hardware, such as Cotter Pins, Set Screws, Woodruff Keys, Screws, Nuts, etc., are included in the parts lists, indented below the part it is (they are) associated with, but NOT illustrated, except where a particular renting or special fastening arrangement MUST be maintained.
• The hard- ware listed is for mounting purposes and is NOT in- cluded when the part is ordered for replacement. Refer to the abbreviations table, located on this page or on the insideback cover of this manual, for the various fastener descriptions, For the part number of related fasteners, refer to the‘Attaching Hardware Table on the inside back cover of this manual.
• Standard attaching hardware torque values are also provided on the inside back cover. Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A.

TABLE OF CONTENTS:

Gehl SL3510 SL3610 Skid Loader Service Parts Manual 904914 – PDF DOWNLOAD

Introduction Inside Front Cover
Table of Contents 1
Decal Locations 2-3
Chassis, Fuel Tank, Rear Grill & Access Covers 4-7
Overhead Guard, Seat & Engine Access Cover
(After SN1921-3510 & SN1654-3610) 8-9
Overhead Guard, Seat & Engine Access Cover
(Before SN1922-3510 & SN1655-3610) 10-11
Axles & Drive Chains 12-13
Instrument Panel, Wiring & Battery
(After SN2419-3510 & SN2000-3610) 14-15
Instrument Panel, Wiring & Battery
(Before SN2420-3510 & SN2001-3610 & After
SN1921-3510 & SN1654-3610) 16-17
Instrument Panel, Wiring & Battery
(Before SN1922-3510 & SN1655-3610) 18-19
Lift/Tilt Control Lever, Throttle & Linkages 20-21
Traction Control Lever & Linkages 22-23
Hand Brake & Motor Mounting Plates 24-25
Lift & Tilt Cylinders & Hydraulics 26-27
Lift Arm & Quick-Lock Mechanism 28-29
Hydrostatic System
(All SL3510 & SL3610 Before SN1655) 30-31
Hydrostatic System – SL3610 Only
(After SN2530) 32-33
Hydrostatic System – SL3610 Only
(Before SN2531 & After SN1654) 34-35
Hydraulics System 36-37
Gas Engine – SL3510 Only
(After SN4400) 38-39
Gas Engine – SL3510 Only
(Before SN4401 & After SN2419) 40-41
Gas Engine – SL3510 Only
(Before SN2420 & After SN1921) 42-43
Gas Engine – SL3510 Only
(Before SN1922) 44-45
Diesel Engine – SL3610 Only
(After SN2000) 46-4 7
Diesel Engine – SL3610 Only
(Before SN2001) 48-49
Muffler, Air Cleaner & Alternator (After SN4400-
3510 & SN4900-3610) 50-51
Muffler, Air Cleaner & Alternator (Before SN4401-
3510 & SN4901-3610 & After SN2419-3510 &’
SN2000-3610) 52-53
Muffler, Air Cleaner & Alternator
(Before SN2420-3510 & SN2001-3610) 54-55
Printed In U S A 1
Radiator – SL3510 Only (After SN2419) 56-57
Radiator – SL3610 Only (After SN2800) 58-59
Radiator – SL3610 Only (Before SN2801 &
After SN2000) 60-61
Radiators (Before SN2420-3510 & SN2266-3610
& After SN1870-3510 & SN1480-3610) 62-63
Radiators (Before SN1871-3510
& SN1481-3610) 64-65
Hydraulic Pumps, Motors, Valves &
Cylinders 66-73
Columbus Tilt Cylinder 66
Columbus Lift Cylinder 66
Webster Gear Pump 66
1000 PSI Relief Valve 67
1200 PSI Relief Valve 67
Columbus Grapple Cylinder 67
Main Control Valve 68
Left Side Drive Piston Pumps 69-70
Right Side Drive Piston Pumps 71-72
Hydrostatic Drive Motor 73
Auxiliary Control Valve 73
Options & Accessories 74-89
Work & Warning Light Packages 74-75
Hydraulic Oil Heater Kit 75
Horn Kit 75
Overhead Guard Enclosure 76
Grapple Fork 77
Buckets 78
Manure Fork (Late Style) 78
Manure Fork (Early Style) ‘ 78
Dirt & Rock Teeth Kit 79
Drawbar Kit 79
Spark Arrestor Muffler Kit 79
Backhoe Adapting Package _ 80
Auxiliary Front Hydraulics Kits 80-81
Sound Deadening Kits 82
Alternators 83
Rigid Enclosures 84-85
Door Wiper 86
Amber Beacons 86
Dual Flasher Kits 87
Back-up Alarm 88
Pallet Fork 88
Heater Defroster Kits 89
Re-weldable Bushings, Plug Nuts & Tie-downs 90
Numerical Index , 91-97
Torque Specifications & Attaching Hardware
Tables Inside Back Cover
