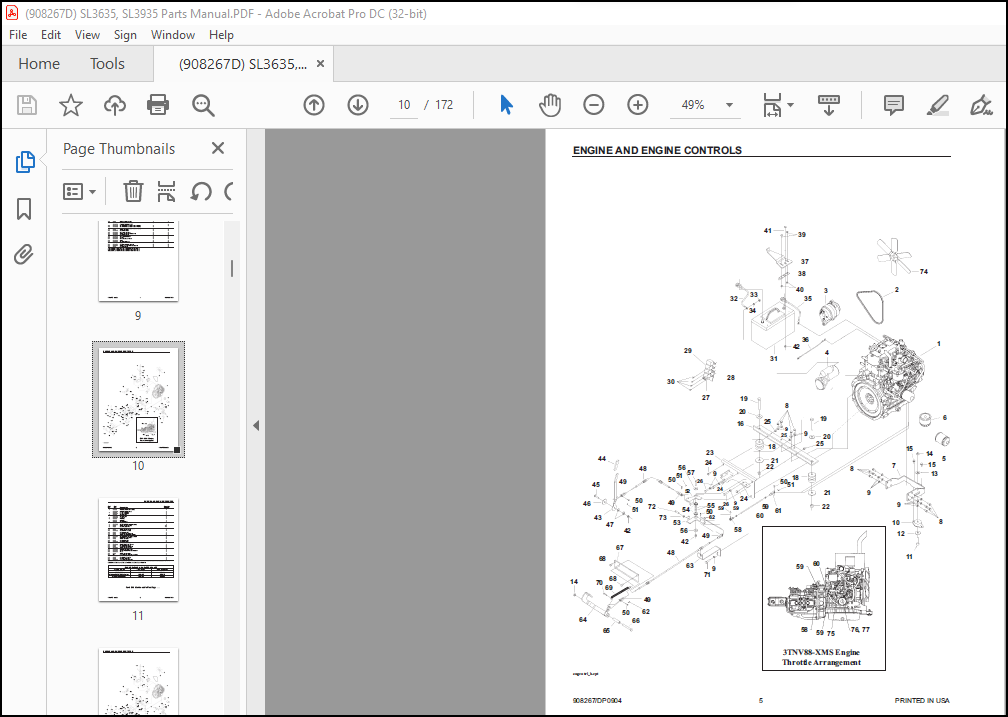

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Gehl SL3635 and SL3935 Skid-Steer Loaders Parts Manual 908267 – PDF DOWNLOAD

Introduction:

For your safety and continued proper operation, use only genuine GEHL® service parts. When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The model and serial number decal for this unit is located on the inside right chassis upright.

• “Right” and “Left” are determined from a position sitting on the seat and facing forward. GEHL® Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover.
• If a part requires lubrication or a nonstandard torque value, it will be specified behind the part number description in parenthesis. Items shown in the parts list that do not have part numbers are shown for reference purposes only and are NOT available for purchase.

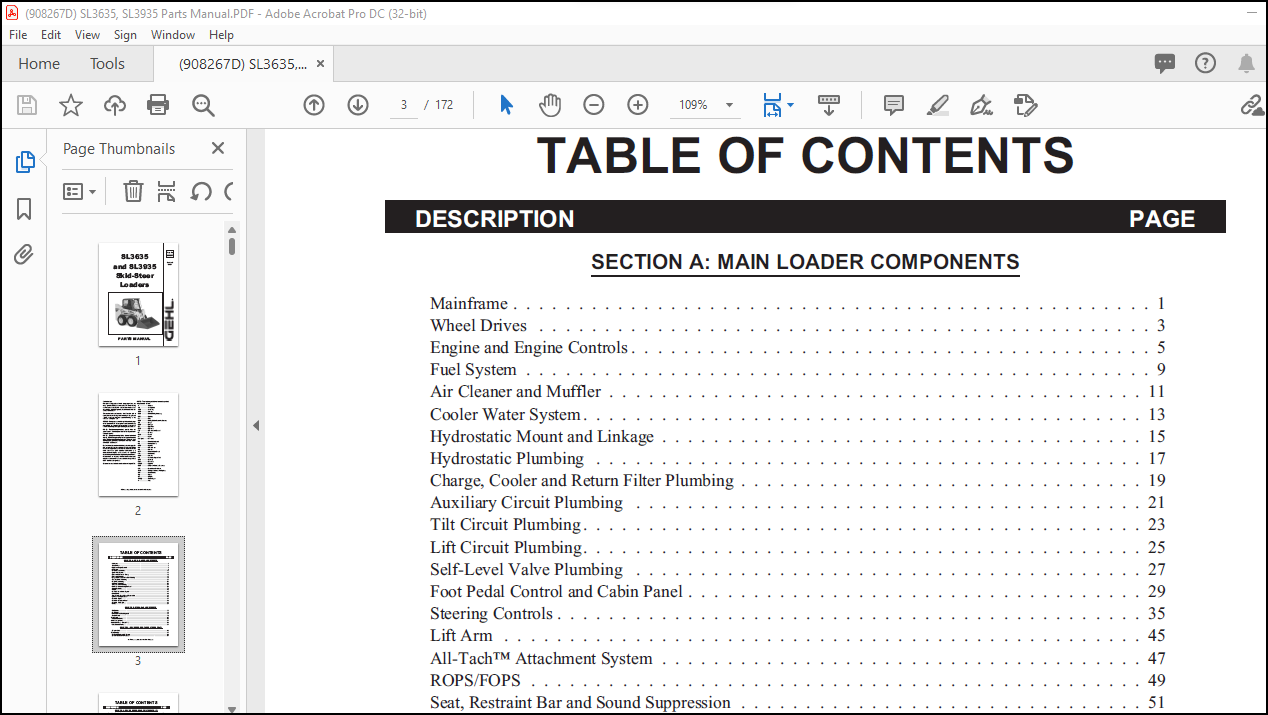

TABLE OF CONTENTS:

Gehl SL3635 and SL3935 Skid-Steer Loaders Parts Manual 908267 – PDF DOWNLOAD

SECTION A: MAIN LOADER COMPONENTS
Mainframe 1
Wheel Drives 3
Engine and Engine Controls 5
Fuel System 9
Air Cleaner and Muffler 11
Cooler Water System 13
Hydrostatic Mount and Linkage 15
Hydrostatic Plumbing 17
Charge, Cooler and Return Filter Plumbing 19
Auxiliary Circuit Plumbing 21
Tilt Circuit Plumbing 23
Lift Circuit Plumbing 25
Self-Level Valve Plumbing 27
Foot Pedal Control and Cabin Panel 29
Steering Controls 35
Lift Arm 45
All-Tach™ Attachment System 47
ROPS/FOPS 49
Seat, Restraint Bar and Sound Suppression 51
Rear Door and Engine Cover 53
Electrical – Engine 57
Electrical – Instrument Panel 59
Electrical – Tail Lights 61
Decals 64
SECTION B: HYDRAULIC COMPONENTS
Lift Cylinder 73
Tilt Cylinder 75
Drive Motor and Parking Brake 77
Tandem Pump 79
Gear Pump 83
Main Control Valve 85
Self-Leveling Valve 87
Solenoid Valves – Lift and Tilt 89
Brake Solenoid Valve 91
SECTION C: ENGINE SERVICE PARTS (3TNE88 ONLY)
Cylinder Block 95
Gear Housing 97
Flywheel Housing and Oil Sump 99
Cylinder Head and Valve Cover 101
DESCRIPTION PAGE
All-Tach is a trademark of the Gehl Company
TABLE OF CONTENTS
SECTION C: ENGINE SERVICE PARTS (3TNE88 ONLY)
Camshaft and Driving Gear 103
Crankshaft and Piston 105
Intake Manifold 107
Exhaust Manifold 109
Lubrication Oil System 111
Cooling Water System 113
Fuel Injection Pump 115
Governor 119
Fuel Injection Valve 123
Fuel Line 125
Starter Motor 127
Alternator 129
Gasket Set 131
SECTION D: KITS AND TIRES
Cab – Door with Wiper & Washer Kit 808265 135
Cab – Impact Resistant Door Kit 808382 136
Horn Kit 808274 137
Four Point Lifting Kit 808273 138
Mirror, Rear View Kit 808269 139
Electrical Disconnect Switch Kit 808240 139
Pre-Cleaner Kit 808277 140
Engine Block Heater Kit 808396 140
Backup Alarm Kit 808264 141
Cab – Sliding Side Windows Kit 808266 142
Strobe Light Kit 808279 142
Cab – Heater/Defroster Kit 808267 143
Interior Dome Light Kit 808271 144
Battery Disconnect Switch 808240 144
Self-Leveling Vavle Kit 808263 145
Cab – Door Interlock Kit 830600 146
Coolant Temperature Gauge Kit 810212 146
Tires 147
Numerical Index 148
O-Ring Table, Coupling & Adapter Torque Table 155
SECTION E: SCHEMATICS
Hydrostatic/Hydraulic Schematics 157
Electrical Schematic 158
Engine Harness Schematic* 162
*MODEL 3635: SN 00001175 AND LATER MODEL 3935: SN 00001337 AND LATER
Torque Specifications Table Inside Back Cover
