TABLE OF CONTENTS:

Gehl Variable Chamber Round Baler 1470 Service Parts Manual(908006) – PDF DOWNLOAD

Introduction Inside Front Cover
Table Of Contents 1
Decal Locations 2–5
Basic Unit 6–7
Hopper Assembly 8–9
Chain Drive Shield Assembly 10–11
Hopper Lid Assembly 12–13
Auger Base Assembly 14
Chain Drive 15
Intake Auger Assembly 16–17
Loading Auger Support & Lift Mechanism 18
Loading Auger Hydraulics Drive (After SN5450) 19
Loading Auger Hydraulics Drive (Before SN5451) 20
Frame, Axles & Hitchjack 21
Tank & Discharge Conveyor 22–23
Conveyor Drive 24
Concentrate Hopper & Drive 25
Transmission, Drive & Guards 26–27
Unloading Conveyor 28–29
Conveyor Winch 30–31
Transmission 32
Universal Drive 33
Hydraulics System 34–35
Hydraulic Components 36
Hitchjacks 37
Accessories 38–50
Fender Set 38
Folding Unloading Conveyor Extensions 39
Electric Remote Unloading Conveyor Control 40–41
Molasses Attachment 42–43
Auxiliary Remote Control 44
Winch Reduction Drive Kit 44
Electric Remote Unloading Conveyor Control 45
Conveyor Worm Control 45
Safety Chain 46
Double Bagger Attachment 46
Unloading Conveyor Extensions 47
Conveyor Extension Pivot 47
Model 1500, 2100 & 3200 Scales 48
Scale Battery Mounting 49
Alarm Units for Scale Indicators 49
Numerical Index 50 – 54
Attaching Hardware Inside Back Cover
Standard Hardware Torque Specifications Inside Back Cover

DESCRIPTION:

Gehl Variable Chamber Round Baler 1470 Service Parts Manual(908006) – PDF DOWNLOAD

When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The Mixer model and serial numbers are on a decal located on the Frame member in the rear at the base of the Tank. “Right” and “Left” are determined from a position standing behind the Mixer.

• From this position the Unloading Conveyor is on the left and the Feeder Attachment is on the right. GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• The hardware listed is for mounting information and is NOT included with the replacement part. Refer to the following abbreviations table for fastener descriptions. In the Parts Lists, if a number precedes the abbreviations, the number represents either quantity required(if other than one per item) or size.
• Part numbers, for the attaching hardware, are listed at the end of the manual or right after the Numerical Index. Standard attaching hardware torque values are also provided on the inside back cover. Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A.

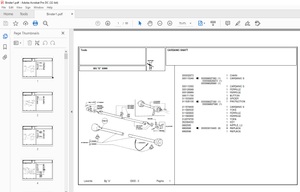

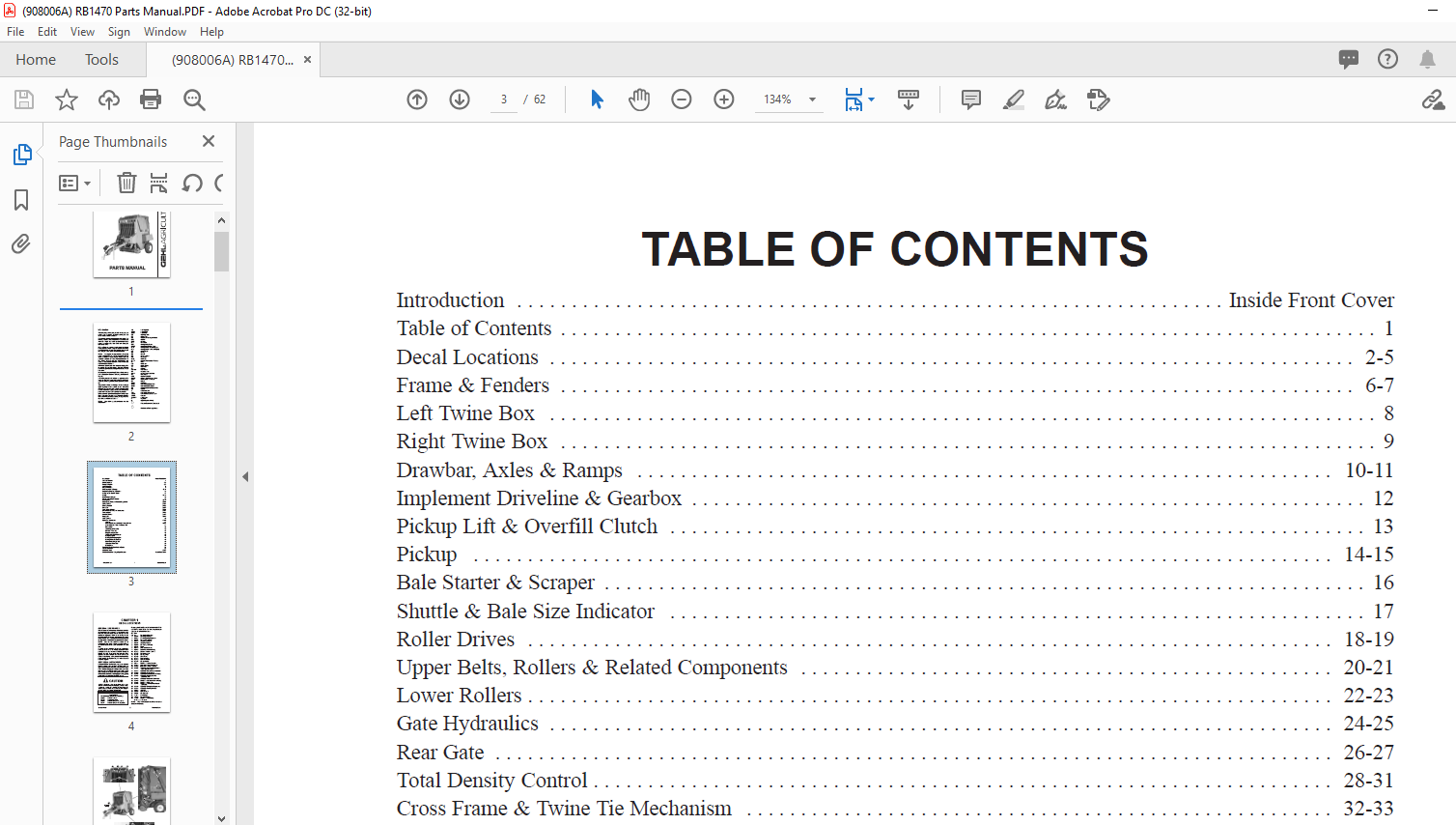

IMAGES PREVIEW OF THE MANUAL:
