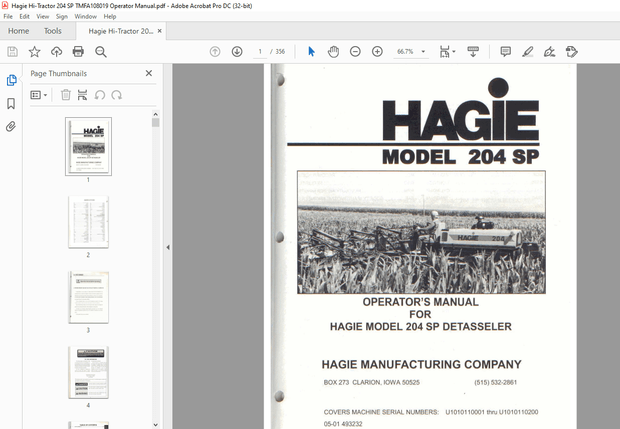

Hagie Hi-Tractor 204 SP DETASSELER Operator’s Manual 493232 – PDF DOWNLOAD
FILE DETAILS:
Hagie Hi-Tractor 204 SP DETASSELER Operator’s Manual 493232 – PDF DOWNLOAD
Language : English
Pages : 356
Downloadable : Yes
File Type : PDF
Size: 147 MB
DESCRIPTION:
Hagie Hi-Tractor 204 SP DETASSELER Operator’s Manual 493232 – PDF DOWNLOAD
SAFETY PRECAUTIONS:
- Most accidents occur as the result of failure to follow simple and fundamental safety rules. For this reason, most accidents can be prevented by recognizing the real cause and doing something about it before the accident occurs.
- Many conditions cannot be completely safeguarded against without interfering with efficient operation and/or reasonable accessibility.
- Therefore, you must study this Operator’s Manual and learn how to use the sprayer controls for safe operation. Likewise, do not let anyone operate without instruction.
Tread Width
- Select the widest tread setting that fits between the crop rows.
- Never manually adjust the tread width on the detasseler until the wheels have been properly blocked. Only loosen the leg clamp bolts enough for the leg to slide on the frame.
Outriggers
- Ensure the outriggers are locked down either when folded in or folded out.
General Operation Safety
- Do not adjust the factory engine RPM settings.
- Start the engine from the operator’s seat only. Do not bypass the safety-start switch.
- Handle starting fluid with care. Keep it away from open flame and store it with the cap on in a cool place.
- Never run the detasseler engine in a closed building. Proper exhaust ventilation is required.
- If equipped with light-sensing depth units, do not look directly into the light beam. It emits a very low-intensity microwave signal which may cause possible eye damage.
- Keep all shields in place.
- Stay clear of all moving parts and keep others away when operating.
- Avoid wearing loose-fitting clothing that may be blown or drawn into moving parts.
- Never allow walking personnel in the same field as a detasseler.
- Keep a fire extinguisher close at all times.

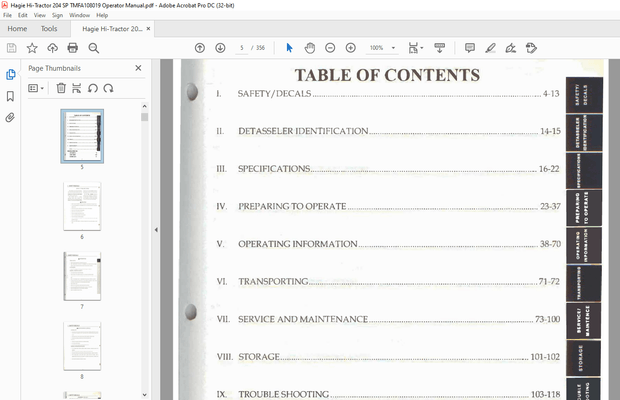

TABLE OF CONTENTS:
Hagie Hi-Tractor 204 SP DETASSELER Operator’s Manual 493232 – PDF DOWNLOAD
1 SAFETY /DECALS 4-13

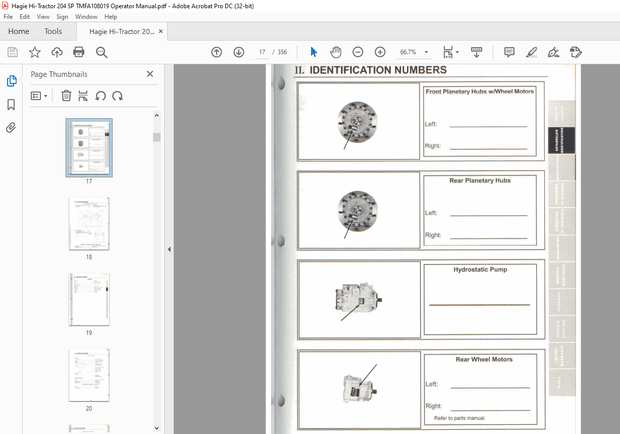

II DETASSELER IDENTIFICATION 14-15
III SPECIFICATIONS 16-22
IV PREPARING TO OPERA TE 23-37
V OPERATING INFORMATION 38-70
VI TRANSPORTING 71-72
VII SERVICE AND MAINTENANCE 73-100
VIII STORAGE 101-102
IX TROUBLESHOOTING 103-118
X LIMITEDWARRANTY ll9
INDEX 120
TECHNICAL INFORMATION
240-ELECTRICAL 1-3
250-DRIVETRAIN 1-219
270-HYDRAULICS 1-9
