Hagie Hi-Tractor 284 Operator’s Manual 493192 – PDF DOWNLOAD

Hagie Hi-Tractor 284 Operator’s Manual 493192 – PDF DOWNLOAD

FILE DETAILS:

Hagie Hi-Tractor 284 Operator’s Manual 493192 – PDF DOWNLOAD

Language : English
Pages : 279
Downloadable : Yes
File Type : PDF
Size: 102 MB

DESCRIPTION:

Hagie Hi-Tractor 284 Operator’s Manual 493192 – PDF DOWNLOAD

SAFETY PRECAUTIONS:

• Most accidents occur as the result of failure to follow simple and fundamental safety rules. For this reason, most accidents can be prevented by recognizing the real cause and doing something about it before the accident occurs.
• Many conditions cannot be completely safeguarded against without interfering with efficient operation and/or reasonable accessibility.
• Therefore, you must study this Operator’s Manual and learn how to use the sprayer controls for safe operation. Likewise, do not let anyone operate without instruction.

TREAD WIDTH
• Select widest tread setting to fit between crop rows.
• Never manually adjust tread width on sprayer until wheels have been properly
blocked. Loosen leg clamp bolts only enough for leg to slide on frame.
• If equipped with hydraulic tread adjust, never loosen leg mounting bolts to adjust
bearing clearance. It is recommended to either add additional or remove shims to
gain the proper clearance.
SPRAYER BOOMS
• Before doing the following make sure machine is in neutral.
• Cradle booms when sprayer is unattended.
• Make sure booms are folded when cradled.
• Select a safe area before unfolding booms. Avoid power lines and overhead
structures.
GENERAL OPERATION SAFETY
• Do not adjust factory engine RPM settings.
• Operate engine at one bump or 1800 RPM’s to assure proper charge pressure for
brakes to work properly.
• Start engine from operator’s seat only. Do not by-pass safety-start switch.
• The use of starting fluid is not recommended.
• Never run sprayer engine in a closed building. Proper exhaust ventilation is required.
• If equipped with ground speed sensing radar, do not look directly into radar beam. It
emits a very low intensity microwave signal which may cause possible eye damage.

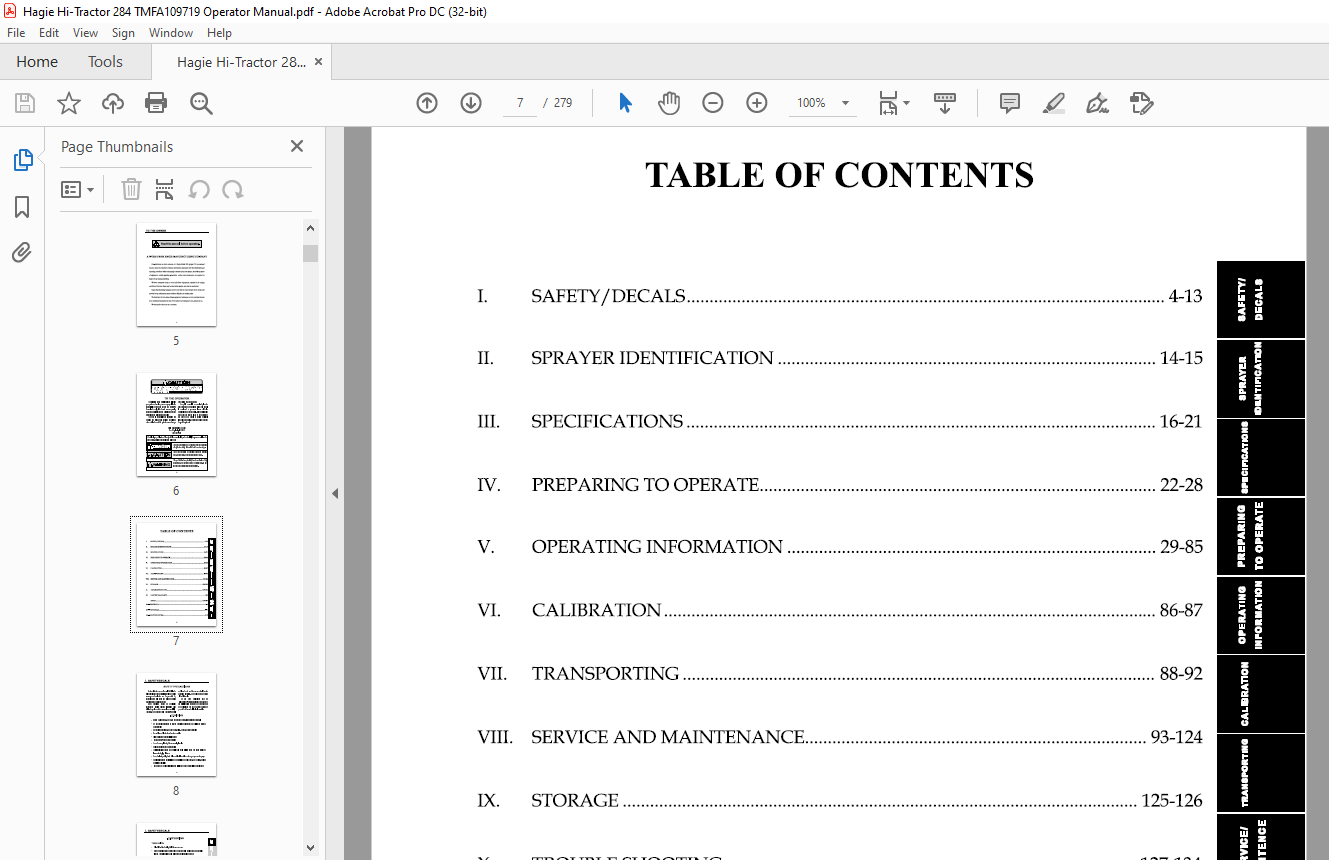

TABLE OF CONTENTS:

Hagie Hi-Tractor 284 Operator’s Manual 493192 – PDF DOWNLOAD

I SAFETY/DECALS 4-13
II SPRAYER IDENTIFICATION 14-15
III SPECIFICATIONS 16-21
IV PREPARING TO OPERATE 22-28
V OPERATING INFORMATION 29-85
VI CALIBRATION 86-87
VII TRANSPORTING 88-92
VIII SERVICE AND MAINTENANCE 93-124
IX STORAGE 125-126
X TROUBLE SHOOTING 127-134
XI LIMITED WARRANTY 135
INDEX 136-139
240 – ELECTRICAL 1-3
250 – DRIVETRAIN 1-77
280 – SOLUTION SYSTEM 1-55

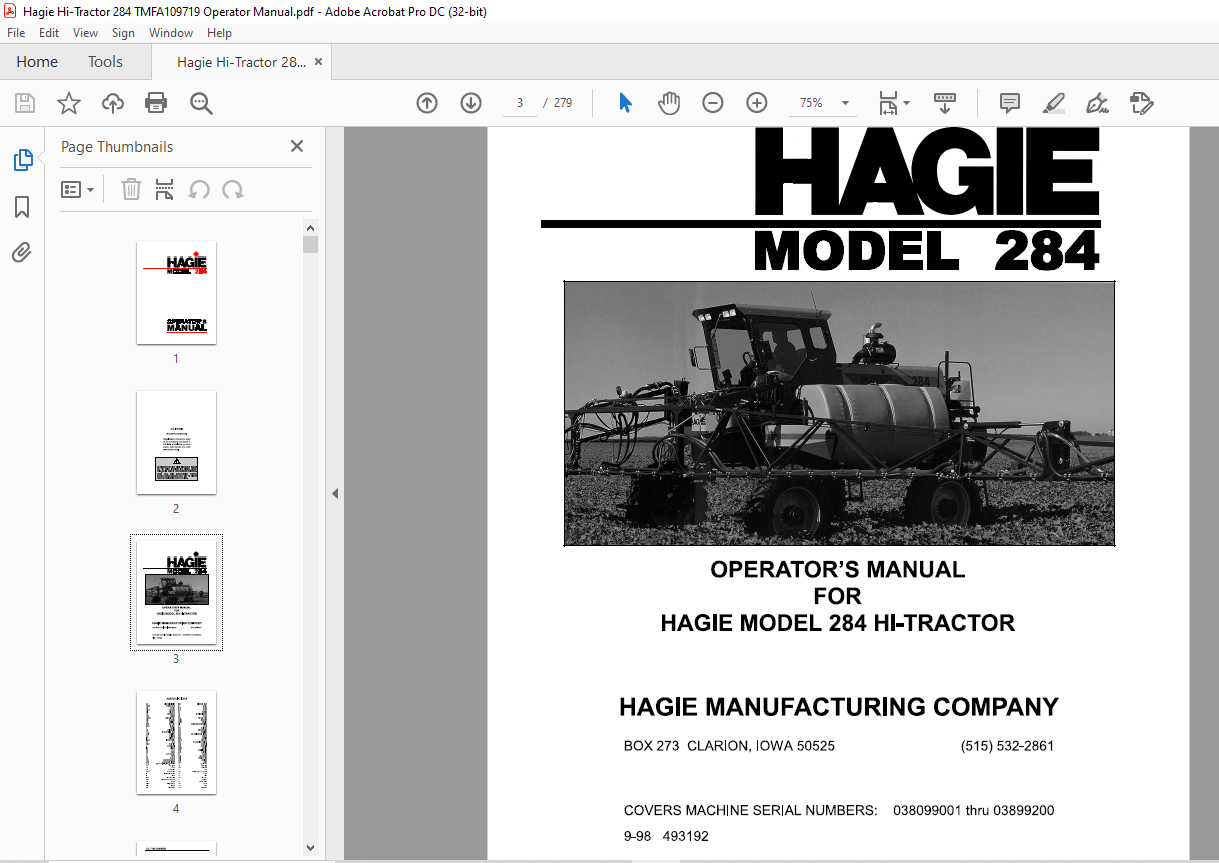

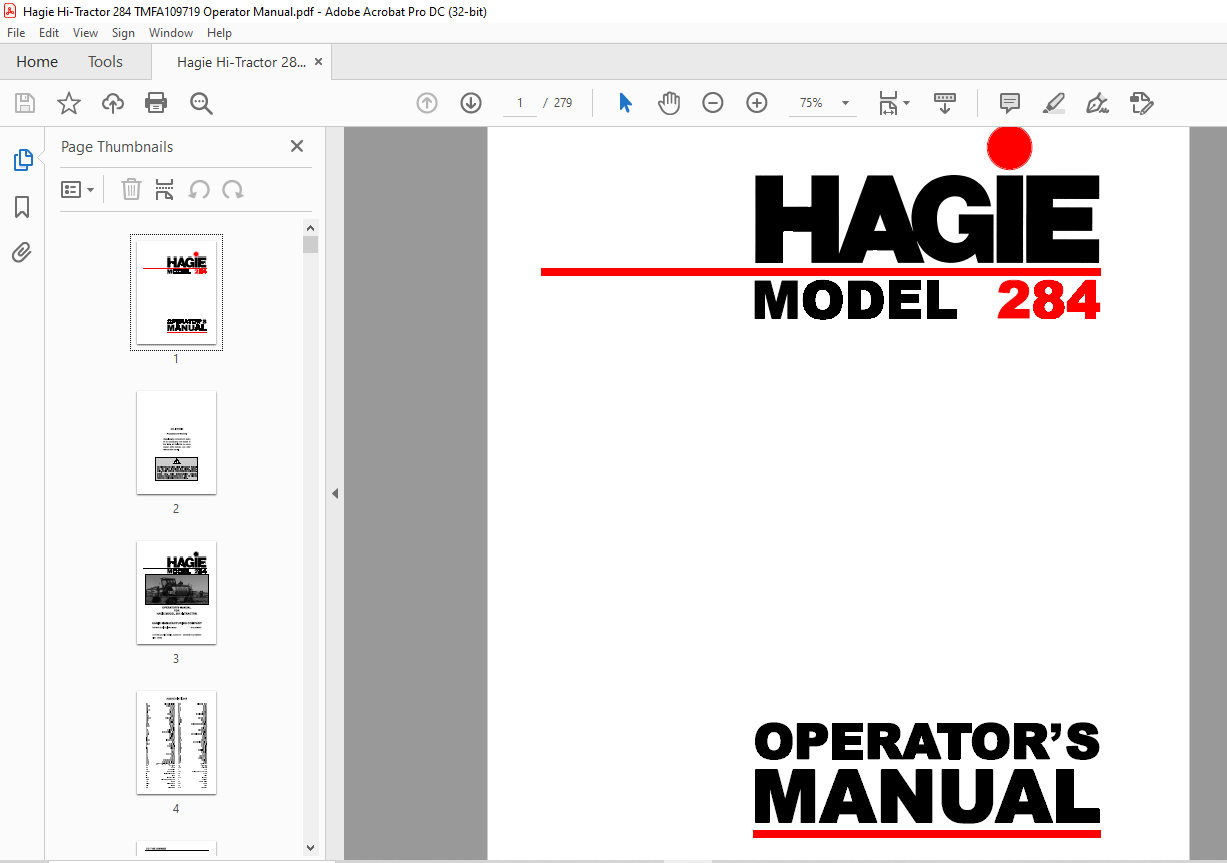

IMAGES PREVIEW OF THE MANUAL:
