Hagie Hi-Tractor 284 XP Sprayer Operator’s Manual 493299 – PDF DOWNLOAD

Hagie Hi-Tractor 284 XP Sprayer Operator’s Manual 493299 – PDF DOWNLOAD

FILE DETAILS:

Hagie Hi-Tractor 284 XP Sprayer Operator’s Manual 493299 – PDF DOWNLOAD

Language : English
Pages : 256
Downloadable : Yes
File Type : PDF
Size: 43.3 MB

DESCRIPTION:

Hagie Hi-Tractor 284 XP Sprayer Operator’s Manual 493299 – PDF DOWNLOAD

COVERS MACHINE SERIAL NUMBERS: U1210440001 thru U1210440100

SAFETY PRECAUTIONS:

• Most accidents occur as the result of failure to follow simple and fundamental safety rules. For this reason, most accidents can be prevented by recognizing the real cause and doing something about it before the accident occurs.
• Many conditions cannot be completely safeguarded against without interfering with efficient operation and/or reasonable accessibility.
• Therefore, you must study this Operator’s Manual and learn how to use the sprayer controls for safe operation. Likewise, do not let anyone operate without instruction.

TREAD WIDTH
• Select widest tread setting to fit between crop rows.
• Never manually adjust tread width on sprayer until wheels have been properly
blocked. Loosen leg clamp bolts only enough for leg to slide on frame.
• If equipped with hydraulic tread adjust, never loosen leg mounting bolts to adjust
bearing clearance. It is recommended to either add additional or remove shims to
gain the proper clearance.
SPRAYER BOOMS
• Before doing the following make sure machine is in neutral.
• Cradle booms when sprayer is unattended.
• Make sure booms are folded when cradled.
• Select a safe area before unfolding booms. Avoid power lines and overhead
structures.
GENERAL OPERATION SAFETY
• Do not adjust factory engine RPM settings.
• Operate engine at one bump or 1800 RPM’s to assure proper charge pressure for
brakes to work properly.
• Start engine from operator’s seat only. Do not by-pass safety-start switch.
• The use of starting fluid is not recommended.
• Never run sprayer engine in a closed building. Proper exhaust ventilation is required.
• If equipped with ground speed sensing radar, do not look directly into radar beam. It
emits a very low intensity microwave signal which may cause possible eye damage.

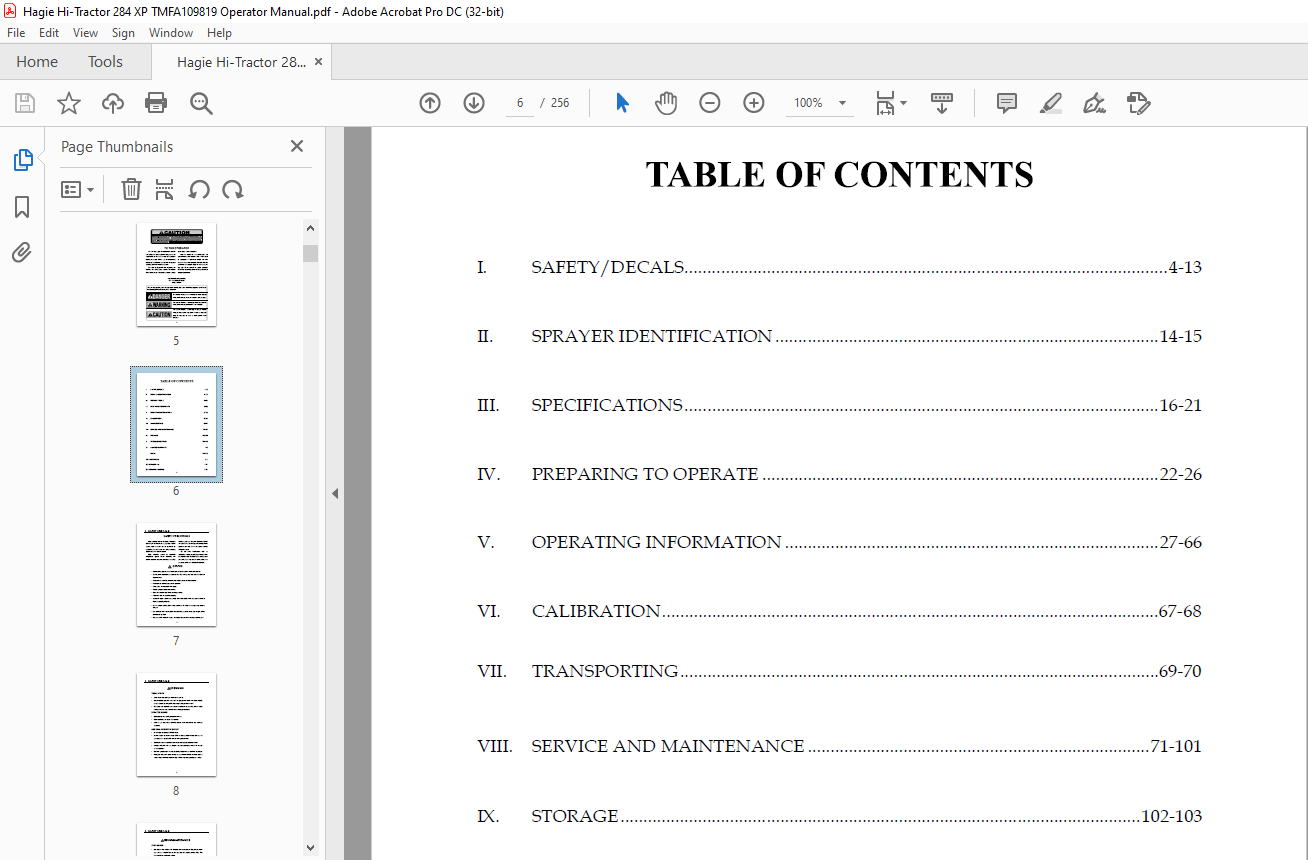

TABLE OF CONTENTS:

Hagie Hi-Tractor 284 XP Sprayer Operator’s Manual 493299 – PDF DOWNLOAD

I SAFETY/DECALS 4-13
II SPRAYER IDENTIFICATION 14-15
III SPECIFICATIONS 16-21
IV PREPARING TO OPERATE 22-26
V OPERATING INFORMATION 27-66
VI CALIBRATION 67-68
VII TRANSPORTING 69-70
VIII SERVICE AND MAINTENANCE 71-101
IX STORAGE 102-103
X TROUBLE SHOOTING 104-112
XI LIMITED WARRANTY 113
INDEX 114-116
240􀀄-􀀄ELECTRICAL 1-3
250􀀄-􀀄DRIVETRAIN 􀀄1-77
280􀀄-􀀄SOLUTION􀀄SYSTEM 1-55

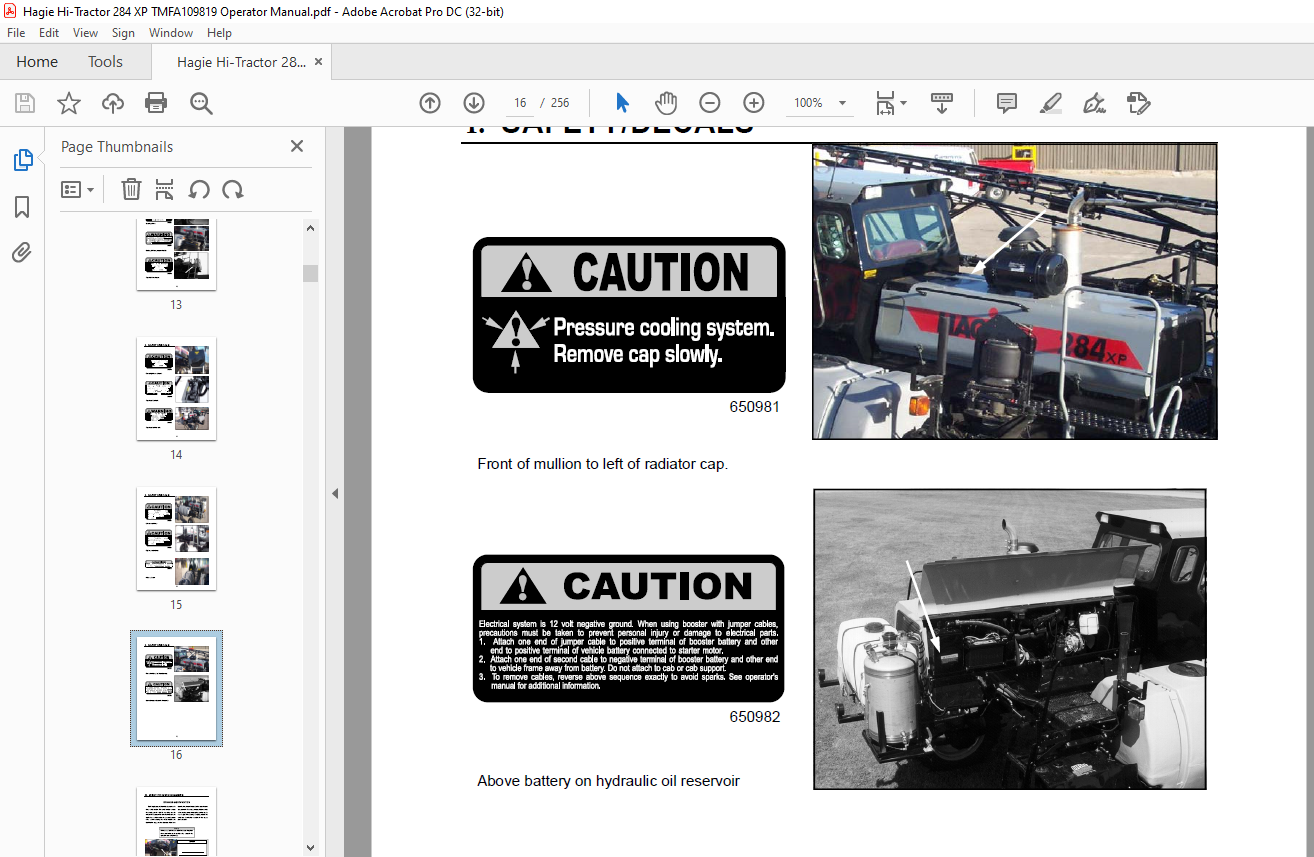

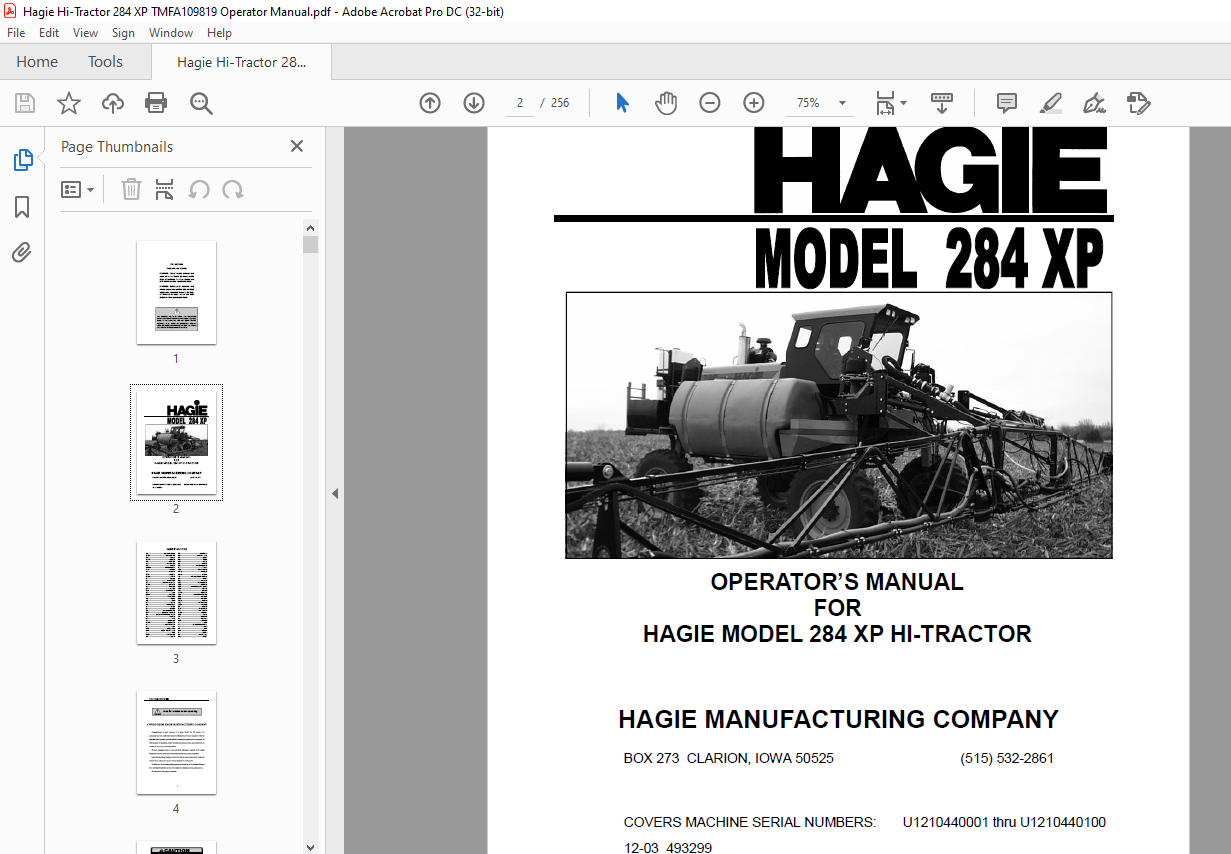

IMAGES PREVIEW OF THE MANUAL:
