DESCRIPTION:

Hagie Hi-Tractor STS 10 Sprayer Technical Manual 493572 – PDF DOWNLOAD

INTRODUCTION:

ABOUT THIS MANUAL :

Any pictures contained within this operator’s manual that depict situations with shields, guards, rails, or lids removed are for demonstration only. Hagie Manufacturing Company strongly urges the operator to keep all shields and safety devices in place at all times.

• This manual will aid you in the proper operation and service of your machine. It is the responsibility of the user to read the operator’s manual and comply with correct and safe operating procedures, as well as maintain the product according to the service information provided in the Maintenance and Storage Section elsewhere in this manual.
• Photographs and illustrations used in this manual are of general nature only. Some of the equipment and features shown may not be available on your machine. Information described in this manual was correct at the time of printing.
• Because of Hagie Manufacturing Company’s continuous product improvement, certain information may not be included in this manual. To obtain the most current operator’s manual for your machine.
• Keep this manual in a convenient place for easy reference. This manual is considered a permanent fixture of the product.
• In the event of resale, this manual should accompany the machine. If you do not understand any part of this manual or require additional information or service, contact Hagie Customer Support for assistance.

SAFETY PRECAUTIONS:

Most accidents occur as the result of failure to follow basic and fundamental safety rules and precautions. Recognizing potential safety hazards, following correct and safe operating procedures described in this manual, and complying with safety warnings located throughout the machine may reduce the risk of accidents.

TABLE OF CONTENTS:

Hagie Hi-Tractor STS 10 Sprayer Technical Manual 493572 – PDF DOWNLOAD

1- INTRODUCTION
A Word From Hagie Manufacturing Company About This Manual
Safety Messages Used In This Manual Service and Assistance.
Identification.
Specifications
2014 Product Warranty
2- SAFETY AND PRECAUTIONS Safety Precautions
Seat Belt
Rotating Beacons Emergency Stop Emergency Exit Fire Extinguisher First Aid Kit
Roll-Over Protection Structure (ROPS)
Safety Decals
3- CAB
Seat Operator (Standard)
Seat – Operator (Premium) Seat – Instructor
Operator’s Station
Machine Display
4- ENGINE AND DRIVE SYSTEMS
Engine – Starting
Engine Aftertreatment – Tier 4 Final
Hydrostatic Drive
All-Wheel Steer (AWS)
5- HYDRAULIC SYSTEMS
Hydraulic System Components
Reversible Fan
Tread Adjustment
Ladder
Pressure Washer
6- ELECTRICAL SYSTEMS
Batteries
Battery Disconnect Switch
Fuses and Relays Fuse and Relay Ratings Video Camera Input Connections 7- SPRAY SYSTEMS Spray Booms-90/100′ Spray Booms 120/132″ Spray Boom – Rear
Solution System Components Solution System – Operation Droplet Monitoring System Fence Row Applicator Filling Your Solution Tank
Rinse System..
Foam Marker System Application.
8 – MAINTENANCE AND STORAGE
Service – Fluids
Service – Filters
Service Lubrication
Service – Belts
Service – Bolt Torque
Service – Toe-In
Service – Miscellaneous
Service Intervals
Storage
9- MISCELLANEOUS
Transporting Lifting Points
Quick-Tach System – Spray Booms
Air Suspension Exhaust
Hand Wash System
Hood Operation
Tall Com Package – Installation
Troubleshooting
Technical Information
211 – Fault Codes
240 – Electrical
245
Electrical Control Units…
250 Drivetrain..
270 Hydraulics.
290 – Heating, Ventilation, and Air Conditioning.

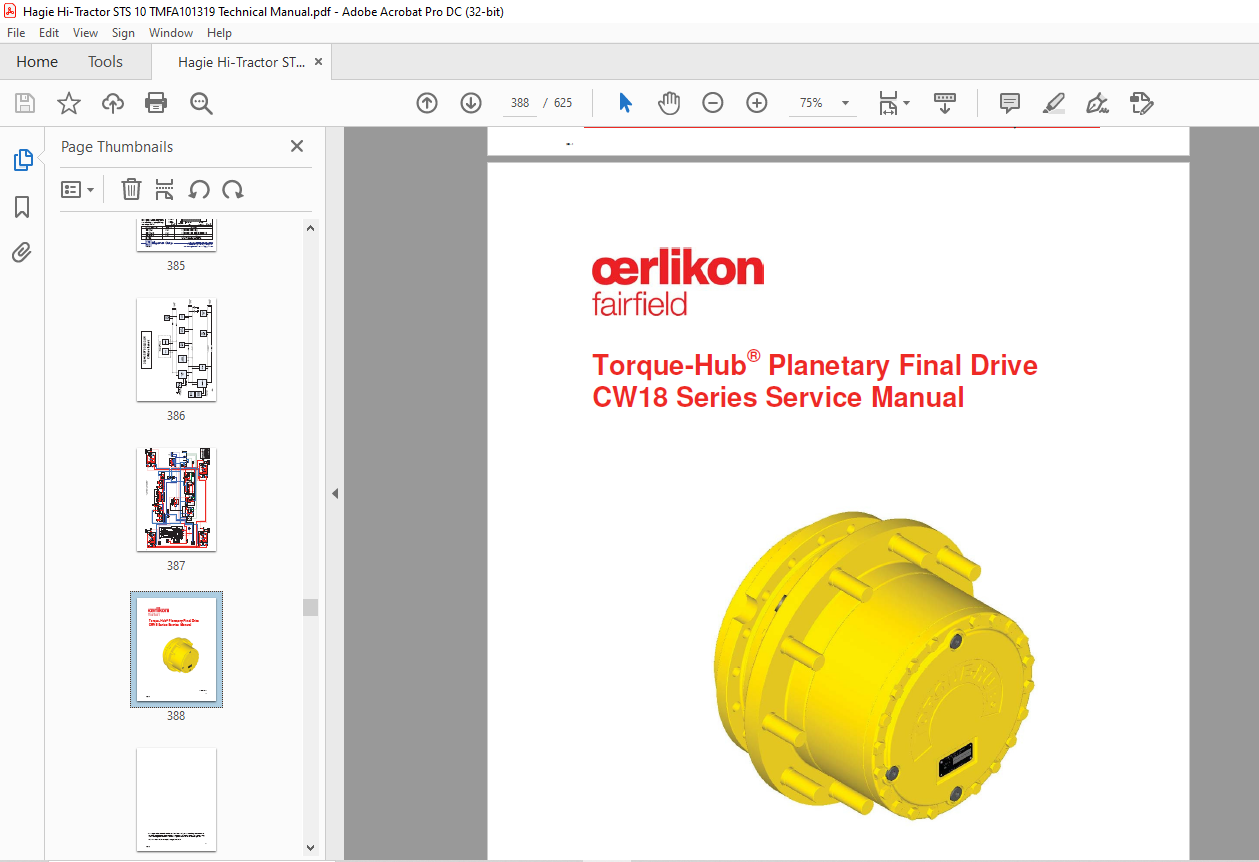

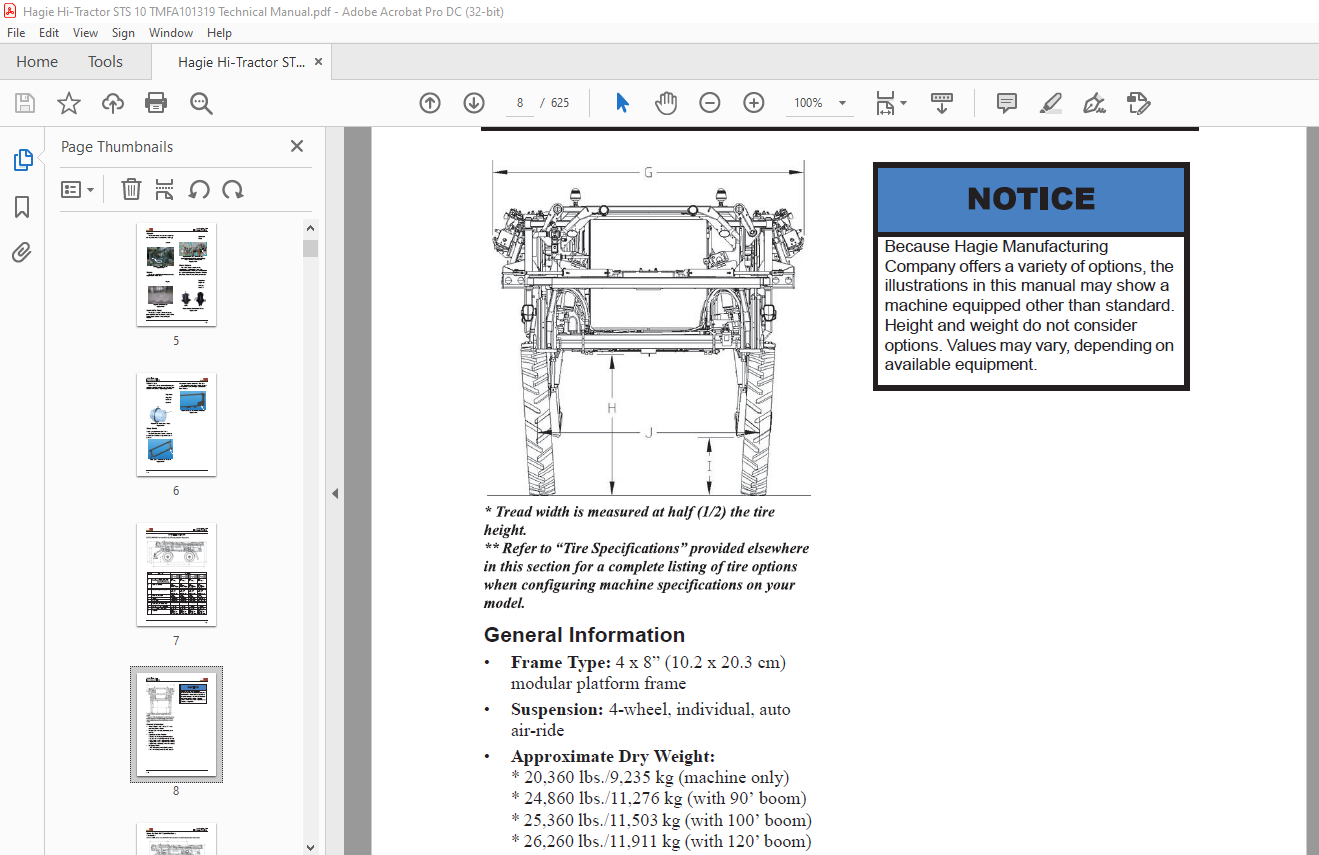

IMAGES PREVIEW OF THE MANUAL:
