Hagie Hi-Tractor STS 10 Sprayer Technical Manual 493597 – PDF DOWNLOAD

Hagie Hi-Tractor STS 10 Sprayer Technical Manual 493597 – PDF DOWNLOAD

FILE DETAILS:

Hagie Hi-Tractor STS 10 Sprayer Technical Manual 493597 – PDF DOWNLOAD

Language : English
Pages : 471
Downloadable : Yes
File Type : PDF
Size: 44.1 MB

DESCRIPTION:

Hagie Hi-Tractor STS 10 Sprayer Technical Manual 493597 – PDF DOWNLOAD

INTRODUCTION:

ABOUT THIS MANUAL :

Any pictures contained within this operator’s manual that depict situations with shields, guards, rails, or lids removed are for demonstration only. Hagie Manufacturing Company strongly urges the operator to keep all shields and safety devices in place at all times.

• This manual will aid you in the proper operation and service of your machine. It is the responsibility of the user to read the operator’s manual and comply with correct and safe operating procedures, as well as maintain the product according to the service information provided in the Maintenance and Storage Section elsewhere in this manual.
• Photographs and illustrations used in this manual are of general nature only. Some of the equipment and features shown may not be available on your machine. Information described in this manual was correct at the time of printing.
• Because of Hagie Manufacturing Company’s continuous product improvement, certain information may not be included in this manual. To obtain the most current operator’s manual for your machine.
• Keep this manual in a convenient place for easy reference. This manual is considered a permanent fixture of the product.
• In the event of resale, this manual should accompany the machine. If you do not understand any part of this manual or require additional information or service, contact Hagie Customer Support for assistance.

SAFETY PRECAUTIONS:

Most accidents occur as the result of failure to follow basic and fundamental safety rules and precautions. Recognizing potential safety hazards, following correct and safe operating procedures described in this manual, and complying with safety warnings located throughout the machine may reduce the risk of accidents.

• There is no way to completely eliminate the potential for danger when operating agricultural equipment. Therefore, you must study this operator’s manual and understand how to operate the sprayer controls for safe operation before using the sprayer, its attachment, or any sprayer equipment.
• Likewise, never let anyone operate the machine without proper instruction. Do not operate the sprayer, its attachment, or any sprayer equipment for anything other than their intended uses. Hagie Manufacturing Company shall not be liable for any damage, injury, or death associated with improper use of the sprayer, its attachment, or any sprayer equipment.
• Do not make any modifications such as, but not limited to, weldments, add-ons, adaptations, or changes from the original design of the sprayer. Such modifications may become safety hazards to you and others and will void all warranties.

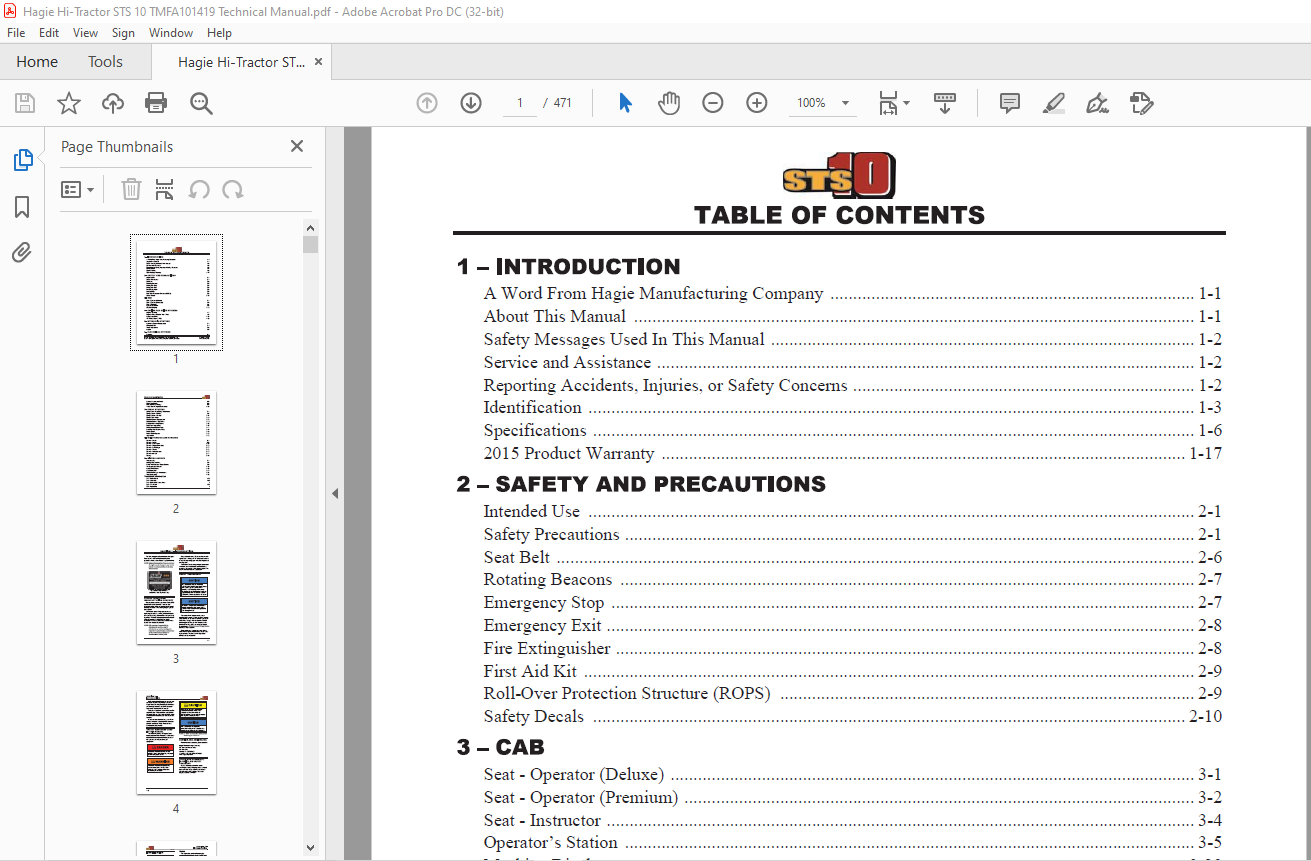

TABLE OF CONTENTS:

Hagie Hi-Tractor STS 10 Sprayer Technical Manual 493597 – PDF DOWNLOAD

1- INTRODUCTION
A Word From Hagie Manufacturing Company
About This Manual
Safety Messages Used In This Manual
Service and Assistance.
Reporting Accidents, Injuries, or Safety Concerns. Identification
Specifications
2015 Product Warranty
2- SAFETY AND PRECAUTIONS Intended Use
Safety Precautions
Seat Belt
Rotating Beacons Emergency Stop Emergency Exit Fire Extinguisher First Aid Kit
Roll-Over Protection Structure (ROPS)
Safety Decals
3- CAB
Seat – Operator (Deluxe)
Seat – Operator (Premium)
Seat – Instructor.
Operator’s Station
Machine Display
4- ENGINE AND DRIVE SYSTEMS
Engine – Starting
Engine Aftertreatment – Tier 4 Final
Hydrostatic Drive.
All-Wheel Steer (AWS)
5- HYDRAULIC SYSTEMS
Hydraulic System Components
Reversible Fan
Tread Adjustment
Ladder
6- ELECTRICAL SYSTEMS
Batteries
Battery Disconnect Switch Fuses and Relays
Fuse and Relay Ratings
Video Camera Input Connections 7- SPRAY SYSTEMS
Spray Boom Hose Clamp Installation Spray Booms-90/100
Spray Booms 120/132′ Spray Boom – Rear
Solution System Components Solution System – Operation Droplet Monitoring System Fence Row Applicator Filling Your Solution Tank
Draining Your Solution Tank Rinse System.
Foam Marker System
Application
8- MAINTENANCE AND STORAGE
Service – Fluids
Service – Filters
Service – Lubrication
Service Engine Drive Belt
Service – Bolt Torque
Service – Toe-In
Service – Miscellaneous
Service Intervals
Storage
9- MISCELLANEOUS
Transporting
Lifting Your Machine
Quick-Tach System – Spray Booms Air Suspension Exhaust
Hand Wash System
Hood Operation.
Tall Com Package – Installation Troubleshooting..
Technical Information
211 – Fault Codes
240 – Electrical
245 Electrical Control Units..
250 – Drivetrain..
270-Hydraulics

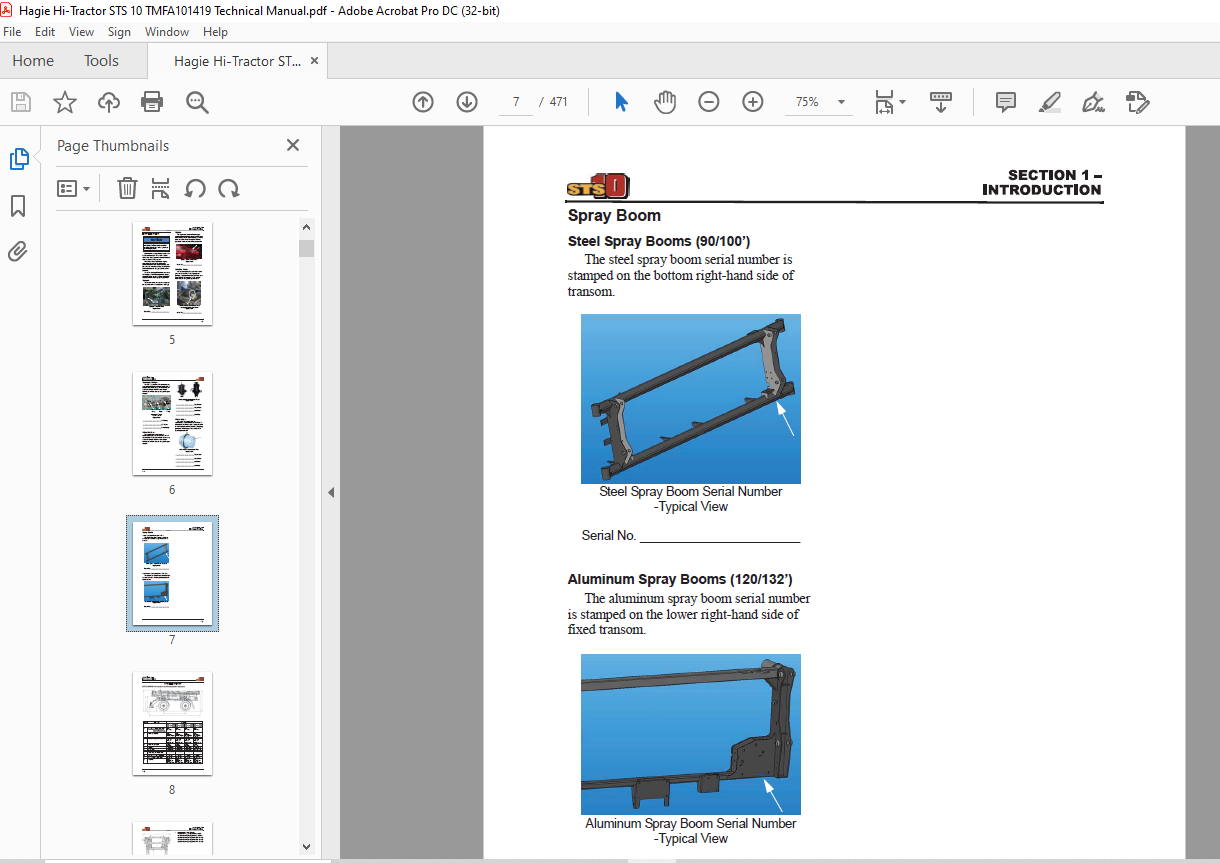

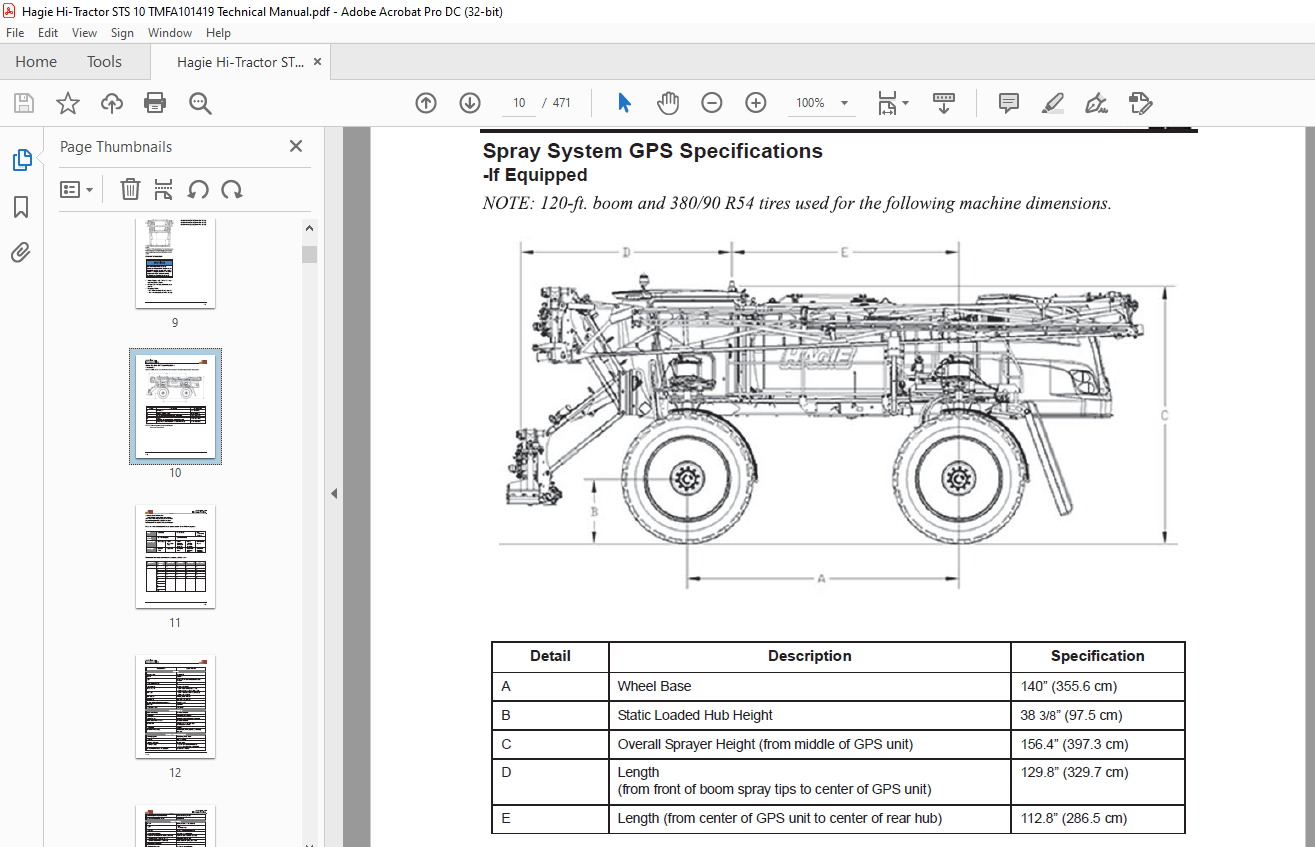

IMAGES PREVIEW OF THE MANUAL:
