Hagie Hi-Tractor STS 12 Sprayer Operator’s Manual 493473 – PDF DOWNLOAD

Hagie Hi-Tractor STS 12 Sprayer Operator’s Manual 493473 – PDF DOWNLOAD

FILE DETAILS:

Hagie Hi-Tractor STS 12 Sprayer Operator’s Manual 493473 – PDF DOWNLOAD

Language : English
Pages : 814
Downloadable : Yes
File Type : PDF
Size: 115 MB

DESCRIPTION:

Hagie Hi-Tractor STS 12 Sprayer Operator’s Manual 493473 – PDF DOWNLOAD

SERIAL NUMBERS:U1601001001 thru U1601001100

TO THE OPERATOR:

• The following pages and illustrations will help you operate and service your new sprayer. It is the
  responsibility of the user to read the Operator’s Manual and comply with the safe correct operating
  procedures and lubricate and maintain the product according to the maintenance schedule.
• The user is responsible for inspecting the machine and having parts repaired or replaced when
  continued use of the product causes damage or excessive wear to other parts.

Operate Safely:
• Before moving sprayer, make sure there are no obstacles or persons in the path of travel.
• Never operate a machine in the same field as walking personnel.
• Always drive at a reasonable field speed.
• Never operate sprayer on roadway with any solution in the tank. Additional weight caused from partially full or full solution tanks may cause erratic or increased stopping distance.
• Never operate the sprayer at transport speeds with a full tank. The wheel motors and planetary gear hubs are not rated to with stand high speeds under full loads and may over heat or blow out.
• Pull over to the side of the road before stopping.
• Always come to a complete stop before reversing directions.
• Keep a fire extinguisher close at all times.
• Keep all shields in place.
• Keep clear of all moving parts and keep others away when operating.
• Do not wear loose fitting clothing that may be blown or drawn into moving parts.
• Do not activate parking brake while machine is in motion.

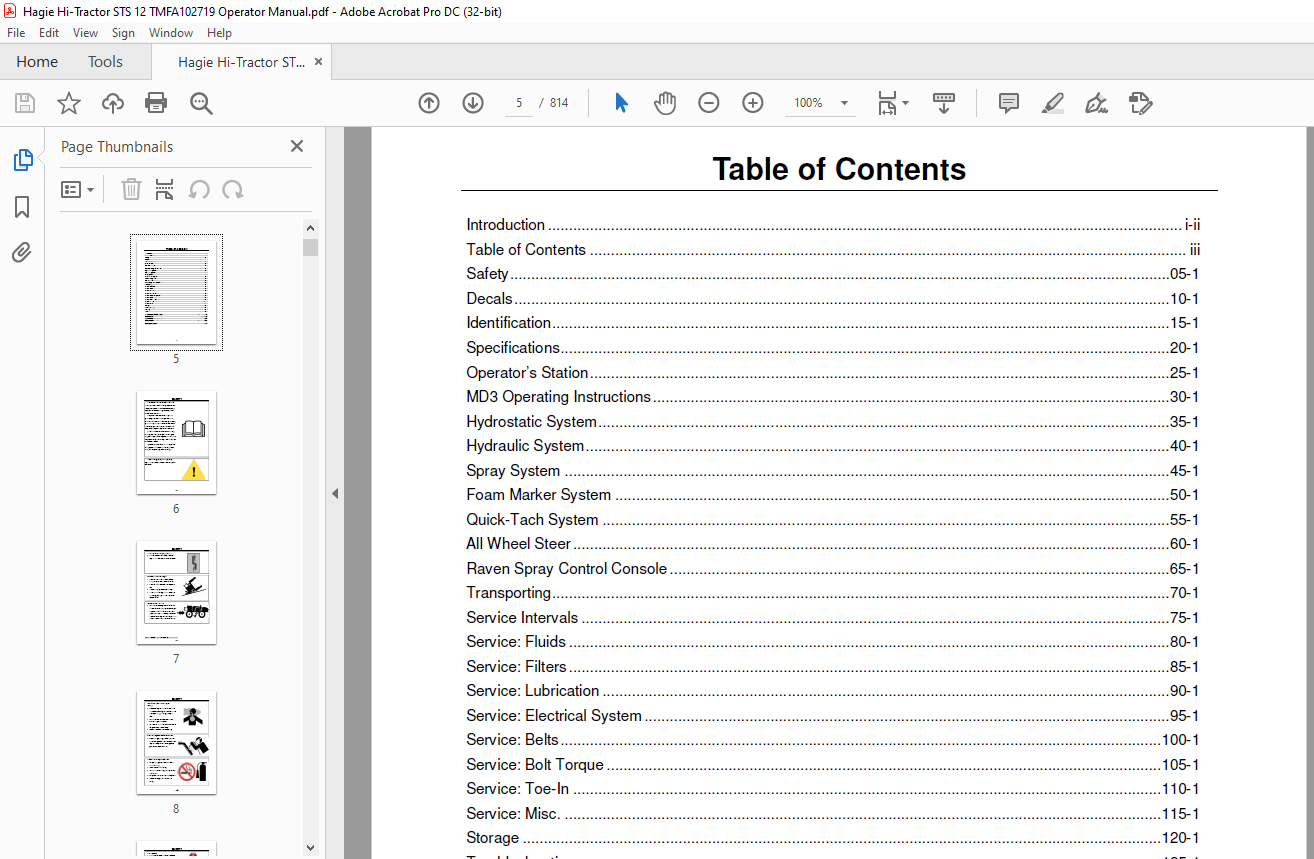

TABLE OF CONTENTS:

Hagie Hi-Tractor STS 12 Sprayer Operator’s Manual 493473 – PDF DOWNLOAD

Introduction i-ii
Table of Contents iii
Safety 05-1
Decals 10-1
Identification 15-1
Specifications 20-1
Operator’s Station 25-1
MD3 Operating Instructions 30-1
Hydrostatic System 35-1
Hydraulic System 40-1
Spray System 45-1
Foam Marker System 50-1
Quick-Tach System 55-1
All Wheel Steer 60-1
Raven Spray Control Console 65-1
Transporting 70-1
Service Intervals 75-1
Service: Fluids 80-1
Service: Filters 85-1
Service: Lubrication 90-1
Service: Electrical System 95-1
Service: Belts 100-1
Service: Bolt Torque 105-1
Service: Toe-In 110-1
Service: Misc 115-1
Storage 120-1
Troubleshooting 125-1
Warranty 130-1
Index 135-1
211-Diagnostic􀀍Trouble􀀍Codes 􀀍1-6
240-Electrical 1-9
250-Drivetrain 1-245
270-Hydraulics 1-261
280-Solution􀀜System 1-97

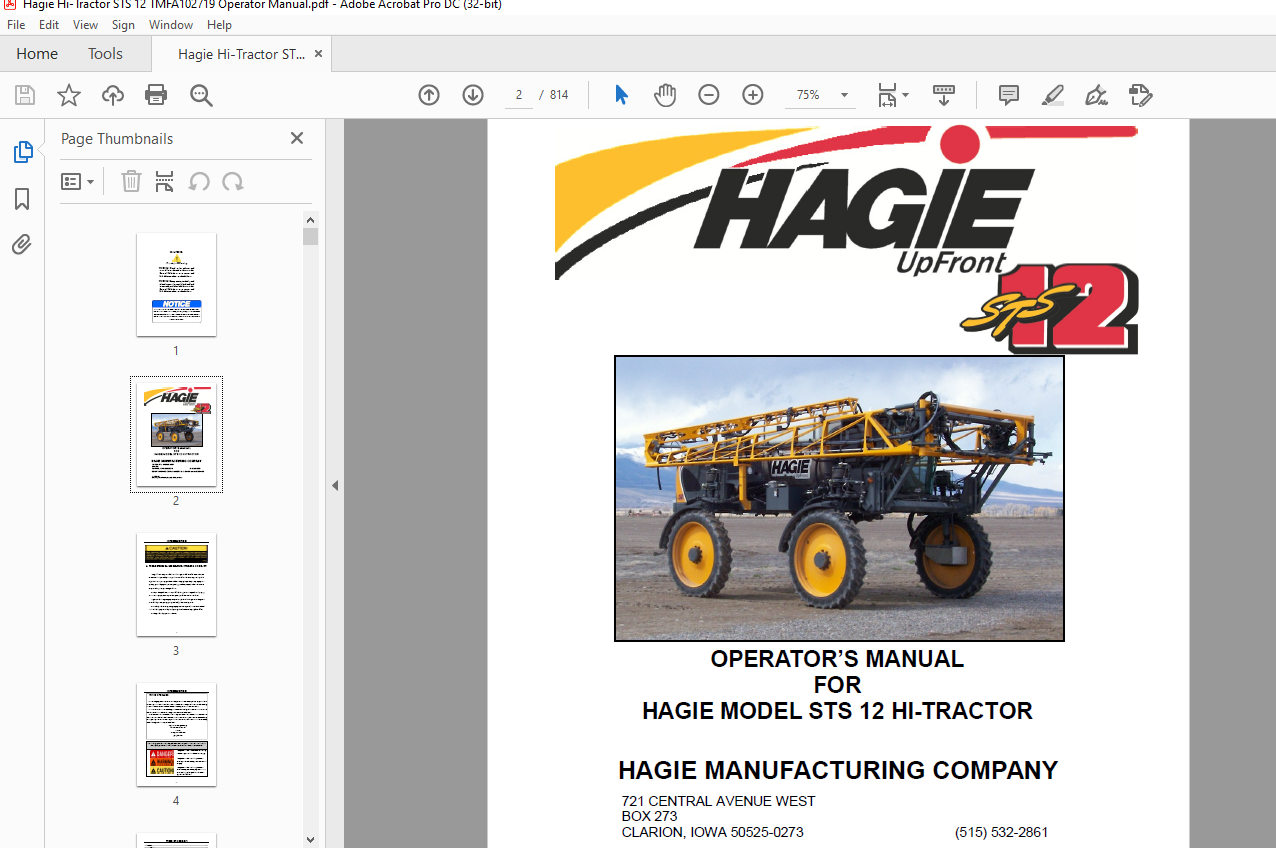

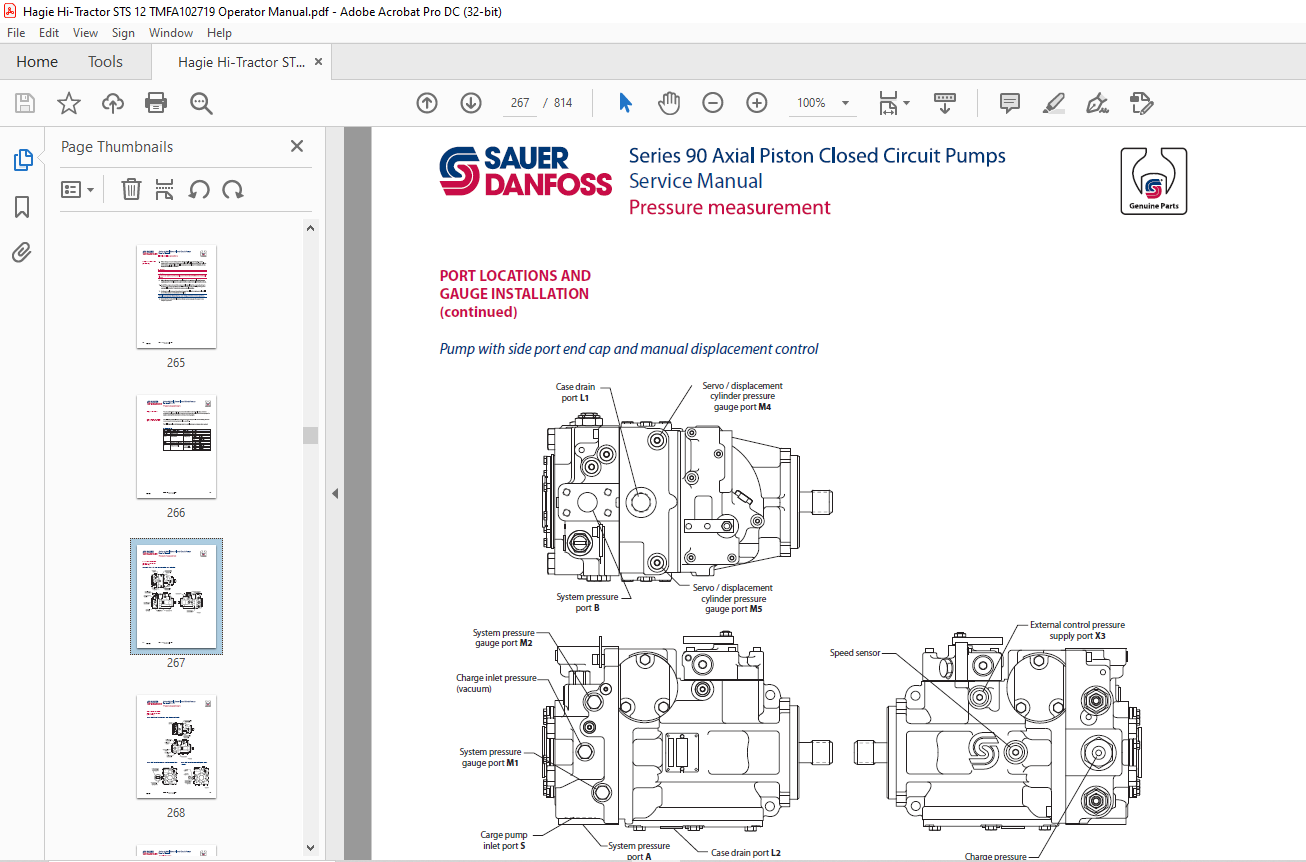

IMAGES PREVIEW OF THE MANUAL:
